QA1 62-72 Mopar B Body/70-74 E Body Front Double Adjustable Coilover System

Mopar, 66-72 70-74 B/E-Body, Double Adjustable, 400 Lb/In Convert your classic Dodge Charger, Dodge Challenger, and Plymouth Barracuda from torsion bar suspension to a QA1 coil-over system. Kits include a tubular K member for reduced weight and room for big-tube headers. Modular motor mounts offer many engine options-including Gen 3 Hemis. Systems easily bolt-in without any cutting or welding. QA1 tubular control arms and rack-and-pinion steering greatly improve drivability and performance while providing a modern feel. Kits include single- or double-adjustable QA1 coil-overs to easily dial in your preferred ride quality and ride height. Optional MOD Series shocks provide peak performance on the track and drag strip. Kits are available in drag or handling configurations. Drag kits use rod ends on both upper and lower control arms to improve weight transfer by reducing deflection. They include a lighter spring rate to improve rear grip during hard launches. Drag kits offer 0"-2" of drop. Handling kits use poly bushings on lower control arms to provide improved cornering and reduced NVH. They incorporate a heavier spring rate for increased front-end stability. Handling kits are available with 0"-2" or 2"-4" of drop. Both kits can be paired with an optional QA1 front sway bar. QA1 systems are made in the USA. Single- and double-adjustable shocks are eligible for a Limited Lifetime Warranty. Fitment notes: Single-adjustable shocks are recommended for cars used primarily on the street. Double-adjustable coil-overs are recommended for consistent drag racing, autocross or road racing. MOD Series shocks are recommended for maximum tunability and higher force curves. Gen 3 Hemi power steering pumps require a pressure reducer and the installation of a power steering cooler. Coil-overs and control arms in this kit can NOT be used with other QA1 tubular products designed for torsion bar suspension. Kits use Mustang II spindles for plenty of brake options. Kits with 2"-4" of drop require wheels to be least 18" in diameter.

• Maximize the performance of Mopar A, B & E body vehicles
• Improve drivability & ride quality
• Increase cornering ability
• Adjustable ride height
• Best-in-class warranty
• Adjustable shocks
• Made in the USA

Upgrade the front suspension of your classic Mopar with the QA1 qap52347-D400 double-adjustable coil-over system. Designed for select 1966-1972 B-body and 1970-1974 E-body vehicles, this complete system replaces the original torsion bar suspension with a modern coil-over setup that improves ride quality, handling, adjustability, and overall drivability. It is well suited for Dodge Charger, Dodge Challenger, Plymouth Barracuda, and other compatible Mopar applications.

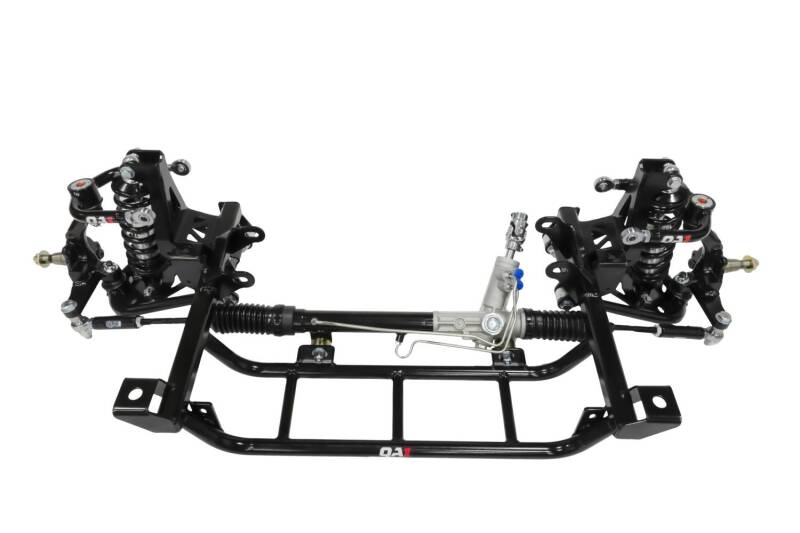

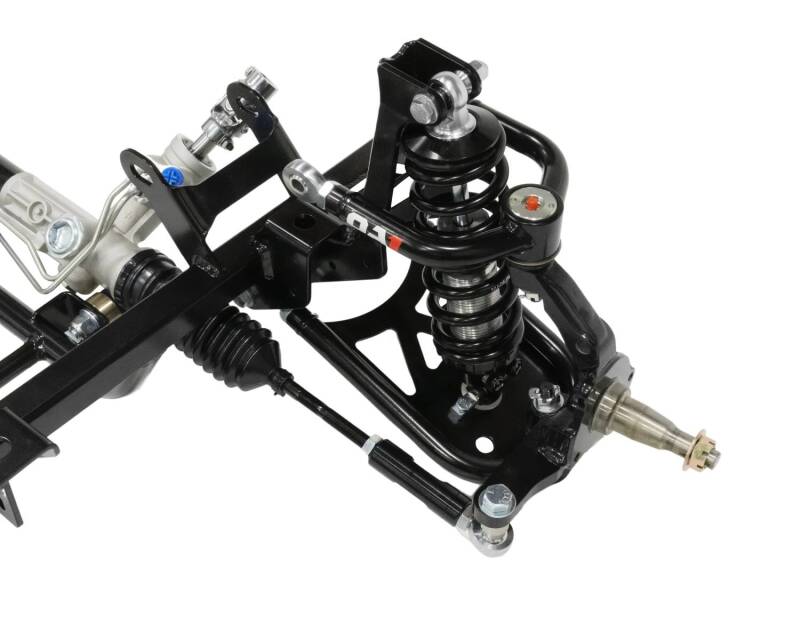

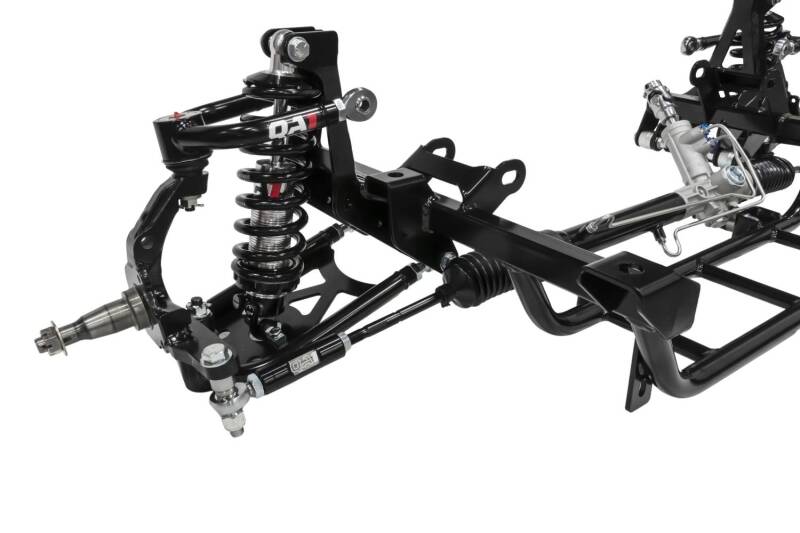

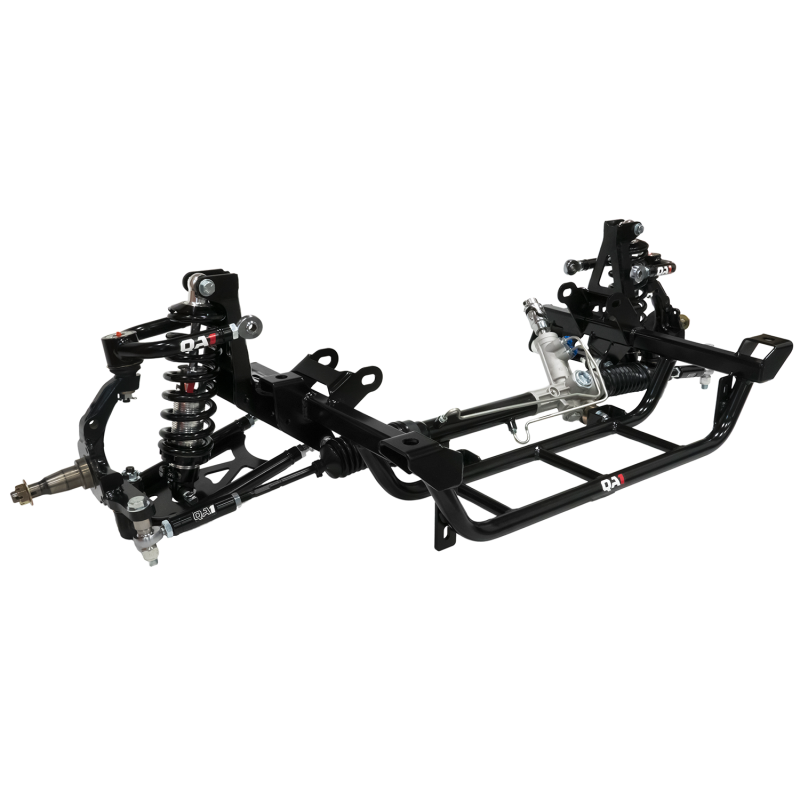

The system includes a lightweight tubular K-member with clearance for large-tube headers, modular motor mounts for a wide range of engine options, QA1 tubular control arms, rack-and-pinion steering, and double-adjustable QA1 coil-over shocks. The suspension bolts in without cutting or welding and provides adjustable ride height along with independent compression and rebound tuning. Double-adjustable shocks are recommended for consistent drag racing, autocross, and road racing, while optional MOD Series shocks are available for maximum tuning capability and higher force curves.

This configuration uses a handling-oriented design with poly bushings on the lower control arms to improve cornering response while helping reduce noise, vibration, and harshness. Kits are available with different drop ranges, and the applicable configuration supports a 0-2 inch or 2-4 inch drop depending on the selected setup. Systems with a 2-4 inch drop require wheels at least 18 inches in diameter. The kit uses Mustang II spindles, allowing numerous brake upgrade options, and it may be paired with an optional QA1 front sway bar.

QA1 manufactures this suspension system in the USA and backs its single- and double-adjustable shocks with a Limited Lifetime Warranty. Gen 3 Hemi power steering pumps require a pressure reducer and power steering cooler. Coil-overs and control arms included with this kit cannot be combined with other QA1 tubular products designed for torsion bar suspension. Verify vehicle application and suspension configuration before installation.

Features:

• Designed for select 1966-1972 Mopar B-body and 1970-1974 E-body vehicles
• Converts torsion bar suspension to an adjustable QA1 coil-over system
• Double-adjustable shocks provide independent compression and rebound tuning
• Tubular K-member reduces weight and provides clearance for large-tube headers
• Modular motor mounts support multiple engine combinations, including Gen 3 Hemi applications
• QA1 tubular control arms and rack-and-pinion steering improve handling and drivability
• Handling configuration uses poly bushings on the lower control arms
• Adjustable ride height with available 0-2 inch or 2-4 inch drop configurations
• Mustang II spindles provide extensive brake upgrade options
• Made in the USA with Limited Lifetime Warranty eligibility for adjustable shocks

Fitment:
Dodge Challenger Base 1970
Dodge Challenger Base 1971
Dodge Challenger Base 1972
Dodge Challenger Base 1973
Dodge Challenger Base 1974
Dodge Challenger R/T 1970
Dodge Challenger R/T 1971
Dodge Challenger Rallye 1972
Dodge Challenger T/A 1970
Dodge Charger 500 1969
Dodge Charger 500 1970
Dodge Charger 500 1971
Dodge Charger Base 1966
Dodge Charger Base 1967
Dodge Charger Base 1968
Dodge Charger Base 1969
Dodge Charger Base 1970
Dodge Charger Base 1971
Dodge Charger Base 1972
Dodge Charger Daytona 1969
Dodge Charger R/T 1967
Dodge Charger R/T 1968
Dodge Charger R/T 1969
Dodge Charger R/T 1970
Dodge Charger R/T 1971
Dodge Charger SE 1969
Dodge Charger Special Edition 1971
Dodge Charger Special Edition 1972
Dodge Charger Super Bee 1971
Dodge Coronet 440 1966
Dodge Coronet 440 1967
Dodge Coronet 440 1968
Dodge Coronet 440 1969
Dodge Coronet 440 1970
Dodge Coronet 500 1966
Dodge Coronet 500 1967
Dodge Coronet 500 1968
Dodge Coronet 500 1969
Dodge Coronet 500 1970
Dodge Coronet Base 1966
Dodge Coronet Base 1967
Dodge Coronet Base 1970
Dodge Coronet Base 1971
Dodge Coronet Base 1972
Dodge Coronet Brougham 1971
Dodge Coronet Crestwood 1971
Dodge Coronet Crestwood 1972
Dodge Coronet Custom 1971
Dodge Coronet Custom 1972
Dodge Coronet Deluxe 1966
Dodge Coronet Deluxe 1968
Dodge Coronet Deluxe 1969
Dodge Coronet Deluxe 1970
Dodge Coronet R/T 1967
Dodge Coronet R/T 1968
Dodge Coronet R/T 1969
Dodge Coronet R/T 1970
Dodge Coronet Super Bee 1968
Dodge Coronet Super Bee 1969
Dodge Coronet Super Bee 1970
Plymouth Barracuda Base 1970
Plymouth Barracuda Base 1971
Plymouth Barracuda Base 1972
Plymouth Barracuda Base 1973
Plymouth Barracuda Base 1974
Plymouth Barracuda Gran Coupe 1970
Plymouth Barracuda Gran Coupe 1971
Plymouth Belvedere Base 1966
Plymouth Belvedere Base 1967
Plymouth Belvedere Base 1968
Plymouth Belvedere Base 1969
Plymouth Belvedere Base 1970
Plymouth Belvedere Satellite 1968
Plymouth Belvedere Satellite 1969
Plymouth Belvedere Satellite 1970
Plymouth GTX Base 1967
Plymouth GTX Base 1968
Plymouth GTX Base 1969
Plymouth GTX Base 1970
Plymouth GTX Base 1971
Plymouth Road Runner Base 1968
Plymouth Road Runner Base 1969
Plymouth Road Runner Base 1970
Plymouth Road Runner Base 1971
Plymouth Road Runner Base 1972
Plymouth Satellite Base 1966
Plymouth Satellite Base 1967
Plymouth Satellite Base 1968
Plymouth Satellite Base 1969
Plymouth Satellite Base 1970
Plymouth Satellite Base 1971
Plymouth Satellite Base 1972
Plymouth Satellite Brougham 1971
Plymouth Satellite Custom 1971
Plymouth Satellite Custom 1972
Plymouth Satellite Regent 1971
Plymouth Satellite Regent 1972
Plymouth Satellite Sebring 1971
Plymouth Satellite Sebring 1972
Plymouth Satellite Sebring Plus 1971
Plymouth Satellite Sebring Plus 1972
Plymouth Satellite Sport 1968
Plymouth Satellite Sport 1969
Plymouth Satellite Sport 1970
