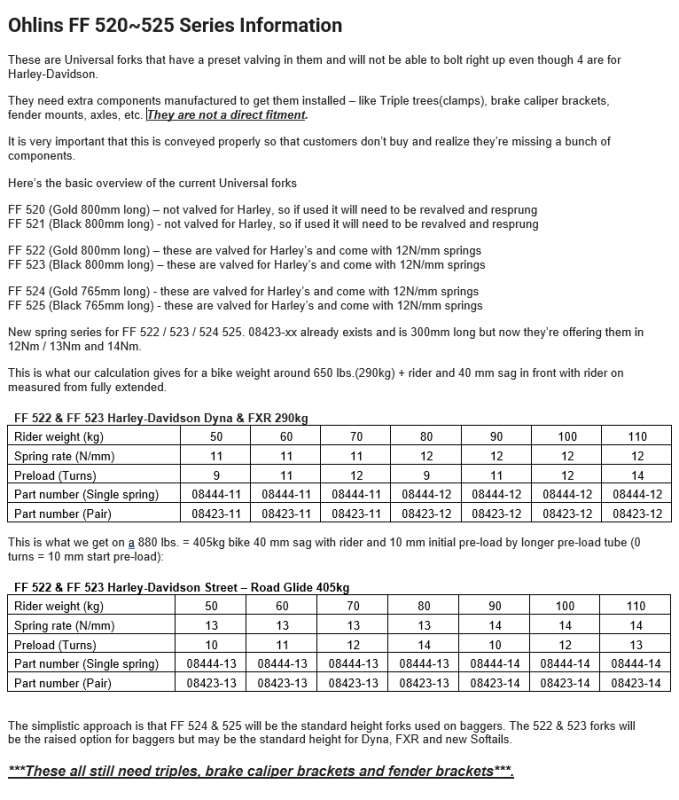

Ohlins Front Fork USD Universal 50/54/800 Gold *See Tech Notes*

All custom gold forks are fully adjustable, with proven performance throughout years of various applications. Perfect for cafe racers, scramblers and other custom applications, the FF 520 features a top cap that allows the adjustment of spring preload and compression, in each leg individually. An external adjuster on the bottom clamps lets you customize the rebound. Clean fork bottoms without brake caliper mountings provides a clean look for those with left-side only brake setups.

• 50mm dia. top clamp, 54mm dia. lower clamp
• 120mm stroke, 800mm length
• 8.5 N/mm spring rate
• 32mm wheel axle

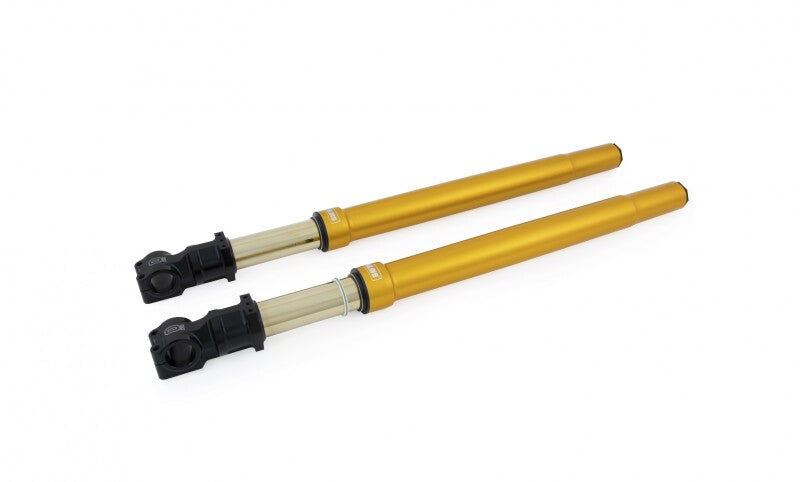

The Öhlins FF 520 Universal USD Front Fork is designed for custom motorcycle builds that demand refined suspension performance and a clean, adaptable appearance. Fully adjustable and developed through years of varied applications, this gold-finished front fork is well suited for café racers, scramblers, and other custom powersports projects. Its clean fork bottoms do not include brake caliper mountings, making it an excellent choice for configurations that use a left-side-only brake setup.
The Öhlins FF 520, part number ohlFF 520, features adjustment controls integrated into both fork legs. The top caps allow independent spring preload and compression adjustment, helping you fine-tune the front suspension for rider preference, motorcycle setup, and changing riding conditions. An external rebound adjuster located on the bottom clamps provides additional control over suspension response and chassis behavior.
This universal upside-down fork uses a 50mm upper clamp diameter and a 54mm lower clamp diameter, with an 800mm overall fork length and 120mm of travel. An 8.5 N/mm spring rate supports predictable handling, while the 32mm wheel axle provides a robust foundation for compatible custom wheel and front-end installations. Verify fitment, wheel compatibility, brake configuration, and Öhlins technical requirements before installation.

Features:

• Brand: Öhlins

• Part Number: ohlFF 520

• Application: Universal upside-down front fork for custom motorcycles

• Finish: Gold

• Adjustment: Independent spring preload and compression adjustment in each fork leg

• Adjustment: External rebound adjustment at the bottom clamps

• Brake Configuration: Clean fork bottoms without brake caliper mountings

• Clamp Diameter: 50mm upper clamp and 54mm lower clamp

• Travel: 120mm

• Fork Length: 800mm

• Spring Rate: 8.5 N/mm

• Wheel Axle: 32mm
