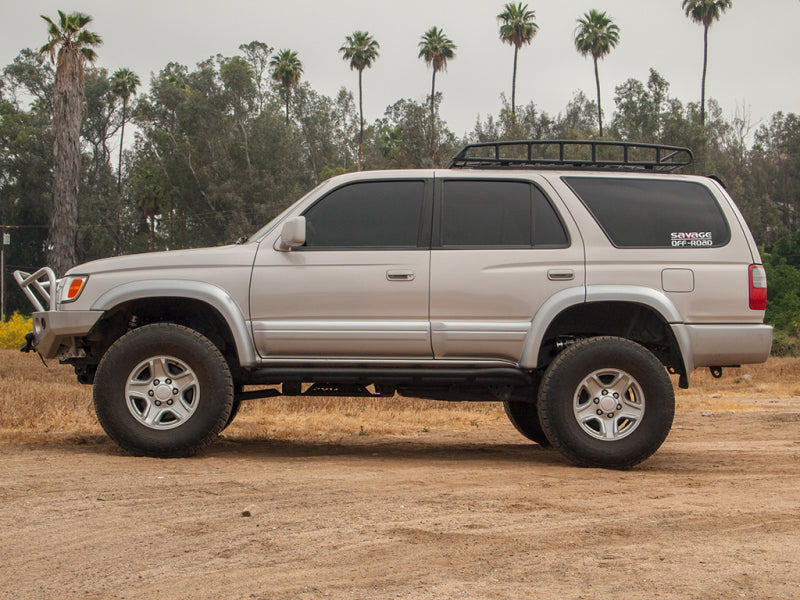

ICON 96-02 Toyota 4Runner 0-3in. Stage 3 Suspension System W/ Billet Upper Control Arms

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 3 suspension system on and off-road performance is significantly improved with 2.5 VS Series Extended Travel Remote Reservoir Coilovers and 2.0 Aluminum Series rear shocks that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota 4Runner with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. ICON engineered rear coil springs increase rear suspension performance while also providing 1" of rear end lift. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 3 suspension system is an excellent choice for those drivers looking to drastically improve the performance and handling characteristics of their 3rd Gen on the road as well as in the dirt. ICON 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• ICON engineered rear coils provide 1" of lift and improved performance
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• CNC machined 6061 aircraft-grade aluminum components
• Increased wheel travel and ride quality over stock
• Coilovers are adjustable from 0-3" of lift height
• Bolt-on design makes for straightforward install
• Shocks are fully rebuildable and revalveable
• Decreased body roll

Enhance your 1996-2002 Toyota 4Runner's off-road capabilities and on-road handling with the ICON Stage 3 suspension system, engineered for maximum performance and durability. This comprehensive kit includes 2.5 VS Series Extended Travel Remote Reservoir Coilovers and 2.0 Aluminum Series rear shocks, both featuring ICON's proprietary coil springs, vehicle-specific shock valving, FK Rod End bearings, and CNC-machined components for superior damping and control. The adjustable coilovers allow for up to 3 inches of lift, accommodating larger tires and aggressive wheel setups while maintaining optimal ride quality. Fully serviceable, these shocks can be rebuilt or re-valved to fine-tune your vehicle’s performance, ensuring long-term reliability and customization options. The included billet aluminum upper control arms improve front-end geometry, offering increased camber and caster adjustment, enhanced suspension clearance, and strengthened construction for added durability. Replacing the OEM ball joints with ICON’s Delta Joints provides full bump and droop travel, eliminating bind and improving articulation in demanding off-road conditions. ICON's rear coil springs lift the rear of the vehicle by 1 inch, boosting rear suspension performance and stability. Designed with maximum wheel travel and damping ability in mind, this kit delivers outstanding control, handling, and ride comfort both on-road and off-road. The bolt-on installation process simplifies upgrading, while the corrosion-resistant CAD-plated shock bodies and aircraft-grade aluminum components ensure longevity and resistance to harsh environments. This system is an ideal choice for serious drivers seeking to elevate their 3rd Gen 4Runner’s performance, whether tackling rugged trails or enhancing daily driving dynamics.

Features:

• Billet aluminum upper control arms for added strength, durability, and on-vehicle caster/camber adjustment

• Vehicle-specific tuned front and rear shocks for superior damping and control

• ICON engineered rear coil springs providing 1 inch of lift and improved suspension performance

• Corrosion-resistant CAD plated coilover shock body with 7/8 inch shaft for durability

• FK Rod End bearings for extended longevity and minimal deflection

• CNC machined 6061 aircraft-grade aluminum components for strength and precision

• Increased wheel travel and ride quality over stock components

• Coilovers are adjustable from 0 to 3 inches of lift for versatile customization

• Bolt-on design for straightforward installation

• Fully rebuildable and revalveable shocks for long-term serviceability

• Decreases body roll, enhancing vehicle stability and handling

Fitment:
Toyota 4Runner Base 1996
Toyota 4Runner Base 1997
Toyota 4Runner Base 1998
Toyota 4Runner Base 1999
Toyota 4Runner Base 2000
Toyota 4Runner Base 2001
Toyota 4Runner Limited 1996
Toyota 4Runner Limited 1997
Toyota 4Runner Limited 1998
Toyota 4Runner Limited 1999
Toyota 4Runner Limited 2000
Toyota 4Runner Limited 2001
Toyota 4Runner Limited 2002
Toyota 4Runner SR5 1996
Toyota 4Runner SR5 1997
Toyota 4Runner SR5 1998
Toyota 4Runner SR5 1999
Toyota 4Runner SR5 2000
Toyota 4Runner SR5 2001
Toyota 4Runner SR5 2002
