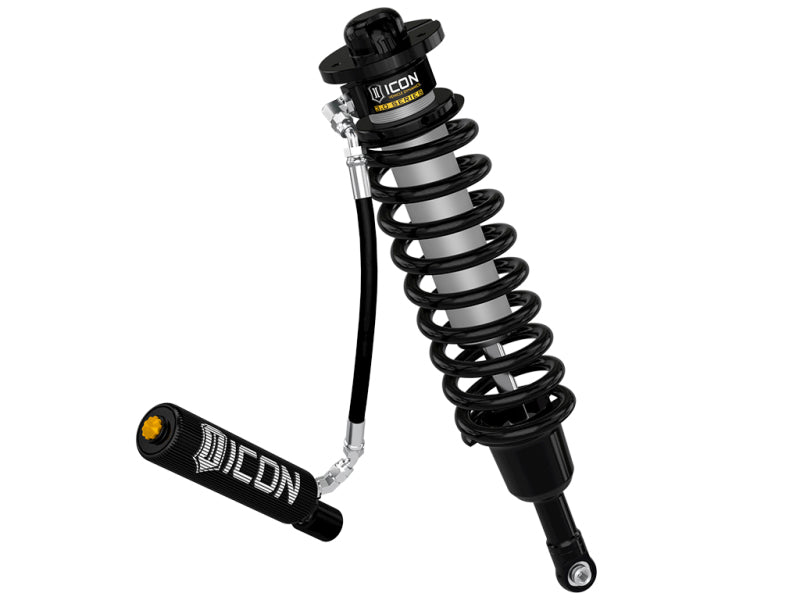

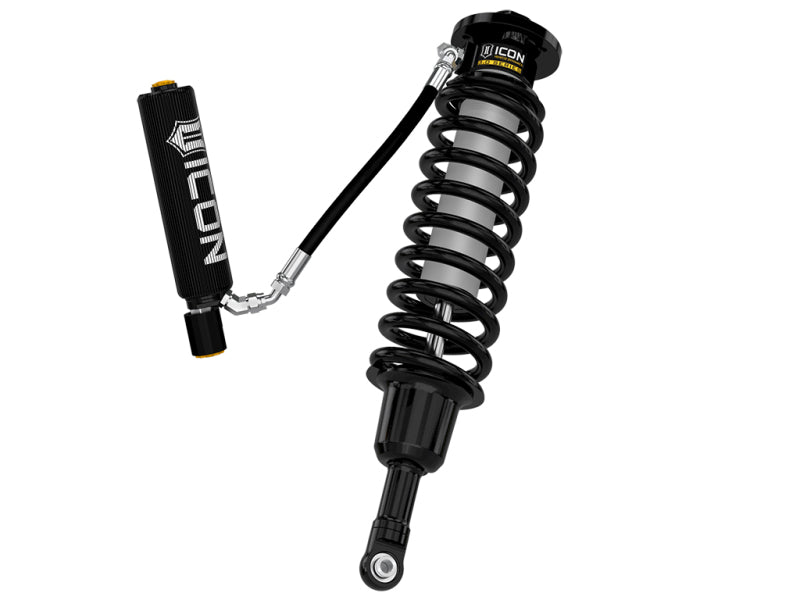

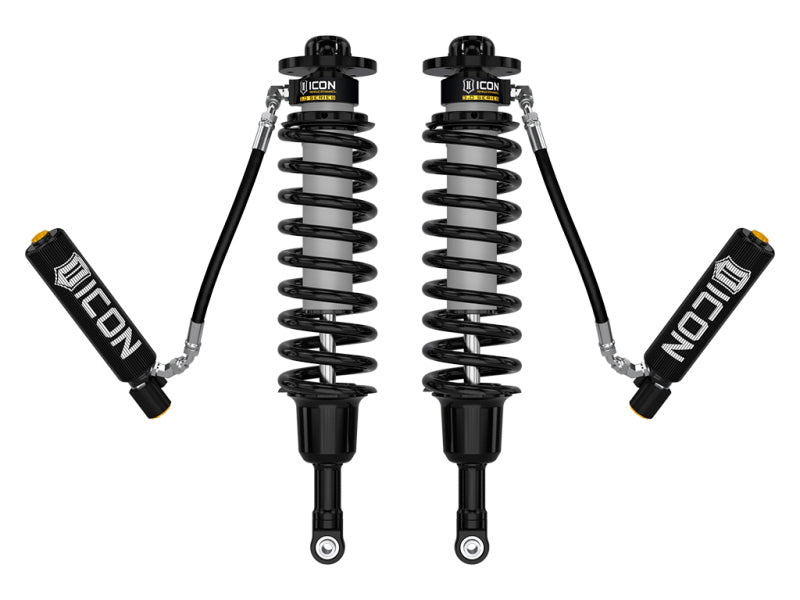

ICON 21-24 Ford F-150 Raptor Front 3.0 VS RR Coilover Kit w/ CDEV

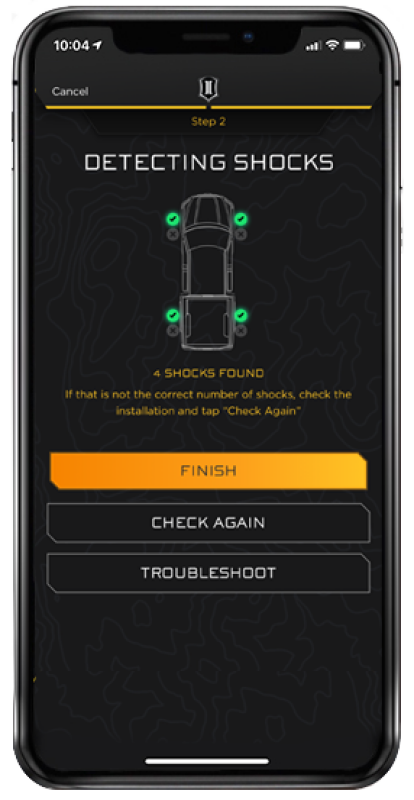

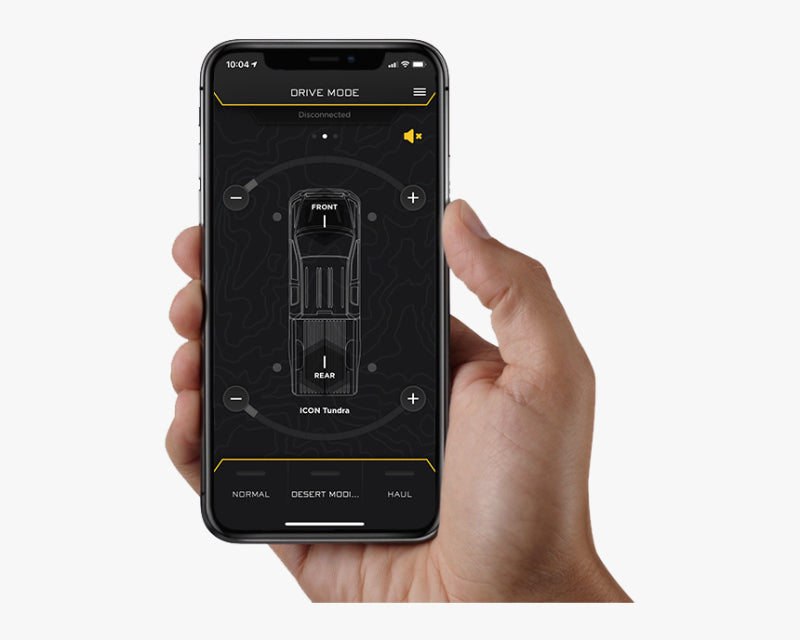

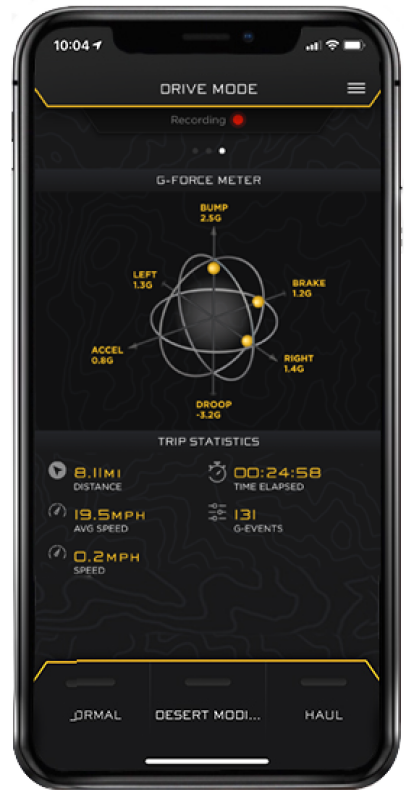

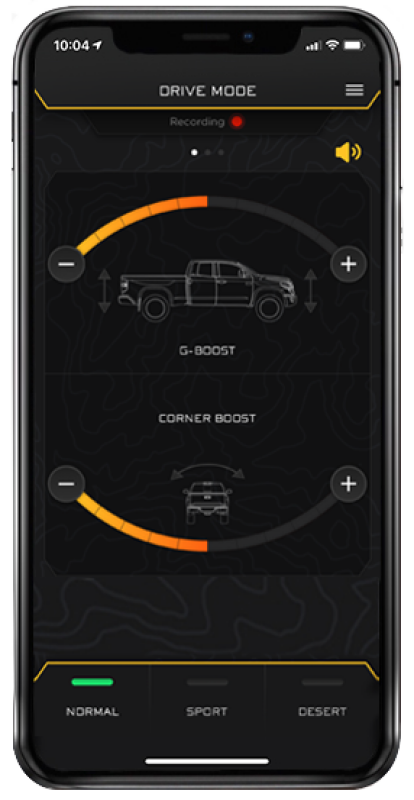

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance and improve upon the functionality provided by the factory active shock system. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control (IIC) and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. With the shock absorbers no longer directly wired to the Raptor's ECU the IIC/CDEV system also allows drivers to dial in their preferred shock damping settings independently from the selected vehicle drive mode and with more refined resolution than afforded by the factory system. This allows for a more customized vehicle set up with the perfect blend of comfort and performance. 2017-2026 FORD RAPTOR FRONT 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT APPLICATION NOTE #231: Vehicles equipped with dual solenoid OE shock absorbers also require damper interface device not currently offered by ICON but available from other third party manufacturers

• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

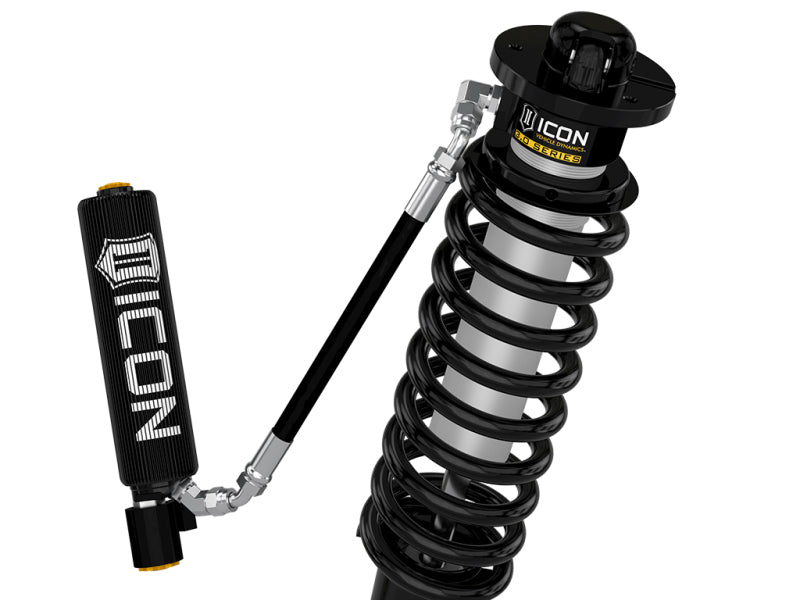

• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Barreled coil spring design maximizes travel and provides more efficient packaging
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• Bolt-in design makes for an easy install into OEM shock location
• Cerakoted shock body with hard anodized piston and top cap
• Adjustable coilovers yield 1-3” of front lift height
• Heavy duty CNC machined 1” shock shafts

Upgrade your Ford F-150 Raptor with the ICON 21-24 Front 3.0 VS RR Coilover Kit featuring advanced Compression Damping Electronic Valves (CDEV). This kit is designed to provide precise, in-vehicle adjustment of compression damping, allowing you to fine-tune your suspension for optimal performance on and off-road. The electronically controlled CDEV valve responds in less than 40 milliseconds, delivering highly responsive damping adjustments tailored to varying terrain conditions. Powered by ICON's innovative Intelligent Control (IIC) system and integrated with a proprietary mobile app, the kit utilizes onboard sensors including G-force and gyroscope data to anticipate terrain changes and automatically modify shock settings for maximum comfort and handling. This setup enables independent customization from the vehicle’s drive modes, giving drivers more control over their suspension performance and ride quality. Made for a wide range of off-road adventures, the kit includes 10-inch finned aluminum reservoirs for enhanced cooling and sustained damping performance, along with ICON’s multi-stage hydraulic “Bump Zone” to exponentially increase bottom-out resistance during aggressive impacts. The coilover design maximizes wheel travel and offers 1 to 3 inches of front lift height, improving ground clearance and off-road capability. Each shock features a cerakoted body with hard anodized piston and top cap, and CNC-machined 1-inch shafts for durability and strength. The coil springs are engineered for longevity, with a fully serviceable design that allows revalving and rebuilding for extended service life. Ease of installation is supported by a bolt-in design compatible with OEM shock locations, making it straightforward for qualified technicians to upgrade your vehicle. Whether tackling rugged trails or seeking improved on-road stability, this coilover kit delivers superior low-speed control, reduced body roll, and reliable performance in all conditions. Tested under rigorous conditions, ICON’s coilovers ensure durability, strength, and consistent performance for the demanding enthusiast.

Features:

• ICON's Compression Damping Electronic Valve (CDEV) enables in-vehicle adjustment of damping settings and active control via ICON Intelligent Control (IIC).

• 10-inch finned aluminum reservoirs provide increased oil capacity and surface area for enhanced cooling and consistent damping.

• Multi-stage hydraulic 'Bump Zone' exponentially increases bottom-out resistance during the last 40% of compression travel.

• Increased wheel travel and vehicle-specific valving ensure superior ride quality across diverse terrain and driving conditions.

• Rigorous 'ICON 1K' testing validates the kit’s performance, strength, and durability in off-road environments.

• High-quality ICON-engineered coil springs offer a lifetime guarantee against sagging or breakage.

• Fully serviceable design allows for revalving, rebuilds, and extended service life.

• Barreled coil spring design maximizes travel and improves packaging efficiency.

• Low-speed control features reduce body roll and increase on-road stability.

• FK Rod End COM12 spherical bearings provide maximum strength and durability.

• Bolt-in installation simplifies replacement into OEM shock locations.

• Cerakoted shock body with hard anodized piston and top cap enhances corrosion resistance and longevity.

• Adjustable coilovers offer 1 to 3 inches of front lift height for improved ground clearance.

• Heavy-duty CNC-machined 1-inch shock shafts deliver increased strength and reliability.

Fitment:
Ford F-150 Raptor 2021
Ford F-150 Raptor 2022
Ford F-150 Raptor 2023
Ford F-150 Raptor 2024
Ford F-150 Raptor 2025
