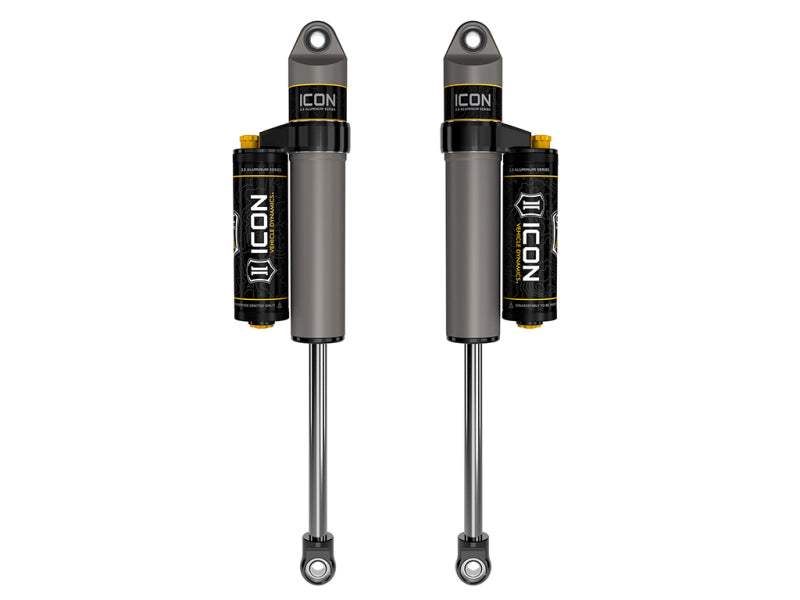

ICON 21-23 Ford F150 Tremor 4WD Rear 2.5 Series Shock VS PB CDCV - Pair

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDCV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The included ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON 2.5 Series shocks are configured specifically for each application in both length and damping tune. Piggyback reservoir improves cooling and creates an internal Bump Zone that when used creates an additional 20% of damping force. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

The ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDCV are engineered to enhance the performance and comfort of your Ford F-150, whether on rugged off-road trails or smooth highway drives. These shocks are tailored specifically for the 2021 and 2022 Ford F-150 models, ensuring a precise fit and optimized damping characteristics for both street and off-road applications. Constructed with high-quality materials, they feature a nitrogen-charged monotube design that provides consistent performance across a wide temperature range and reduces shock fade during prolonged use. The piggyback reservoir design improves heat dissipation, contributing to sustained damping performance during demanding driving conditions. The shocks incorporate ICON’s internal Bump Zone, created with a 6061 billet aluminum manifold, which adds 20% more damping force when needed to prevent harsh bottom outs and control high-velocity suspension compression. The externally adjustable CDC Valve offers 10 distinct compression damping levels, allowing fine-tuning for various terrains and driving preferences. These shocks are fully rebuildable and revalveable, making maintenance and customization straightforward for the enthusiast. The one-piece digressive piston with vehicle-specific valving ensures exceptional ride quality and handling both on and off-road. Impact-extruded, anodized aluminum cylinders provide excellent corrosion resistance and durability, while the 7/8-inch induction-hardened shock shaft delivers strength and longevity. Additional features include PTFE-lined spherical bearings, application-specific mounting hardware, and premium 5WT shock oil for consistent damping. Designed with CNC-machined 6061 aircraft-grade aluminum components, these shocks combine lightweight strength with precision engineering, making them an excellent upgrade for your Ford F-150. Whether you’re upgrading for performance or durability, the ICON 2.5 Series shocks deliver outstanding control, comfort, and reliability for your vehicle’s specific needs.

Features:

• Vehicle-specific design for optimal fit and performance on Ford F-150 (2021-2022)

• Nitrogen-charged monotube construction for consistent damping across temperature ranges

• Piggyback reservoir enhances heat dissipation and reduces shock fade during extended use

• Internal Bump Zone with aluminum manifold provides 20% additional damping force for better control

• Externally adjustable CDC Valve with 10 damping levels for precise tuning

• Impact-extruded, hard anodized aluminum cylinders resist corrosion and ensure durability

• 7/8-inch induction-hardened, chrome-plated shock shaft for strength and longevity

• Premium-grade 5WT shock oil maintains consistent damping performance

• PTFE-lined spherical bearings and application-specific mounting hardware for secure installation

• Fully rebuildable and revalveable for easy maintenance and customization

• 6061 aircraft-grade aluminum CNC machined components combine lightweight strength with precision engineering

Fitment:
Ford F-150 King Ranch 2021
Ford F-150 King Ranch 2022
Ford F-150 King Ranch 2023
Ford F-150 King Ranch 2024
Ford F-150 King Ranch 2025
Ford F-150 Lariat 2021
Ford F-150 Lariat 2022
Ford F-150 Lariat 2023
Ford F-150 Lariat 2024
Ford F-150 Lariat 2025
Ford F-150 Platinum 2021
Ford F-150 Platinum 2022
Ford F-150 Platinum 2023
Ford F-150 Platinum 2024
Ford F-150 Platinum 2025
Ford F-150 Police Responder 2021
Ford F-150 Police Responder 2022
Ford F-150 Police Responder 2023
Ford F-150 Police Responder 2024
Ford F-150 Police Responder 2025
Ford F-150 SSV 2021
Ford F-150 SSV 2022
Ford F-150 SSV 2023
Ford F-150 SSV 2024
Ford F-150 SSV 2025
Ford F-150 STX 2024
Ford F-150 STX 2025
Ford F-150 Tremor 2021
Ford F-150 Tremor 2022
Ford F-150 Tremor 2023
Ford F-150 Tremor 2024
Ford F-150 Tremor 2025
Ford F-150 XL 2021
Ford F-150 XL 2022
Ford F-150 XL 2023
Ford F-150 XL 2024
Ford F-150 XL 2025
Ford F-150 XLT 2021
Ford F-150 XLT 2022
Ford F-150 XLT 2023
Ford F-150 XLT 2024
Ford F-150 XLT 2025
