ICON 2025 Toyota 4Runner 4WD 1.25-3in Front 2.5 VS RR CDCV Coilover Kit

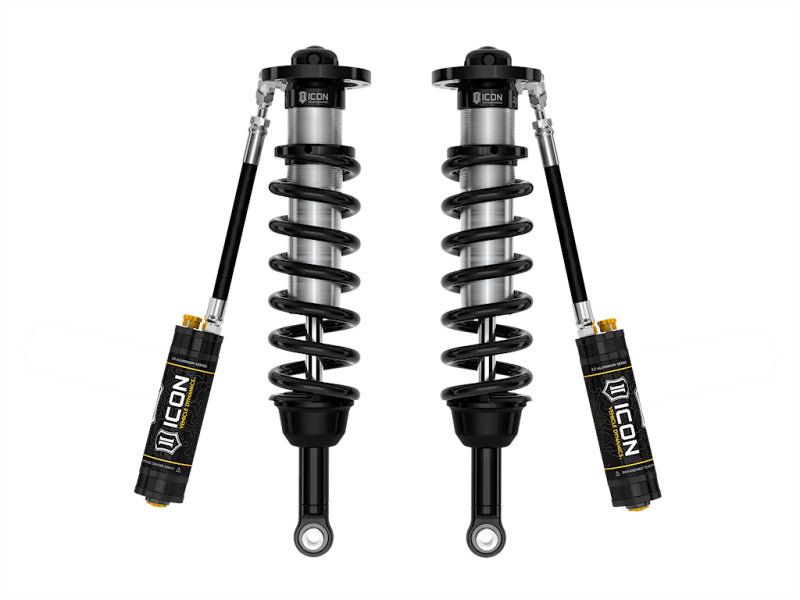

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers.

• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2025-2026 Toyota 4Runner with the ICON Vehicle Dynamics 58795C 2.5 Series remote reservoir CDCV coilover shocks. Designed specifically for 4WD models, these adjustable coilovers provide up to 3 inches of lift, enabling the use of larger and more aggressive wheel and tire combinations for improved off-road capability and aesthetics. The vehicle-specific shock length and valving deliver superior ride quality, offering enhanced control whether you're navigating rocky trails or cruising on the highway. The large 2.5-inch shock bodies with remote reservoirs significantly increase oil volume and surface area, ensuring better heat dissipation and resistance to shock fade during demanding off-road use. This design maintains consistent damping performance, providing a smooth ride and reliable handling in all conditions. The coilovers feature ICON's exclusive Compression Damping Control Valves, which allow precise adjustment of compression damping across 10 settings, giving you the ability to fine-tune your suspension to match your driving style and terrain. The adjustable height range and pairing with ICON's front differential drop on 4WD models maximize wheel travel, improving off-road articulation and overall vehicle control. Constructed from corrosion-resistant CAD plated bodies with 7/8-inch shafts, and utilizing FK rod end bearings for durability, these shocks are built to last and are fully rebuildable and re-tunable, ensuring long-term performance. Fully CNC machined from aircraft-grade 6061 aluminum, the ICON coilovers combine strength, lightweight design, and aesthetic appeal. Whether for daily driving, off-road adventures, or a combination of both, these coilovers deliver a significant upgrade in suspension performance, ride quality, and vehicle versatility for your Toyota 4Runner.

Features:

• 2.5-inch diameter shock bodies with remote reservoirs for increased heat capacity and improved cooling

• Vehicle-specific shock length and valving for superior damping and control

• Adjustable lift height: 1.25 to 3 inches over stock for versatile customization

• ICON CDCV equipped with 10 external compression damping adjustment settings

• Corrosion-resistant CAD plated shock bodies with 7/8-inch shafts for durability

• FK rod end bearings for extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC machined components for strength and lightweight performance

• Fully rebuildable and re-tunable for long-term maintenance and customization

• Engineered coil springs for optimal suspension response

Fitment:
Toyota 4Runner SR5 2025
Toyota 4Runner TRD Off-Road 2025
Toyota 4Runner TRD Off-Road Premium 2025
Toyota 4Runner TRD Sport 2025
Toyota 4Runner TRD Sport Premium 2025
