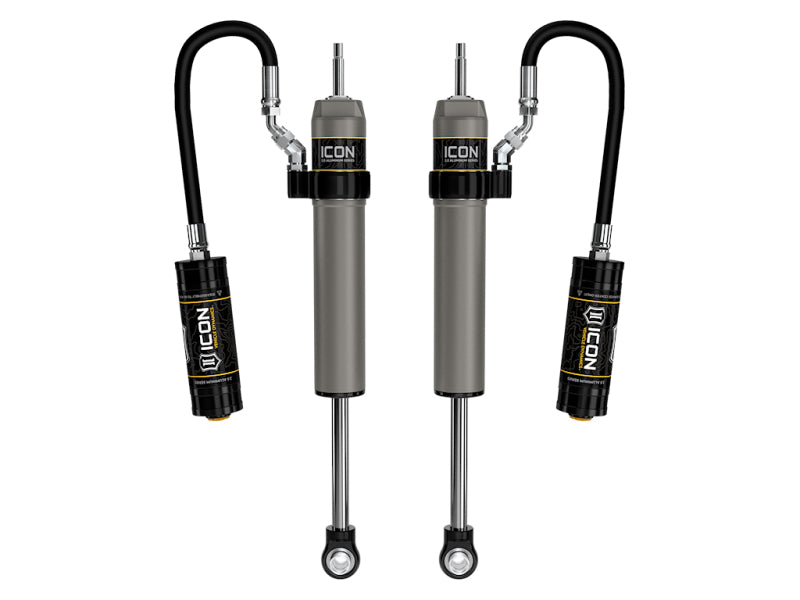

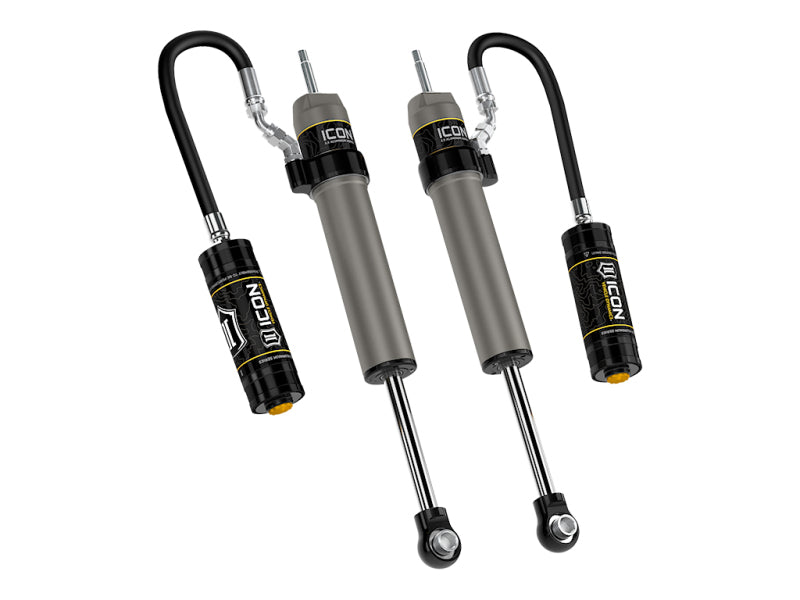

ICON 2025 Toyota 4Runner 0-3in Rear 2.5 VS Aluminum Series Remote Reservoir Shock

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV. ICON V.S. 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• All ICON 2.5 Aluminum Series Remote Reservoir shocks can be upgraded with an ICON compression adjuster (CDCV, CDXS, or CDEV)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft

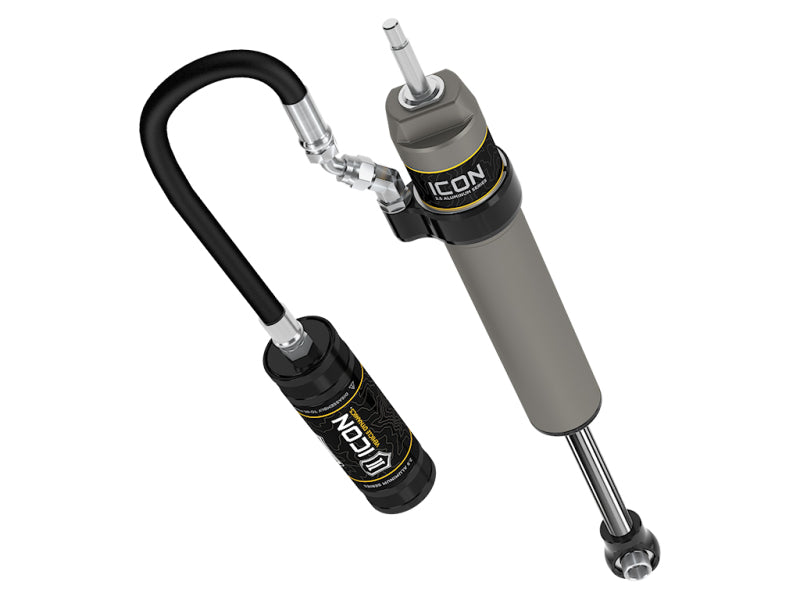

• Nitrogen charged monotube design with remote reservoir
• Rubber dust boot included for added shaft protection
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

The ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are engineered to deliver exceptional off-road performance while maintaining a smooth ride on paved roads. Designed specifically for the 2025 Toyota 4Runner, these shocks feature a custom configuration in both length and damping tune to optimize your vehicle’s handling and comfort. Constructed with a remote reservoir and a lightweight 6061-billet aluminum manifold, these shocks incorporate ICON's innovative Bump Zone technology, which increases damping force by 20% during high-velocity compression, helping to prevent harsh bottom outs and ensuring better suspension control during aggressive driving.
The one-piece digressive piston design with vehicle-specific valving offers superior performance and ride quality, whether on rugged trails or city streets. The impact-extruded, hard anodized aluminum cylinders provide excellent corrosion resistance and a consistent finish, while the premium grade 5WT shock oil maintains damping stability across a wide temperature range. The remote reservoir design enhances heat dissipation, reducing shock fade during extended use, and the nitrogen-charged monotube construction ensures consistent performance under demanding conditions. Additional features include PTFE-lined spherical bearings, application-specific mounting hardware, and a 7/8-inch chrome-plated, induction-hardened shock shaft for durability.
ICON’s shocks are fully rebuildable and re-tunable, offering users the flexibility to customize their suspension setup or perform maintenance over time. The inclusion of rubber dust boots protects the shock shafts from dirt and debris, prolonging service life. These shocks are compatible with ICON compression adjusters (CDCV, CDXS, or CDEV), allowing for on-the-fly tuning to suit different driving styles and terrains. Whether you're tackling challenging off-road trails or seeking improved handling for daily driving, the ICON 2.5 Aluminum Series shocks provide a reliable upgrade that enhances your vehicle's capabilities and ride quality.

Features:

• Vehicle-specific design with custom length and damping tune for optimal performance

• Remote reservoir improves heat dissipation and reduces shock fade during extended use

• Internal Bump Zone increases damping by 20% to prevent harsh bottom outs

• One-piece, hard anodized aluminum cylinders for corrosion resistance and durability

• Premium 5WT shock oil ensures consistent damping across temperature variations

• Nitrogen-charged monotube construction guarantees reliable performance

• PTFE-lined spherical bearings and application-specific mounting hardware for precise fit

• 6061 aircraft-grade aluminum CNC machined components for strength and lightweight design

• Fully rebuildable and re-tunable for customization and maintenance

• Includes rubber dust boot for added shaft protection and longevity

Fitment:
Toyota 4Runner SR5 2025
Toyota 4Runner TRD Off-Road 2025
Toyota 4Runner TRD Off-Road Premium 2025
Toyota 4Runner TRD Sport 2025
Toyota 4Runner TRD Sport Premium 2025
