ICON 2024+ Toyota Tacoma 1.25in-3in Stage 7 Suspension System - Billet

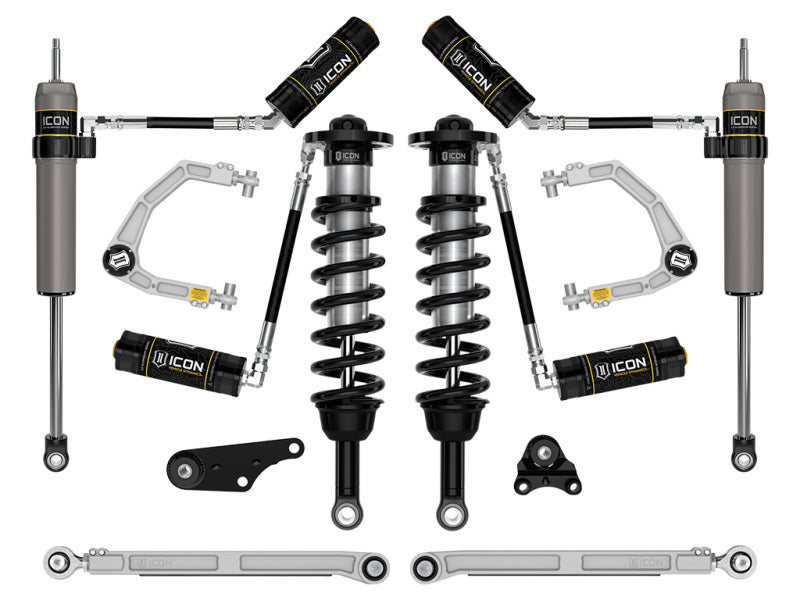

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 7 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

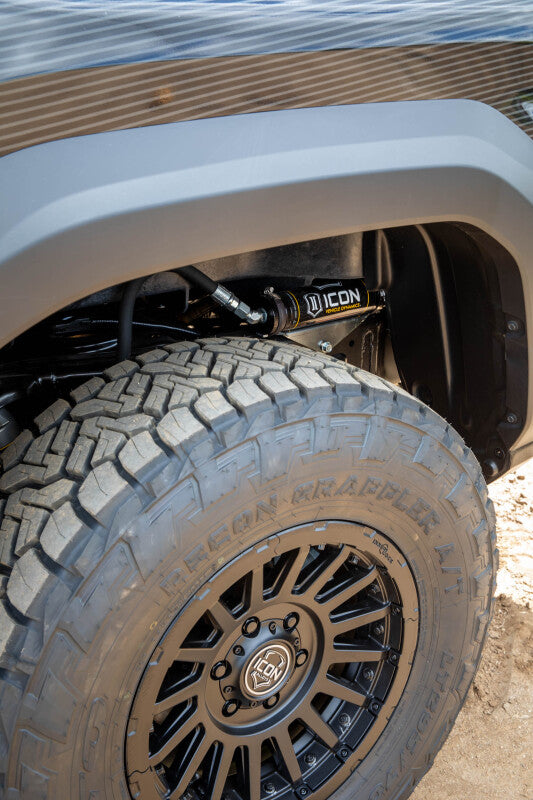

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

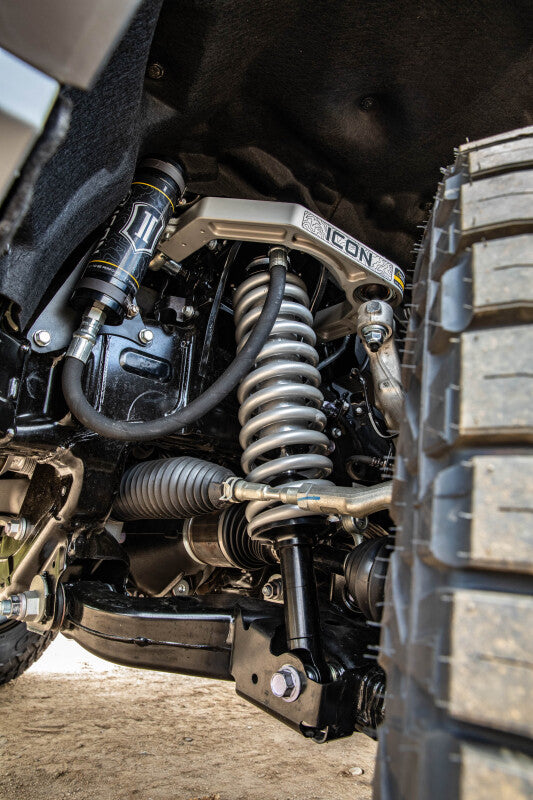

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

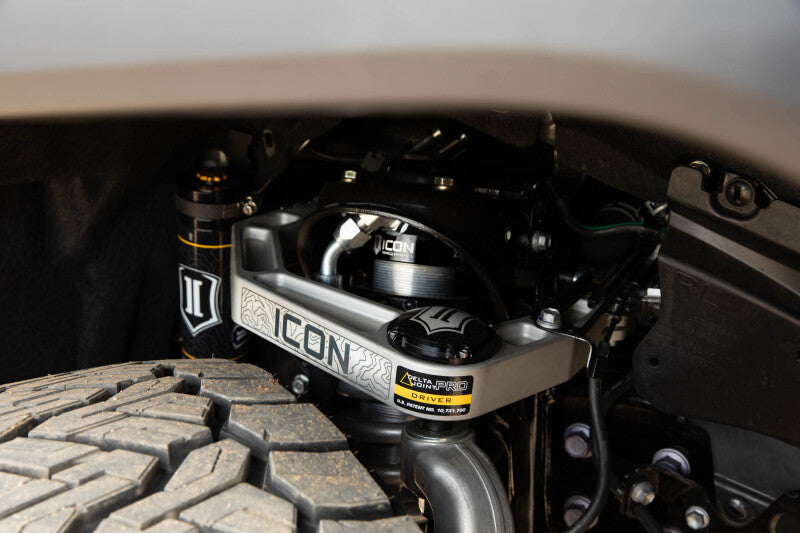

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

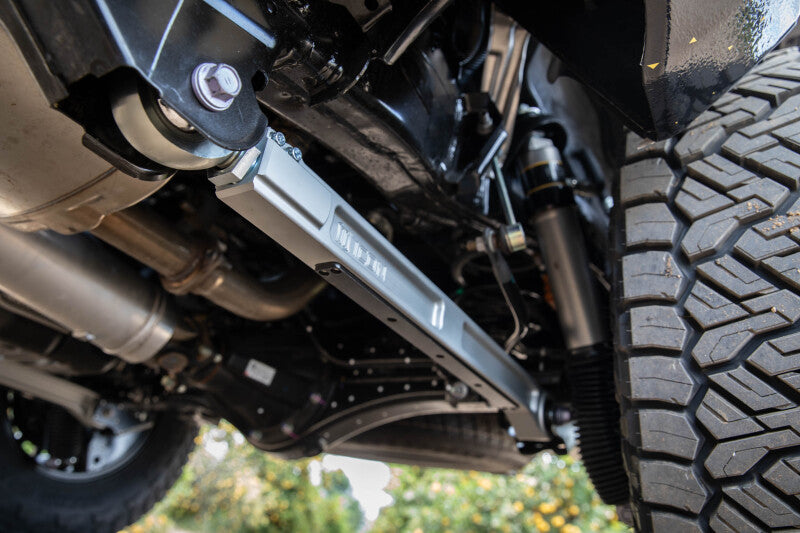

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

Upgrade your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 7 suspension system, engineered for serious drivers seeking maximum performance and control. This comprehensive system enhances wheel travel and damping capacity, delivering outstanding ride quality both on and off-road. The kit features vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs and ICON-engineered coil springs, ensuring superior damping performance and improved heat dissipation to prevent damper fade during demanding use. These coilovers are height adjustable from 1.25 to 3 inches of front lift, enabling the fitment of larger, more aggressive tires for enhanced off-road capability. The inclusion of front differential drop brackets optimizes CV joint angles and maximizes suspension travel, reducing bind and increasing durability. Polyurethane differential bushings replace stock rubber ones to stabilize differential movement under load, contributing to improved handling and stability. The billet aluminum upper control arms are designed to correct front-end geometry, provide increased camber and caster adjustment, and improve suspension component clearance. The ICON Delta Joint PRO ball joint, which is serviceable and rebuildable, replaces the OE ball joint to allow full bump and droop travel without bind, ensuring consistent steering and handling performance. This system is specifically configured for 4WD models, but 2WD variants can be purchased with individual components once the appropriate drop kit is added. Constructed with durable CAD-plated coilover shock bodies and FK rod end bearings, the system offers longevity and minimal deflection. Made from aircraft-grade 6061 aluminum CNC-machined components and featuring ICON-engineered coil springs, this suspension upgrade maximizes wheel travel, ride quality, and vehicle control for serious off-road adventures or daily driving enhancements.

Features:

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8 inch shafts for balanced performance and improved cooling

• Front differential drop brackets for better CV joint angles and increased wheel travel on 4WD models

• Front coilovers with remote reservoirs for superior damping and vehicle control

• Billet aluminum upper control arms for increased strength, durability, and adjustable camber and caster

• Billet rear lower links to improve rear articulation and allow pinion angle adjustments

• Patented Delta Joint PRO ball joints with 90 degrees of articulation for full suspension travel

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8 inch shafts

• FK rod end bearings for extended longevity and minimal deflection

• Adjustable coilovers providing 1.25 to 3 inches of front lift for enhanced off-road capability

• Increased wheel travel and improved ride quality over stock components

• 6061 aircraft-grade aluminum CNC-machined components for strength and precision

• ICON engineered coil springs designed for optimal performance under load

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
