ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Tubular w/ Triple Rate Spring

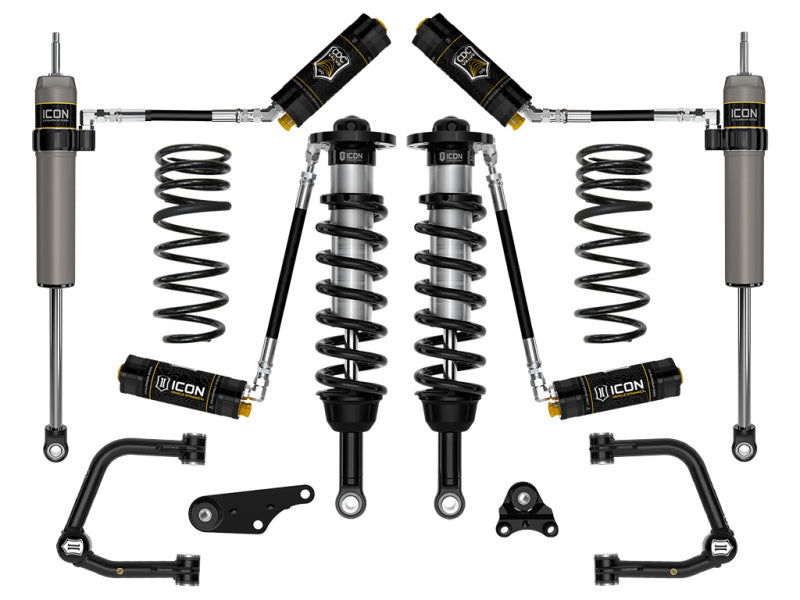

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Enhance your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 5 suspension system, engineered for serious off-road performance and superior on-road comfort. This comprehensive kit features vehicle-specific tuned 2.5 Series coilover shocks equipped with remote reservoirs, which significantly increase shock oil capacity and heat dissipation surface area, reducing risk of damper fade during demanding driving. The externally adjustable CDC Valves offer 10 levels of compression damping force, allowing drivers to customize ride firmness from soft to hard depending on terrain and preference. The front coilovers are height adjustable from 1.25 to 3 inches of lift, providing compatibility with larger tires and more aggressive wheel setups, while maintaining optimal suspension geometry. The inclusion of front differential drop brackets maximizes wheel travel and prevents CV joint bind, ensuring smooth articulation and durability under load. Additionally, polyurethane differential bushings replace softer OE units to help control differential movement, further improving vehicle stability and handling. The rear features triple rate coil springs that enhance ride quality and performance, along with 2.5-inch aluminum series remote reservoir shocks that balance performance with cooling efficiency. All shock bodies are CAD plated for corrosion resistance and equipped with FK rod end bearings for longevity and minimal deflection. The tubular upper control arms (UCAs) utilize the patented Delta Joint Pro, offering 90 degrees of articulation for improved wheel travel and suspension durability. Constructed from 6061 aircraft-grade aluminum, these components provide strength, lightweight performance, and precise alignment correction. Designed specifically for 4WD models, this system provides increased wheel travel, improved ride quality, and a commanding stance, making it ideal for serious off-road enthusiasts seeking maximum performance from their Toyota Tacoma. Please note that this kit is configured for 4WD models; 2WD applications will require different components, which will be available soon.

Features:

• 2.5-inch aluminum series remote reservoir rear shocks with 7/8-inch shafts for increased performance and balanced tuning

• Front differential drop brackets to improve CV joint angles and maximize wheel travel on 4WD models

• Vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and heat dissipation

• CDC Valves with 10 adjustable compression damping settings, from soft to hard, for customized ride control

• Patented Delta Joint Pro upper control arms with 90 degrees of articulation for enhanced suspension travel and durability

• Triple rate rear coil springs for improved ride quality and 0.5-inch rear lift

• Tubular upper control arms crafted from durable materials for added strength and precise alignment

• Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts for longevity in harsh conditions

• FK rod end bearings for reduced deflection and extended component lifespan

• Adjustable coilovers providing 1.25 to 3 inches of front lift over stock for larger tires and improved stance

• Increased wheel travel and enhanced ride quality over stock suspension

• 6061 aircraft-grade aluminum CNC machined components for lightweight strength and durability

• ICON-engineered front and rear coil springs designed for optimal performance and ride comfort

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
