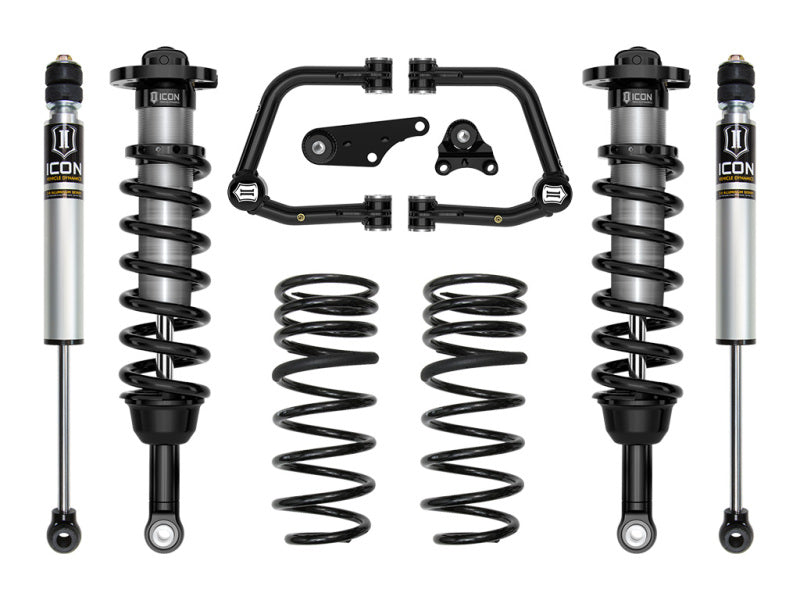

ICON 2024 Toyota Land Cruiser 250 Series Stage 2 Tubular Suspension System, 1.25-3in Lift

The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components

The ICON 2024 Toyota Land Cruiser 250 Series Stage 2 suspension system is engineered to enhance both on-road comfort and off-road performance. Featuring ICON's durable tubular upper control arms, this system improves front-end geometry, increases caster, and offers better suspension component clearance. The included Delta Joint PRO ball joints are rebuildable and serviceable, providing full bump and droop travel without bind, which results in smoother ride quality and improved articulation. The front differential drop optimizes CV joint angles and maximizes wheel travel, contributing to better drivability and durability in demanding conditions. The system's adjustable coilovers enable a lift height ranging from 1.25 to 3 inches over stock, offering a versatile level stance and accommodating various accessories or tire sizes. The dual-rate rear coil springs deliver a softer ride at normal load conditions with a firmer overload rate for enhanced bottoming resistance, while providing a 2-inch lift that maintains a level front-to-rear stance. ICON's aluminum series internal reservoir shocks, specifically tuned for this application, deliver superior damping performance, controlling wheel travel and improving ride quality both on and off-road. Constructed from aerospace-grade 6061 aluminum and featuring corrosion-resistant CAD-plated shock bodies, these components are built for longevity and reliability. FK rod end bearings further extend component life by minimizing deflection, ensuring consistent handling. Designed with serious drivers in mind, this suspension kit maximizes wheel travel, damping ability, and durability, making it an excellent upgrade for those seeking to enhance their Land Cruiser's capabilities in rugged terrain or on paved roads.

Features:

• Front differential drop for improved CV joint angles and wheel travel

• Upper control arms with patented Delta Joint PRO offering 90 degrees of articulation

• Dual-rate rear coil springs for performance and 2-inch rear lift

• Tubular upper control arms for added strength, durability, and alignment correction

• Vehicle-specific tuned shocks for optimal damping and control

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• Internal reservoir rear shocks with 5/8-inch shafts for enhanced performance

• Adjustable coilovers providing 1.25 to 3 inches of front lift

• FK rod end bearings for extended longevity and minimal deflection

• Increased wheel travel and improved ride quality over stock

• 6061 aircraft-grade aluminum CNC-machined components

Fitment:
Toyota Land Cruiser 1958 2024
Toyota Land Cruiser 1958 2025
Toyota Land Cruiser Base 2024
Toyota Land Cruiser Base 2025
Toyota Land Cruiser First Edition 2024
