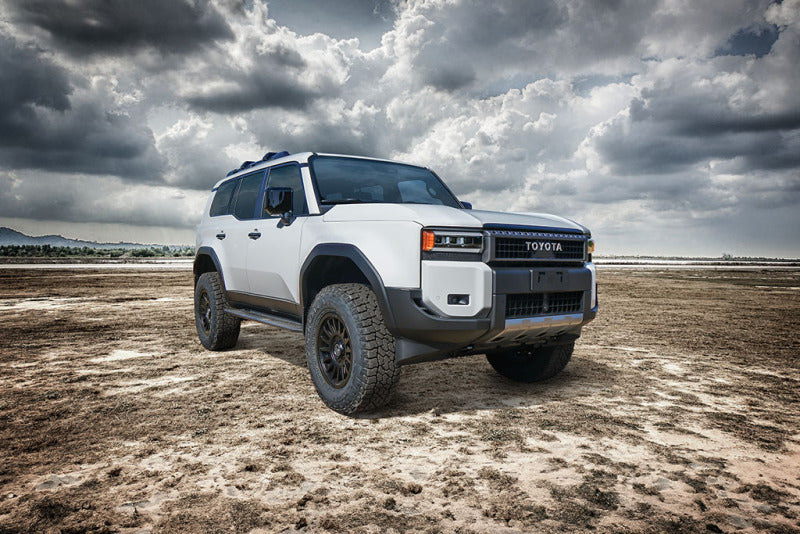

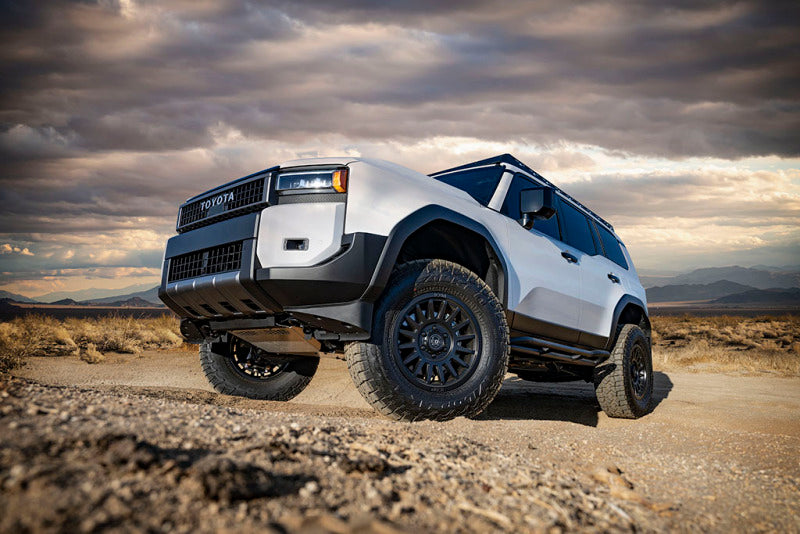

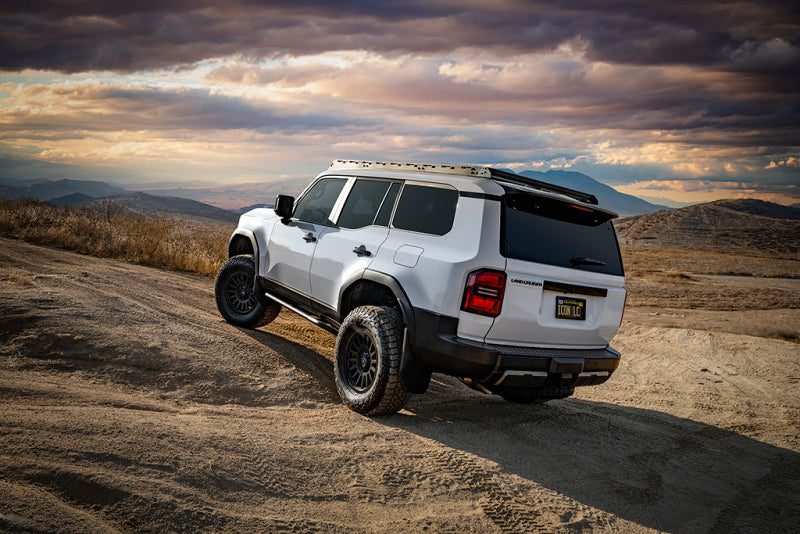

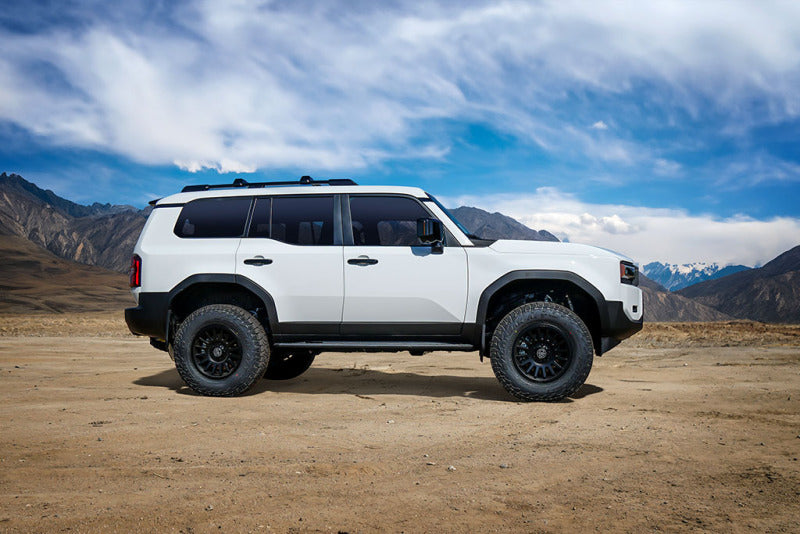

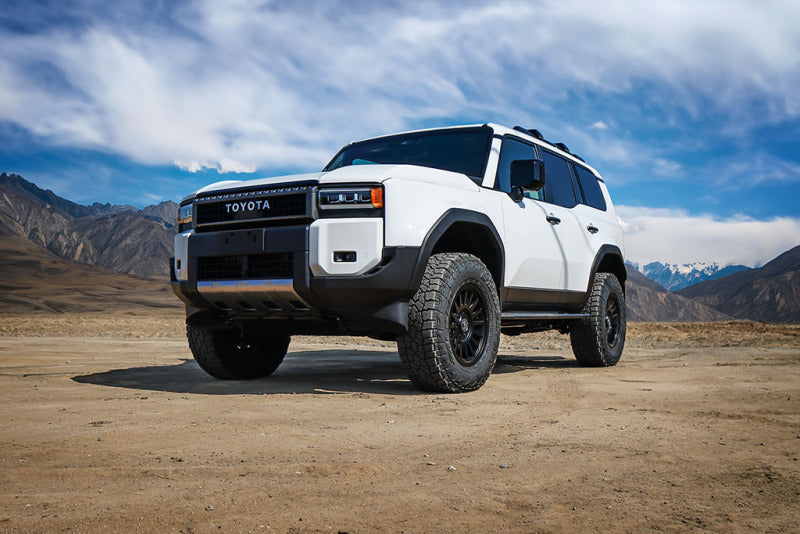

ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in Lift Stage 7 Suspension System Billet

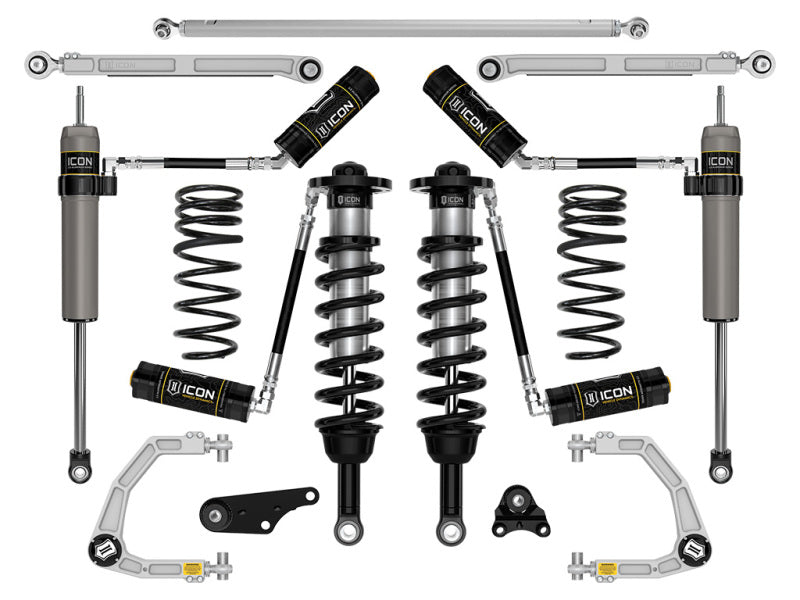

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Land Cruiser with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components

The ICON 2024 Toyota Land Cruiser 250 Series Stage 7 suspension system is engineered to enhance both on-road comfort and off-road performance. Featuring billet aluminum upper control arms, this system corrects front-end geometry, allowing for increased camber and caster adjustment, which improves handling and drivability. The inclusion of ICON's Delta Joint PRO, a rebuildable and serviceable ball joint, provides full bump and droop travel while eliminating bind, ensuring smooth suspension movement across varied terrains.
The dual-rate rear coil springs deliver a softer ride height spring rate with a firmer overload, providing a balanced ride that resists bottoming out during tough off-road conditions. This setup lifts the vehicle approximately 2 inches over stock to achieve a level stance from front to rear. The billet adjustable rear track bar ensures precise rear axle centering and can be fine-tuned on-vehicle without disassembly, further enhancing rear suspension stability. ICON's billet rear lower links, equipped with dual-durometer bushings and FK rod ends, improve articulation and damping, reducing road noise and vibrations for a more comfortable ride.
For improved shock performance, the system includes ICON's 2.5 Series remote reservoir rear shocks with integrated bump zones and 7/8-inch shafts, providing superior damping and heat dissipation. The front coilovers, also with remote reservoirs, deliver enhanced control and cooling capabilities. All components are crafted from aircraft-grade 6061 CNC-machined aluminum and feature corrosion-resistant CAD plating, ensuring durability and longevity. Adjustable coilovers allow for a lift height of 1.25 to 3 inches in the front, giving flexibility to customize ride height and stance. This suspension system is designed to maximize wheel travel and damping for drivers seeking serious off-road capability combined with refined on-road comfort.
Suitable for 2024 and 2025 Toyota Land Cruiser models, this Stage 7 kit is ideal for enthusiasts looking to improve their vehicle's off-road stance and handling. The comprehensive package includes high-strength control arms, adjustable links, and advanced shocks, all engineered to deliver a balanced, capable, and durable suspension upgrade that enhances the overall driving experience.

Features:

• On-vehicle adjustable billet aluminum rear track bar for precise rear axle centering

• 2.5 Series remote reservoir rear shocks with 7/8-inch shafts for improved damping and heat dissipation

• Front coilovers with remote reservoirs providing superior control and shock cooling

• Billet aluminum upper control arms with camber and caster adjustment for optimal drivability

• Front differential drop to maximize CV joint angles and wheel travel

• Patented Delta Joint PRO with 90 degrees of articulation for enhanced suspension flexibility

• Billet rear lower links with dual-durometer bushings and FK rod ends for improved articulation and damping

• Dual-rate rear coil springs offering 2 inches of lift and ride quality balance

• Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts

• Adjustable coilovers providing 1.25 to 3 inches of front lift over stock

Fitment:
Toyota Land Cruiser 1958 2024
Toyota Land Cruiser 1958 2025
Toyota Land Cruiser Base 2024
Toyota Land Cruiser Base 2025
Toyota Land Cruiser First Edition 2024
