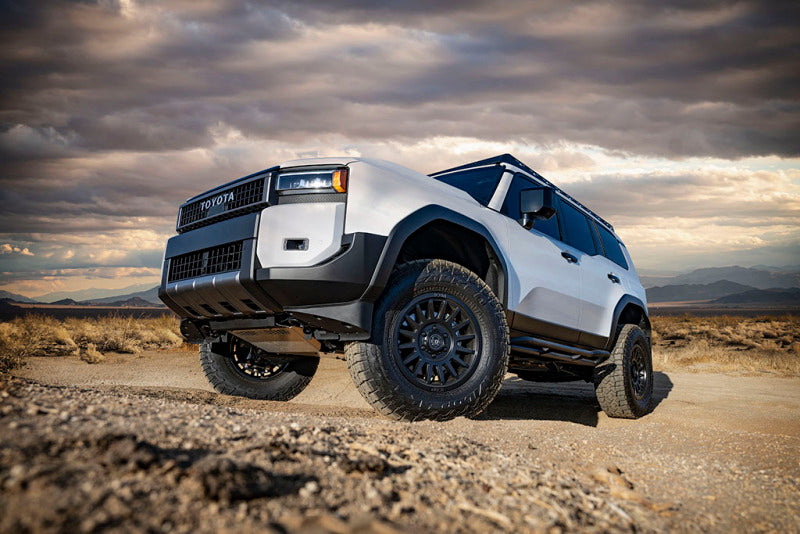

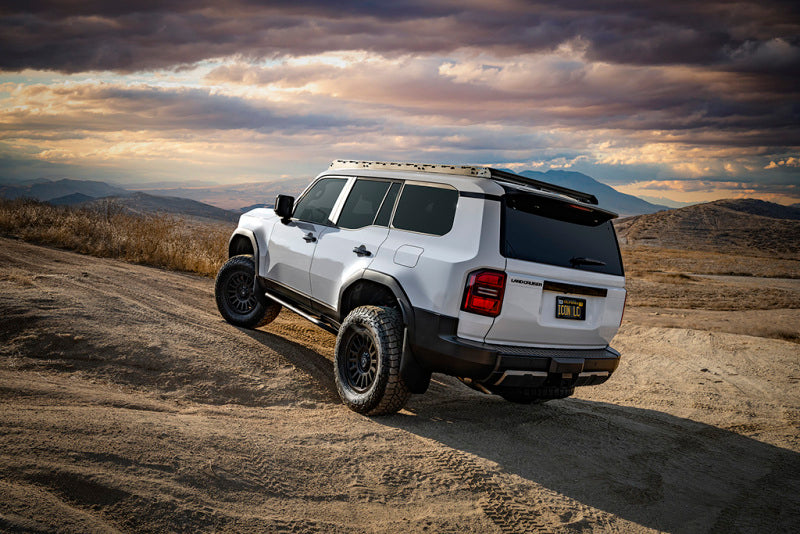

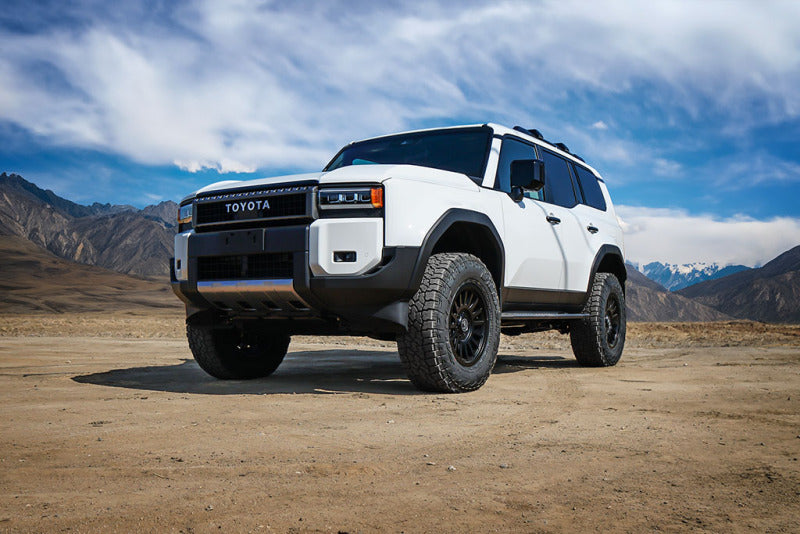

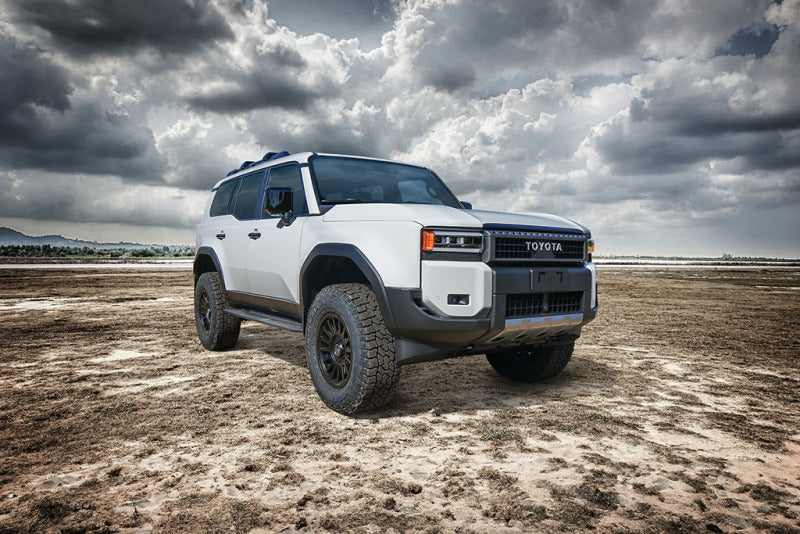

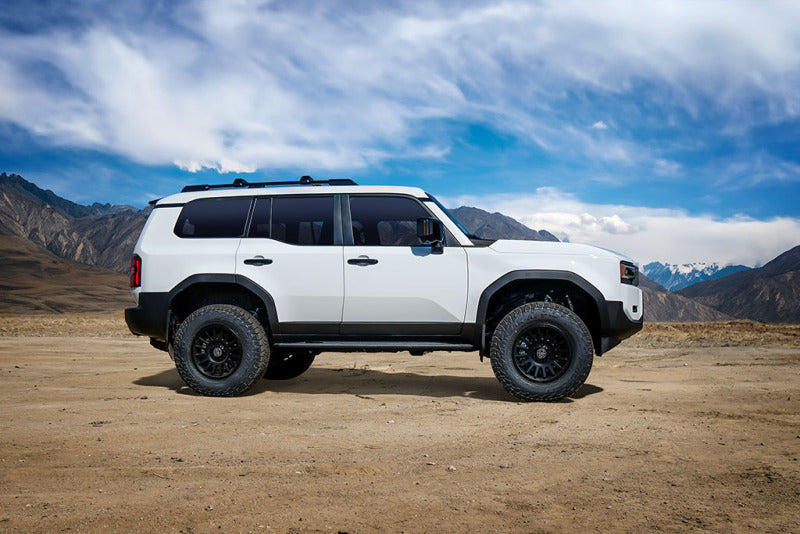

ICON 2024 Land Cruiser 250 Series 1.25-3in Lift Stage 5 Suspension System - Tubular UCA

ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

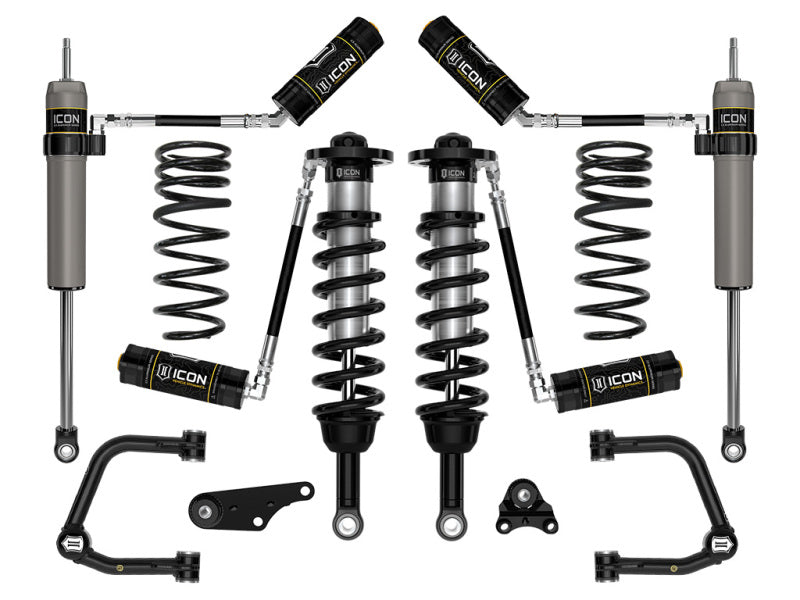

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components

The ICON Vehicle Dynamics Stage 5 suspension system for the 2024 and 2025 Toyota Land Cruiser 250 Series is engineered for serious drivers seeking exceptional off-road capability and on-road comfort. Featuring vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs, this system ensures superior damping and cooling performance, reducing the risk of damper fade during demanding conditions. The coilovers are height adjustable from 1.25 to 3 inches over stock, allowing for larger wheel and tire setups while maintaining optimal suspension geometry. The remote reservoirs increase shock oil capacity and heat dissipation surface area, enabling the shocks to handle extended off-road use without overheating or cavitation. Additionally, the system includes front differential drop brackets that improve CV joint angles and maximize wheel travel, reducing bind and enhancing articulation. The polyurethane differential bushings replace stock soft bushings to minimize differential movement under load, improving stability and durability. The rear features dual-rate coil springs with a 2-inch lift for balanced ride quality and performance, complemented by 7/8-inch diameter aluminum shocks that provide increased performance and durability. The tubular upper control arms incorporate the patented Delta Joint Pro (U.S. Pat. 10,731,700), offering 90 degrees of articulation for improved wheel travel and drivability. Constructed from 6061 aircraft-grade aluminum with CNC machining, these components deliver strength, corrosion resistance, and precise alignment correction. The adjustable coilovers and control arms work together to provide increased wheel travel, better ride quality, and a more aggressive stance, making this suspension system ideal for off-road enthusiasts and serious drivers alike. Properly installed, this system enhances the vehicle’s capability without compromising on-road comfort, ensuring a smooth and controlled ride in various terrains.

Features:

• 2.5 Aluminum Series remote reservoir shocks with 7/8-inch shafts for enhanced performance and cooling

• Vehicle-specific tuned coilovers with remote reservoirs for superior damping and heat dissipation

• Adjustable front coilover height from 1.25 to 3 inches over stock for larger wheel and tire combinations

• Front differential drop brackets to improve CV joint angles and maximize wheel travel

• Polyurethane differential bushings to reduce differential movement and improve stability

• Dual-rate rear coil springs providing 2-inch lift and improved ride quality

• Tubular upper control arms with patented Delta Joint Pro for 90 degrees of articulation

• 6061 aircraft-grade aluminum CNC machined components for strength and durability

• Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts

• FK rod end bearings for extended longevity and minimal deflection

• Designed to increase wheel travel and enhance ride quality both on and off-road

Fitment:
Toyota Land Cruiser 1958 2024
Toyota Land Cruiser 1958 2025
Toyota Land Cruiser Base 2024
Toyota Land Cruiser Base 2025
Toyota Land Cruiser First Edition 2024
