ICON 2023+ Chevrolet Colorado UCA DJ Pro Kit

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON tubular UCAs feature 1026 DOM tube construction, polyurethane, and ICON’s rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball. APPLICATION NOTE #239: Only compatible with OE steering knuckles. Do not install in combination with any aftermarket steering knuckles.

• Built in added caster for better handling on lifted vehicles
• Delta Joint PRO allows maximum articulation without binding
• 1026 DOM tube construction with black powder coat finish
• CNC machined housings for bushings and Delta Joint PRO
• Delta Joint PRO is 100% serviceable and rebuildable
• Includes billet dust caps for Delta Joint PRO
• Serviceable dual stage pivot bushings

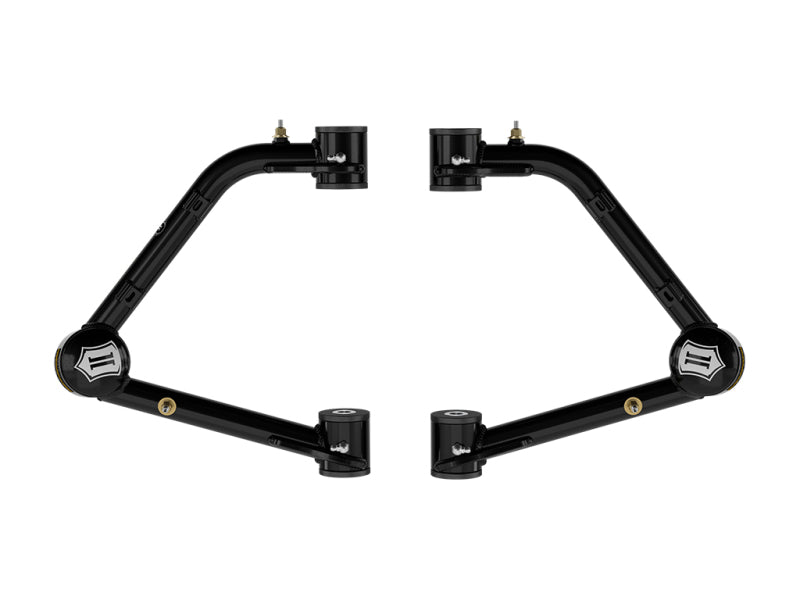

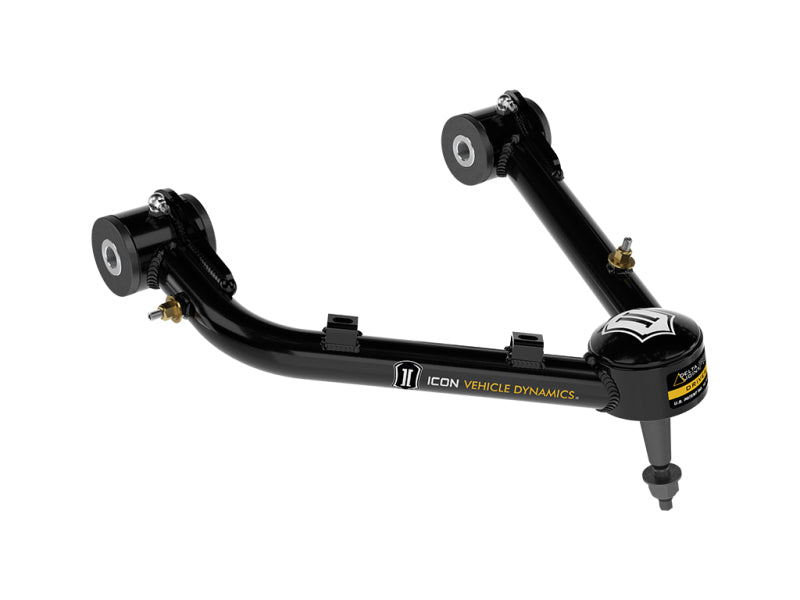

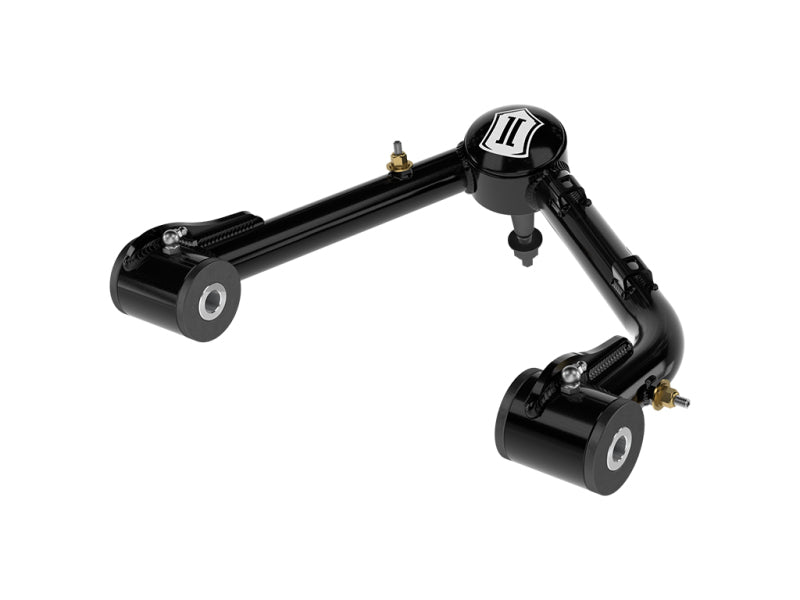

Upgrade your 2023 and 2024 Chevrolet Colorado with the ICON 2023+ Chevrolet Colorado UCA DJ Pro Kit, featuring the innovative Delta Joint PRO for enhanced off-road performance and durability. These tubular upper control arms are constructed from 1026 DOM steel tubing with a sleek black powder coat finish, designed to withstand the rigors of aggressive off-road driving while providing a reliable platform for maximum articulation and handling. The CNC-machined housings ensure precise fitment and seamless integration with your vehicle’s suspension system, making installation straightforward and secure.
At the heart of this kit is ICON’s Delta Joint PRO, a rebuildable, serviceable high-angle ball joint that combines factory-like durability with superior performance. It features a larger ball with 56% more bearing surface and hardened chromoly components, ensuring longevity and resistance to wear. The Delta Joint PRO delivers a full 90 degrees of articulation, a 14% improvement over previous models, allowing for maximum bind-free suspension movement across the complete range of travel. Its design includes improved lubrication channels, which distribute grease efficiently to reduce friction and extend service intervals. The joint's replaceable races, made from graphite-impregnated sintered metal, guarantee a flawless metal-to-metal interface and consistent performance.
These ICON upper control arms include built-in added caster for enhanced handling on lifted vehicles, making them ideal for aggressive off-road use. The dual-stage pivot bushings are fully serviceable, allowing for easy inspection, maintenance, and replacement of components without the need for complete assembly replacement. Additionally, billet dust caps protect the Delta Joint PRO from dirt and debris, ensuring long-lasting operation. Please note, these control arms are compatible only with OE steering knuckles and should not be paired with aftermarket steering knuckles, ensuring proper fitment and optimal performance.
Designed for serious off-road enthusiasts, the ICON UCA DJ Pro Kit provides a robust upgrade to your vehicle’s suspension system, maximizing articulation and durability. Whether you're tackling rocky trails or deep mud, these control arms deliver the strength, flexibility, and reliability needed to push your Chevrolet Colorado to new limits.

Features:

• Built-in added caster for improved handling on lifted vehicles

• Delta Joint PRO allows maximum articulation without binding

• Constructed from 1026 DOM steel tubing with a black powder coat finish

• CNC-machined housings for precise bushing and joint fitment

• Delta Joint PRO is 100% rebuildable and serviceable

• Includes billet dust caps for Delta Joint protection

• Serviceable dual-stage pivot bushings for easy maintenance

Fitment:
Chevrolet Colorado LT 2023
Chevrolet Colorado LT 2024
Chevrolet Colorado WT 2023
Chevrolet Colorado WT 2024
Chevrolet Colorado Z71 2023
Chevrolet Colorado Z71 2024
