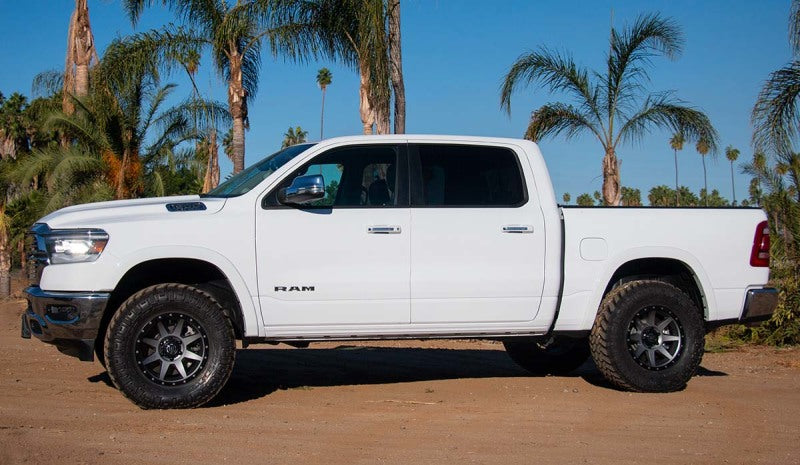

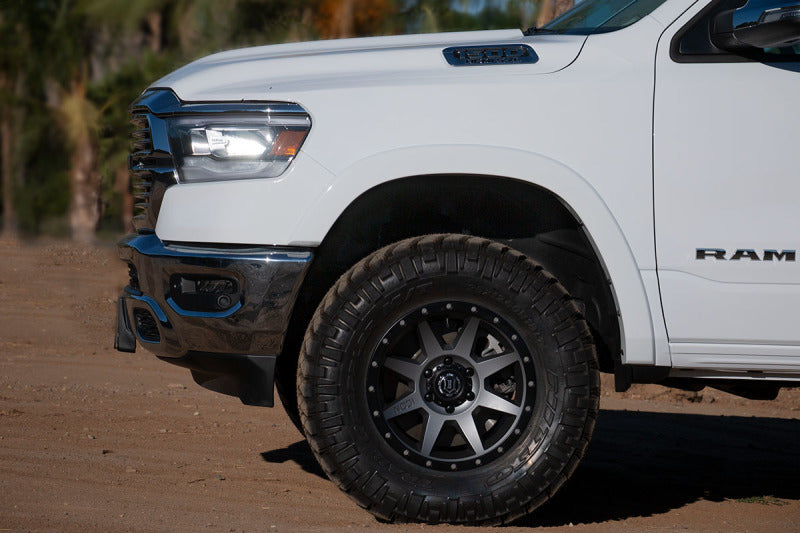

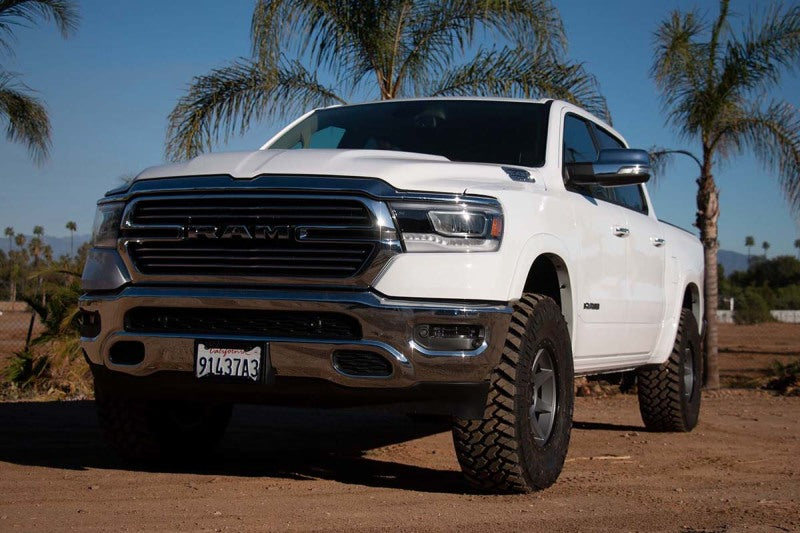

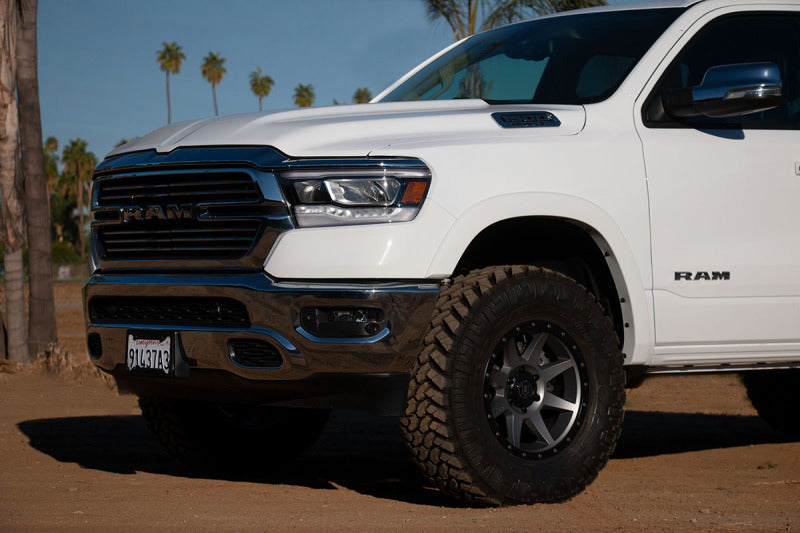

ICON 2019+ Ram 1500 2-3in. Stage 2 Suspension System w/ Tubular Upper Control Arms

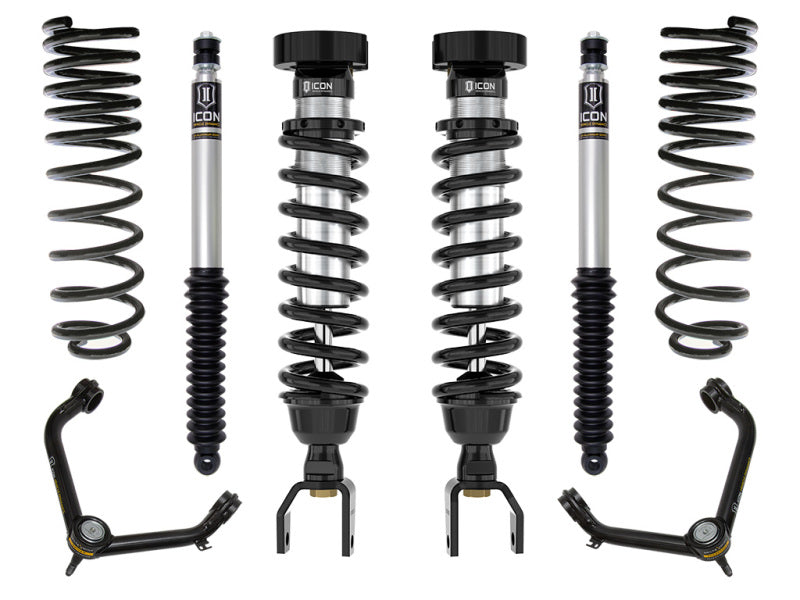

ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality. TECH NOTE: 2019-2023 Ram 1500 Rebel will have front lift height range of 1.25-2.25" over stock and 1" of rear lift over stock

• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• Corrosion resistant, 2.5” diameter, CAD plated coilover shock bodies with 7/8" shafts
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable coilovers yield 2-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components

The ICON Vehicle Dynamics Stage 2 suspension system for 2019-2023 Ram 1500 trucks is engineered for serious drivers seeking enhanced performance and off-road capability. Featuring vehicle-specific tuned coilover shocks with internal reservoirs, this system provides exceptional cooling and damping, translating into improved vehicle control and ride quality both on and off the pavement. The 2.5-inch diameter coilover shocks include a 7/8-inch shaft and are constructed with corrosion-resistant CAD-plated bodies, ensuring durability in demanding conditions. Adjustable for 2-3 inches of front lift, these coilovers allow the use of larger wheels and tires, enhancing both appearance and off-road performance. The system’s longer coil springs increase front wheel travel, offering superior handling and ride comfort over stock setups. The dual-rate rear coil springs provide a softer ride height spring rate with a firmer overload rate, delivering a balanced ride that excels on varied terrain while maintaining towing and payload capacity. The 1.5-inch rear lift height achieves a level stance from front to rear, further improving the truck’s aesthetics and performance. ICON’s tubular Delta Joint upper control arms add strength and durability, help retain factory alignment specifications, and increase caster for better steering response. These control arms are designed with ball joints that promote consistent alignment at the increased lift height. The rear shocks are part of the ICON 2.0 Aluminum Series with internal reservoirs and vehicle-specific valving, ensuring balanced damping from front to rear for a smooth ride. The entire system is a bolt-on installation requiring no drilling, cutting, or welding, making it accessible for most DIY enthusiasts or professional installers. Crafted from 6061 aircraft-grade aluminum, all components are CNC-machined for precision and longevity. Whether you’re looking to improve your Ram 1500’s off-road prowess or enhance on-road handling, the ICON Stage 2 suspension system provides a reliable, high-performance upgrade that maintains towing capacity and overall vehicle integrity.

Features:

• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and proper alignment

• Dual-rate rear coil springs for improved ride quality and 1.5-inch rear lift

• Corrosion-resistant, CAD-plated coilover shock bodies with 7/8-inch shafts for durability

• Vehicle-specific tuned shocks for superior damping and control

• Increased wheel travel for better off-road and on-road performance without sacrificing towing capacity

• 100% bolt-on installation—no drilling, cutting, or welding required

• ICON 2.0 Aluminum Series rear shocks with internal reservoirs and 5/8-inch polished shafts

• FK rod end bearings for extended longevity and minimal deflection

• Adjustable coilovers offering 2-3 inches of front lift over stock

• 6061 aircraft-grade aluminum CNC machined components for strength and precision

Fitment:
Ram 1500 Big Horn 2019
Ram 1500 Big Horn 2020
Ram 1500 Big Horn 2021
Ram 1500 Big Horn 2022
Ram 1500 Big Horn 2023
Ram 1500 HFE 2019
Ram 1500 HFE 2020
Ram 1500 HFE 2021
Ram 1500 HFE 2022
Ram 1500 HFE 2023
Ram 1500 Laramie 2019
Ram 1500 Laramie 2020
Ram 1500 Laramie 2021
Ram 1500 Laramie 2022
Ram 1500 Laramie 2023
Ram 1500 Laramie Longhorn 2019
Ram 1500 Laramie Longhorn 2020
Ram 1500 Laramie Longhorn 2021
Ram 1500 Limited 2019
Ram 1500 Limited 2020
Ram 1500 Limited 2021
Ram 1500 Limited 2022
Ram 1500 Limited 2023
Ram 1500 Limited Longhorn 2021
Ram 1500 Limited Longhorn 2022
Ram 1500 Limited Longhorn 2023
Ram 1500 Lone Star 2019
Ram 1500 Lone Star 2020
Ram 1500 Lone Star 2021
Ram 1500 Lone Star 2022
Ram 1500 Lone Star 2023
Ram 1500 Longhorn 2021
Ram 1500 Rebel 2019
Ram 1500 Rebel 2020
Ram 1500 Rebel 2021
Ram 1500 Rebel 2022
Ram 1500 Rebel 2023
Ram 1500 Special Service 2020
Ram 1500 Special Service 2021
Ram 1500 Tradesman 2019
Ram 1500 Tradesman 2020
Ram 1500 Tradesman 2021
Ram 1500 Tradesman 2022
Ram 1500 Tradesman 2023
