ICON 03-09 Lexus GX470 0-3.5in Stage 5 Suspension System w/Billet UCA

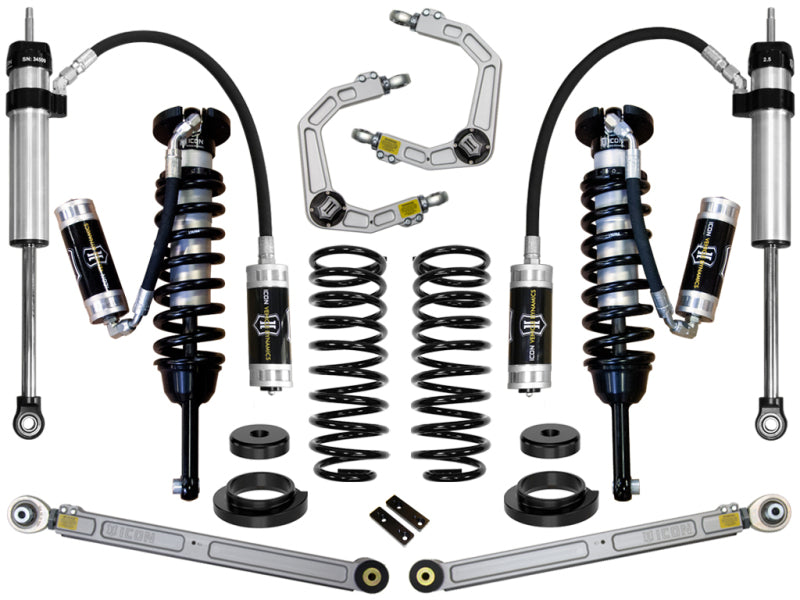

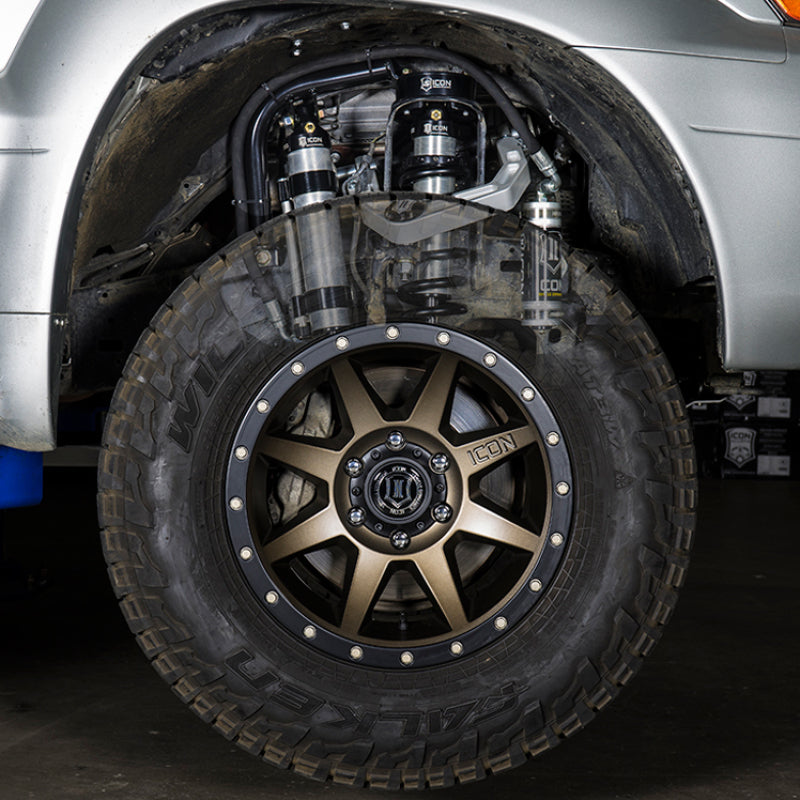

The Stage 5 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags. The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2003-2009 LEXUS GX470 0-3.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection

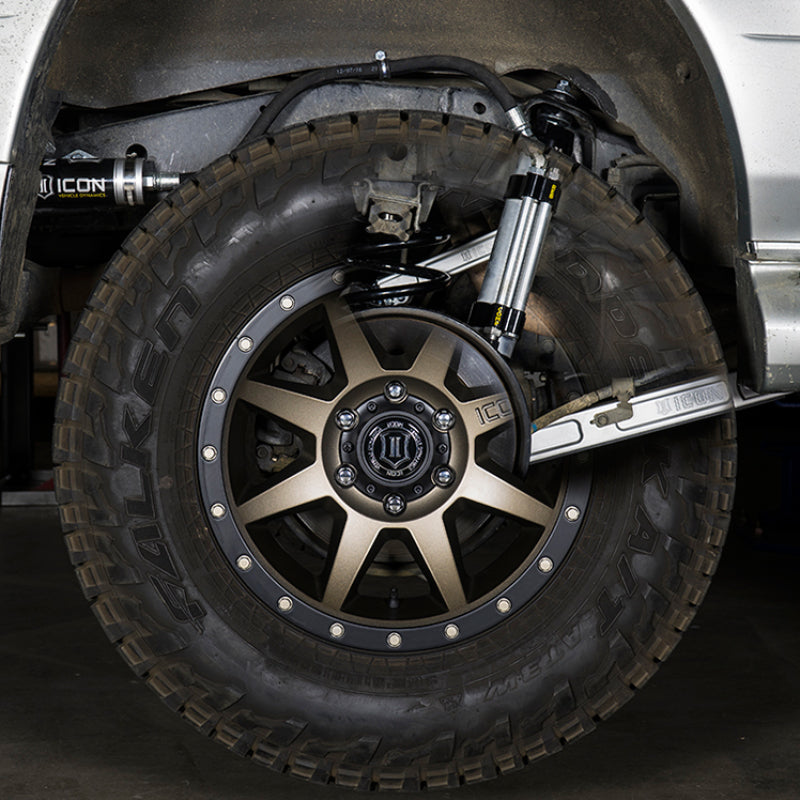

• 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
• Bolt-on system means no cutting or welding necessary for install
• Included rear coil conversion kit eliminates factory air system
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Lexus GX470 with the ICON Stage 5 suspension system, designed to enhance off-road capability and on-road handling. This comprehensive kit features vehicle-specific tuned 2.5-inch coilover shocks with remote reservoirs, providing improved heat dissipation and superior damping performance. The adjustable coilovers offer up to 3.5 inches of lift, allowing for larger tires and a more aggressive stance. Paired with ICON's billet aluminum Delta Joint upper control arms, the system enables extended wheel travel and precise on-vehicle alignment adjustments for optimal handling and ride quality. The Delta Joints combine durability and weather resistance with performance characteristics similar to a uniball, ensuring long-lasting reliability in demanding conditions. The kit also includes ICON's 2-inch lift rear coil springs and 2.5-inch aluminum series remote reservoir shocks, which are specifically tuned to balance front and rear performance for a smooth, controlled ride. Billet aluminum lower links enhance articulation, increase strength, and feature on-vehicle pinion angle adjustment, all while maintaining proper roll steer geometry for predictable handling both on and off-road. For GX470 models equipped with factory air suspension, a rear coil spring conversion kit is included to eliminate factory air bags, simplifying maintenance and improving durability. Constructed from 6061 aircraft-grade CNC-machined aluminum, these components are corrosion-resistant and built for longevity. The bolt-on design requires no cutting or welding, making installation straightforward and secure. This suspension system is an excellent choice for drivers seeking to improve their vehicle’s off-road capabilities while maintaining excellent on-road manners. Compatible with a wide range of Lexus GX470 years, the ICON Stage 5 system offers a significant upgrade over stock, providing increased wheel travel, better handling, and improved ride quality for adventurous drivers and daily commuters alike.

Features:

• Vehicle-specific tuned 2.5-inch coilover shocks with remote reservoirs for improved heat dissipation and damping

• Adjustable coilovers offering 0-3.5 inches of lift to accommodate larger tires and aggressive wheel setups

• Billet aluminum Delta Joint upper control arms enable extended wheel travel and precise alignment adjustments

• High-strength billet aluminum lower links improve articulation, strength, and allow pinion angle adjustment

• Remote reservoir shocks with vehicle-specific tuning provide superior shock damping and control

• Corrosion-resistant CAD plated shock bodies with 7/8-inch shafts for durability

• FK Rod End bearings ensure extended longevity and minimal deflection during operation

• Rear coil springs and shocks are tuned for balanced front-to-rear performance

• Rear coil spring conversion kit eliminates factory air suspension for improved reliability and easier maintenance

• 6061 aircraft-grade CNC machined aluminum components for strength and corrosion resistance

• Bolt-on design facilitates straightforward installation without cutting or welding

Fitment:
Lexus GX470 Base 2003
Lexus GX470 Base 2004
Lexus GX470 Base 2005
Lexus GX470 Base 2006
Lexus GX470 Base 2007
Lexus GX470 Base 2008
Lexus GX470 Base 2009
