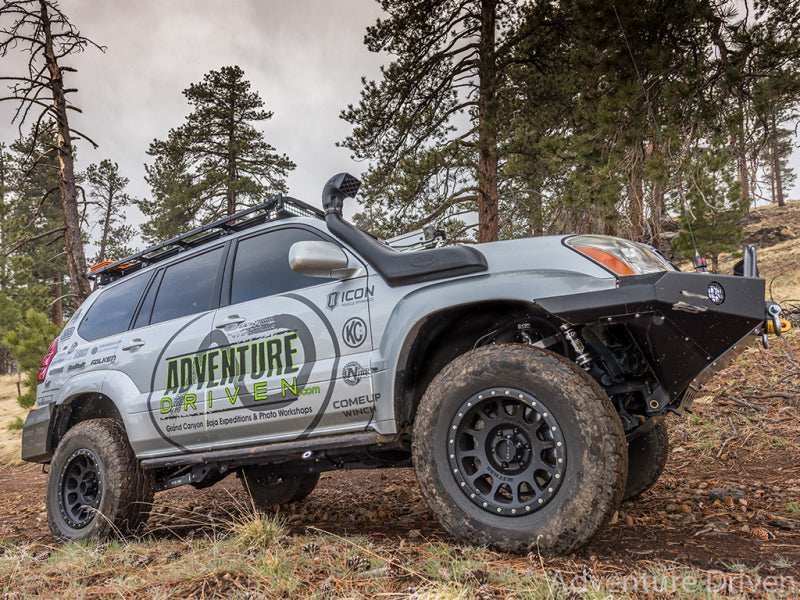

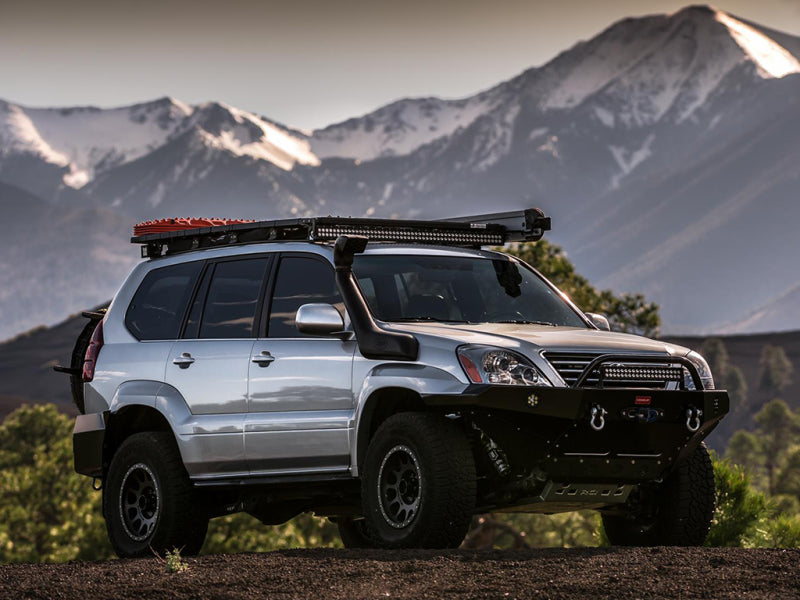

ICON 03-09 Lexus GX470 0-3.5in Stage 3 Suspension System w/ Billet UCA

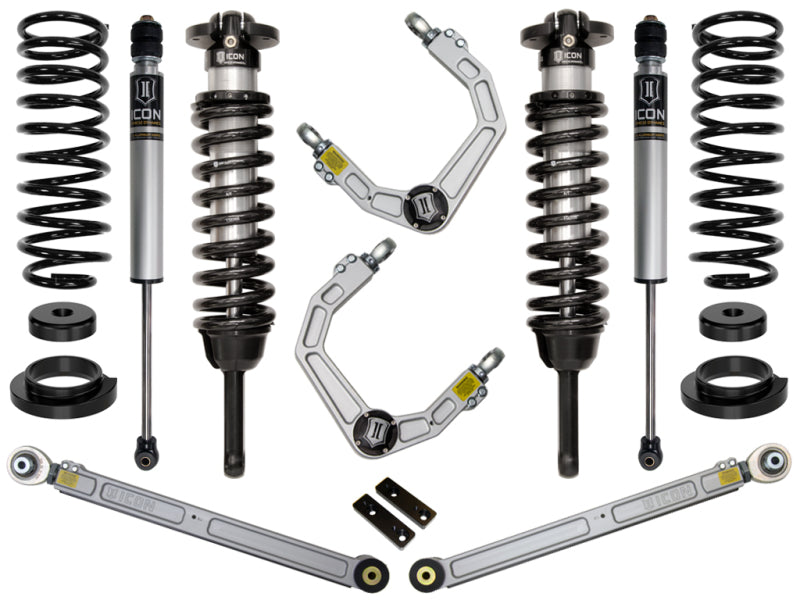

The Stage 3 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with internal reservoirs paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.0 Aluminum Series internal reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags. The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2003-2009 LEXUS GX470 0-3.5" LIFT STAGE 3 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Included rear coil conversion kit eliminates factory air system
• 2.0 Aluminum Series rear IFP shocks with 5/8" shafts
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Adjustable coilovers provide 0-3.5" of lift height

Enhance your Lexus GX470's off-road and on-road performance with the ICON 03-09 Lexus GX470 Stage 3 suspension system. This comprehensive upgrade includes vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs, offering adjustable ride height from stock up to 3.5 inches of lift to accommodate larger tires and more aggressive wheel setups. The coilovers feature a corrosion-resistant CAD-plated shock body with a 7/8-inch shaft, ensuring durability and consistent damping. Paired with ICON's billet aluminum Delta Joint upper control arms, these coilovers provide extended wheel travel and improve suspension geometry, resulting in predictable handling and increased articulation. The Delta Joint combines the weather resistance of a ball joint with the performance of a uniball, delivering long-lasting, minimal deflection operation. The system also includes ICON’s 2-inch lift rear coil springs and 2.0 Aluminum Series internal reservoir shocks, specifically tuned for vehicle balance from front to rear. The billet aluminum lower links are stronger than stock, allowing for on-vehicle pinion angle adjustments and maintaining correct roll steer geometry for optimal handling in all conditions. For models equipped with KDSS, the system maintains compatibility with front sway bar relocation brackets and may require trimming for reservoir bracket fitment on certain years. Installation is bolt-on, requiring no cutting or welding, and the rear coil conversion kit replaces factory air bags for a more reliable suspension setup. Crafted from 6061 aircraft-grade aluminum CNC machined components, this system offers increased wheel travel, improved ride quality, and long-lasting performance, making it an excellent choice for those seeking to upgrade their Lexus GX470 for both highway adventures and off-road excursions.

Features:

• Vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs for improved damping and adjustable lift from 0 to 3.5 inches

• Billet aluminum Delta Joint upper control arms for extended wheel travel and enhanced suspension geometry

• Patented Delta Joint (U.S. Pat. 10,731,700) combines durability and weather resistance with high performance

• Billet aluminum lower links provide increased strength, on-vehicle pinion angle adjustments, and correct roll steer geometry

• Front and rear shocks are specifically tuned for superior control and ride quality

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts and FK Rod End bearings for longevity

• Bolt-on installation system eliminates the need for cutting or welding

• Included rear coil spring conversion kit replaces factory air bags for consistent performance

• 2.0 Aluminum Series rear IFP shocks with 5/8-inch shafts for reliable damping

• Constructed from 6061 aircraft-grade aluminum CNC machined components for strength and lightweight durability

• Designed to increase wheel travel and ride quality over stock, suitable for off-road and highway use

Fitment:
Lexus GX470 Base 2003
Lexus GX470 Base 2004
Lexus GX470 Base 2005
Lexus GX470 Base 2006
Lexus GX470 Base 2007
Lexus GX470 Base 2008
Lexus GX470 Base 2009
