icoK40013TX

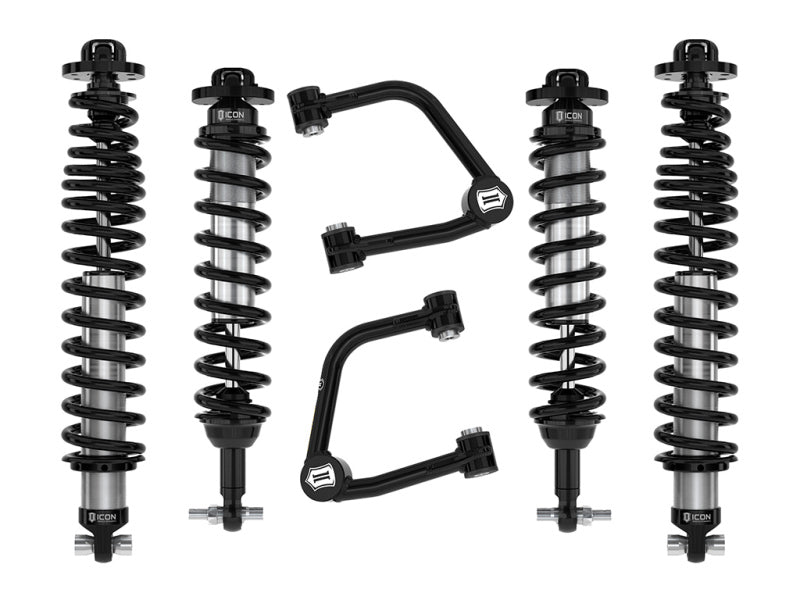

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. TECH NOTE: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded. For near stock weight Broncos, consider part number K40013T.

• Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Sasquatch package equipped Broncos

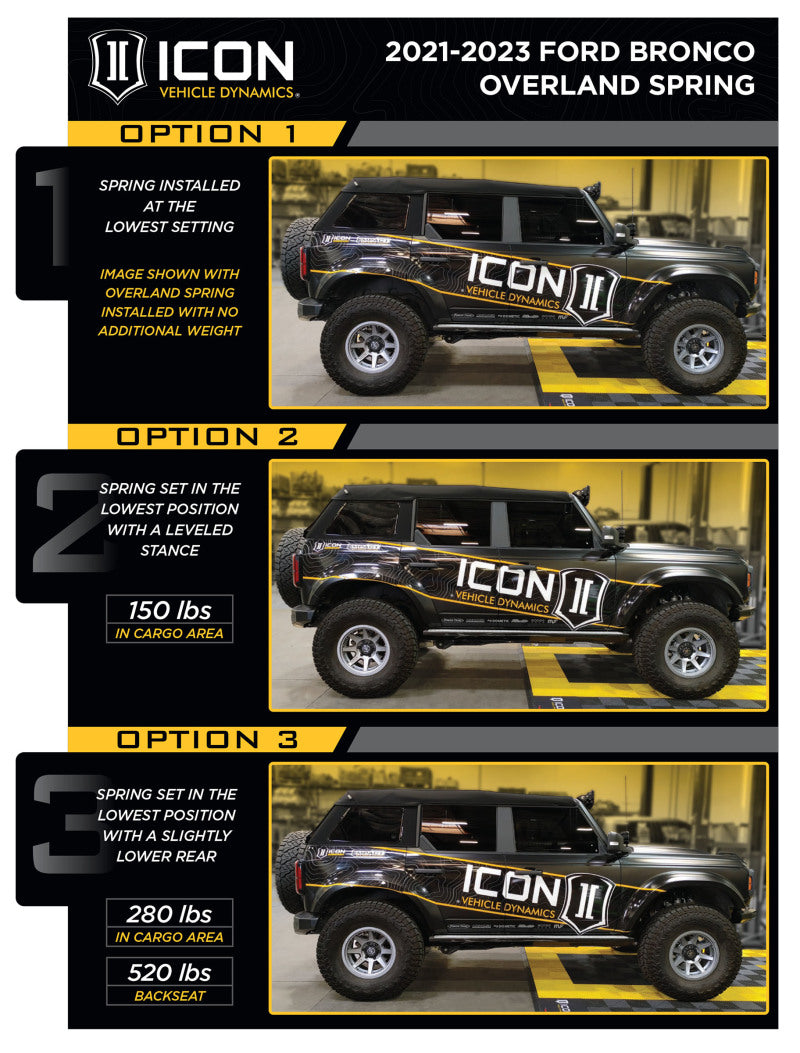

• ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
• Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• PTFE lined spherical bearings and application specific mounting hardware
• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
• Improved suspension performance and ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pins

Upgrade your 2021-2023 Ford Bronco with the ICON Vehicle Dynamics Stage 3 Suspension System, designed for optimal off-road performance and ride quality. This comprehensive kit features precision-manufactured, custom-valved internal reservoir coilover shocks that provide maximum travel and superior damping control, enabling up to 11.5 inches of front suspension travel and 14 inches in the rear when paired with 35-inch tires. The adjustable coilovers allow for a front lift of 2-3 inches and a rear lift of 1.25-2.25 inches over stock, offering versatile customization to achieve your desired stance and ride height. The system is compatible with vehicles equipped with the Sasquatch Package and can accommodate larger tires, such as 37-inch tires with optional travel limiters (sold separately). The kit includes tubular upper control arms crafted from 6061 aircraft-grade aluminum, featuring the innovative Delta Joint PRO with 90 degrees of articulation, which corrects caster and enhances drivability. These control arms provide added strength and durability, ensuring long-lasting performance in demanding off-road conditions. The coilovers feature corrosion-resistant CAD-plated bodies with 7/8-inch shafts, designed for enhanced strength and reliability. The rear coilovers utilize unique ICON-engineered progressive dual-rate springs, offering increased weight capacity and balanced ride quality whether loaded or unloaded. Installation is straightforward with a 100% bolt-on system that requires no drilling, cutting, or welding, and application-specific mounting hardware ensures a proper fit. This suspension system not only significantly improves ride quality and vehicle control but also maintains a sleek, professional appearance with polished components. Built with high-strength alloy CNC-machined lower bar pins and spherical bearings lined with PTFE, the ICON Stage 3 Suspension System delivers consistent performance and durability for serious off-road enthusiasts and daily drivers alike, making it one of the best upgrades for your Bronco's suspension system.

Features:

• Adjustable coilovers provide up to 2-3 inches of front lift and 1.25-2.25 inches of rear lift over stock

• ICON engineered dual-rate coil springs with increased spring rates for heavier setups

• Vehicle specific tuned internal reservoir shocks for superior damping and control

• UCAs feature patented Delta Joint PRO with 90 degrees of articulation for enhanced maneuverability

• Tubular upper control arms for added strength, durability, and alignment correction

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts for longevity

• 100% bolt-on installation requiring no drilling, cutting, or welding

• PTFE-lined spherical bearings and application-specific mounting hardware

• Provides up to 11.5 inches of front and 14 inches of rear wheel travel with 35-inch tires

• Improves suspension performance and ride quality over stock for off-road and on-road use

• Constructed with CNC-machined 6061 aircraft-grade aluminum and high-strength alloys for durability

Fitment:
Ford Bronco Badlands 2021
Ford Bronco Badlands 2022
Ford Bronco Badlands 2023
Ford Bronco Base 2021
Ford Bronco Base 2022
Ford Bronco Base 2023
Ford Bronco Big Bend 2021
Ford Bronco Big Bend 2022
Ford Bronco Big Bend 2023
Ford Bronco Black Diamond 2021
Ford Bronco Black Diamond 2022
Ford Bronco Black Diamond 2023
Ford Bronco Everglades 2022
Ford Bronco Everglades 2023
Ford Bronco First Edition 2021
Ford Bronco Heritage Edition 2023
Ford Bronco Heritage Limited Edition 2023
Ford Bronco Outer Banks 2021
Ford Bronco Outer Banks 2022
Ford Bronco Outer Banks 2023
Ford Bronco Wildtrak 2021
Ford Bronco Wildtrak 2022
Ford Bronco Wildtrak 2023
