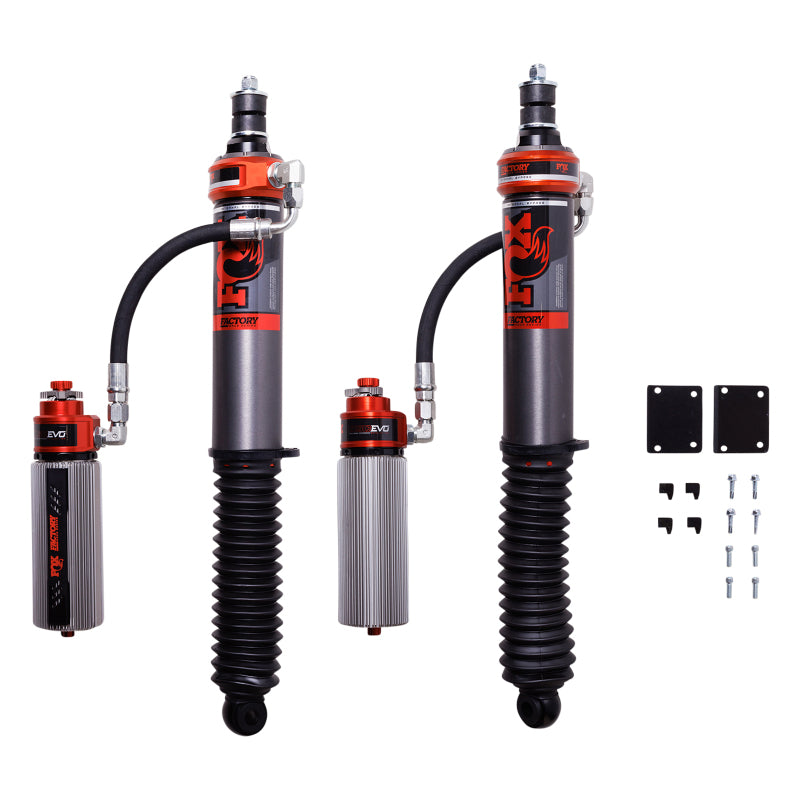

Fox 2025+ Toyota 4Runner / 2024+ LandCruiser GX550 3.2 Factory Race Rear Shock - 0-1.5in Lift

FOX Factory Race Series 3.2 Internal Bypass shocks for the LC250, GX550, and 4Runner chassis deliver velocity and position-sensitive damping technology, Dual Speed Compression Evolution (DSC EVO) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Type II anodization prevents corrosion and wear of the 3.2-inch diameter aluminum bodies. Finned reservoirs increase oil capacity, house an IFP, and feature a DSC EVO adjuster. DSC EVO utilizes Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity. FOX 3.2 shocks with Internal Bypass provide the support, adjustment, and confidence you need while driving at speed. Experience race-bred performance next time you leave the pavement. Application specific valving to maximize performance Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

• Application-specific springs and vehicle-specific tuning maximizes performance.
• Position- and velocity-sensitive damping maximize control through any terrain.
• Patented, internal bypass design Finned remote reservoir with DSC EVO adjuster
• 3.2" impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• 7/8" hard chromed steel shafts

Enhance your vehicle's performance with the FOX Factory Race Series 3.2 Internal Bypass shocks, specifically designed for the Lexus GX550, Toyota Land Cruiser, and 4Runner models. These shocks feature a 3.2-inch aluminum body with Type II anodization, providing exceptional durability and resistance to corrosion while maintaining lightweight strength. The finned reservoirs increase oil capacity and house the Dual Speed Compression Evolution (DSC EVO) adjuster, allowing precise tuning for a variety of terrains and driving styles.

FOX's patented internal bypass technology offers multiple zones of damping control, providing a smooth ride on rough terrain and confident handling at speed. This technology allows oil to flow around the piston at specific points of the stroke, creating variable pressure zones that support the vehicle during hard impacts and prevent harsh top-outs. The shock's design ensures an initial catch for landings, progressive force to control bottom-outs, and overall improved ride quality.

Equipped with a 7/8-inch hard-chromed steel shaft and redundant seal system—including main, wiper, and scraper seals—these shocks are built to withstand demanding environments. The DSC EVO feature utilizes Variable Valve Control (VVC) on the high-speed circuit, offering independent high and low-speed damping adjustments without preloading the shim stack. This results in increased comfort, better control, and the ability to add high-speed compression clicks without sacrificing small-bump sensitivity.

Designed for a range of applications with vehicle-specific springs and tuning, these shocks provide application-specific performance for vehicles with 0-1.5 inches of lift. The combination of race-inspired piston design, internal bypass zones, and adjustable damping makes the FOX 3.2 shocks ideal for off-road enthusiasts seeking maximum control and confidence across any terrain. Whether navigating rocky trails or smooth highways, these shocks deliver a near-endless suspension travel feel with unmatched durability and performance.

Features:

• Application-specific springs and vehicle-specific tuning maximize performance

• Position- and velocity-sensitive damping for optimal control on varied terrain

• Patented internal bypass design with multiple damping zones

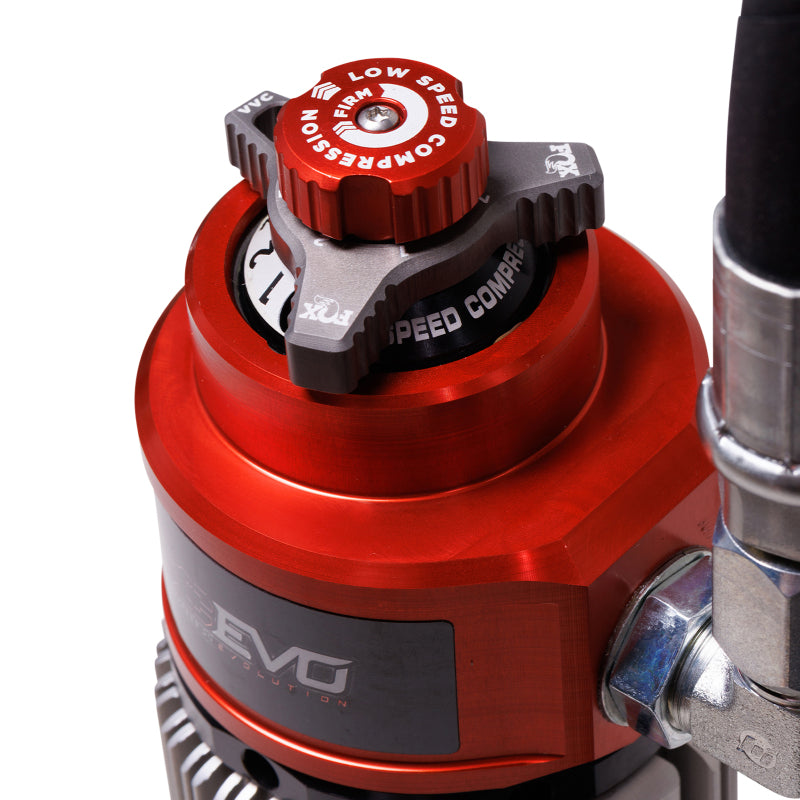

• Finned remote reservoir with DSC EVO adjuster for precise tuning

• 3.2-inch impact-extruded and CNC-machined 6061-T6 aluminum body with Type II anodization

• Redundant sealing system including main, wiper, and scraper seals

• 7/8-inch hard chromed steel shafts for durability

Fitment:
Lexus GX550 Luxury 2024
Lexus GX550 Luxury 2025
Lexus GX550 Luxury 2026
Lexus GX550 Luxury+ 2024
Lexus GX550 Luxury+ 2025
Lexus GX550 Luxury+ 2026
Lexus GX550 Overtrail 2024
Lexus GX550 Overtrail 2025
Lexus GX550 Overtrail 2026
Lexus GX550 Overtrail+ 2024
Lexus GX550 Overtrail+ 2025
Lexus GX550 Overtrail+ 2026
Lexus GX550 Premium 2024
Lexus GX550 Premium 2025
Lexus GX550 Premium 2026
Lexus GX550 Premium+ 2024
Lexus GX550 Premium+ 2025
Lexus GX550 Premium+ 2026
Toyota 4Runner Limited 2025
Toyota 4Runner Limited 2026
Toyota 4Runner Platinum 2025
Toyota 4Runner Platinum 2026
Toyota 4Runner SR5 2025
Toyota 4Runner SR5 2026
Toyota 4Runner Trailhunter 2025
Toyota 4Runner Trailhunter 2026
Toyota 4Runner TRD Off-Road 2025
Toyota 4Runner TRD Off-Road 2026
Toyota 4Runner TRD Off-Road Premium 2025
Toyota 4Runner TRD Off-Road Premium 2026
Toyota 4Runner TRD Pro 2025
Toyota 4Runner TRD Pro 2026
Toyota 4Runner TRD Sport 2025
Toyota 4Runner TRD Sport 2026
Toyota 4Runner TRD Sport Premium 2025
Toyota 4Runner TRD Sport Premium 2026
Toyota Land Cruiser 1958 2024
Toyota Land Cruiser 1958 2025
Toyota Land Cruiser 1958 2026
Toyota Land Cruiser Base 2024
Toyota Land Cruiser Base 2025
Toyota Land Cruiser Base 2026
Toyota Land Cruiser First Edition 2024
