Eibach 07-22 Toyota Sequoia 5.7L 4WDStage 2 Pro-Truck Lift Kit

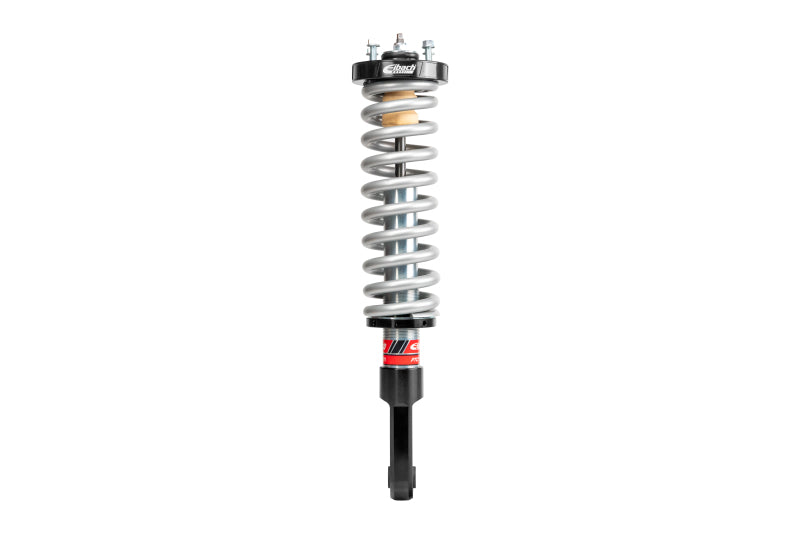

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Enhance your Toyota Sequoia's off-road capability with the Eibach Stage 2 Pro-Truck Lift Kit, designed specifically for models from 2011 to 2014 with a 5.7L 4WD engine. This system shares the same rear components as the Stage 1 setup, including lift springs, sport shocks, and an air bag delete, but offers upgraded front adjustability for improved performance. The front coilovers utilize an extended-travel mono tube design with variable force valving, providing excellent control during on-road driving and maximum traction on rugged trails. The lift height is set to be level with the stock rear springs out of the box, with preload adjustments needed to match Eibach's rear spring setup.

The kit features front adjustable threaded spring perches, accommodating increased loads and ensuring maximum ground clearance. It is equipped with Eibach's ERO off-road race springs, which are compatible with the system for enhanced durability. The anodized 6061-T6 billet aluminum coilover mounts, 46mm piston, and monotube nitrogen-filled design contribute to consistent performance and longevity. Each component is individually dyno tested for matched performance and reliability, with a heavy-duty bushing system that undergoes cycle testing to withstand demanding conditions.

This Stage 2 system combines Pro-Truck Coilover 2.0 units, rear sport shocks, and Pro-Lift-Kit springs, providing a comprehensive lift solution engineered, tested, and manufactured in the USA by Eibach. Suitable for off-road enthusiasts seeking a reliable lift upgrade that enhances ground clearance, load capacity, and handling for your Toyota Sequoia.

Features:

• Front adjustable threaded spring perch for increased load capacity and maximum clearance

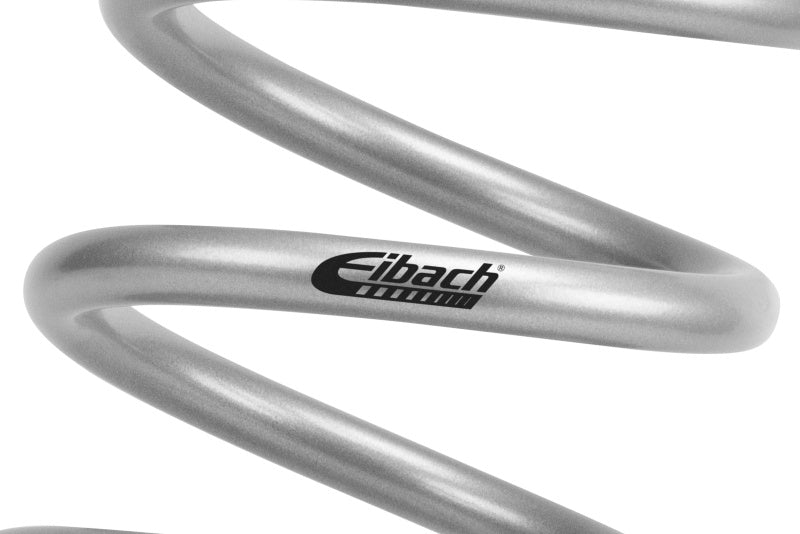

• Equipped with Eibach ERO off-road race springs for durability and performance

• Anodized 6061-T6 billet aluminum coilover mounts with 46mm piston and monotube nitrogen-filled design

• Individually dyno tested for matched performance and reliability, with cycle-tested heavy-duty bushings

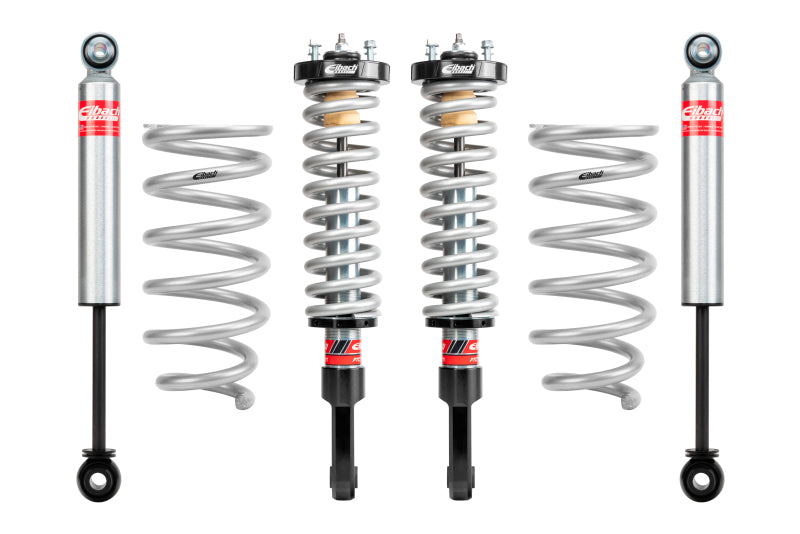

• Includes Pro-Truck Coilover 2.0's, rear sport shocks, and Pro-Lift-Kit springs for a comprehensive lift solution

Fitment:
Toyota Sequoia Limited 2008
Toyota Sequoia Limited 2009
Toyota Sequoia Limited 2010
Toyota Sequoia Limited 2011
Toyota Sequoia Limited 2012
Toyota Sequoia Limited 2013
Toyota Sequoia Limited 2014
Toyota Sequoia Limited 2015
Toyota Sequoia Limited 2016
Toyota Sequoia Limited 2017
Toyota Sequoia Limited 2018
Toyota Sequoia Limited 2019
Toyota Sequoia Limited 2020
Toyota Sequoia Limited 2021
Toyota Sequoia Limited 2022
Toyota Sequoia Nightshade 2021
Toyota Sequoia Nightshade 2022
Toyota Sequoia Platinum 2008
Toyota Sequoia Platinum 2009
Toyota Sequoia Platinum 2010
Toyota Sequoia Platinum 2011
Toyota Sequoia Platinum 2012
Toyota Sequoia Platinum 2013
Toyota Sequoia Platinum 2014
Toyota Sequoia Platinum 2015
Toyota Sequoia Platinum 2016
Toyota Sequoia Platinum 2017
Toyota Sequoia Platinum 2018
Toyota Sequoia Platinum 2019
Toyota Sequoia Platinum 2020
Toyota Sequoia Platinum 2021
Toyota Sequoia Platinum 2022
Toyota Sequoia SR5 2008
Toyota Sequoia SR5 2009
Toyota Sequoia SR5 2010
Toyota Sequoia SR5 2011
Toyota Sequoia SR5 2012
Toyota Sequoia SR5 2013
Toyota Sequoia SR5 2014
Toyota Sequoia SR5 2015
Toyota Sequoia SR5 2016
Toyota Sequoia SR5 2017
Toyota Sequoia SR5 2018
Toyota Sequoia SR5 2019
Toyota Sequoia SR5 2020
Toyota Sequoia SR5 2021
Toyota Sequoia SR5 2022
Toyota Sequoia TRD Pro 2020
Toyota Sequoia TRD Pro 2021
Toyota Sequoia TRD Pro 2022
Toyota Sequoia TRD Sport 2018
Toyota Sequoia TRD Sport 2019
Toyota Sequoia TRD Sport 2020
Toyota Sequoia TRD Sport 2021
Toyota Sequoia TRD Sport 2022
