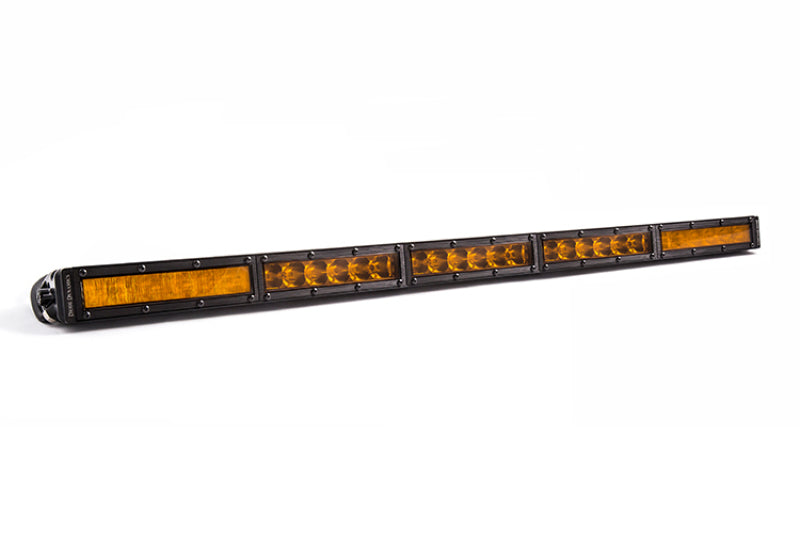

Diode Dynamics 30 In LED Light Bar Single Row Straight - Amber Combo Each Stage Series

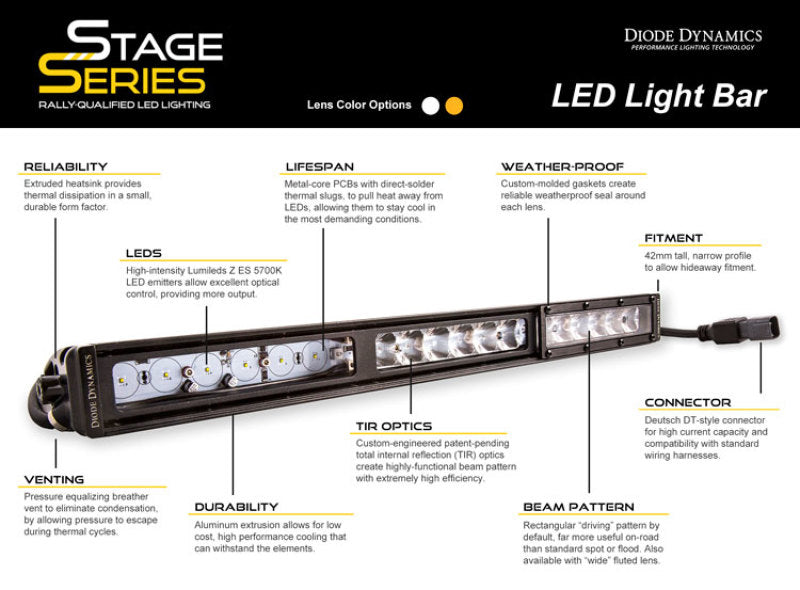

FeaturesAdvanced TIR optics provide high efficiency and focusHigh-intensity automotive-type LEDs with pure white colorAvailable in Driving Flood or Combo beam patternsSlim 42mm housing for low-profile fitmentDurable matte powdercoated extrusionCompact. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.Focused. Thanks to the high-intensity Lumileds LED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.Functional Patterns.The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 30x20 degree pattern that is far more useful for directing light downrange at high speeds.The Flood pattern was designed to provide uniform even illumination and a full 80x50 degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot our flood optic is a true optically designed spread resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds a backup or reverse light or to light up a worksite.The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 30x20 degree pattern while also illuminating area around it in a full 80x50 degree spread. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well. Included Quantity: One (1)

• High-intensity automotive-type LEDs with pure white color
• Advanced TIR optics provide high efficiency and focus
• Slim 42mm housing for low-profile fitment
• Durable matte powdercoated extrusion

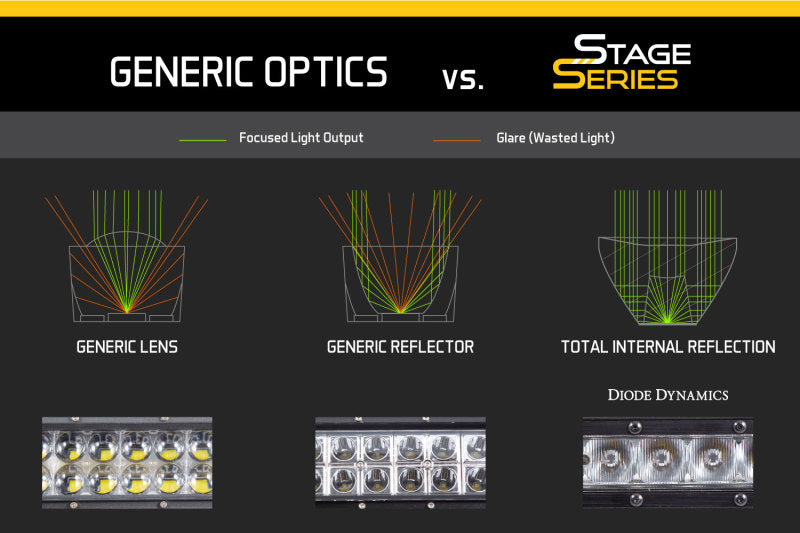

The Diode Dynamics 30 Inch LED Light Bar Single Row Straight Amber Combo from the Stage Series offers advanced lighting performance tailored for automotive applications. Equipped with high-intensity automotive-type LEDs emitting a pure white color, this light bar ensures bright and reliable illumination. Its innovative U.S. patent-pending total internal reflection (TIR) optics optimize light focus and efficiency, directing illumination precisely where you need it while reducing glare and maximizing brightness. The TIR optical system gathers all the light from the Lumileds LED chips and concentrates it into targeted beams, making it significantly more effective than standard light bars.

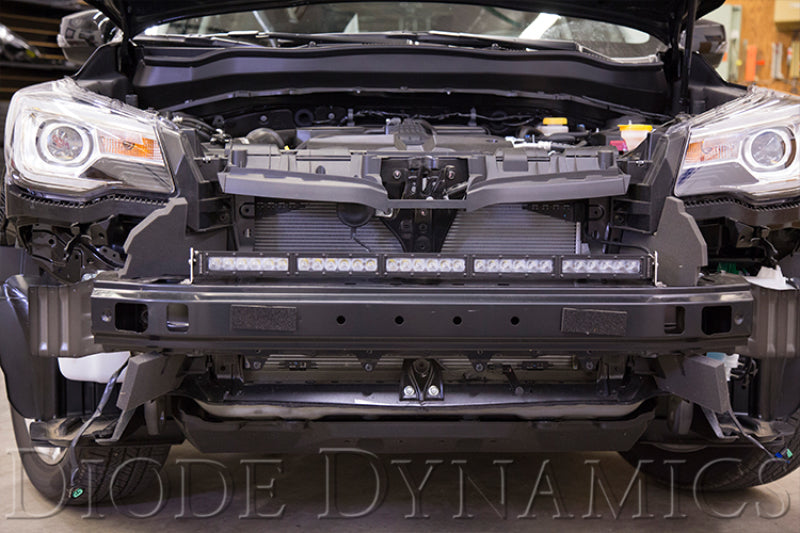

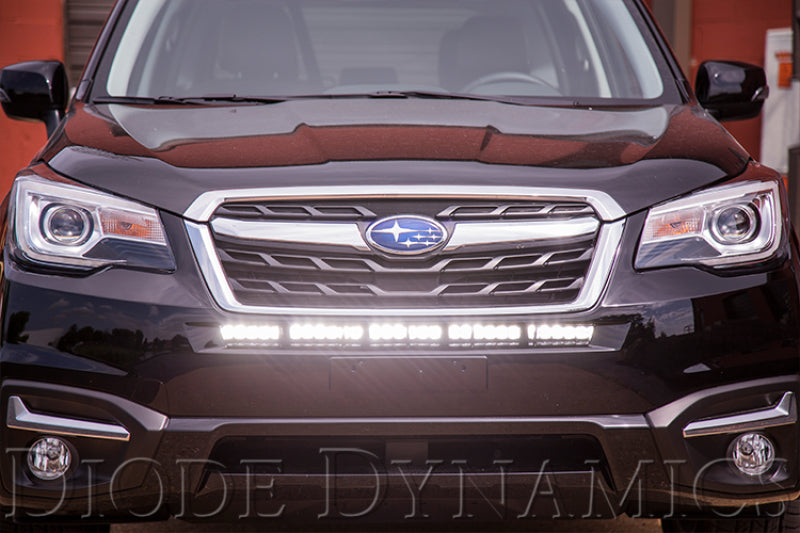

Constructed with a slim, low-profile 42mm housing, this light bar fits seamlessly into tight spaces where traditional dual-row light bars may not. The durable matte powder-coated extrusion enhances durability, providing resistance to harsh weather conditions and road debris. Its compact design not only reduces weight but also allows for flexible installation in various locations, including smaller or more confined vehicle areas. Whether mounted on the front, rear, or sides, this light bar’s sleek profile ensures a clean, professional look without sacrificing performance.

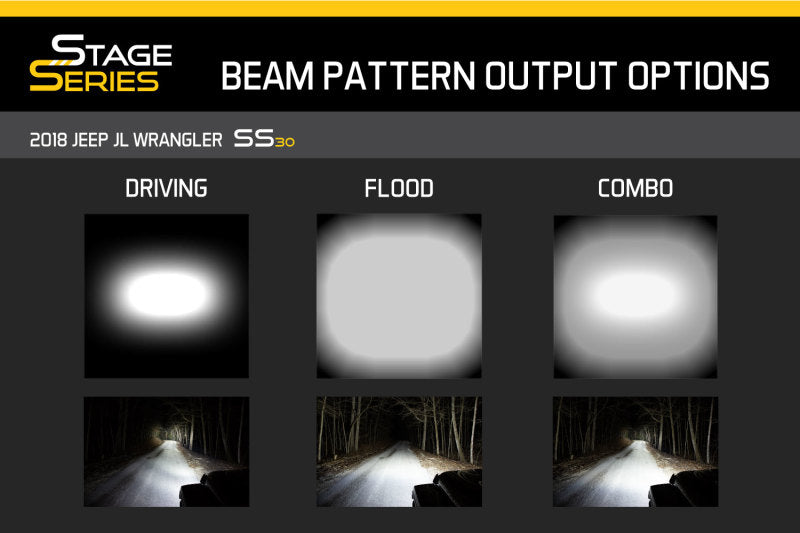

The Stage Series pattern options include Driving, Flood, and Combo configurations, each designed for specific lighting needs. The Driving pattern delivers a rectangular 30x20 degree beam, ideal for supplementing high beams and providing focused illumination at high speeds. The Flood pattern offers a broad 80x50 degree spread, perfect for illuminating work areas, reverse lights, or low-speed situations. The Combo pattern combines both, providing a focused beam with a wide area flood, making it versatile for various driving and work scenarios. This combination ensures optimal visibility and safety in diverse conditions, whether on the highway or at a worksite. Designed specifically for 2016 and 2017 Subaru Forester models, this light bar is a reliable upgrade to enhance your vehicle’s lighting capabilities with impressive efficiency and style.

Features:

• High-intensity automotive-type LEDs with pure white color for bright, reliable illumination

• Advanced TIR optics provide high efficiency and precise focus, reducing glare

• Slim 42mm housing allows low-profile fitment in tight spaces

• Durable matte powder-coated extrusion ensures resistance to weather and debris

• Multiple beam patterns: Driving, Flood, and Combo for versatile lighting needs

• Designed specifically for 2016 and 2017 Subaru Forester models

Fitment:
Subaru Forester 2.0XT Premium 2016
Subaru Forester 2.0XT Premium 2017
Subaru Forester 2.0XT Premium 2018
Subaru Forester 2.0XT Touring 2016
Subaru Forester 2.0XT Touring 2017
Subaru Forester 2.0XT Touring 2018
Subaru Forester 2.5i 2016
Subaru Forester 2.5i 2017
Subaru Forester 2.5i 2018
Subaru Forester 2.5i Limited 2016
Subaru Forester 2.5i Limited 2017
Subaru Forester 2.5i Limited 2018
Subaru Forester 2.5i Premium 2016
Subaru Forester 2.5i Premium 2017
Subaru Forester 2.5i Premium 2018
Subaru Forester 2.5i Touring 2016
Subaru Forester 2.5i Touring 2017
Subaru Forester 2.5i Touring 2018
