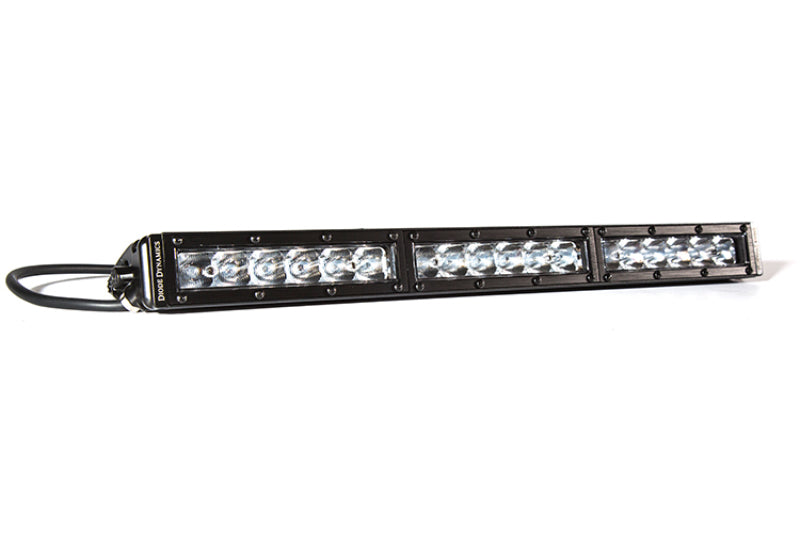

Diode Dynamics 18 In LED Light Bar Single Row Straight Clear Driving Each Stage Series

FeaturesAdvanced TIR optics provide high efficiency and focusHigh-intensity automotive-type LEDs with pure white colorAvailable in Driving Flood or Combo beam patternsSlim 42mm housing for low-profile fitmentDurable matte powdercoated extrusionCompact. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.Focused. Thanks to the high-intensity Lumileds LED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.Functional Patterns.The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 30x20 degree pattern that is far more useful for directing light downrange at high speeds.The Flood pattern was designed to provide uniform even illumination and a full 80x50 degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot our flood optic is a true optically designed spread resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds a backup or reverse light or to light up a worksite.The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 30x20 degree pattern while also illuminating area around it in a full 80x50 degree spread. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well. Included Quantity: One (1)

• High-intensity automotive-type LEDs with pure white color
• Advanced TIR optics provide high efficiency and focus
• Slim 42mm housing for low-profile fitment
• Durable matte powdercoated extrusion

The Diode Dynamics 18-Inch LED Light Bar from the Stage Series is engineered to deliver exceptional illumination for automotive applications. Featuring advanced TIR optics, this light bar ensures high efficiency and precise focus, maximizing the output of high-intensity automotive-type LEDs with pure white color. Its slim 42mm housing is designed for low-profile fitment, making it suitable for tight spaces where traditional dual-row light bars may not fit. Constructed from durable matte powder-coated extrusion, this light bar provides both resilience and a sleek appearance suitable for demanding environments.

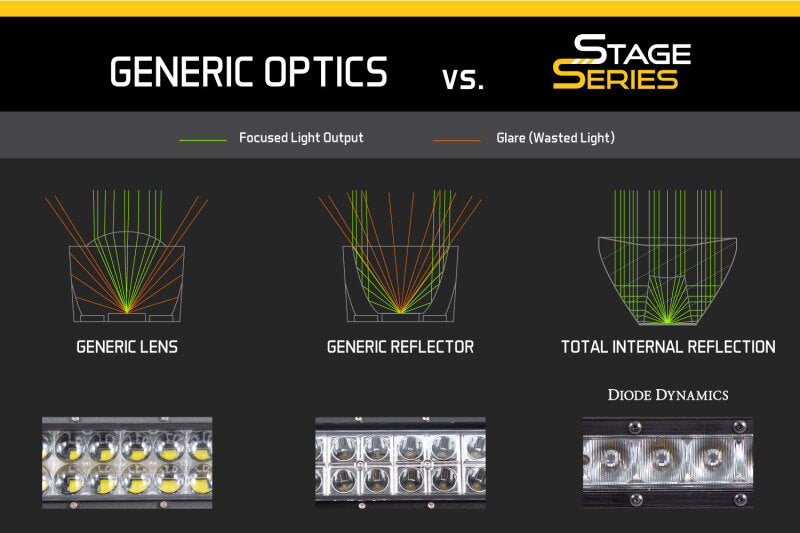

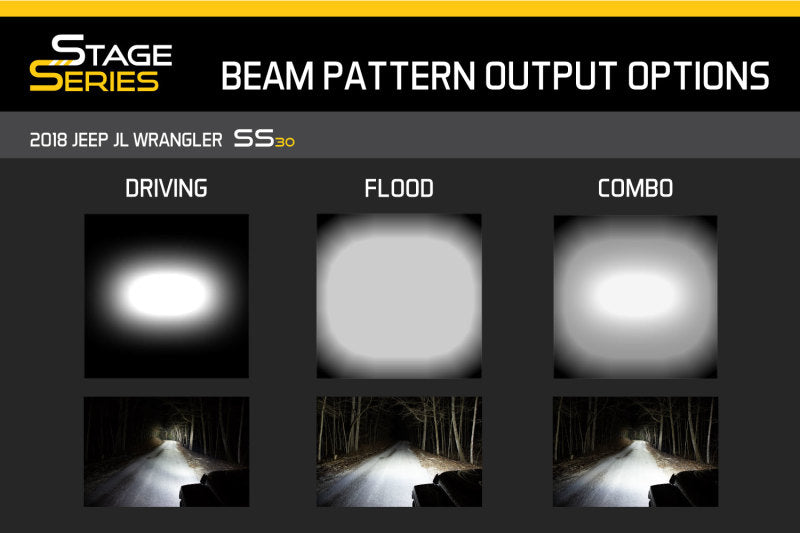

The high-powered Lumileds LED chips combined with our proprietary TIR optics gather and direct light efficiently, significantly reducing glare while increasing total brightness. This innovative optical design results in higher intensity compared to standard light bars, ensuring optimal visibility and safety. The light bar offers three functional patterns: the Driving pattern, which complements high beams with a rectangular 30x20 degree beam ideal for high-speed downrange illumination; the Flood pattern, providing a broad 80x50 degree spread for wide-area lighting suitable for work sites or reversing; and the Combo pattern, which combines both the Driving and Flood optics for versatile lighting.

Whether for off-road adventures, worksite illumination, or enhancing vehicle visibility, this compact light bar excels in delivering focused and widespread light. Its slim profile allows installation in areas where space is limited, and its lightweight design minimizes added weight to your vehicle. The package includes one light bar, ready to enhance your vehicle’s lighting performance with industry-leading optics and durable construction.

Designed to meet the demands of professional and enthusiast users alike, the Diode Dynamics Stage Series LED Light Bar is a reliable choice for superior illumination and long-lasting performance.

Features:

• High-intensity Lumileds LED chips with pure white color for bright, clear illumination

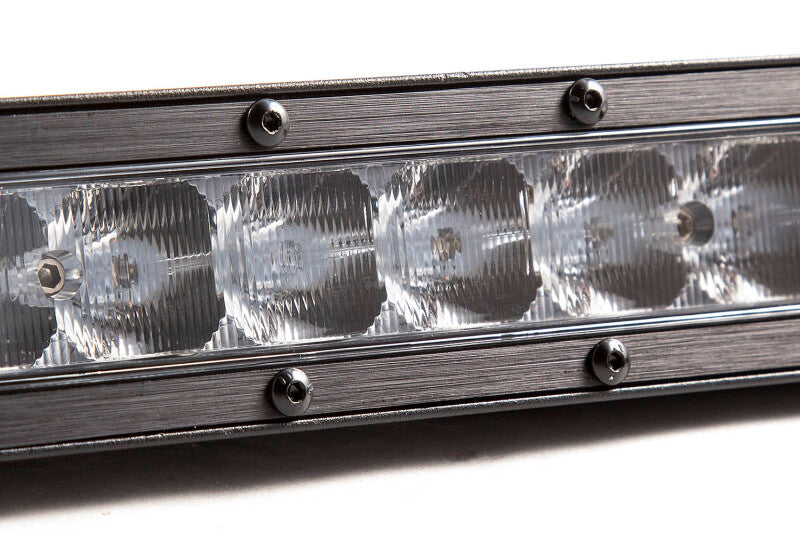

• Advanced TIR optics provide high efficiency and focused light output

• Slim 42mm housing allows low-profile installation in tight spaces

• Durable matte powder-coated extrusion enhances longevity and resistance to harsh conditions

• Multiple beam patterns: Driving, Flood, and Combo for versatile lighting options
