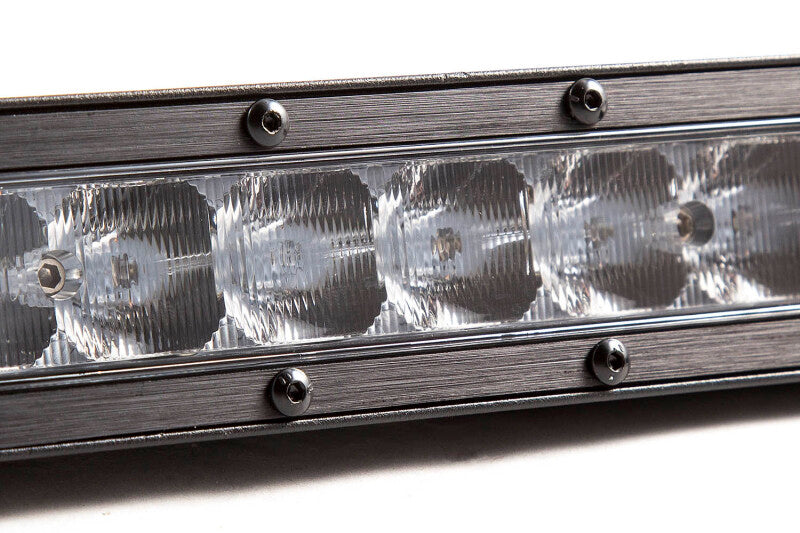

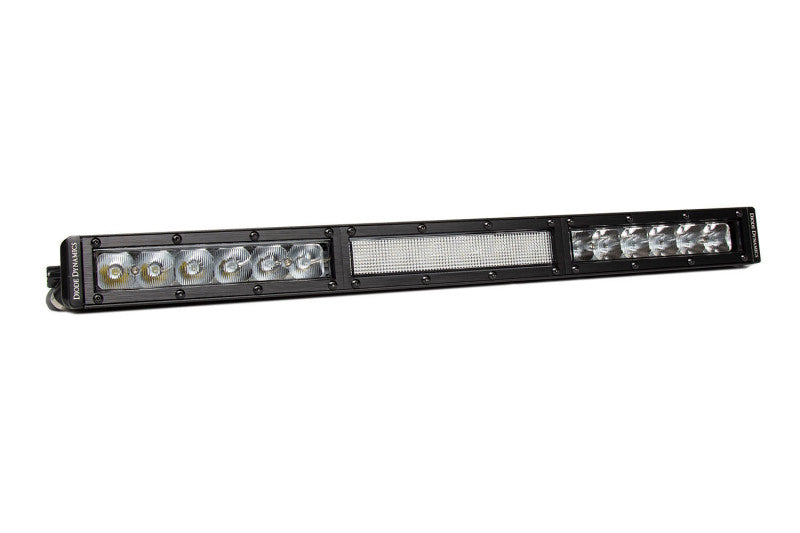

Diode Dynamics 18 In LED Light Bar Single Row Straight Clear Combo Each Stage Series

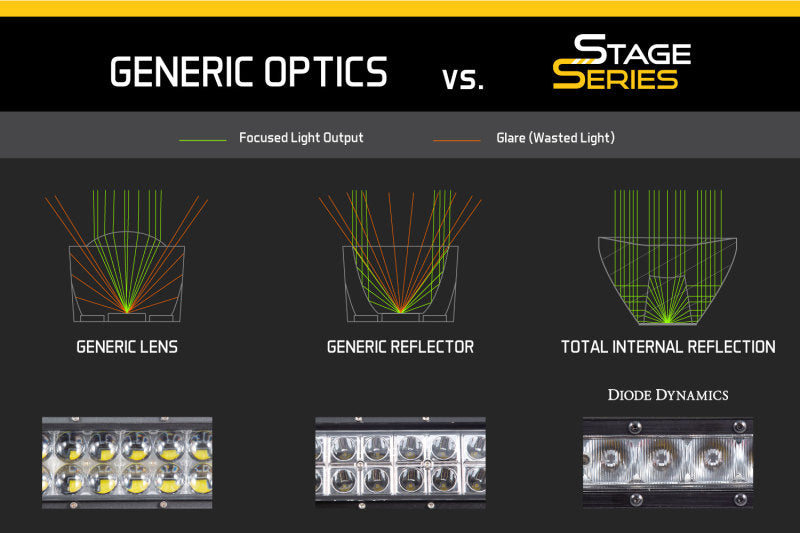

FeaturesAdvanced TIR optics provide high efficiency and focusHigh-intensity automotive-type LEDs with pure white colorAvailable in Driving Flood or Combo beam patternsSlim 42mm housing for low-profile fitmentDurable matte powdercoated extrusionCompact. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.Focused. Thanks to the high-intensity Lumileds LED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.Functional Patterns.The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 30x20 degree pattern that is far more useful for directing light downrange at high speeds.The Flood pattern was designed to provide uniform even illumination and a full 80x50 degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot our flood optic is a true optically designed spread resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds a backup or reverse light or to light up a worksite.The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 30x20 degree pattern while also illuminating area around it in a full 80x50 degree spread. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well. Included Quantity: One (1)

• High-intensity automotive-type LEDs with pure white color
• Advanced TIR optics provide high efficiency and focus
• Slim 42mm housing for low-profile fitment
• Durable matte powdercoated extrusion

The Diode Dynamics 18-inch LED Light Bar from the Stage Series offers a high-performance lighting solution designed for automotive applications. Featuring advanced TIR optics coupled with high-intensity automotive-style LEDs emitting a pure white color, this light bar ensures maximum efficiency and focus. Its slim 1.65-inch (42mm) housing allows for low-profile installation in tight spaces, making it ideal for vehicles with limited mounting options. The durable matte powder-coated extruded aluminum housing enhances longevity and resistance to harsh conditions, providing a rugged yet sleek appearance.

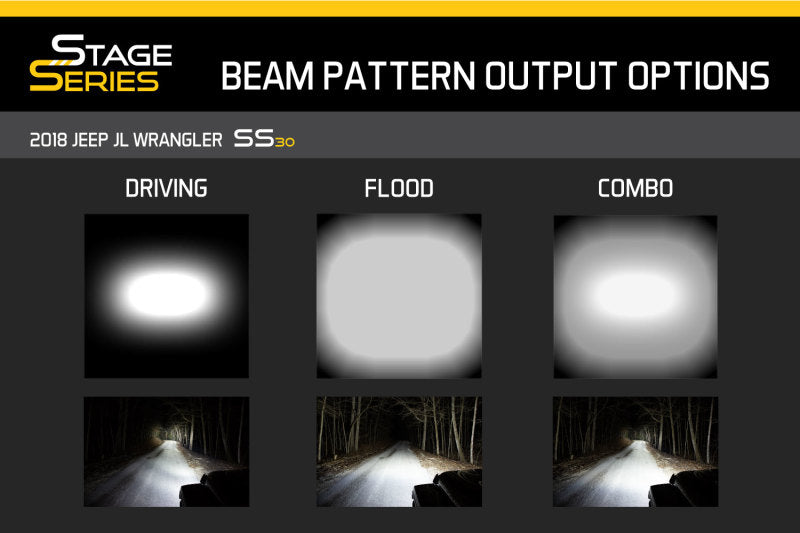

Designed with versatility in mind, this single-row light bar is available in driving, flood, or combo beam patterns. The driving pattern, with a 30x20 degree rectangular beam, enhances long-distance visibility to supplement high beams. The flood pattern offers an 80x50 degree spread, providing even illumination for wide-area lighting at low speeds or worksite applications. The combo pattern combines both, delivering focused downrange light along with a broad flood for situational versatility. Thanks to the proprietary total internal reflection (TIR) optics, the light is directed precisely where needed, significantly reducing glare and improving overall light efficiency. This feature ensures brighter, more focused illumination compared to standard light bars. Easy to install and built for demanding environments, the Diode Dynamics LED Light Bar is an excellent choice for enhancing vehicle visibility and safety.
With its compact design, high-quality components, and functional beam patterns, this LED light bar is suitable for a wide range of automotive and off-road applications. Whether upgrading your vehicle's lighting system or adding supplementary illumination for work and recreation, this light bar provides reliable performance and excellent visibility in a compact form factor.

Features:

• High-intensity automotive-type LEDs with pure white color

• Advanced TIR optics provide high efficiency and focus

• Slim 42mm (1.65-inch) housing for low-profile fitment

• Durable matte powder-coated extruded aluminum construction

• Available in Driving, Flood, or Combo beam patterns

• Focused rectangular 30x20 degree driving pattern enhances long-distance visibility

• 80x50 degree flood pattern for wide-area illumination

• Combo pattern combines both driving and flood optics for versatile lighting
