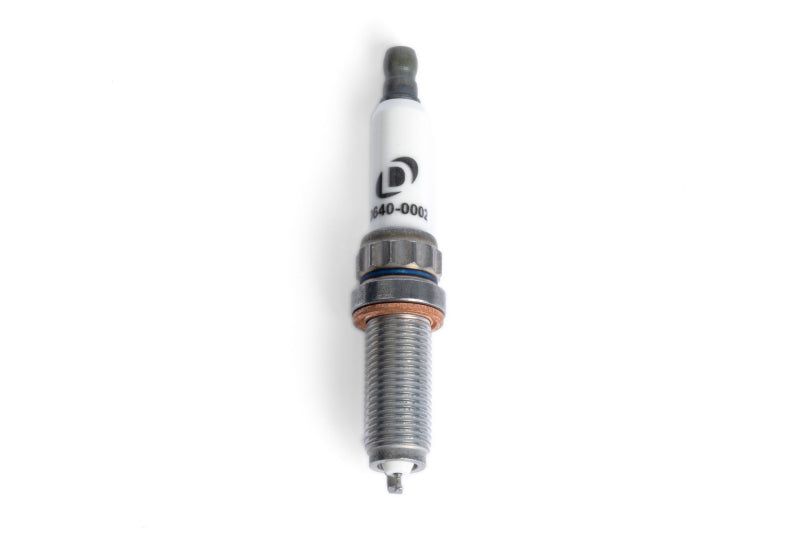

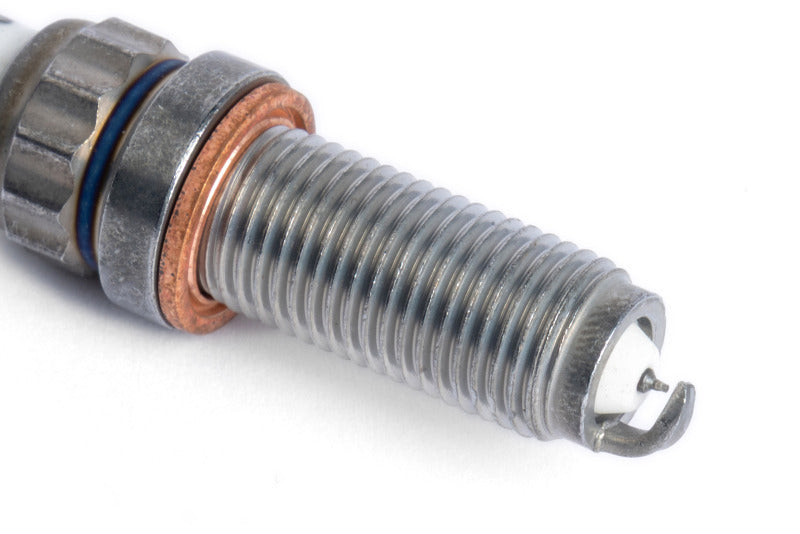

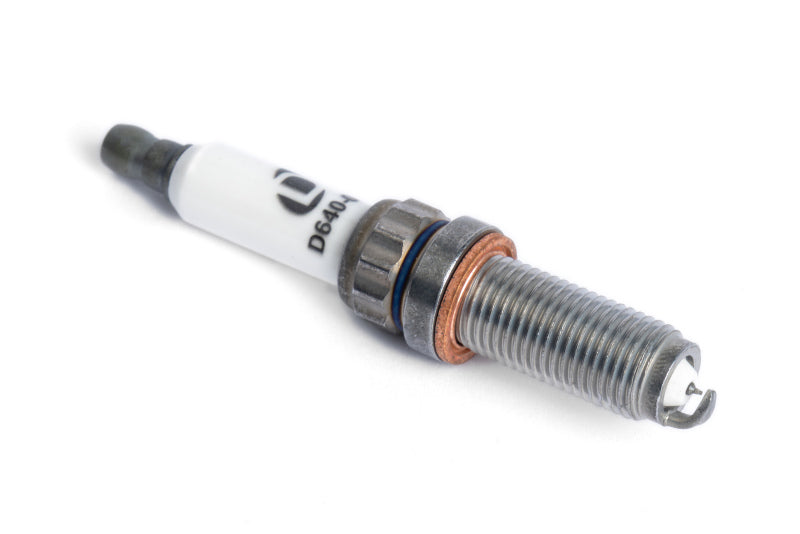

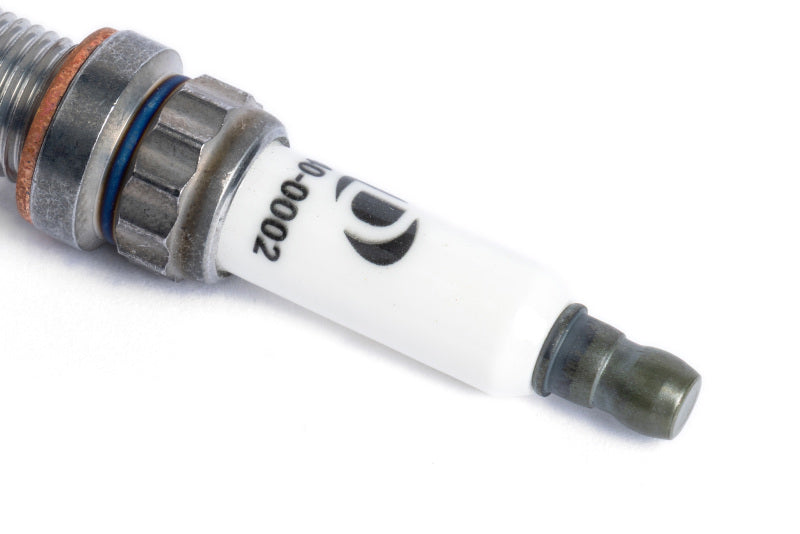

Dinan N20/N54/N55/S55/N63/S63 Iridium Spark Plug - Heat Range 9 - 12mm x 26.5mm x 14mm (HV) - SINGLE

Dinan Iridium Spark Plugs are an excellent upgrade for tuned, and even stock engines, where applicable.* Our spark plugs are made from Iridium - one of the strongest materials available. They last longer than other materials with higher melting points, run cooler, resist preignition, and even require less voltage to produce a strong spark. The iridium electrode with its copper core is harder and stronger than other materials, can dissipate heat more easily, and is better protected from melting, cracking, and other limitations found with standard plugs. N20/N54/N55/S55/N63/N63TU/S63/S63TU Always check sizes, gap, and heat range specs before installing. Installation of the wrong length plug can cause damage to the engine. You must verify this before installing the plug.

• 152% higher melting point than silver, 125% higher than copper, and 38% higher than platinum
• Heat range 9 spark plug (Similar: Bosch 3, Brisk 10, Champion 4, Denso 27, and NGK 9)
• Acceptable for high performance / tuned and most stock* vehicle applications alike
• Optimized electrode design for hard to ignite fuels, such as ethanol
• Cooler operating temperature than stock plugs
• Resists preignition better than stock plugs
• An excellent match for Dinan ignition coils
• 1 step colder than OEM (N20, S55, N63, S63)
• Stronger than copper and platinum
• Lower required supplied voltage
• 3 Steps colder than OEM (N54)
• 2 steps colder than OEM (N55)
• Insulator Material: Ceramic
• Projected insulator design
• Thread diameter: 12mm
• Install Torque: 17 Nm
• Thread reach: 26.5mm
• Hexagon: 14mm Bi-Hex
• Supplied Gap: 0.5mm
• Terminal Type: Nut
• Seat Type: Flat
• Made in the EU

Upgrade your ignition system with the Dinan DNN D640-0002 Iridium Spark Plug, engineered for compatible BMW engines in tuned, high-performance, and many stock applications. Its iridium construction offers a higher melting point than silver, copper, and platinum, helping the plug operate reliably under demanding conditions. The copper-core iridium electrode also promotes efficient heat dissipation, resists melting and cracking, and requires less voltage to produce a strong spark.
Designed for BMW N20, N54, N55, S55, N63, N63TU, S63, and S63TU engines where applicable, this heat range 9 plug provides a cooler operating temperature than many original-equipment plugs and improved resistance to preignition. Its optimized electrode design supports hard-to-ignite fuels, including ethanol, making it a suitable choice for performance builds and tuned applications. The plug is also an excellent match for Dinan ignition coils.
The Dinan DNN D640-0002 is one step colder than OEM on the N20, S55, N63, and S63 engines; two steps colder on the N55; and three steps colder on the N54. It features a ceramic insulator, projected insulator design, flat seat, nut-style terminal, and 14mm bi-hex configuration. Installation torque is 17 Nm, and the supplied gap is 0.5mm. Always verify the required plug length, gap, and heat range for your specific engine before installation. Using an incorrect spark plug can cause engine damage. Made in the EU and sold individually.

Features:

• Iridium electrode with copper core for strong ignition performance and efficient heat dissipation

• 152% higher melting point than silver, 125% higher than copper, and 38% higher than platinum

• Heat range 9, comparable to Bosch 3, Brisk 10, Champion 4, Denso 27, and NGK 9

• Suitable for compatible tuned, high-performance, and most stock vehicle applications

• Optimized electrode design for hard-to-ignite fuels such as ethanol

• Cooler operating temperature and improved preignition resistance compared with stock plugs

• Excellent match for Dinan ignition coils

• One step colder than OEM for N20, S55, N63, and S63 engines

• Two steps colder than OEM for N55 engines

• Three steps colder than OEM for N54 engines

• Ceramic insulator with projected insulator design

• 12mm thread diameter and 26.5mm thread reach

• 14mm bi-hex configuration with flat seat

• 17 Nm installation torque

• 0.5mm supplied gap

• Nut-style terminal

• Made in the EU

Fitment:
BMW 1 Series M Base 2011
BMW 135i Base 2008
BMW 135i Base 2009
BMW 135i Base 2010
BMW 135i Base 2011
BMW 135i Base 2012
BMW 135i Base 2013
BMW 135is Base 2013
BMW 228i Base 2014
BMW 228i Base 2015
BMW 228i Base 2016
BMW 228i xDrive Base 2015
BMW 228i xDrive Base 2016
BMW 320i Base 2013
BMW 320i Base 2014
BMW 320i Base 2015
BMW 320i Base 2016
BMW 320i Base 2017
BMW 320i Base 2018
BMW 320i xDrive Base 2013
BMW 320i xDrive Base 2014
BMW 320i xDrive Base 2015
BMW 320i xDrive Base 2016
BMW 320i xDrive Base 2017
BMW 320i xDrive Base 2018
BMW 328i Base 2012
BMW 328i Base 2013
BMW 328i Base 2014
BMW 328i Base 2015
BMW 328i Base 2016
BMW 328i GT xDrive Base 2014
BMW 328i GT xDrive Base 2015
BMW 328i GT xDrive Base 2016
BMW 328i xDrive Base 2013
BMW 328i xDrive Base 2014
BMW 328i xDrive Base 2015
BMW 328i xDrive Base 2016
BMW 335i Base 2007
BMW 335i Base 2008
BMW 335i Base 2009
BMW 335i Base 2010
BMW 335i Base 2011
BMW 335i Base 2012
BMW 335i Base 2013
BMW 335i Base 2014
BMW 335i Base 2015
BMW 335i GT xDrive Base 2014
BMW 335i GT xDrive Base 2015
BMW 335i GT xDrive Base 2016
BMW 335i xDrive Base 2009
BMW 335i xDrive Base 2010
BMW 335i xDrive Base 2011
BMW 335i xDrive Base 2012
BMW 335i xDrive Base 2013
BMW 335i xDrive Base 2014
BMW 335i xDrive Base 2015
BMW 335is Base 2011
BMW 335is Base 2012
BMW 335is Base 2013
BMW 335xi Base 2007
BMW 335xi Base 2008
BMW 428i Base 2014
BMW 428i Base 2015
BMW 428i Base 2016
BMW 428i Gran Coupe Base 2015
BMW 428i Gran Coupe Base 2016
BMW 428i xDrive Base 2014
BMW 428i xDrive Base 2015
BMW 428i xDrive Base 2016
BMW 428i xDrive Gran Coupe Base 2015
BMW 428i xDrive Gran Coupe Base 2016
BMW 435i Base 2014
BMW 435i Base 2015
BMW 435i Base 2016
BMW 435i Gran Coupe Base 2015
BMW 435i Gran Coupe Base 2016
BMW 435i xDrive Base 2014
BMW 435i xDrive Base 2015
BMW 435i xDrive Base 2016
BMW 435i xDrive Gran Coupe Base 2015
BMW 435i xDrive Gran Coupe Base 2016
BMW 528i Base 2012
BMW 528i Base 2013
BMW 528i Base 2014
BMW 528i Base 2015
BMW 528i Base 2016
BMW 528i xDrive Base 2012
BMW 528i xDrive Base 2013
BMW 528i xDrive Base 2014
BMW 528i xDrive Base 2015
BMW 528i xDrive Base 2016
BMW 535i Base 2008
BMW 535i Base 2009
BMW 535i Base 2010
BMW 535i Base 2011
BMW 535i Base 2012
BMW 535i Base 2013
BMW 535i Base 2014
BMW 535i Base 2015
BMW 535i Base 2016
BMW 535i GT Base 2010
BMW 535i GT Base 2011
BMW 535i GT Base 2012
BMW 535i GT Base 2013
BMW 535i GT Base 2014
BMW 535i GT Base 2015
BMW 535i GT Base 2016
BMW 535i GT Base 2017
BMW 535i GT xDrive Base 2011
BMW 535i GT xDrive Base 2012
BMW 535i GT xDrive Base 2013
BMW 535i GT xDrive Base 2014
BMW 535i GT xDrive Base 2015
BMW 535i GT xDrive Base 2016
BMW 535i GT xDrive Base 2017
BMW 535i xDrive Base 2009
BMW 535i xDrive Base 2010
BMW 535i xDrive Base 2011
BMW 535i xDrive Base 2012
BMW 535i xDrive Base 2013
BMW 535i xDrive Base 2014
BMW 535i xDrive Base 2015
BMW 535i xDrive Base 2016
BMW 535xi Base 2008
BMW 550i Base 2011
BMW 550i Base 2012
BMW 550i Base 2013
BMW 550i Base 2014
BMW 550i Base 2015
BMW 550i Base 2016
BMW 550i Gt Base 2010
BMW 550i Gt Base 2011
BMW 550i Gt Base 2012
BMW 550i Gt Base 2013
BMW 550i Gt Base 2014
BMW 550i Gt Base 2015
BMW 550i GT xDrive Base 2010
BMW 550i GT xDrive Base 2011
BMW 550i GT xDrive Base 2012
BMW 550i GT xDrive Base 2013
BMW 550i GT xDrive Base 2014
BMW 550i GT xDrive Base 2015
BMW 550i GT xDrive Base 2016
BMW 550i GT xDrive Base 2017
BMW 550i xDrive Base 2011
BMW 550i xDrive Base 2012
BMW 550i xDrive Base 2013
BMW 550i xDrive Base 2014
BMW 550i xDrive Base 2015
BMW 550i xDrive Base 2016
BMW 640i Base 2012
BMW 640i Base 2013
BMW 640i Base 2014
BMW 640i Base 2015
BMW 640i Base 2016
BMW 640i Base 2017
BMW 640i Base 2018
BMW 640i Gran Coupe Base 2013
BMW 640i Gran Coupe Base 2014
BMW 640i Gran Coupe Base 2015
BMW 640i Gran Coupe Base 2016
BMW 640i Gran Coupe Base 2017
BMW 640i Gran Coupe Base 2018
BMW 640i Gran Coupe Base 2019
BMW 640i xDrive Base 2014
BMW 640i xDrive Base 2015
BMW 640i xDrive Base 2016
BMW 640i xDrive Base 2017
BMW 640i xDrive Base 2018
BMW 640i xDrive Gran Coupe Base 2014
BMW 640i xDrive Gran Coupe Base 2015
BMW 640i xDrive Gran Coupe Base 2016
BMW 640i xDrive Gran Coupe Base 2017
BMW 640i xDrive Gran Coupe Base 2018
BMW 640i xDrive Gran Coupe Base 2019
BMW 650i Base 2012
BMW 650i Base 2013
BMW 650i Base 2014
BMW 650i Base 2015
BMW 650i Base 2016
BMW 650i Base 2017
BMW 650i Base 2018
BMW 650i Gran Coupe Base 2013
BMW 650i Gran Coupe Base 2014
BMW 650i Gran Coupe Base 2015
BMW 650i Gran Coupe Base 2016
BMW 650i Gran Coupe Base 2017
BMW 650i Gran Coupe Base 2018
BMW 650i Gran Coupe Base 2019
BMW 650i xDrive Base 2012
BMW 650i xDrive Base 2013
BMW 650i xDrive Base 2014
BMW 650i xDrive Base 2015
BMW 650i xDrive Base 2016
BMW 650i xDrive Base 2017
BMW 650i xDrive Base 2018
BMW 650i xDrive Gran Coupe Base 2013
BMW 650i xDrive Gran Coupe Base 2014
BMW 650i xDrive Gran Coupe Base 2015
BMW 650i xDrive Gran Coupe Base 2016
BMW 650i xDrive Gran Coupe Base 2017
BMW 650i xDrive Gran Coupe Base 2018
BMW 650i xDrive Gran Coupe Base 2019
BMW 740i Base 2011
BMW 740i Base 2012
BMW 740i Base 2013
BMW 740i Base 2014
BMW 740i Base 2015
BMW 740Li Base 2011
BMW 740Li Base 2012
BMW 740Li Base 2013
BMW 740Li Base 2014
BMW 740Li Base 2015
BMW 740Li xDrive Base 2013
BMW 740Li xDrive Base 2014
BMW 740Li xDrive Base 2015
BMW 750i Base 2009
BMW 750i Base 2010
BMW 750i Base 2011
BMW 750i Base 2012
BMW 750i Base 2013
BMW 750i Base 2014
BMW 750i Base 2015
BMW 750i Base 2016
BMW 750i Base 2017
BMW 750i Base 2018
BMW 750i Base 2019
BMW 750i xDrive Base 2010
BMW 750i xDrive Base 2011
BMW 750i xDrive Base 2012
BMW 750i xDrive Base 2013
BMW 750i xDrive Base 2014
BMW 750i xDrive Base 2015
BMW 750i xDrive Base 2016
BMW 750i xDrive Base 2017
BMW 750i xDrive Base 2018
BMW 750i xDrive Base 2019
BMW 750Li ActiveHybrid 2011
BMW 750Li ActiveHybrid 2012
BMW 750Li Base 2009
BMW 750Li Base 2010
BMW 750Li Base 2011
BMW 750Li Base 2012
BMW 750Li Base 2013
BMW 750Li Base 2014
BMW 750Li Base 2015
BMW 750Li xDrive Base 2010
BMW 750Li xDrive Base 2011
BMW 750Li xDrive Base 2012
BMW 750Li xDrive Base 2013
BMW 750Li xDrive Base 2014
BMW 750Li xDrive Base 2015
BMW 760Li Base 2010
BMW 760Li Base 2011
BMW 760Li Base 2012
BMW 760Li Base 2013
BMW 760Li Base 2014
BMW 760Li Base 2015
BMW Alpina B7 Base 2011
BMW Alpina B7 Base 2012
BMW Alpina B7 Base 2013
BMW Alpina B7 Base 2014
BMW Alpina B7 Base 2015
BMW Alpina B7 xDrive 2017
BMW Alpina B7 xDrive 2018
BMW Alpina B7 xDrive 2019
BMW Alpina B7 xDrive Base 2011
BMW Alpina B7 xDrive Base 2012
BMW Alpina B7 xDrive Base 2013
BMW Alpina B7 xDrive Base 2014
BMW Alpina B7 xDrive Base 2015
BMW Alpina B7L Base 2011
BMW Alpina B7L Base 2012
BMW Alpina B7L Base 2013
BMW Alpina B7L Base 2014
BMW Alpina B7L Base 2015
BMW Alpina B7L xDrive Base 2011
BMW Alpina B7L xDrive Base 2012
BMW Alpina B7L xDrive Base 2013
BMW Alpina B7L xDrive Base 2014
BMW Alpina B7L xDrive Base 2015
BMW M2 Base 2016
BMW M2 Base 2017
BMW M2 Base 2018
BMW M2 Competition 2019
BMW M2 Competition 2020
BMW M2 Competition 2021
BMW M235i Base 2014
BMW M235i Base 2015
BMW M235i Base 2016
BMW M235i xDrive Base 2015
BMW M235i xDrive Base 2016
BMW M3 Base 2015
BMW M3 Base 2016
BMW M3 Base 2017
BMW M3 Base 2018
BMW M4 Base 2015
BMW M4 Base 2016
BMW M4 Base 2017
BMW M4 Base 2018
BMW M4 Base 2019
BMW M4 Base 2020
BMW M4 CS 2019
BMW M4 CS 2020
BMW M4 GTS 2016
BMW M5 Base 2013
BMW M5 Base 2014
BMW M5 Base 2015
BMW M5 Base 2016
BMW M6 Base 2012
BMW M6 Base 2013
BMW M6 Base 2014
BMW M6 Base 2015
BMW M6 Base 2016
BMW M6 Base 2017
BMW M6 Base 2018
BMW M6 Gran Coupe Base 2014
BMW M6 Gran Coupe Base 2015
BMW M6 Gran Coupe Base 2016
BMW M6 Gran Coupe Base 2017
BMW M6 Gran Coupe Base 2018
BMW M6 Gran Coupe Base 2019
BMW X1 sDrive28i 2013
BMW X1 sDrive28i 2014
BMW X1 sDrive28i 2015
BMW X1 xDrive28i 2013
BMW X1 xDrive28i 2014
BMW X1 xDrive28i 2015
BMW X1 xDrive35i 2013
BMW X1 xDrive35i 2014
BMW X1 xDrive35i 2015
BMW X3 sDrive28i 2015
BMW X3 sDrive28i 2016
BMW X3 sDrive28i 2017
BMW X3 xDrive28i 2011
BMW X3 xDrive28i 2012
BMW X3 xDrive28i 2013
BMW X3 xDrive28i 2014
BMW X3 xDrive28i 2015
BMW X3 xDrive28i 2016
BMW X3 xDrive28i 2017
BMW X3 xDrive35i 2011
BMW X3 xDrive35i 2012
BMW X3 xDrive35i 2013
BMW X3 xDrive35i 2014
BMW X3 xDrive35i 2015
BMW X3 xDrive35i 2016
BMW X3 xDrive35i 2017
BMW X4 M40i 2016
BMW X4 M40i 2017
BMW X4 M40i 2018
BMW X4 xDrive28i 2015
BMW X4 xDrive28i 2016
BMW X4 xDrive28i 2017
BMW X4 xDrive28i 2018
BMW X4 xDrive35i 2015
BMW X4 xDrive35i 2016
BMW X5 M 2010
BMW X5 M 2011
BMW X5 M 2012
BMW X5 M 2013
BMW X5 M 2015
BMW X5 M 2016
BMW X5 M 2017
BMW X5 M 2018
BMW X5 sDrive35i 2014
BMW X5 sDrive35i 2015
BMW X5 sDrive35i 2016
BMW X5 sDrive35i 2017
BMW X5 sDrive35i 2018
BMW X5 xDrive30i 2009
BMW X5 xDrive30i 2010
BMW X5 xDrive35i 2011
BMW X5 xDrive35i 2012
BMW X5 xDrive35i 2013
BMW X5 xDrive35i 2014
BMW X5 xDrive35i 2015
BMW X5 xDrive35i 2016
BMW X5 xDrive35i 2017
BMW X5 xDrive35i 2018
BMW X5 xDrive50i 2011
BMW X5 xDrive50i 2012
BMW X5 xDrive50i 2013
BMW X5 xDrive50i 2014
BMW X5 xDrive50i 2015
BMW X5 xDrive50i 2016
BMW X5 xDrive50i 2017
BMW X5 xDrive50i 2018
BMW X5 xDrive50i 2019
BMW X6 M 2010
BMW X6 M 2011
BMW X6 M 2012
BMW X6 M 2013
BMW X6 M 2014
BMW X6 M 2015
BMW X6 M 2016
BMW X6 M 2017
BMW X6 M 2018
BMW X6 M 2019
BMW X6 sDrive35i 2015
BMW X6 sDrive35i 2016
BMW X6 sDrive35i 2017
BMW X6 sDrive35i 2018
BMW X6 sDrive35i 2019
BMW X6 xDrive35i 2008
BMW X6 xDrive35i 2009
BMW X6 xDrive35i 2010
BMW X6 xDrive35i 2011
BMW X6 xDrive35i 2012
BMW X6 xDrive35i 2013
BMW X6 xDrive35i 2014
BMW X6 xDrive35i 2015
BMW X6 xDrive35i 2016
BMW X6 xDrive35i 2017
BMW X6 xDrive35i 2018
BMW X6 xDrive35i 2019
BMW X6 xDrive50i 2008
BMW X6 xDrive50i 2009
BMW X6 xDrive50i 2010
BMW X6 xDrive50i 2011
BMW X6 xDrive50i 2012
BMW X6 xDrive50i 2013
BMW X6 xDrive50i 2014
BMW X6 xDrive50i 2015
BMW X6 xDrive50i 2016
BMW X6 xDrive50i 2017
BMW X6 xDrive50i 2018
BMW X6 xDrive50i 2019
BMW Z4 sDrive28i 2012
BMW Z4 sDrive28i 2013
BMW Z4 sDrive28i 2014
BMW Z4 sDrive28i 2015
BMW Z4 sDrive28i 2016
BMW Z4 sDrive35i 2009
BMW Z4 sDrive35i 2010
BMW Z4 sDrive35i 2011
BMW Z4 sDrive35i 2012
BMW Z4 sDrive35i 2013
BMW Z4 sDrive35i 2014
BMW Z4 sDrive35i 2015
BMW Z4 sDrive35i 2016
BMW Z4 sDrive35is 2011
BMW Z4 sDrive35is 2012
BMW Z4 sDrive35is 2013
BMW Z4 sDrive35is 2014
BMW Z4 sDrive35is 2015
BMW Z4 sDrive35is 2016
