Dinan 21-27 BMW M3/M4 (G80/G82/G83) Adjustable Coil-Over Suspension System

Dinan's design retains the superb factory electronic shocks but swaps the springs to a more aggressive, performance enhancing formula and implements threaded collars that allow the user to change the ride height themselves. While shorter, stiffer springs are commonplace in aftermarket suspensions and are a key element in reduction of body roll it is not a one size fits all approach. In the case of the G8x M3/M4 where the vehicle has a penchant for oversteer, stiffening the rear springs would exacerbate the problem of the rear losing traction before the front when the platform is pushed to the limit. Dinan instead has opted to soften the rear spring rate as well as switch from the factory progressive rate rear to a dual rate spring setup. The combination increases predictability and compliancy, and in turn, provides better rear grip/road holding for a vehicle that needs both. The result is a sleek lowered stance that provides improved handling to go along with its stunning visual appearance. The springs combined with progressive bump stops and other components increase travel that allow the car to be lowered up to 1-1/8" in the front and 2-1/4" inches the rear. However, to retain the ride quality synonymous with Dinan suspension kits the recommended drop of 3/4" (M4) or 7/8" (M3) in front and 3/4" in the rear is advised. For suspension connoisseurs, or those that are just simply very particular, suspension packers are included to fine-tune handling and comfort by changing the clearance of the progressive bump-stops --- something no respectable race car is without. G80/G82/G83

• Up to 1" of lowering in front and 2-1/4" of lowering in back are possible depending on tire clearance but with diminished ride quality
• Components are machined from 6061-T6 aluminum and black anodized for a sporty appearance as well as corrosion protection
• Dinan recommends a 3/4" (M4) to 7/8" (M3) drop in front and a 3/4" drop in the rear to maintain a civilized ride
• Spring rates are 15% stiffer in front and 10% softer in the rear for increased predictability and compliancy
• Included suspension packers allow adjustment of bump-stop clearance to fine-tune handling and comfort

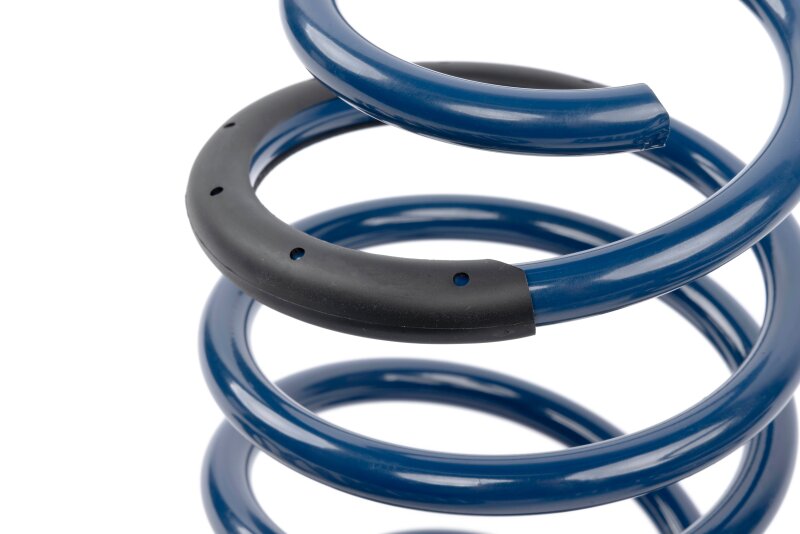

• Stock upper spring mounts are utilized as well as spring isolators for quiet operation

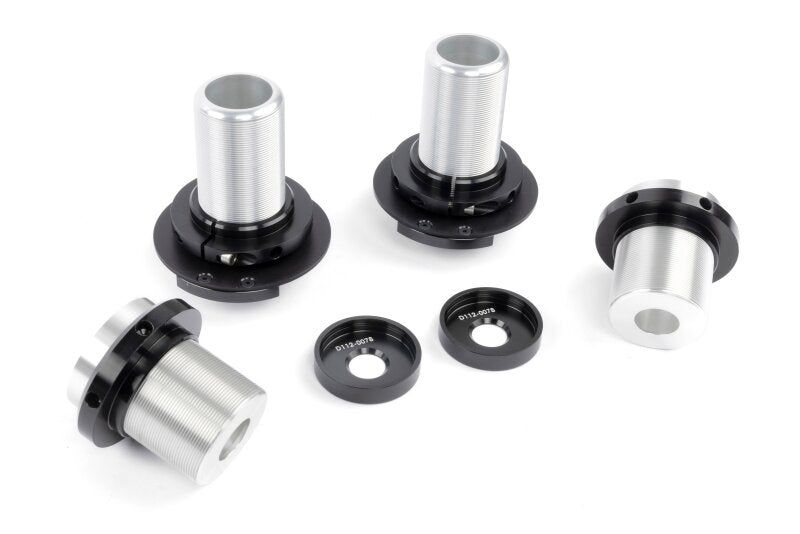

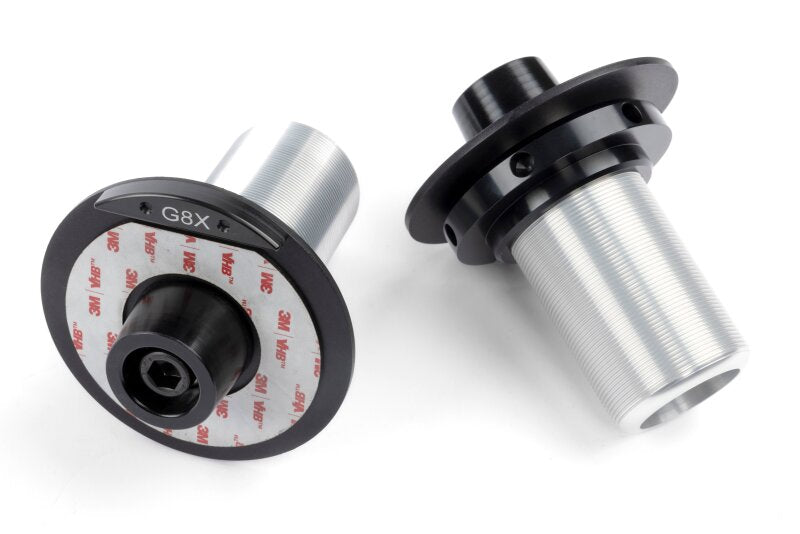

• Threaded collars allow easy and precise front & rear vehicle height adjustments

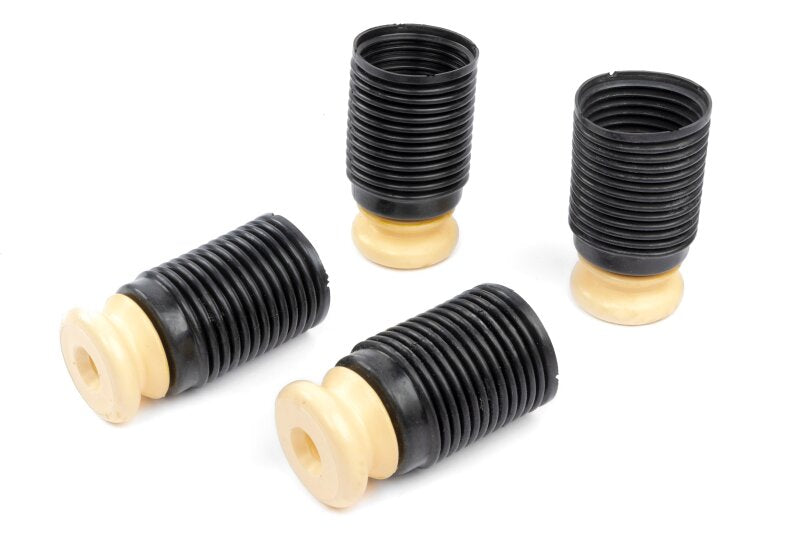

• Dinan-spec progressive bump stops improve ride quality at lowered ride heights
• Up to 1/2" of lift in front and 1-1/4" in back over stock is also possible
• Substantial reduction in body roll

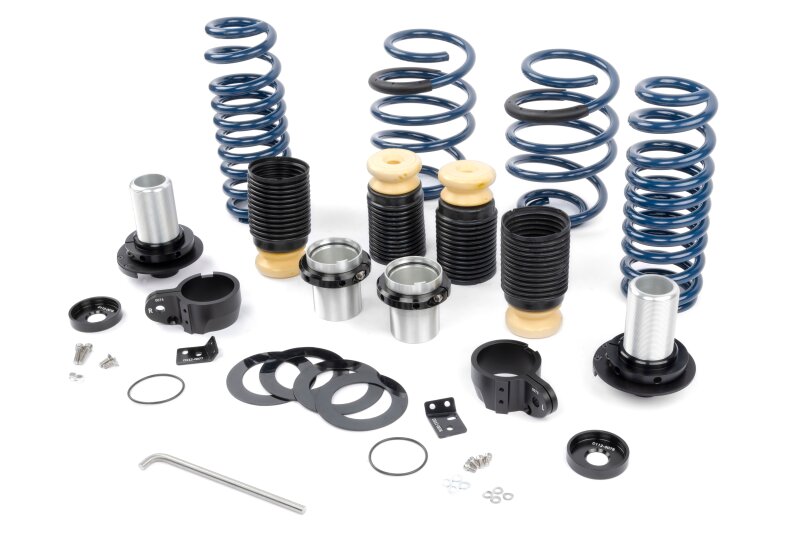

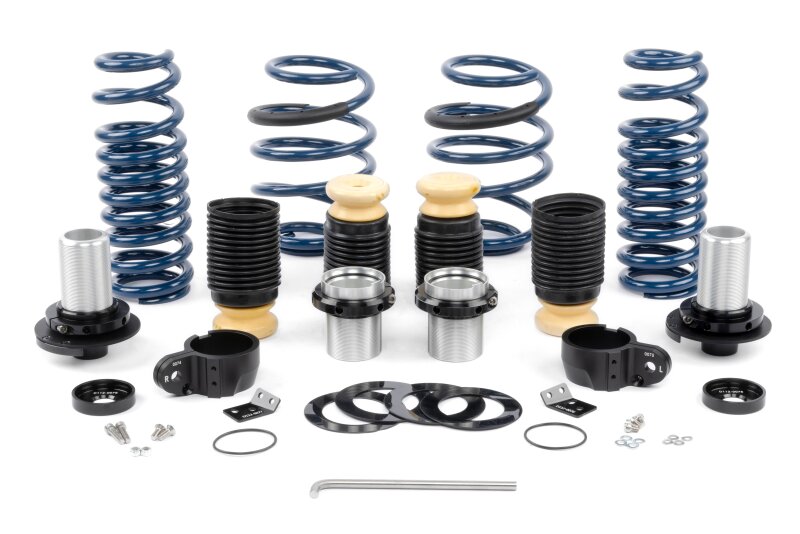

The Dinan D190-8210 Adjustable Coil-Over Suspension System is designed for 2021-2023 BMW M3 and M4 models with G80, G82, or G83 chassis designations. This performance suspension system retains the factory electronic shocks while replacing the original springs with a carefully developed formula that improves handling, stance, and driver confidence. Threaded collars provide precise ride-height adjustment at the front and rear, allowing enthusiasts to tailor the vehicle’s appearance and suspension behavior to their preferences.
Dinan engineered the spring rates specifically for the G8x platform rather than applying a generic suspension formula. The front springs are 15% stiffer to reduce body roll, while the rear springs are 10% softer than stock to improve traction, compliance, and predictability during aggressive driving. The rear also changes from the factory progressive spring design to a dual-rate setup, helping the vehicle maintain better road holding without making the ride unnecessarily harsh. Dinan-spec progressive bump stops and included suspension packers further improve suspension travel and allow the bump-stop clearance to be fine-tuned for handling and comfort.

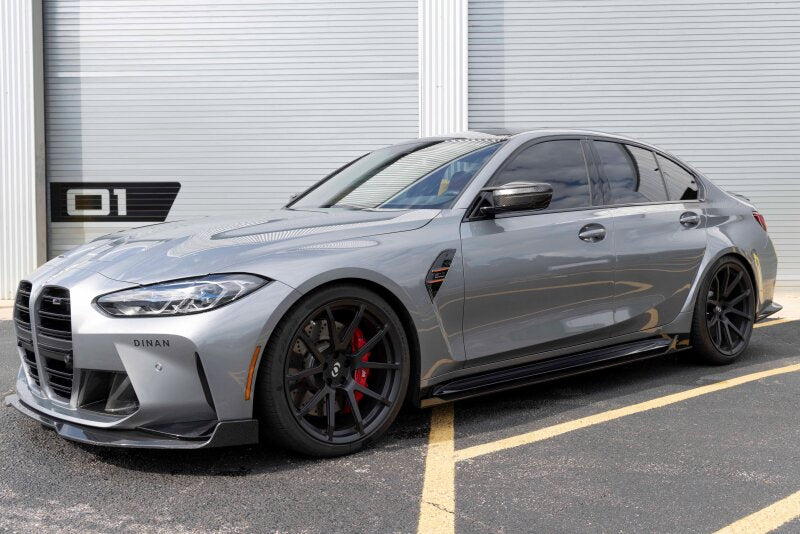

The system can lower the front of the vehicle by up to approximately 1 inch and the rear by up to 2-1/4 inches, depending on tire clearance and setup. For a balanced combination of performance and everyday ride quality, Dinan recommends approximately 3/4 inch of front lowering on the M4, 7/8 inch on the M3, and 3/4 inch at the rear. The threaded collars also permit raising the vehicle above its original ride height when needed. Machined 6061-T6 aluminum components receive a black anodized finish for corrosion protection and a clean, performance-oriented appearance. Stock upper spring mounts and spring isolators are retained for quiet operation. The Dinan D190-8210 fits select 2021-2023 BMW M3 and M4 applications; verify vehicle configuration before installation.

Features:

• Compatible with select 2021-2023 BMW M3 and M4 models with G80, G82, and G83 chassis designations

• Retains the factory electronic shock absorbers

• Adjustable ride height through threaded front and rear collars

• Front spring rates are 15% stiffer for improved body-roll control

• Rear spring rates are 10% softer for increased traction, compliance, and predictability

• Dual-rate rear springs improve rear grip and road holding

• Up to approximately 1 inch of front lowering and 2-1/4 inches of rear lowering

• Recommended lowering maintains a balanced, civilized ride quality

• Vehicle height can also be raised above stock when desired

• Machined 6061-T6 aluminum components with black anodized finish

• Included suspension packers adjust progressive bump-stop clearance

• Dinan-spec progressive bump stops improve ride quality at lowered heights

• Uses stock upper spring mounts and spring isolators for quiet operation

• Reduces body roll while maintaining compliant suspension behavior

Fitment:
BMW M3 Base 2021
BMW M3 Base 2022
BMW M3 Base 2023
BMW M3 Base 2024
BMW M3 Base 2025
BMW M3 Base 2026
BMW M3 Competition 2021
BMW M3 Competition 2022
BMW M3 Competition 2023
BMW M3 Competition 2024
BMW M3 Competition 2025
BMW M3 Competition 2026
BMW M3 Competition xDrive 2022
BMW M3 Competition xDrive 2023
BMW M3 Competition xDrive 2024
BMW M3 Competition xDrive 2025
BMW M3 Competition xDrive 2026
BMW M4 Base 2021
BMW M4 Base 2022
BMW M4 Base 2023
BMW M4 Base 2024
BMW M4 Base 2025
BMW M4 Base 2026
BMW M4 Competition 2021
BMW M4 Competition 2022
BMW M4 Competition 2023
BMW M4 Competition 2024
BMW M4 Competition 2025
BMW M4 Competition 2026
BMW M4 Competition xDrive 2022
BMW M4 Competition xDrive 2023
BMW M4 Competition xDrive 2024
BMW M4 Competition xDrive 2025
BMW M4 Competition xDrive 2026
BMW M4 CSL 2023
