Dinan 18-23 BMW M5 (F90) Carbon Fiber Cold Air Intake

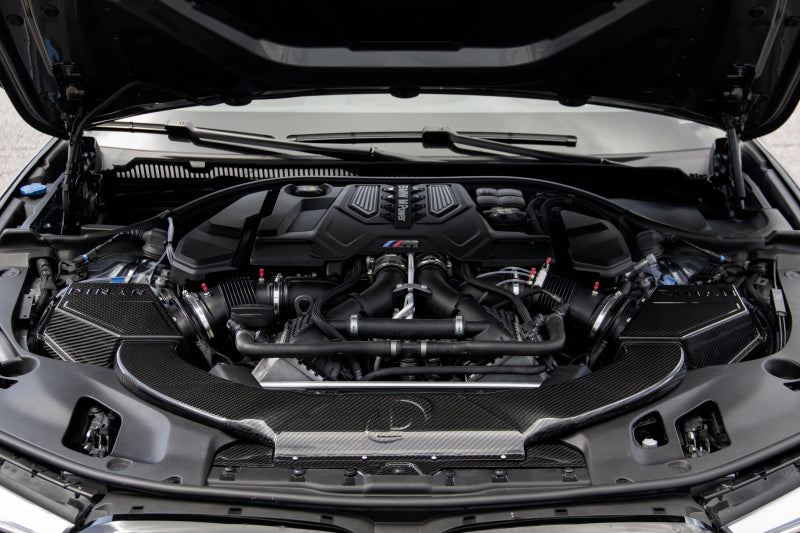

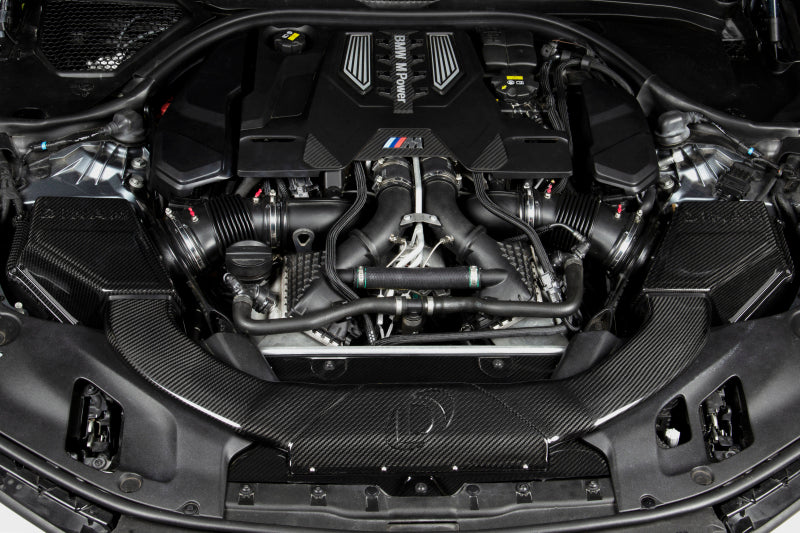

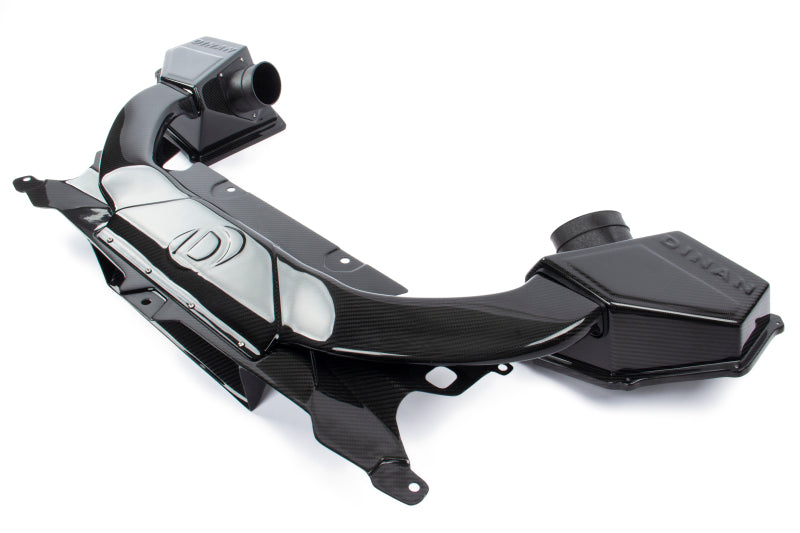

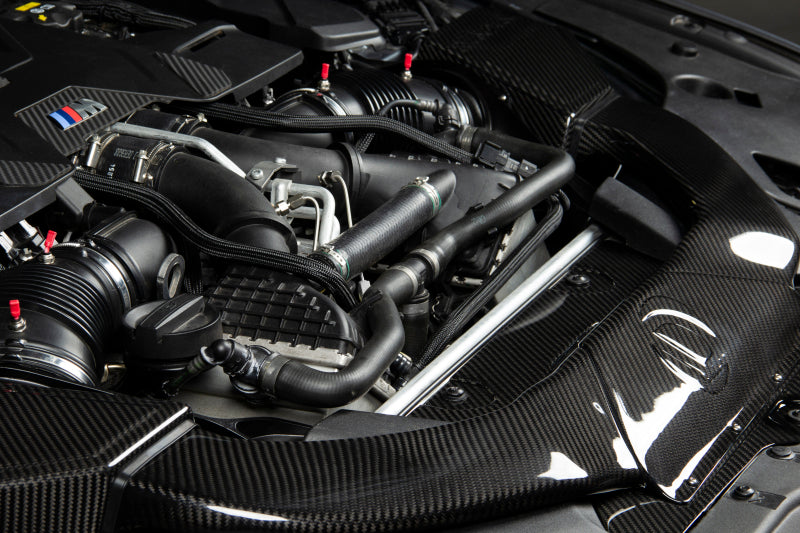

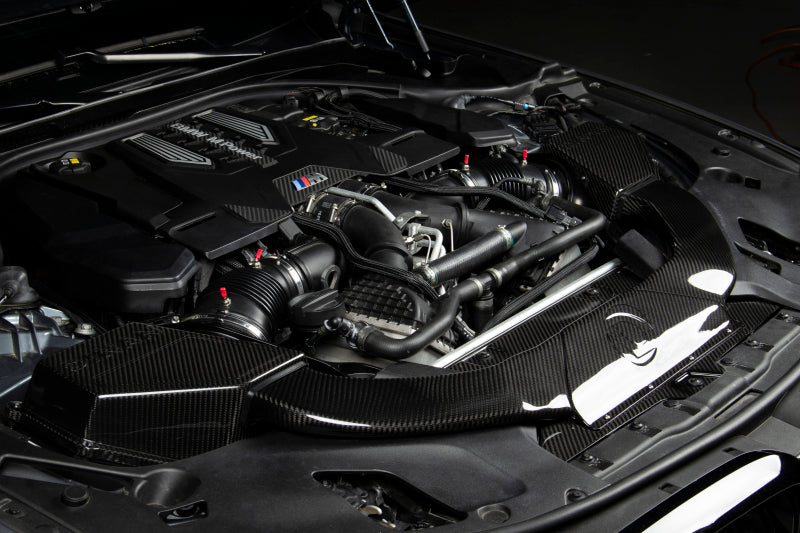

The first thing noticed upon gazing upon the engine bay equipped with the Dinan intake is the sheer amount of gloss UV coated 2x2 carbon fiber. Stretching from one end of the engine compartment to the other, courtesy of a fully functional secondary air inlet wishbone, the material is not only beautiful to look at but serves the purpose of heat deflection as well. The wishbone, which mimics the equally impressive calling card of the F8x M3/M4 engine compartment, is purposeful in a different way. Instead of adding structural integrity, the wishbone serves as the conduit for a secondary air source deriving its contents from a central hood scoop located behind the front grilles. The additional air flow supplements the factory inlet locations on both the left and right air boxes with ambient air from outside of the engine compartment. These air boxes have been enlarged and equipped with massive filters to handle this increased volume and together with the rest of the system allow the intake to flow as efficiently as possible. Carbon Fiber - F90

• Larger volume air boxes (31% larger than stock) that completely seals allowing an increased volume of air to be utilized.
• Center wishbone inlet/scoop incorporated as an additional secondary air source for maximum airflow.

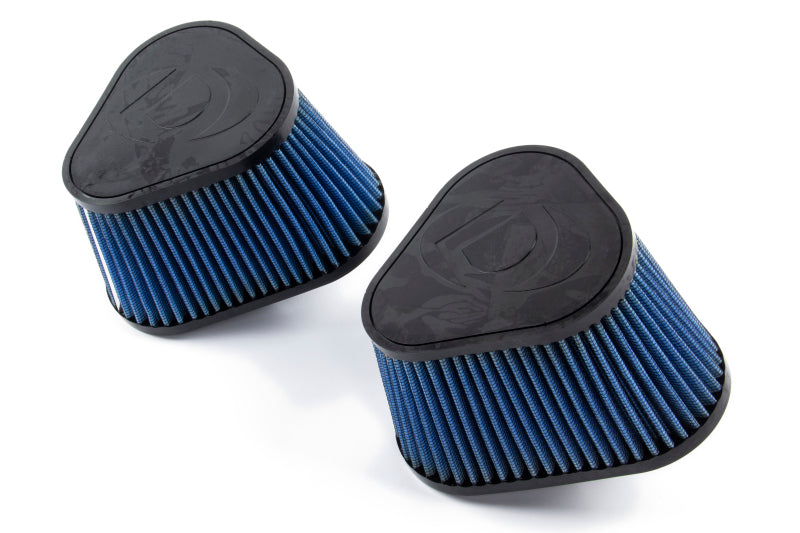

• 35% increase in filter area (stock: 56.5in², Dinan: 80in² per side) for optimum flow.
• More Flow: 11% greater than stock (Stock: 575 CFM, Dinan: 637 CFM @ 28" H2O per bank).
• Increased turbo efficiency, reliability, and head room.
• Improved throttle response.
• Bolt-on installation.

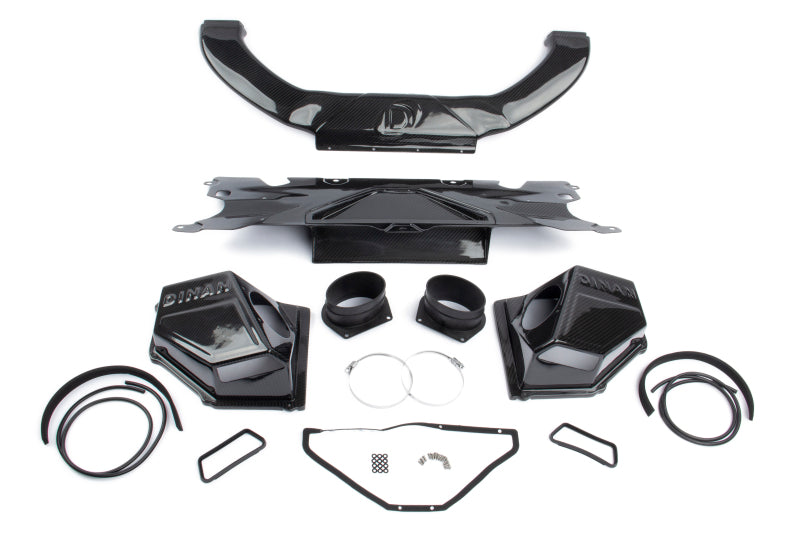

Upgrade the airflow and presentation of your F90 BMW M5 engine bay with the Dinan D760-0049 Carbon Fiber Cold Air Intake. Designed for 2018-2023 BMW M5 models, this bolt-on intake system combines gloss UV-coated 2x2 carbon fiber construction with a functional secondary air inlet wishbone. The carbon fiber helps deflect engine-bay heat, while the integrated center scoop draws additional ambient air from behind the front grilles and delivers it to the intake system.

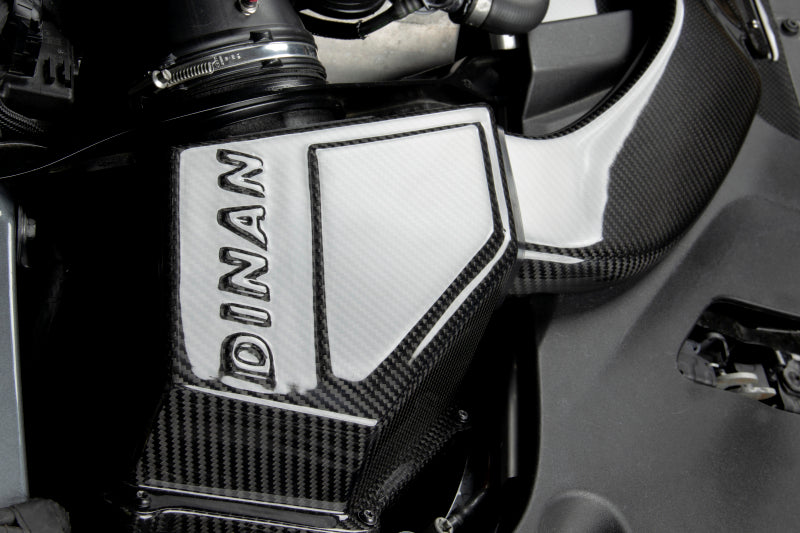

The Dinan intake features enlarged air boxes that provide 31% more volume than the factory units and fully seal to support efficient use of the increased airflow. Massive filters increase the available filter area by 35%, measuring 80 square inches per side compared with 56.5 square inches per factory side. Together, the larger air boxes, high-capacity filters, and secondary air source help the system flow more air while maintaining a clean, purposeful installation.
Testing shows the Dinan D760-0049 flows 11% more air than stock, reaching 637 CFM per bank at 28 inches of water compared with 575 CFM per bank for the factory system. Increased airflow can support improved turbocharger efficiency, added performance headroom, and sharper throttle response. The complete system is engineered for direct bolt-on installation and complements the F90 M5 engine compartment with a motorsport-inspired carbon fiber design. This product is not CARB approved and may require acknowledgment of emissions restrictions before installation or use.

Features:

• Brand: Dinan

• Part Number: D760-0049

• Application: 2018-2023 BMW M5 F90

• Construction: Gloss UV-coated 2x2 carbon fiber

• Air Box Design: 31% larger volume than stock with a fully sealed configuration

• Secondary Air Source: Functional center wishbone inlet and hood scoop

• Filter Area: 35% greater than stock, with 80 square inches per side

• Airflow: 637 CFM per bank at 28 inches of water, an 11% increase over stock

• Performance Benefits: Supports turbo efficiency, reliability, performance headroom, and throttle response

• Installation: Direct bolt-on design

• Emissions Information: Not CARB approved

Fitment:
BMW M5 Base 2018
BMW M5 Base 2019
BMW M5 Base 2020
BMW M5 Base 2021
BMW M5 Base 2022
BMW M5 Base 2023
BMW M5 Competition 2019
BMW M5 Competition 2020
BMW M5 Competition 2021
BMW M5 CS 2022
