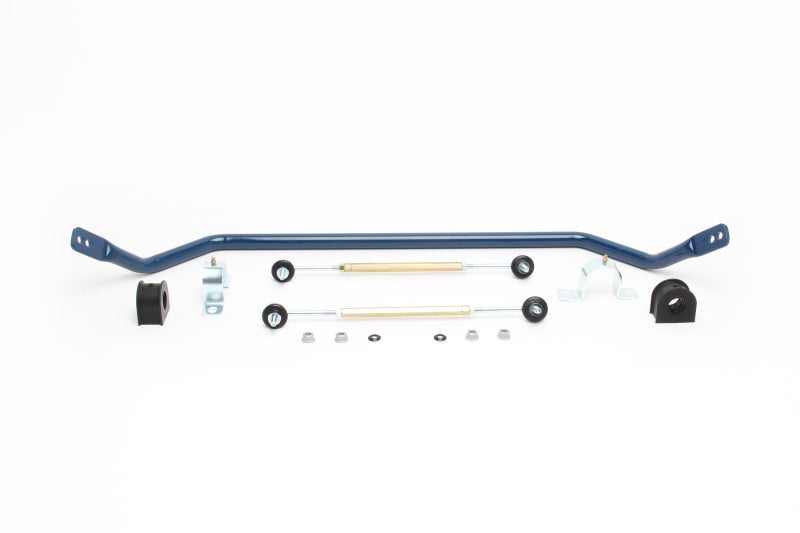

Dinan 12-19 BMW M5/M6 (F06/F10/F12/F13) Adjustable Front & Rear Sway Bar Set - 28mm & 22mm

Almost all street cars come from the manufacturer with an anti-roll bar as it is a common part of modern suspension systems. However, they are designed to be overly soft for maximum comfort. An anti-roll bar does exactly what it says by reducing body roll in all situations. Every Dinan tuned anti-roll bar is built and tuned specifically for each BMW chassis. Lowering the amount of body roll keeps your BMW more level than stock (while still allowing just enough body roll) to improve mechanical grip. This improvement gives the driver a much more planted and confident feeling in every corner. Front: 28mm - Rear: 22mm - Adjustable - F06/F10/F12/F13

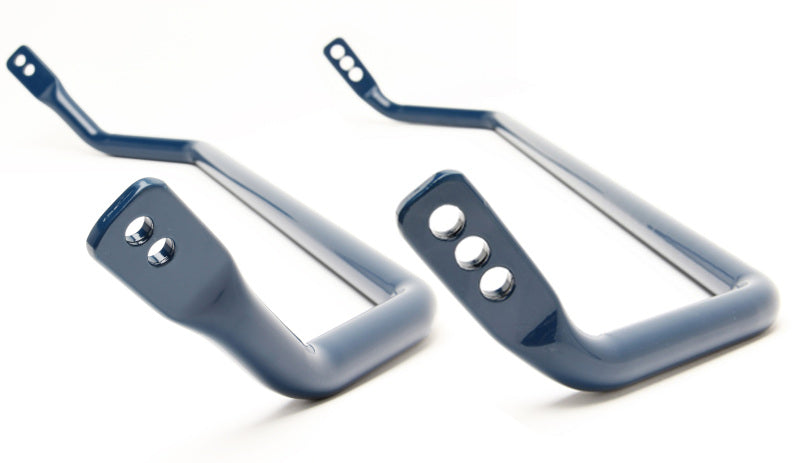

• Front - 2 hole bar with 3 possible positions on bar & adjustable length end links; Rear - 3 hole bar with 3 possible positions on bar
• Lightweight - 44% lighter in front and 29% lighter in the rear compared to a solid anti-roll bar of comparable stiffness
• Front - Large 28mm size (stock bar is 24.5mm); Rear - Large 22mm size (stock bar is 21.5mm)
• Only tubular anti-roll bars with a large range of adjustment on the market
• Tubular (hollow) construction
• More stable at the limit
• More mechanical grip
• Less body roll

Upgrade the handling of your BMW with the Dinan DNN D120-0560 adjustable front and rear sway bar set, engineered specifically for F06, F10, F12, and F13 chassis applications. Factory anti-roll bars are typically tuned for comfort, which can allow excessive body roll during cornering. This Dinan set helps keep the vehicle more level while preserving enough suspension movement to maintain mechanical grip, giving the driver a more planted and confident feel on the street or track.
The set includes a 28mm front sway bar and a 22mm rear sway bar, both using lightweight tubular construction. Compared with solid anti-roll bars of comparable stiffness, the front bar is 44% lighter and the rear bar is 29% lighter. The larger bar sizes also provide increased roll control over the factory setup, with the front bar measuring 28mm versus the stock 24.5mm bar and the rear measuring 22mm versus the stock 21.5mm bar.
The front bar features two mounting holes with three possible adjustment positions and includes adjustable-length end links. The rear bar uses three mounting holes with three possible adjustment positions, allowing the suspension balance to be tailored to the driver’s preferences and vehicle setup. This is a complete front and rear upgrade designed to improve stability at the limit, reduce body roll, and increase mechanical grip without sacrificing the responsive character expected from a BMW M vehicle. The Dinan DNN D120-0560 fits select 2012–2016 BMW M5 and M6 models, including F06 M6 Gran Coupe, F10 M5, F12 M6, and F13 M6 applications. Professional installation and alignment checks are recommended.

Features:

• Application: Fits select 2012–2016 BMW M5 and M6 models with F06, F10, F12, and F13 chassis designations

• Bar Sizes: Includes a 28mm front sway bar and a 22mm rear sway bar

• Adjustability: Front bar provides three adjustment positions with adjustable-length end links; rear bar provides three adjustment positions

• Construction: Lightweight tubular, hollow anti-roll bar design

• Weight Savings: Front bar is 44% lighter and rear bar is 29% lighter than comparable solid bars

• Handling: Reduces body roll, improves stability at the limit, and increases mechanical grip

• Brand and Part Number: Dinan DNN D120-0560

Fitment:
BMW M5 Base 2013
BMW M5 Base 2014
BMW M5 Base 2015
BMW M5 Base 2016
BMW M6 Base 2012
BMW M6 Base 2013
BMW M6 Base 2014
BMW M6 Base 2015
BMW M6 Base 2016
BMW M6 Base 2017
BMW M6 Base 2018
BMW M6 Gran Coupe Base 2014
BMW M6 Gran Coupe Base 2015
BMW M6 Gran Coupe Base 2016
BMW M6 Gran Coupe Base 2017
BMW M6 Gran Coupe Base 2018
BMW M6 Gran Coupe Base 2019
