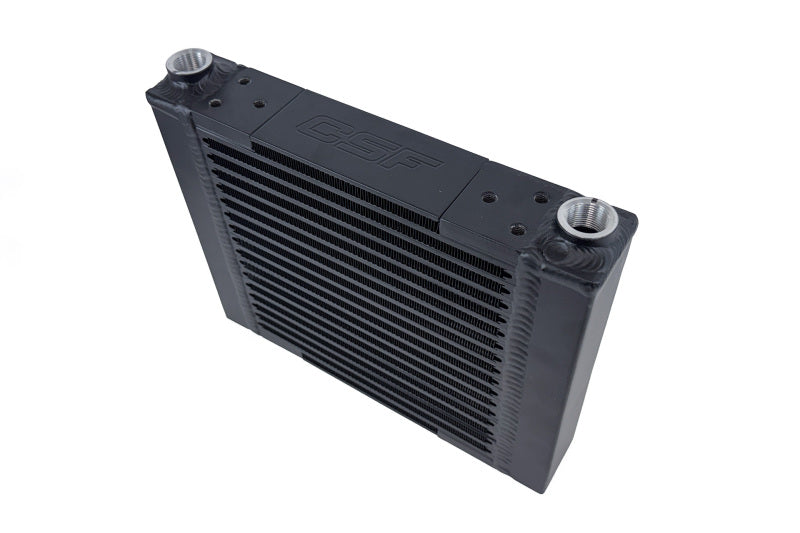

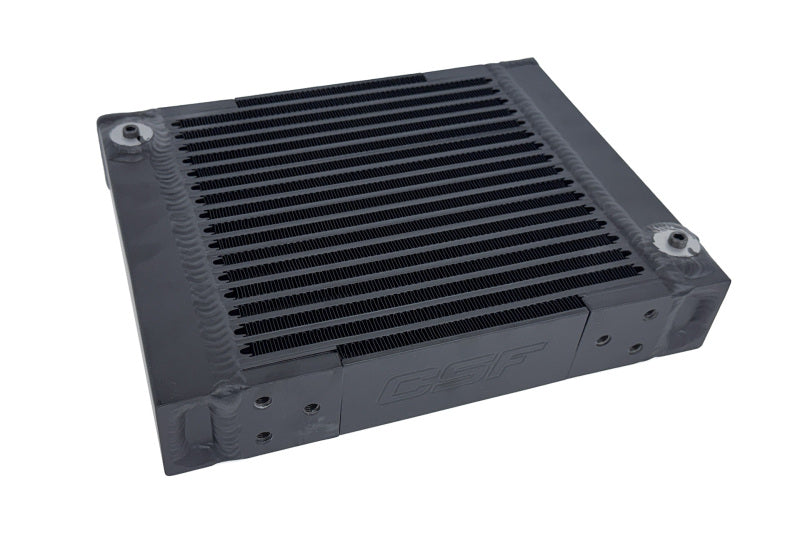

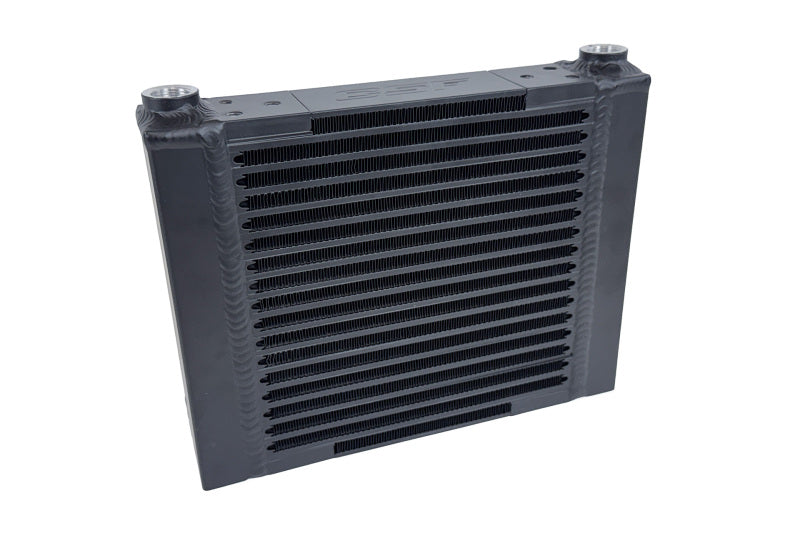

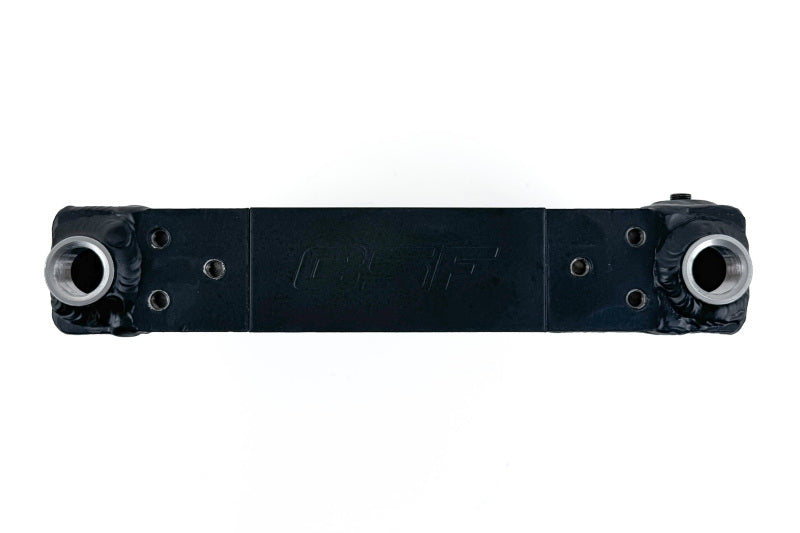

CSF Universal Large Single-Pass Oil Cooler - M22 x 1.5 - 12in L x 9.33in H x 2.16in W

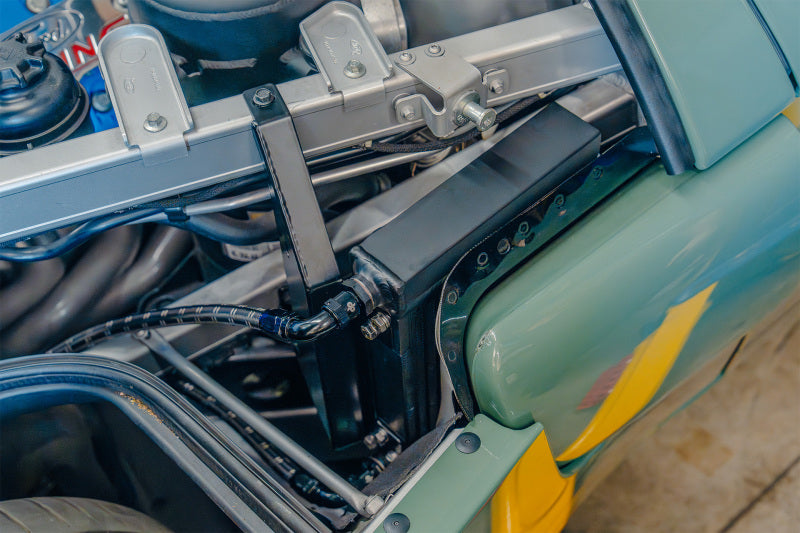

CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate than common brazed plate-type/stacked designs. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc). When using a conventional oil cooler, the type of mounting locations are often not considered due to the risk of damage. The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. You can even stand on it! CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris. It is designed to withstand a tremendous amount of vibration and debris. The CSF #8371 Cooling product is designed to be a "Custom Fit" application. The product installion may require modifications. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Overall Dimensions (including fitting bosses): 12.0" L x 9.85" H x 2.36" W (305mm x 250mm x 60mm)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Core Dimensions: 9.25" L x 9.33" H x 2.16" W (235mm x 237mm x 55mm)

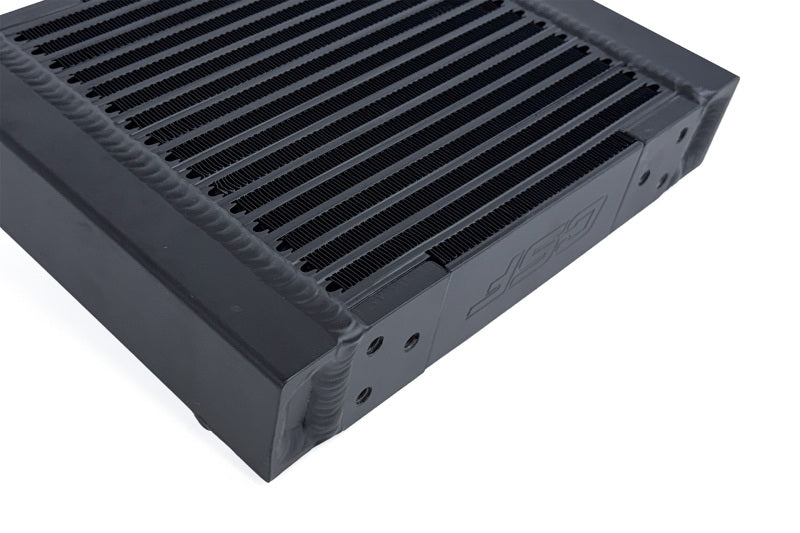

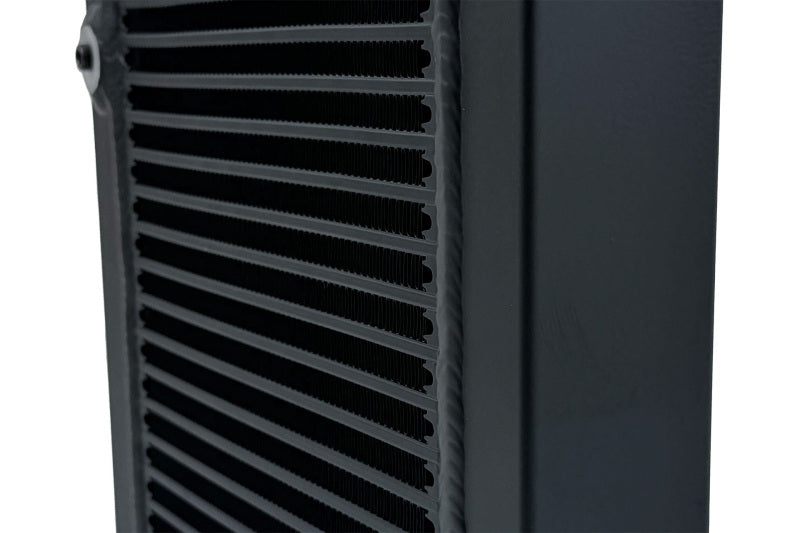

• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow

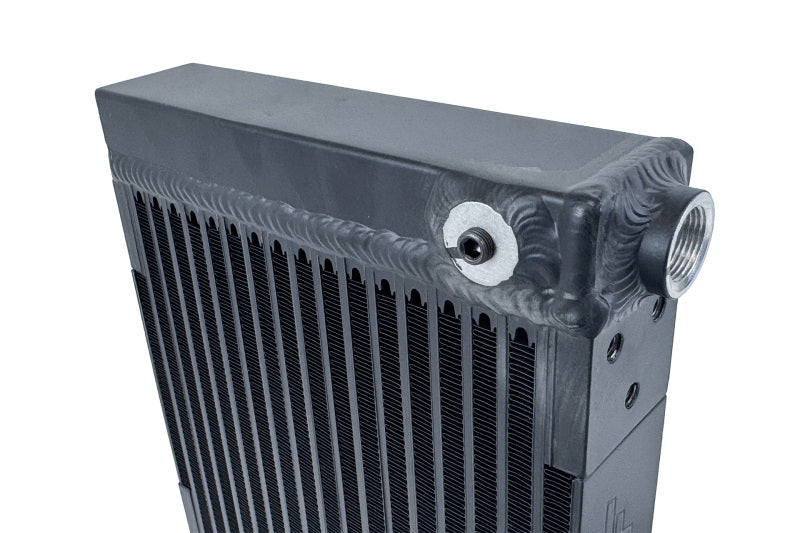

• Two 1/8 NPT Ports on each tank for bleeding or temperature sensors

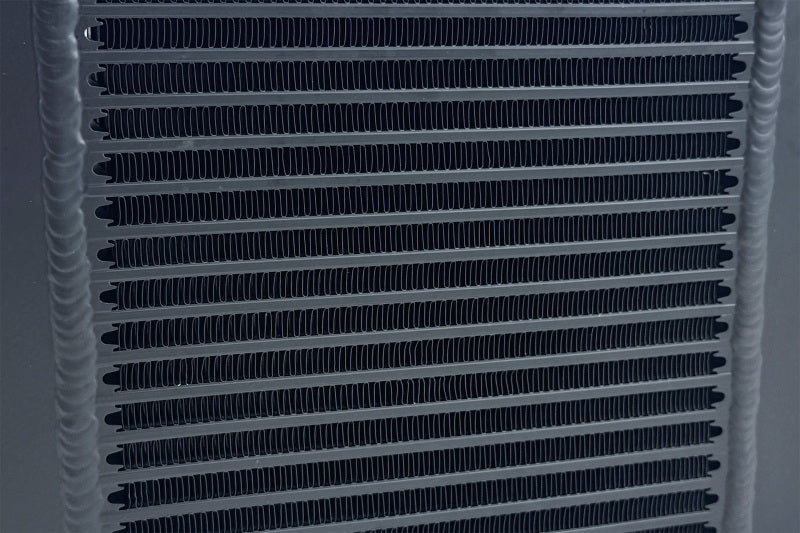

• High Efficiency & Rugged Durability Bar/Plate Design

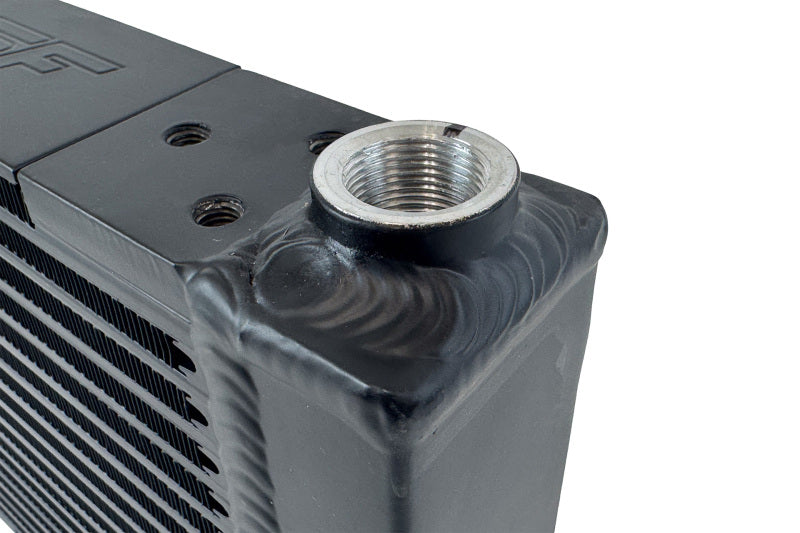

• M22 x 1.5 Inlet/Outlet Connections
• Fluid Capacity: 1.5L (1.6 qt)
• Pressure Tested at 120psi
• 2-Year Limited Warranty

The CSF #8371 universal large single-pass oil cooler is engineered for high durability and exceptional performance in demanding automotive applications. Its robust construction allows it to withstand high debris environments and significant vibration, making it suitable for mounting in areas such as front fascia, differential coolers, or side vents where conventional coolers might be vulnerable. The cooler's design emphasizes strength and efficiency, ensuring reliable temperature regulation under extreme conditions.

Constructed with a satin black finish for superior corrosion and debris resistance, this oil cooler features an innovative "Aero-Flow" bar design that combines lightweight strength with maximum fluid flow. Its high-efficiency bar/plate core enhances heat dissipation, supporting optimal engine temperatures. Equipped with two 1/8 NPT ports on each tank, it allows easy integration of bleeding or temperature sensors for precise cooling management. The M22 x 1.5 inlet and outlet connections provide secure attachment points compatible with many custom setups.

Measuring approximately 12 inches long, 9.85 inches high, and 2.36 inches wide, this cooler offers a fluid capacity of 1.5 liters (about 1.6 quarts). It has been pressure tested to withstand up to 120 psi, ensuring durability under high-pressure conditions. Installation may require modifications, and professional installation is recommended if you are not confident in performing the task yourself. Backed by a 2-year limited warranty, the CSF #8371 oil cooler combines rugged reliability with advanced design to meet the demands of high-performance vehicles.

Features:

• Overall Dimensions: 12.0 inches length x 9.85 inches height x 2.36 inches width

• Satin Black Finish for corrosion and debris resistance

• Core Dimensions: 9.25 inches length x 9.33 inches height x 2.16 inches width

• "Aero-Flow" Bar Design for lightweight strength and maximum flow

• Two 1/8 NPT ports on each tank for sensors and bleeding

• High efficiency bar/plate core for optimal heat dissipation

• M22 x 1.5 inlet and outlet connections

• Fluid capacity: 1.5 liters (1.6 quarts)

• Pressure tested at 120 psi

• Includes 2-year limited warranty
