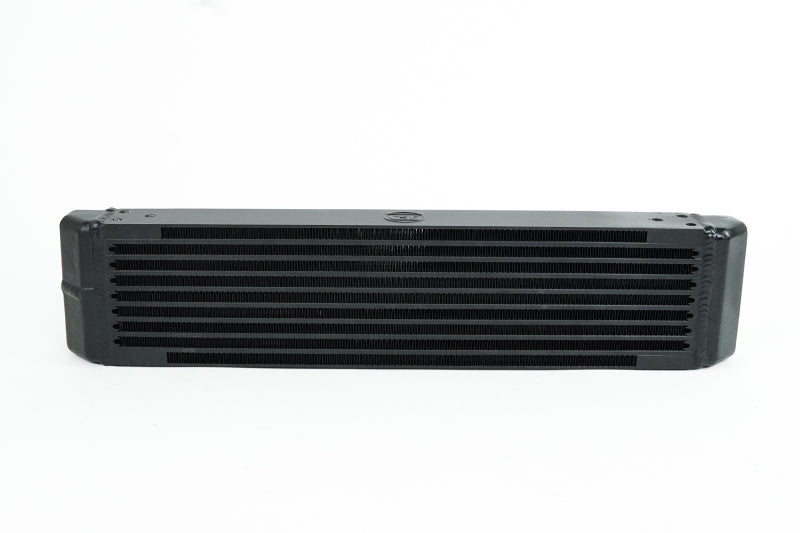

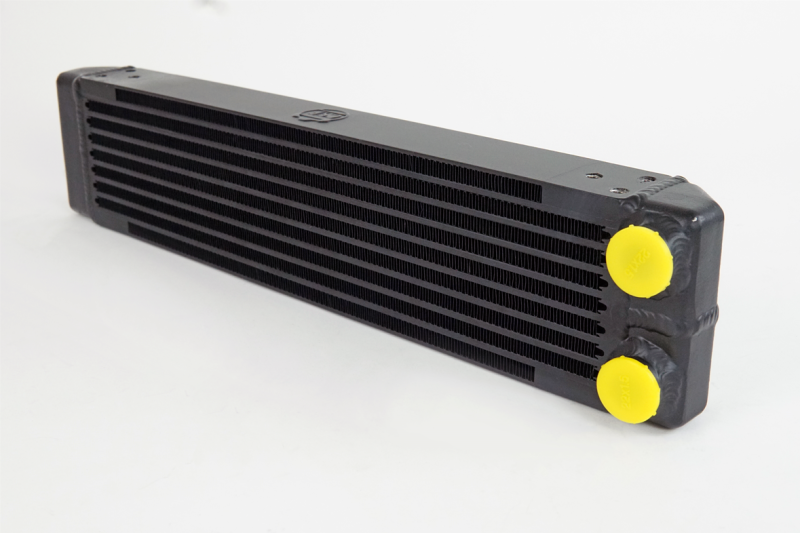

CSF Universal Dual-Pass Oil Cooler - M22 x 1.5 Connections 22x4.75x2.16

The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Universal / 73' Porsche 911 RS-Style Bumper hard on the street or track, a CSF is the obvious choice. The CSF #8201 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Satin Black Finish for Extreme Protection Against Corrosion and Debris

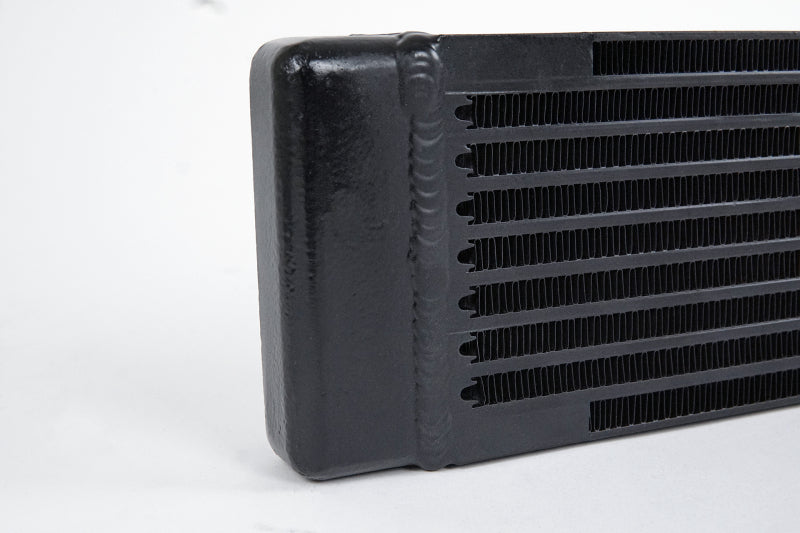

• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• High Efficiency & Rugged Durability Bar/Plate Design

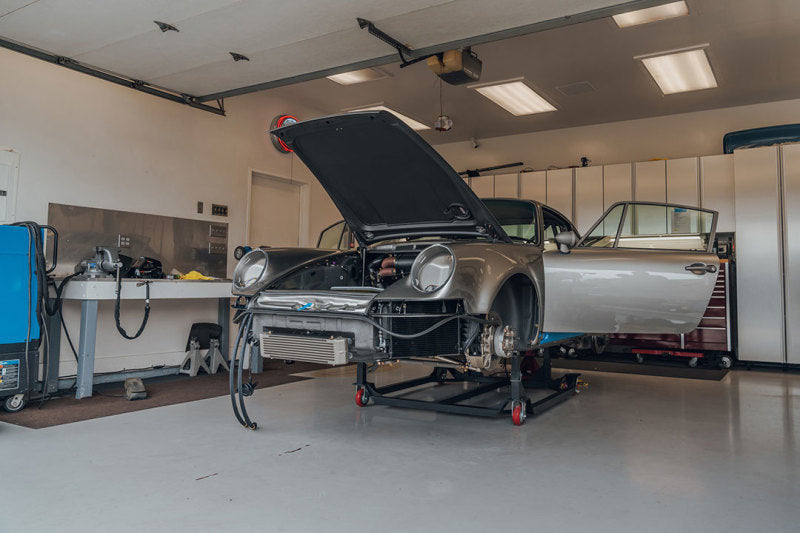

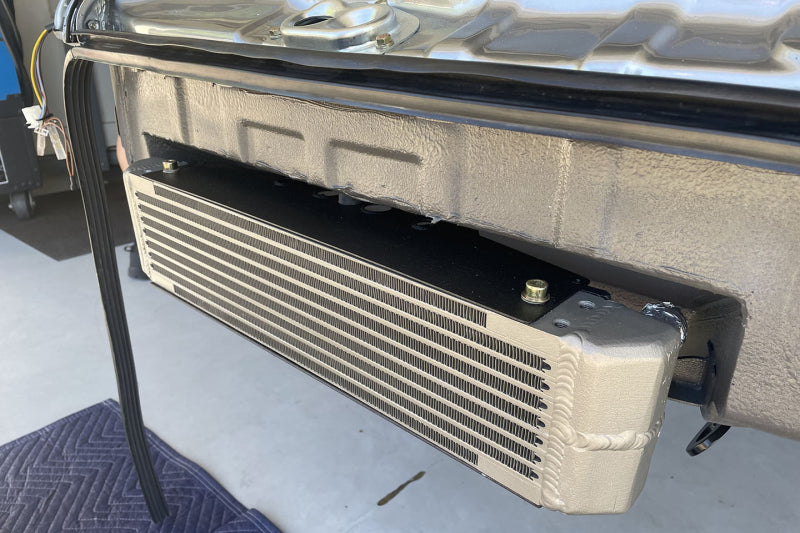

• Direct-Fit for Porsche '73 RS Style Front Bumper
• Triangular Flush Mounting Holes (M8 x 1.25)
• Optimized to Also Accept AN-16 Connections
• Core Surface: 18.9" L x 4.72" H x 2.25" W
• Overall: 22" L x 4.75" H x 2.25" W

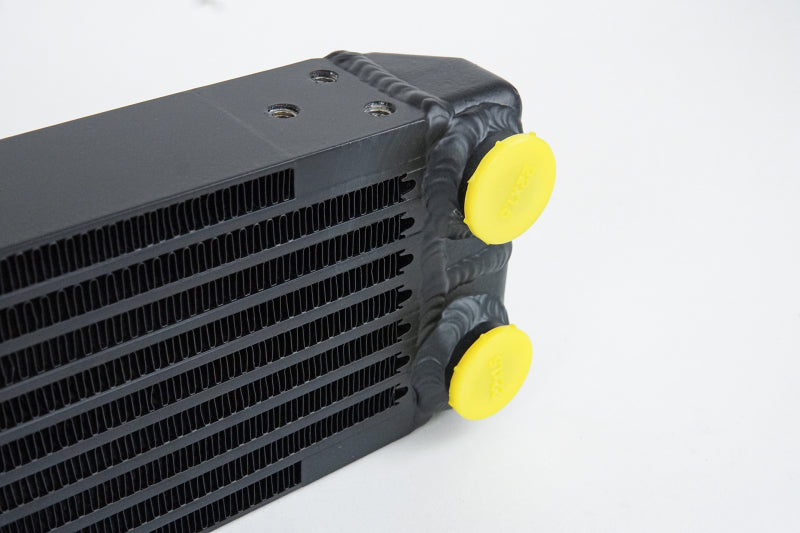

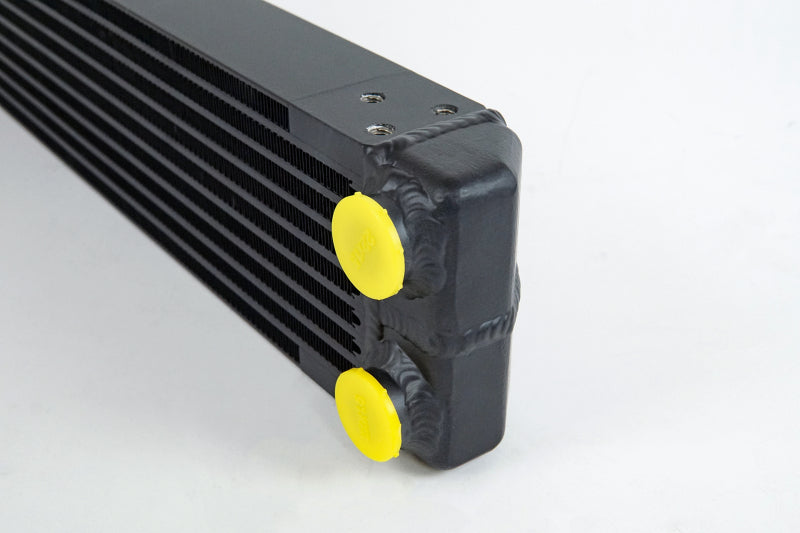

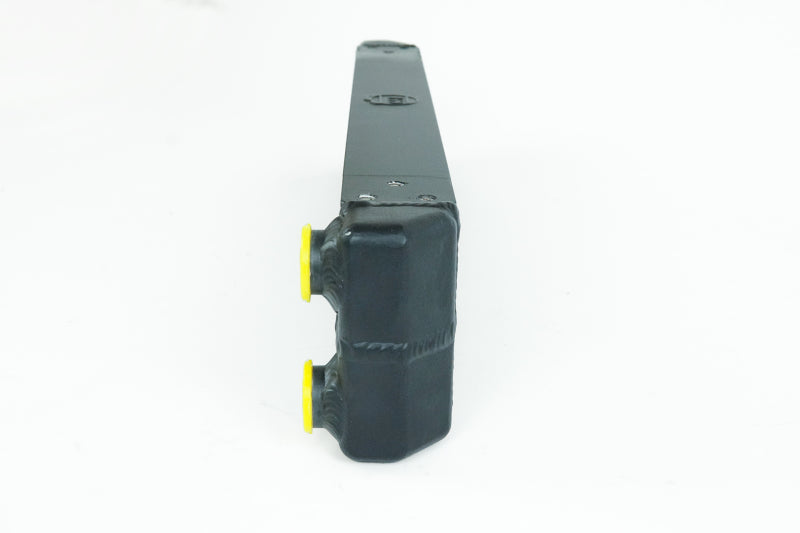

• M22 x 1.5 Inlet/Outlet Connections
• Internal Radius for Maximum Flow
• Fluid Capacity 0.72L (0.76 qt)
• Pressure Tested at 120psi
• Dual-Pass Oil Cooler

The CSF #8201 Universal Dual-Pass Oil Cooler offers a high-performance cooling solution designed for demanding automotive applications. Featuring a robust bar-and-plate design, this oil cooler provides excellent heat dissipation and durability, making it ideal for high-stress environments such as street driving and track use. Its innovative 'Aero-Flow' bar design ensures lightweight strength and maximum airflow, helping maintain optimal engine oil temperatures during intense driving conditions. The satin black finish adds resistance against corrosion and debris, prolonging the cooler's lifespan even in challenging installation locations like front fascia, diff coolers, or side vents.
Designed with versatility in mind, this oil cooler can be mounted in tight spaces or unconventional areas where traditional coolers may not fit. Its unique rectangular shape helps avoid airflow blockages that can occur with stacked coolers, ensuring efficient cooling across your vehicle's oil system. The inlet and outlet ports are conveniently positioned for easy routing of oil lines, reducing installation complexity. The core surface dimensions are approximately 19 inches long, 4.7 inches high, and 2.25 inches wide, with overall dimensions of about 22 inches in length and 4.75 inches in height, making it a suitable fit for various custom setups.
Constructed to withstand high pressure and debris, this dual-pass oil cooler is pressure tested at 120 psi and features M22 x 1.5 inlet/outlet connections, compatible with AN-16 fittings. Its internal radius design maximizes flow efficiency, while the fluid capacity is approximately 0.72 liters (0.76 quarts). This product is intended for experienced installers, as some custom fabrication may be necessary for optimal fitment. The CSF Universal Dual-Pass Oil Cooler is a reliable choice for enthusiasts seeking superior cooling performance and durability in a compact, adaptable design.

Features:

• Satin Black Finish for corrosion and debris resistance

• "Aero-Flow" Bar Design for lightweight strength and maximum airflow

• High efficiency and rugged durability with bar/plate construction

• Direct-fit mounting for Porsche '73 RS style front bumper

• Triangular flush mount holes with M8 x 1.25 threading

• Optimized for compatibility with AN-16 connections

• Core surface dimensions approximately 19" L x 4.7" H x 2.25" W

• Overall dimensions approximately 22" L x 4.75" H x 2.25" W

• M22 x 1.5 inlet/outlet connections for versatile plumbing options

• Internal radius design for maximum oil flow

• Fluid capacity of about 0.72 liters (0.76 quarts)

• Pressure tested at 120 psi for safety and reliability

• Dual-pass design for enhanced cooling efficiency
