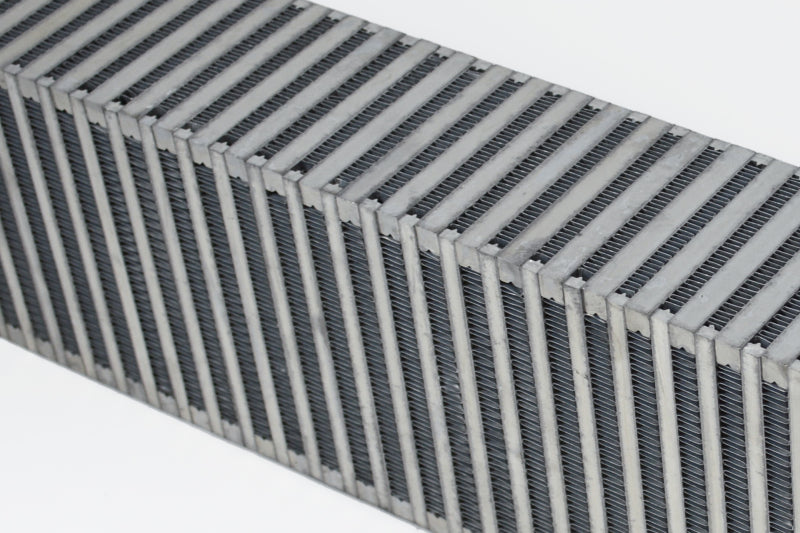

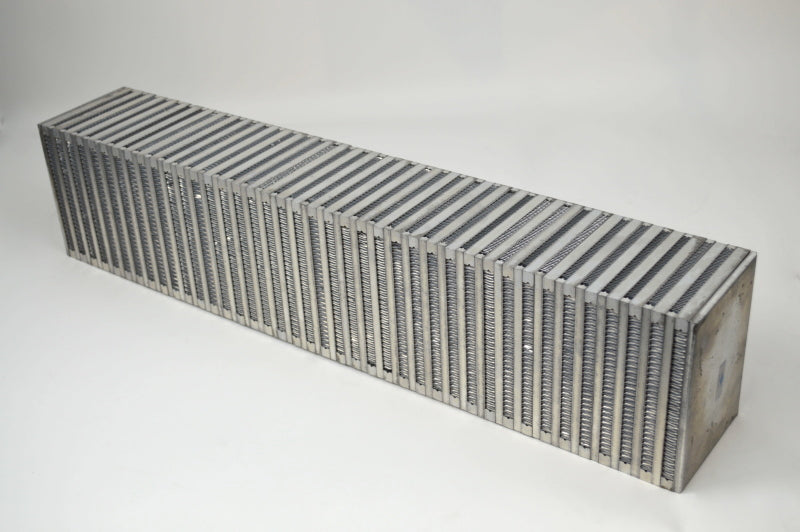

CSF High Performance Bar & Plate Intercooler Core (Vertical Flow) - 27in L x 6in H x 4.5in W
$439.00
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 27" x 6" x 4.5" Vertical Flow Core is rated for 1100 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Vertical Flow Core is rated for 1100 WHP and the perfect fit for your custom high-performance intercooler.
The CSF #8054 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
- Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

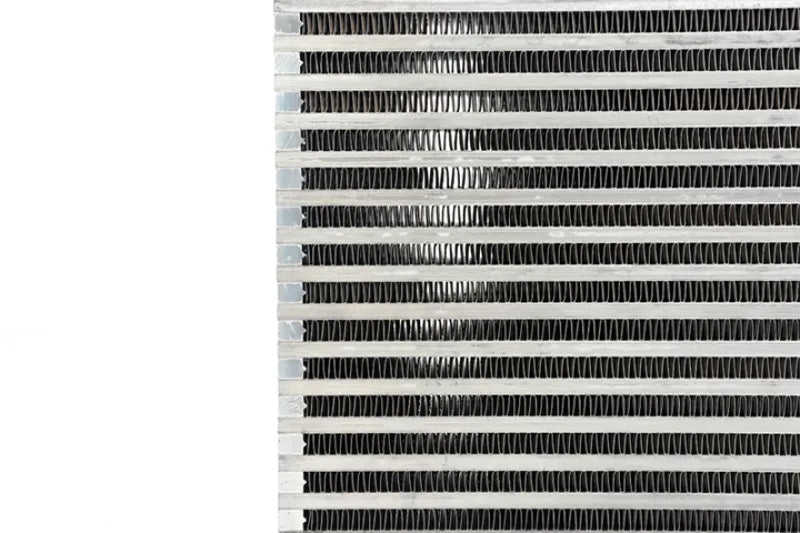

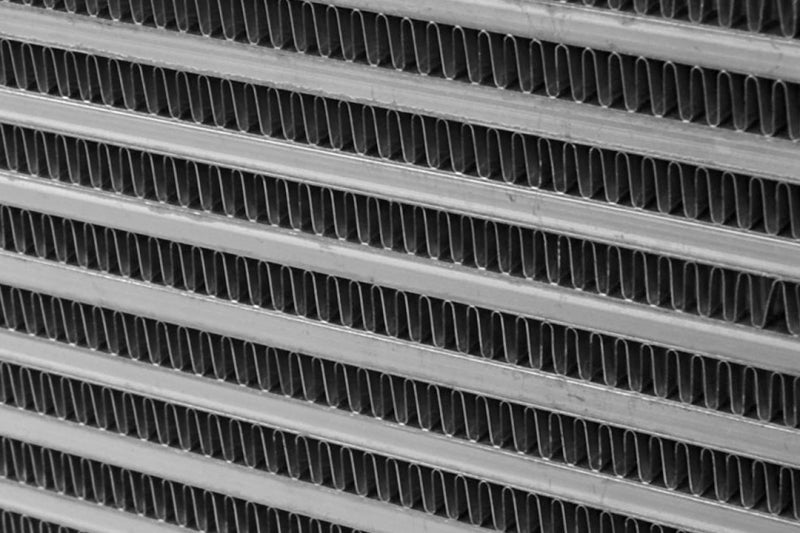

- Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
- Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
- Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
- Strict Quality Control and Quality Testing, Including Individual Pressure Testing
- Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
- Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
- Dimensions: 24"x6"x3.5" (610mm x 150mm x 90mm)
- Heavy-Duty Bar & Plate Intercooler Cores
- HP Rating: 1100
- Vertical Flow
The CSF high performance bar and plate intercooler core is designed for serious automotive enthusiasts seeking maximum cooling efficiency and reliability. This vertical flow core measures approximately 27 inches in length, 6 inches in height, and 4.5 inches in width, making it an ideal choice for custom high-performance intercooler setups. Rated to handle up to 1100 wheel horsepower (WHP), it is built to withstand extreme boost conditions, ensuring consistent performance under demanding conditions. Each core is individually pressure tested at 120 psi to guarantee durability and safety during high-pressure operation, providing peace of mind during intense driving scenarios. Hand-built in a clean room environment using gloves, this core features precise brazing and a meticulous manufacturing process using jigs and fixtures, resulting in a perfectly straight core ready for efficient welding and installation. Its advanced multi-louvered, high-precision staggered fin design on both ambient and pressure sides maximizes heat transfer, promoting optimal charge cooling and improved engine performance. The core is individually boxed and protected to ensure safe transit, reflecting CSF’s commitment to quality and reliability. This product is suitable for custom installation, requiring some fabrication or modifications; professional installation is recommended if you're not confident in your fabrication skills. Constructed with heavy-duty materials, the CSF #8054 core combines innovative design and rigorous quality control, making it a trusted choice among top tuning shops and performance enthusiasts. Please note that this product is not CARB-legal and requires acknowledgment of this status prior to purchase. Built to meet high standards, the CSF intercooler core is an essential upgrade for those aiming to maximize their vehicle’s power and cooling efficiency.
Features:
- Manufactured in a clean room environment with gloves to ensure precise brazing and surface cleanliness
- Multi-louvered, high-precision staggered fin design for superior heat transfer on both ambient and pressure sides
- Individually pressure tested at 120 psi for maximum reliability in high boost applications
- Heavy-duty bar and plate construction rated for up to 1100 WHP
- Designed for custom installation, requiring fabrication or modification
- Built with jigs and fixtures for a perfectly straight core, facilitating easier welding and installation
- Protected with individual boxing for secure shipping and handling
- Constructed using batch brazing in state-of-the-art digital vacuum ovens
- Suitable for extreme performance applications, ensuring durability and consistent cooling
- Not CARB-legal and requires acknowledgment of non-compliance prior to purchase
