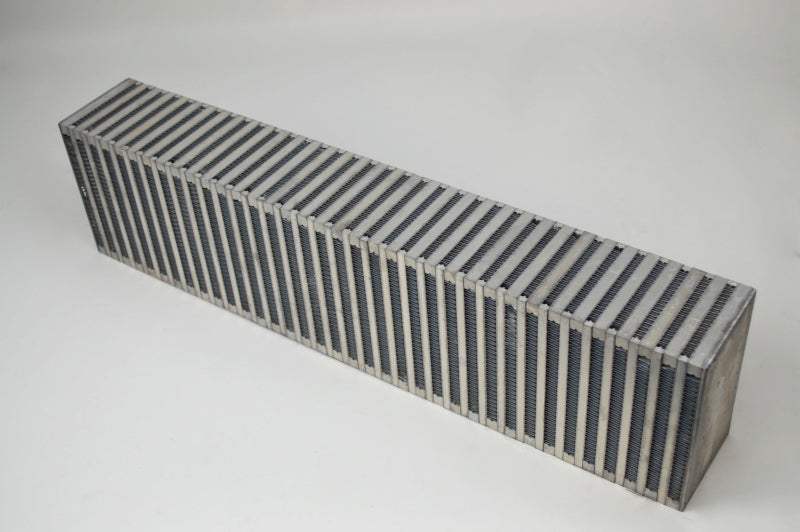

CSF High Performance Bar & Plate Intercooler Core (Vertical Flow) - 24in L x 6in H x 3.5in W
$299.00
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 24" x 6" x 3.5" Vertical Flow Core is rated for 800 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Vertical Flow Core is rated for 800 WHP and the perfect fit for your custom high-performance intercooler.

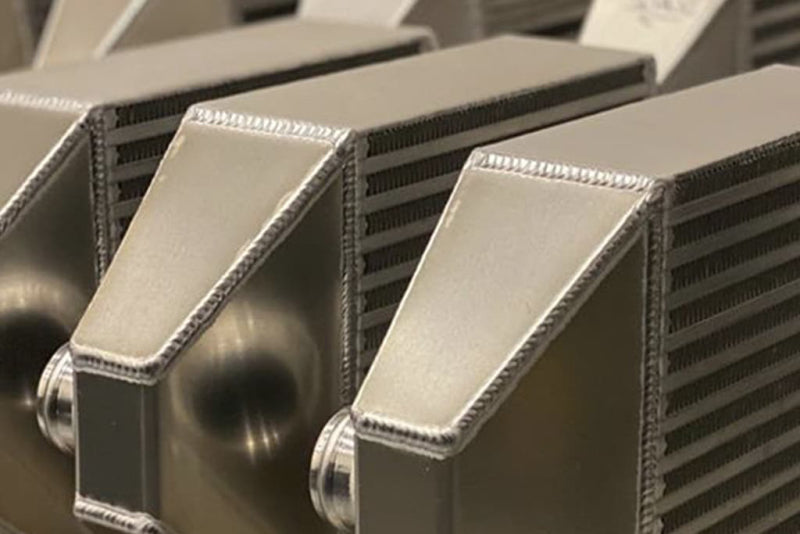

The CSF #8053 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
- Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

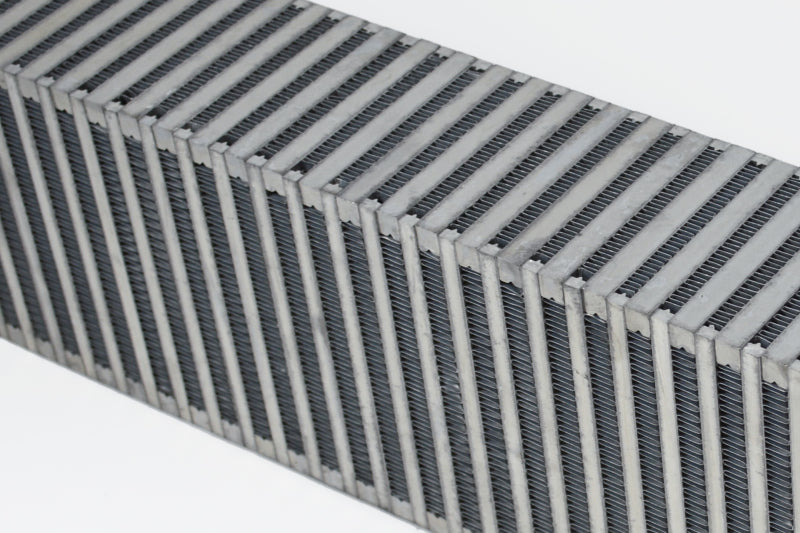

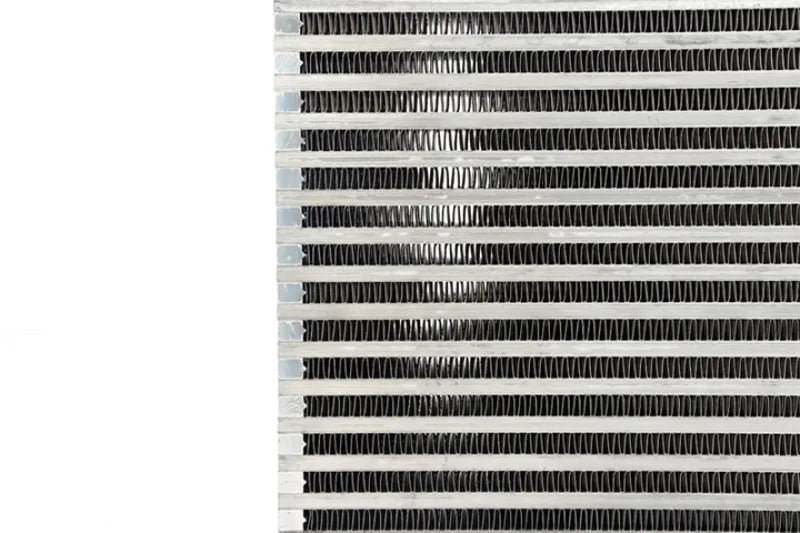

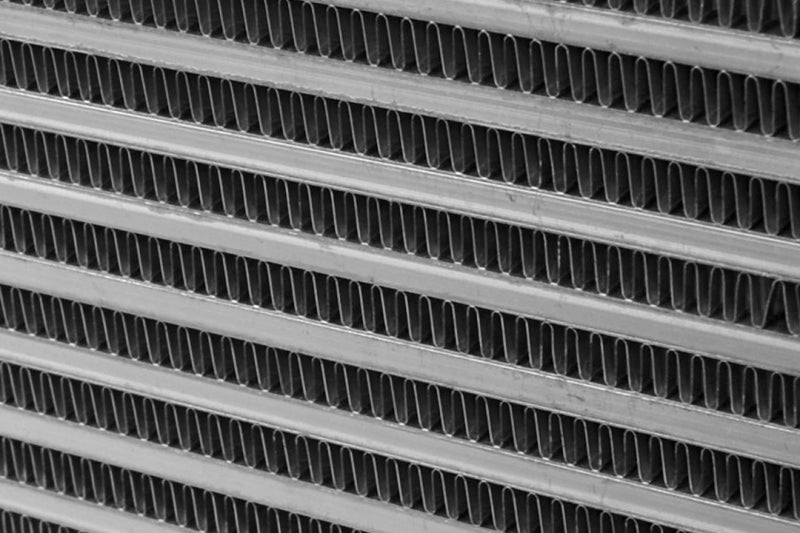

- Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
- Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
- Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
- Strict Quality Control and Quality Testing, Including Individual Pressure Testing
- Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
- Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
- Dimensions: 24"x6"x3.5" (610mm x 150mm x 90mm)
- Heavy-Duty Bar & Plate Intercooler Cores
- HP Rating: 800
- Vertical Flow
The CSF High Performance Bar & Plate Intercooler Core (Part Number: CSF8053) is engineered for serious high-performance applications. Measuring approximately 24 inches long, 6 inches high, and 3.5 inches wide, this vertical flow core is designed to handle up to 800 wheel horsepower (WHP). Its robust construction and innovative design make it an ideal choice for custom intercooler builds that demand maximum cooling efficiency and durability. Each core is meticulously hand-built in a clean room environment using gloves to ensure a pristine surface, proper brazing, and consistent quality. The manufacturing process includes batch brazing in CSF's state-of-the-art digital vacuum ovens, with individual pressure testing at 120 psi to guarantee reliability in extreme boost conditions. The multi-louvered, high-precision staggered fin design on both ambient and pressure sides optimizes heat transfer, reducing intake air temperatures and improving overall engine performance. This core’s vertical flow configuration enhances coolant flow and heat dissipation, making it suitable for a wide range of high-power setups. The core is individually boxed and protected for secure shipping, ensuring it arrives in perfect condition for installation. Since this is a universal product, some custom fabrication may be necessary for installation; CSF recommends professional installation if you are not experienced in intercooler modifications. Built with strict quality control standards, the CSF #8053 intercooler core is a reliable, heavy-duty component for high-performance automotive applications, providing exceptional cooling capacity and durability for demanding turbocharged and supercharged engines.
Features:
- Manufactured by hand in a clean room using gloves to ensure a pristine surface and proper brazing
- Multi-louvered high-precision staggered fin design on both ambient and pressure sides for optimal heat transfer
- Pressure tested at 120 psi for maximum reliability in extreme boost applications
- Batch brazed in CSF's digital vacuum ovens for consistent quality and durability
- Individually boxed and protected for secure transport
- Designed for high-power applications with an 800 WHP rating
- Vertical flow configuration for improved coolant flow and heat dissipation
- Heavy-duty bar and plate construction for enhanced durability
- Universal fit requiring custom modifications or fabrication for installation
