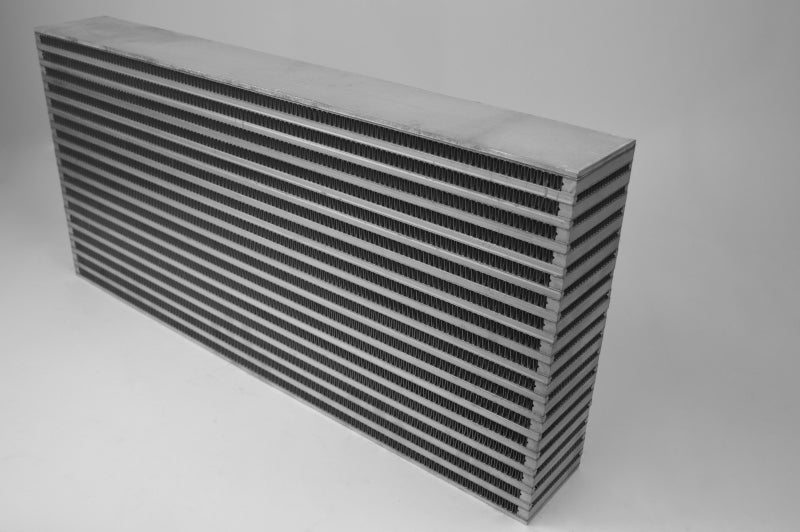

CSF High Performance Bar & Plate Intercooler Core - 25in L x 12in H x 3.5in W

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 25" x 12" x 3.5" Horizontal Flow Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible. CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Horizontal Flow Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. The CSF #8045 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

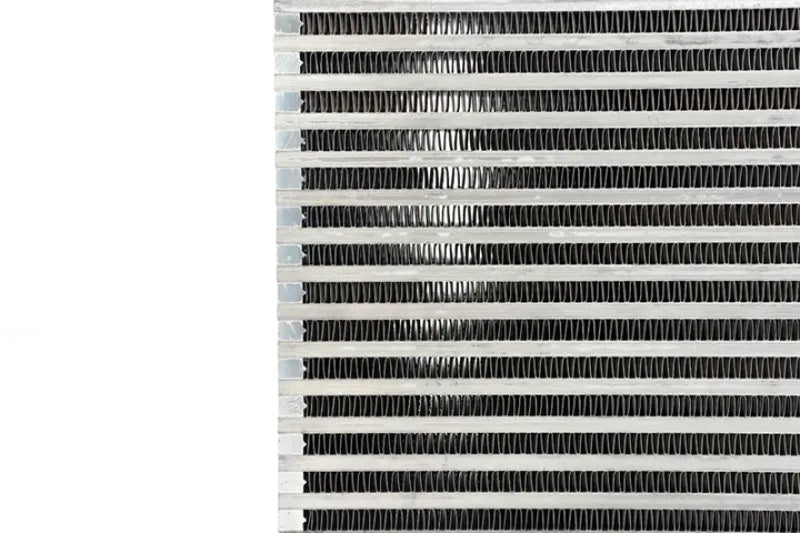

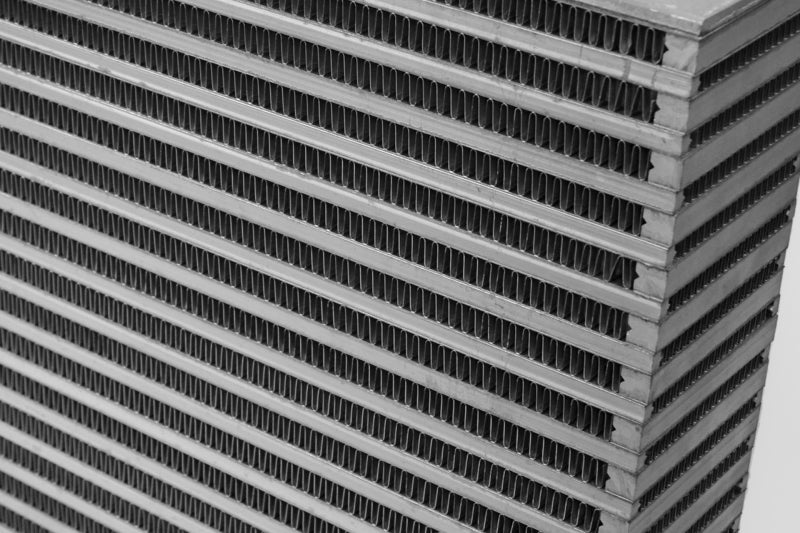

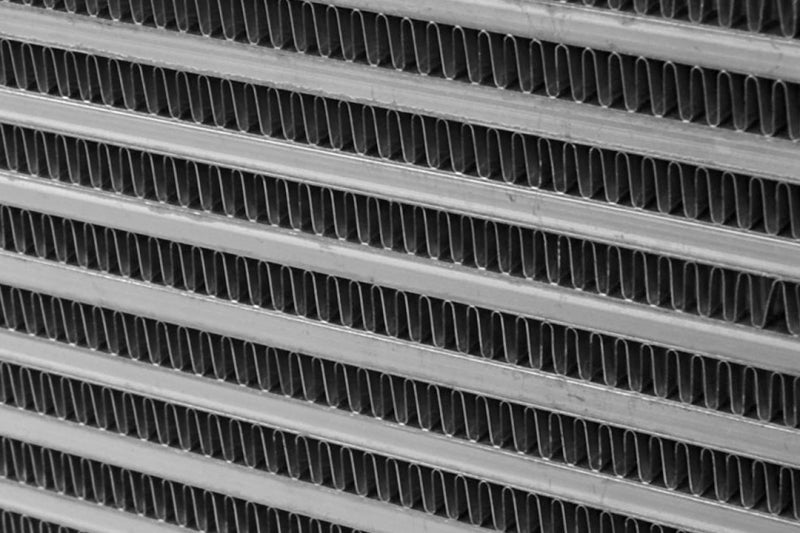

• Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
• Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
• Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
• Strict Quality Control and Quality Testing, Including Individual Pressure Testing
• Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
• Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
• Dimensions: 25"x12"x3.5" (635mm x 300mm x 90mm)
• Heavy-Duty Bar & Plate Intercooler Cores
• HP Rating: 1000
• Cross-flow

The CSF #8045 high-performance bar & plate intercooler core is engineered for serious tuning enthusiasts and professional builders seeking maximum cooling efficiency. Manufactured by hand in a clean room environment using gloves, each core undergoes meticulous brazing and assembly to ensure perfect alignment and surface quality. This horizontal flow core features a multi-louvered, high-precision staggered fin design on both ambient and pressure sides, optimizing heat transfer and reducing intake air temperatures under extreme boost conditions. Rated for up to 1000 wheel horsepower (WHP), the core provides reliable performance even in demanding applications. Its construction includes pressure testing at 120 psi, guaranteeing durability and safety during high-pressure operation. The core's dimensions make it suitable for custom high-performance intercooler setups, although some fabrication may be required for installation. For best results, professional installation is recommended to ensure proper fitment and sealing. Each core is individually boxed and protected to ensure safe delivery, making it ideal for serious performance projects that demand quality and reliability. The CSF intercooler core combines advanced manufacturing techniques with rigorous quality control, including digital vacuum brazing in state-of-the-art ovens and strict pressure testing, to deliver a product that meets the highest standards in automotive performance cooling. Whether upgrading an existing system or building a custom intercooler, this core provides the robust cooling capacity necessary for high horsepower applications, helping to maintain optimal charge temperatures, improve engine efficiency, and maximize power output.

Features:

• Manufactured by hand in a clean room environment for superior quality

• Multi-louvered, high-precision staggered fin design on both sides for enhanced heat transfer

• Pressure tested at 120 psi for maximum reliability in extreme boost applications

• Heavy-duty bar & plate construction suitable for high horsepower tuning

• Rated for up to 1000 WHP, ideal for custom high-performance intercooler builds

• Individually boxed and protected for secure shipping

• Batch brazed in a state-of-the-art digital vacuum brazing oven

• Hand-built using jigs & fixtures for a perfectly straight core, facilitating easier welding

• Designed as a universal cooling product requiring some custom fabrication for installation

• Dimensions approximately 25 inches long, 12 inches high, and 3.5 inches wide
