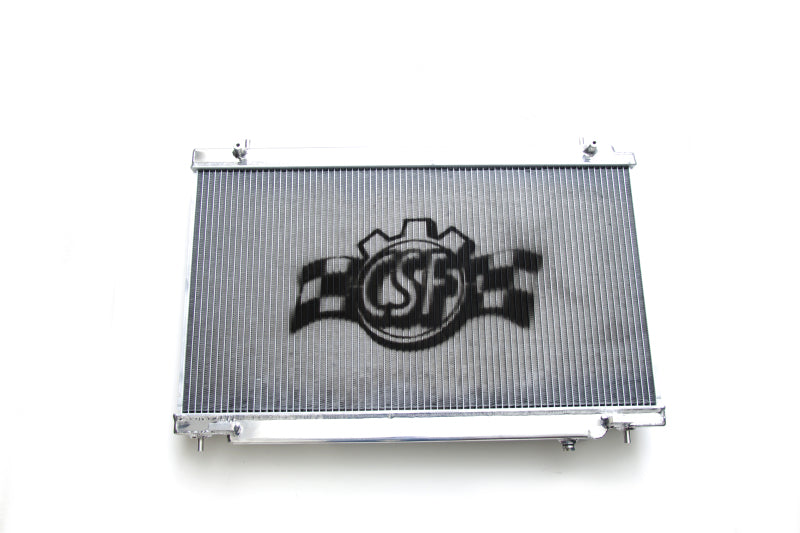

CSF 07-08 Nissan 350Z Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 350Z running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 1-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your 350Z. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7022 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

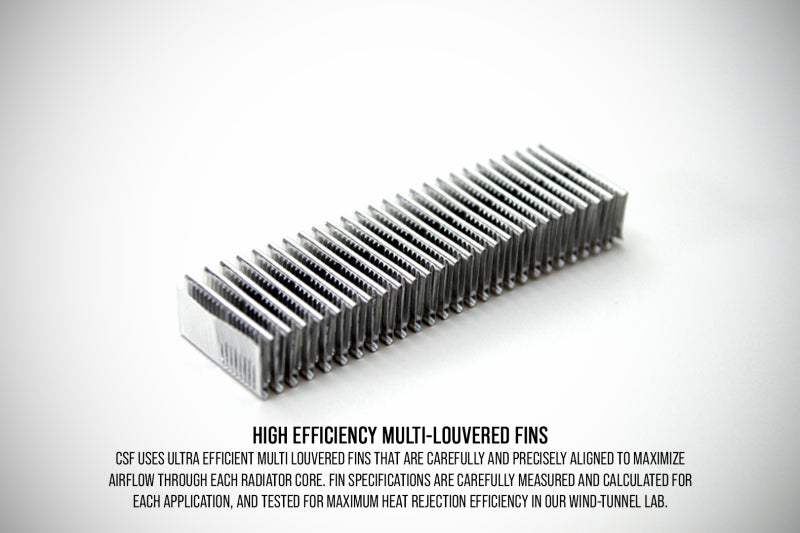

• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact

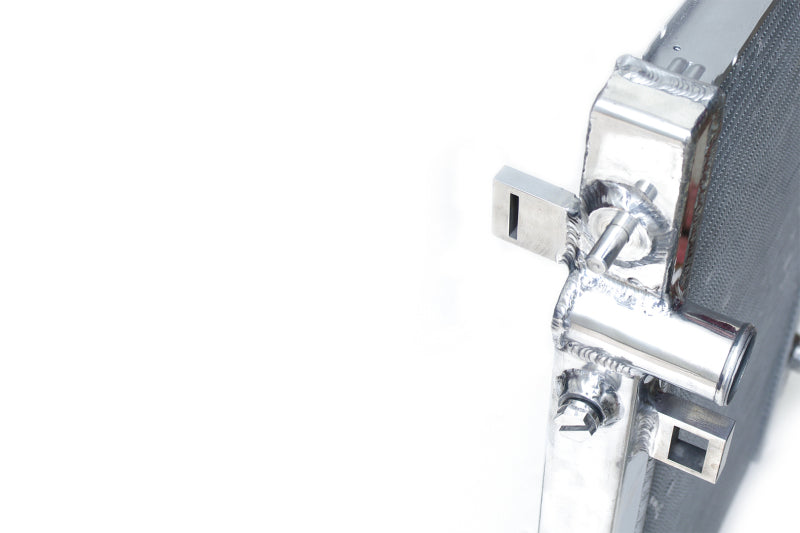

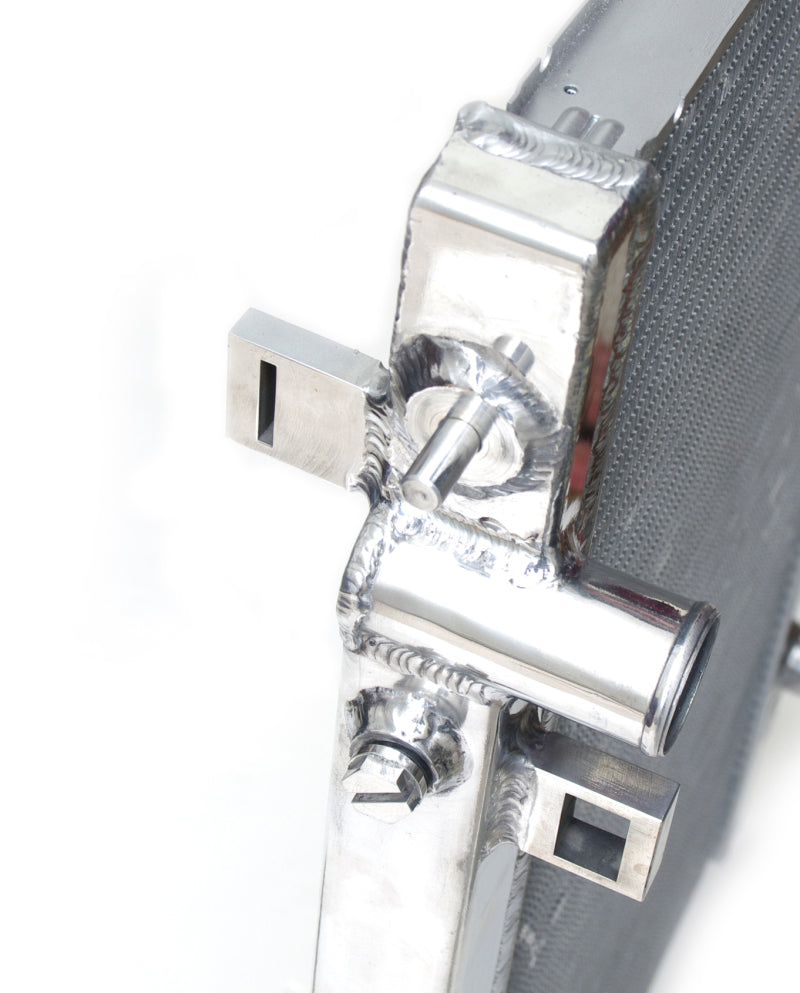

• CNC Machined Brackets and Fittings for Superb Fit and Durability

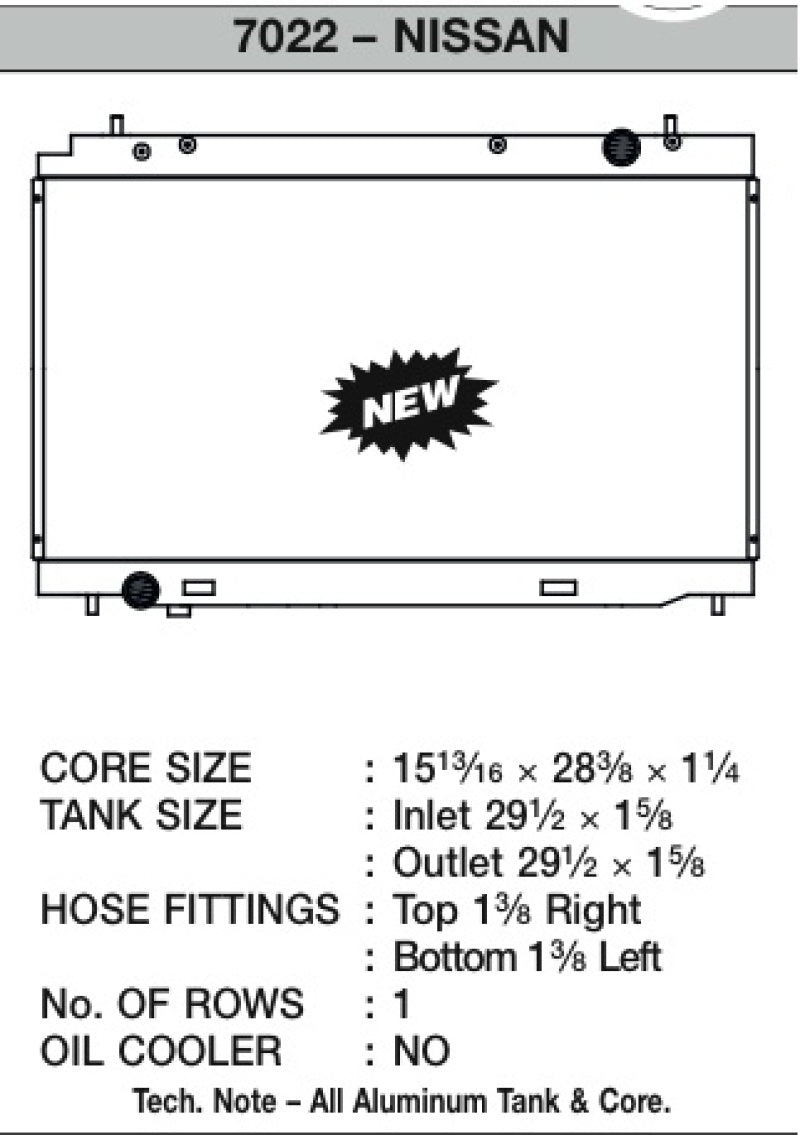

• 1-Row 31mm Core Featuring CSF's Exclusive B-Tube Technology

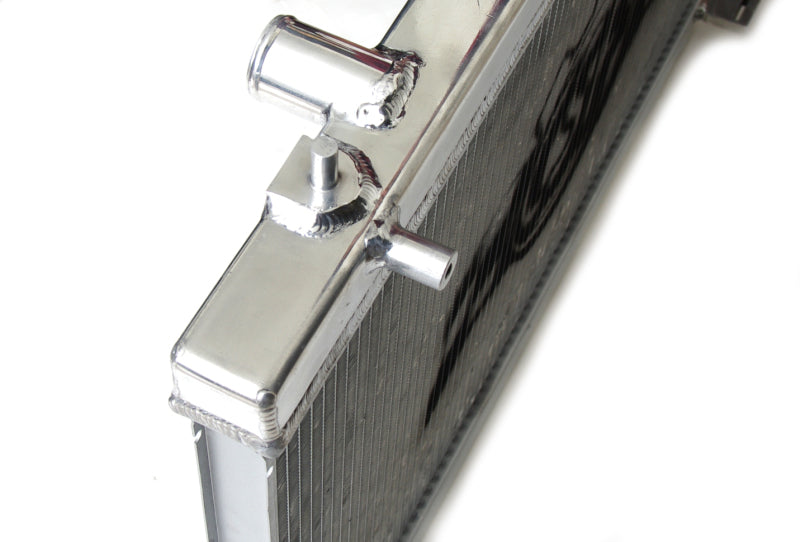

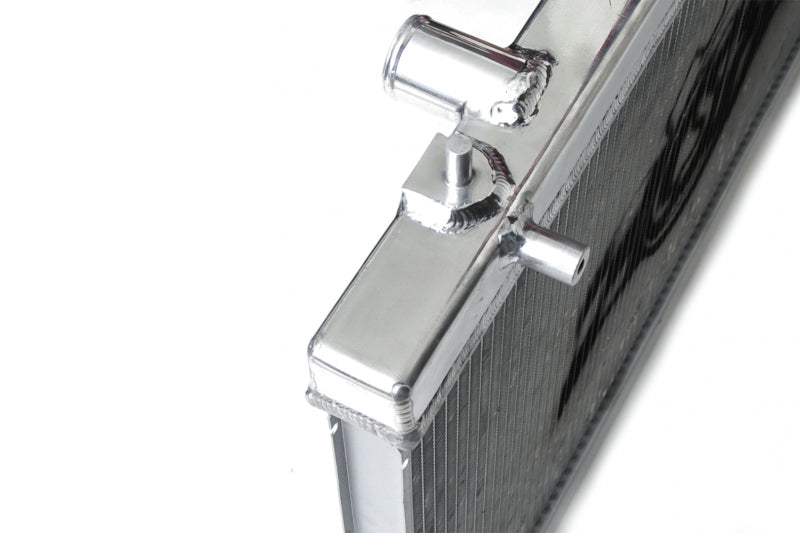

• CNC Machined "Quick-Connect" Inlet/Outlet Connections
• All-Aluminum Race Style Drain Plug
• 1-Hour "Mirror Finish" Hand Polish

The CSF 07-08 Nissan 350Z Radiator is engineered for optimal engine cooling, whether on the street or at the track. With over 50 years of manufacturing experience, CSF delivers a high-performance radiator that combines innovative design with durable materials to ensure your vehicle maintains ideal operating temperatures under demanding conditions. This radiator features a single 1-Row core constructed from lightweight, high-efficiency aluminum, providing excellent heat dissipation for high horsepower and race applications. Its design incorporates CSF’s exclusive B-Tube Technology, which uses specially shaped "B"-shaped tubes brazed over seams to enhance strength and thermal efficiency. These tubes increase heat transfer surface area by approximately 15%, enabling better cooling performance compared to traditional oval tubes. The dual liquid laminar flow within the B-tubes maximizes heat transfer and coolant flow, promoting consistent engine temperatures during intense driving sessions. The radiator’s ultra-efficient multi-louvered fins are precisely aligned to maximize airflow and heat rejection, further improving cooling efficiency. Fin specifications are meticulously engineered and tested in wind-tunnel environments to ensure maximum performance. This radiator is designed as a "Drop-In Fit" application, requiring no modifications for installation and accepting all OEM components, including quick-connect hoses, AC condenser, mounting brackets, and fan shroud. CNC machined brackets and fittings guarantee a perfect fit and durability, while the all-aluminum race-style drain plug allows for quick and clean coolant drainage. Additionally, the radiator’s mirror-finished hand polish adds a sleek aesthetic touch, making it as attractive as it is functional. Whether upgrading your stock cooling system or building a high-performance race vehicle, the CSF 7022 radiator offers industry-leading cooling technology with easy installation for your Nissan 350Z.

Features:

• Drop-in fit design requiring no modifications for installation

• Accepts OEM components including quick-connect hoses, AC condenser, and mounting brackets

• Core features ultra-efficient fins with 6.5mm fin height and multi-louvered design for maximum surface contact

• CNC machined brackets and fittings for superior fit and durability

• 1-Row 31mm core utilizing CSF's exclusive B-Tube technology for enhanced heat transfer

• CNC machined quick-connect inlet and outlet connections

• All-aluminum race-style drain plug for quick coolant drainage

• Mirror finish hand polish for a sleek appearance

Fitment:
Nissan 350Z Base 2007
Nissan 350Z Base 2008
Nissan 350Z Enthusiast 2007
Nissan 350Z Enthusiast 2008
Nissan 350Z Enthusiast 2009
Nissan 350Z Grand Touring 2007
Nissan 350Z Grand Touring 2008
Nissan 350Z Grand Touring 2009
Nissan 350Z Nismo 2007
Nissan 350Z Nismo 2008
Nissan 350Z Touring 2007
Nissan 350Z Touring 2008
Nissan 350Z Touring 2009
