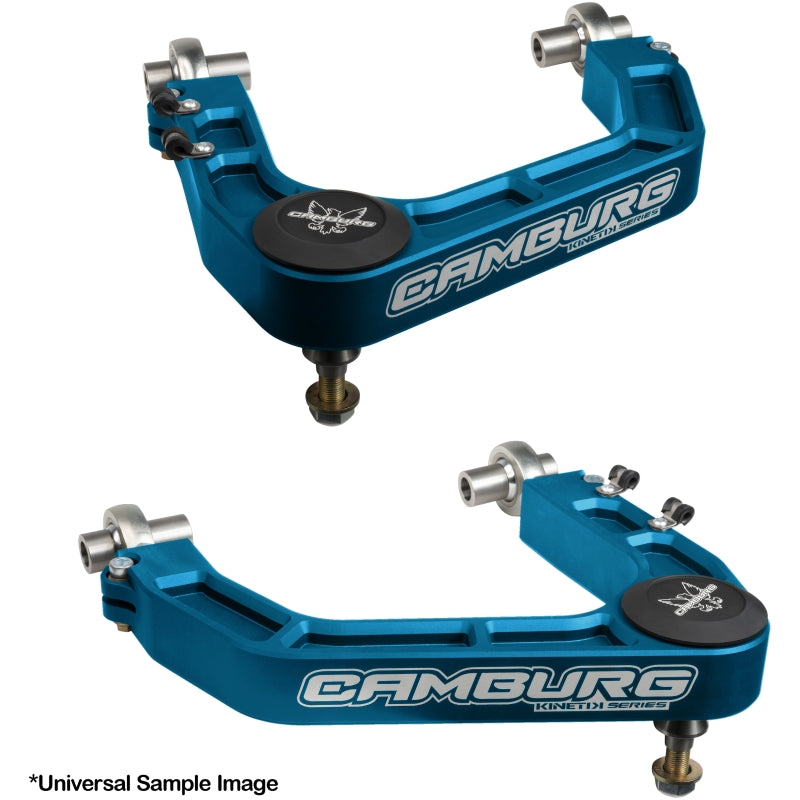

Camburg Toyota 22-23 Landcruiser 300 / 22-23 LX600 KINETIK V2 Perf Billet Uniball Upper Arms (Blue)

Our 22'-25' LX600, 24'-25' GX550, 25' 4Runner, 24'-25' Land Cruiser, 24'-25' Tacoma KINETIK Series billet upper control arms allow for increased wheel travel and articulation out on the trail, corrected suspension geometry with increased caster for improved handling both on and off-road and are considerably higher quality and higher strength compared to the OEM parts for off-road use. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum, Type II anodized Blue and laser etched. We utilize a larger FK 1.25" uniball with a military grade PTFE internal liner for increased strength, longevity and higher misalignment, allowing for maximum wheel travel. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel, for a precision fit without the need for drilling or modifications. The 1.25" uniball allows for a larger and stronger 12-point bolt with a low-profile press-on uniball cap to resist the elements. Additional camber and caster adjustment is available with the use of larger and stronger FK 7/8" chromoly heim joints, which also eliminate flexing/deflection under hard use and heavy braking without binding. Step by step instructions with all the necessary hardware ensure a successful installation for your next off-road adventure. Camburg KINETIK Series Blue Uniball Upper Control Arm Kit Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Superior design and components used for the ultimate strength
• Corrects suspension geometry for improved handling
• Designed for maximum wheel travel and articulation
• Eliminates weak factory ball-joints

Upgrade your Lexus LX600 or Land Cruiser 300 with the Camburg KINETIK Series Blue Uniball Upper Control Arms, designed for models from 2022 to 2023. Crafted from aerospace-grade 6061 billet aluminum and CNC machined in-house, these arms offer superior strength and durability compared to OEM components. The Type II anodized blue finish and laser etching ensure corrosion resistance and a sleek appearance. These control arms are engineered to enhance wheel travel and articulation, providing better off-road performance and handling. They feature a larger FK 1.25-inch uniball with a military-grade PTFE internal liner, delivering increased misalignment capabilities, longevity, and strength. The uniball's adaptation to the spindle or knuckle is achieved with precision-machined stainless steel spacers, eliminating the need for drilling or modifications. The low-profile press-on uniball cap offers resistance to the elements, ensuring reliable performance in harsh conditions. For additional adjustment and strength, larger FK 7/8-inch chromoly heim joints are included, which resist flexing and deflection under heavy use and braking. Step-by-step installation instructions and all necessary hardware facilitate a straightforward upgrade process. These control arms are designed to correct suspension geometry, improve handling, and maximize wheel travel while eliminating factory ball-joints that are often weak and prone to failure. It's important to note that minor modifications, such as trimming inner fenders or adjusting body mounts, may be necessary to prevent tire rubbing based on wheel and tire specifications. Overall, the Camburg KINETIK V2 Billet Uniball Upper Control Arms provide a high-quality, reliable upgrade for off-road enthusiasts seeking enhanced performance and durability.

Features:

• Constructed from aerospace-quality 6061 billet aluminum with Type II anodized blue finish for corrosion resistance

• Designed to correct suspension geometry for improved handling both on and off-road

• Maximizes wheel travel and articulation for enhanced off-road capability

• s a larger FK 1.25-inch uniball with military-grade PTFE liner for increased strength and longevity

• Uniball adaptation uses precision-machined heat-treated stainless steel spacers for a perfect fit without modifications

• Includes low-profile press-on uniball cap to resist environmental elements

• Offers additional camber and caster adjustment with larger FK 7/8-inch chromoly heim joints

• Eliminates weak factory ball-joints, increasing durability under heavy use

• Step-by-step installation instructions and hardware included for straightforward upgrades

Fitment:
Lexus GX550 Luxury 2024
Lexus GX550 Luxury 2025
Lexus GX550 Luxury+ 2024
Lexus GX550 Luxury+ 2025
Lexus GX550 Overtrail 2024
Lexus GX550 Overtrail 2025
Lexus GX550 Overtrail+ 2024
Lexus GX550 Overtrail+ 2025
Lexus GX550 Premium 2024
Lexus GX550 Premium 2025
Lexus GX550 Premium+ 2024
Lexus GX550 Premium+ 2025
Lexus LX600 Base 2022
Lexus LX600 Base 2023
Lexus LX600 Base 2024
Lexus LX600 F Sport 2022
Lexus LX600 F Sport 2023
Lexus LX600 F Sport 2024
Lexus LX600 F Sport Handling 2025
Lexus LX600 Luxury 2022
Lexus LX600 Luxury 2023
Lexus LX600 Luxury 2024
Lexus LX600 Luxury 2025
Lexus LX600 Premium 2022
Lexus LX600 Premium 2023
Lexus LX600 Premium 2024
Lexus LX600 Premium 2025
Lexus LX600 Ultra Luxury 2022
Lexus LX600 Ultra Luxury 2023
Lexus LX600 Ultra Luxury 2024
Toyota 4Runner Limited 2025
Toyota 4Runner Platinum 2025
Toyota 4Runner SR5 2025
Toyota 4Runner Trailhunter 2025
Toyota 4Runner TRD Off-Road 2025
Toyota 4Runner TRD Off-Road Premium 2025
Toyota 4Runner TRD Pro 2025
Toyota 4Runner TRD Sport 2025
Toyota 4Runner TRD Sport Premium 2025
Toyota Land Cruiser 1958 2024
Toyota Land Cruiser 1958 2025
Toyota Land Cruiser Base 2024
Toyota Land Cruiser Base 2025
Toyota Land Cruiser First Edition 2024
Toyota Tacoma Limited 2024
Toyota Tacoma Limited 2025
Toyota Tacoma SR 2024
Toyota Tacoma SR 2025
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma Trailhunter 2024
Toyota Tacoma Trailhunter 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD PreRunner 2024
Toyota Tacoma TRD PreRunner 2025
Toyota Tacoma TRD Pro 2024
Toyota Tacoma TRD Pro 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
