Baer Brakes GM/Ford 15/16in Bore Remaster 2-Bolt Left Port Master Cylinder Assembly - Black
$460.95

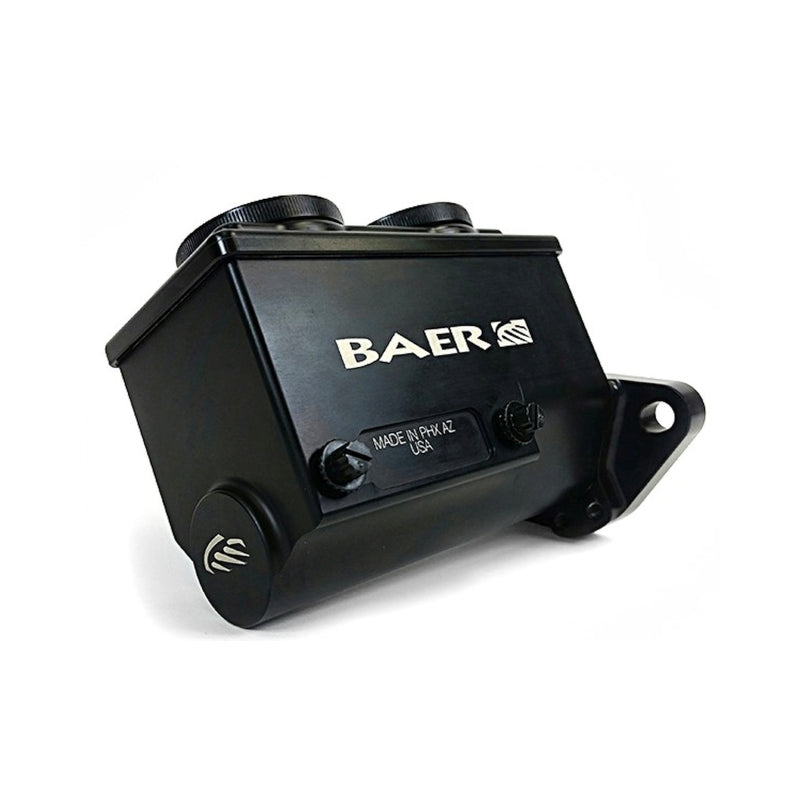

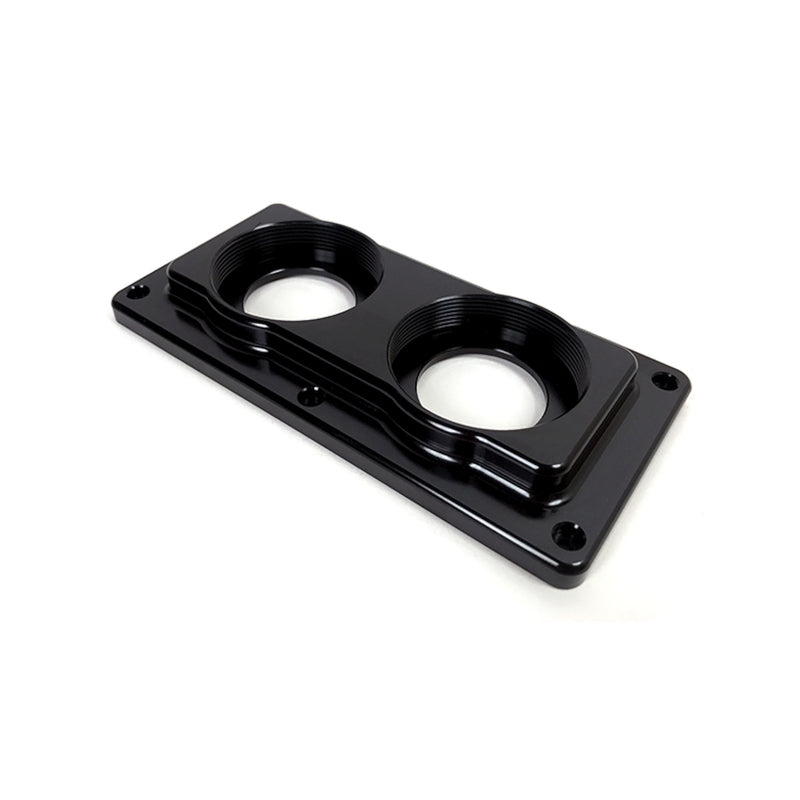

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 15/16" bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available
Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 15/16 in. Bore, Left Side Ports, Black Anodized, with a 2-bolt mounting flange fitting many Ford and GM applications.
Ships in 1 Box
- Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
- Machined and knurled screw-on caps for easy access to fill without spillage
- Fully machined 6061 T6 billet aluminum construction
- Anodized Remasters feature laser-etched logos
- 2-Bolt GM/Ford Firewall Mounting Bracket
- Left Side Ports
The Baer Brakes Remaster Master Cylinder, Part BAE6801272LP, is designed for performance brake systems requiring a compact, durable, and versatile hydraulic control solution. Its one-piece body is precision machined from 6061-T6 billet aluminum and finished with a black anodized coating for corrosion resistance and a clean appearance. The 15/16-inch bore and two-bolt mounting flange make this master cylinder compatible with many Ford and GM applications, including systems using long or short boosters as well as manual brake configurations.
The Remaster features left-side ports and a unique 3/8-24 outlet design that supports inverted-flare fittings with the included removable seats, banjo-style fittings, or straight fittings. This flexible configuration helps simplify installation and allows the master cylinder to accommodate a variety of custom brake plumbing layouts. The included 2-bolt GM/Ford firewall mounting arrangement provides a secure connection to compatible applications.
Filling and servicing are made easier with the billet aluminum top and two large knurled screw-on caps. The caps provide convenient access while helping reduce the chance of fluid spillage during maintenance. Anodized Remaster master cylinders also feature laser-etched Baer Brakes logos for a distinctive, finished appearance. Optional proportioning valves are available separately for further brake bias adjustment and system tuning. This assembly ships in one box and is intended for automotive brake system applications.
Features:
- 15/16-inch bore master cylinder designed for compatible GM and Ford applications
- Compact one-piece body machined from durable 6061-T6 billet aluminum
- Black anodized finish with laser-etched Baer Brakes logo
- Left-side outlet ports for flexible brake line routing
- Unique 3/8-24 outlet design accepts inverted-flare, banjo-style, or straight fittings

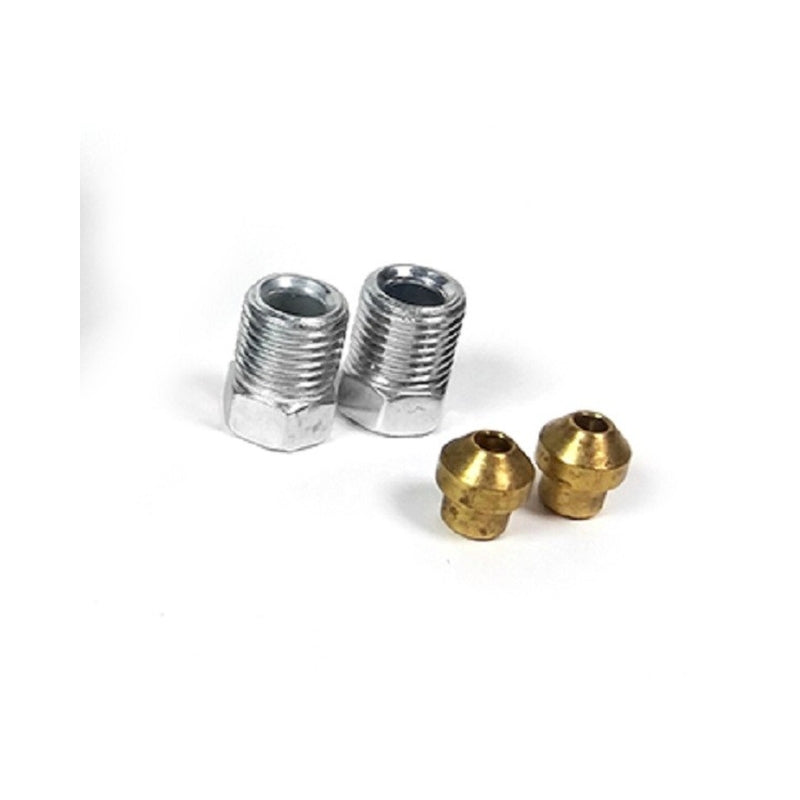

- Removable inverted-flare seats included
- Two-bolt GM/Ford firewall mounting flange

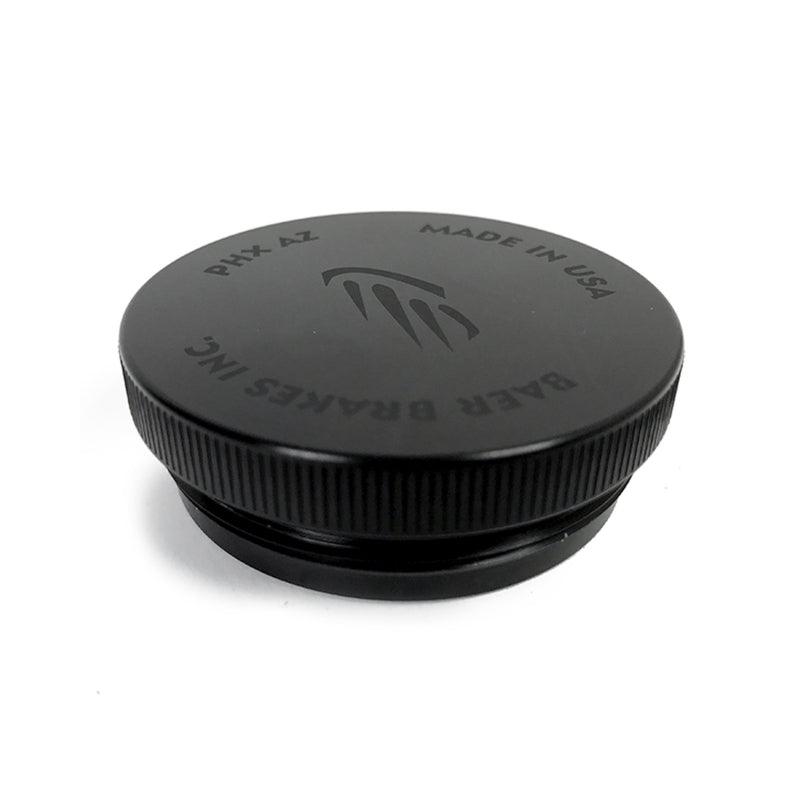

- Billet aluminum top with knurled screw-on caps for easy filling and servicing
- Compatible with many long- and short-booster or manual brake applications
- Optional proportioning valves available separately
