Baer Brakes 64-77 Chevrolet Chevelle 13in SS4+ Rear SDZ Brake Kit - Red

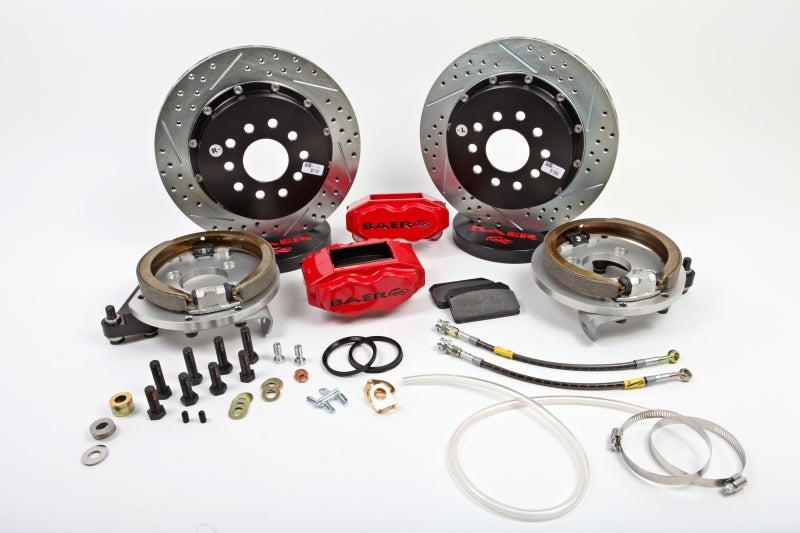

This system features the 4-piston, S4 caliper mounted to a 13", 2 piece slot, drill, zinc-plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13" SS4+ fits most 17” or larger wheels. Fits 1964-77 GM A-Body Cars w/OE Small Pattern 10/12 Bolt C-clip (BIH) Housing Ends ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**

• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
• CNC Machined from US Sourced Forged or Billet Aluminum
• Dual Seals, Dust/Weather & Pressure
• Powder Coated Finish

Upgrade the rear braking performance of your classic GM A-Body with the Baer Brakes 13-inch SS4+ Rear SDZ Brake Kit, part bae4302309R. Designed for 1964-1977 Chevrolet Chevelle and compatible El Camino applications equipped with OE small-pattern 10- or 12-bolt C-clip housing ends, this complete system combines modern caliper technology, a performance-oriented rotor design, and an integrated parking brake assembly. The kit is intended for most 17-inch or larger wheels, although wheel clearance should always be confirmed with the applicable Baer fitment template before installation.

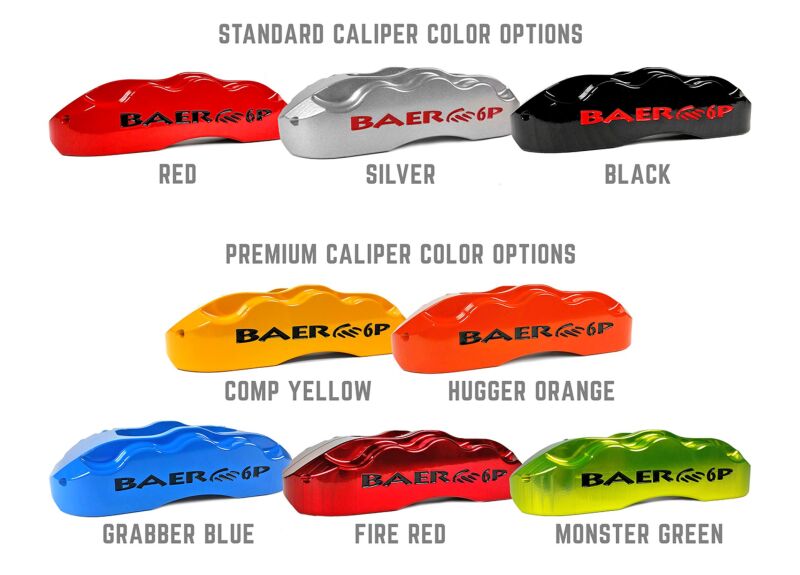

The system features a four-piston S4 caliper manufactured in Phoenix, Arizona and CNC machined from U.S.-sourced forged or billet aluminum. Hard-anodized aluminum pistons, stainless steel abutments, noise-suppression clips, and D.O.T.-compliant dust, weather, and pressure seals support dependable operation and reduced brake noise. The included DR1-C brake pad type provides a proven friction solution for street and performance applications, while the powder-coated red finish adds a clean, distinctive appearance.
A two-piece slotted and drilled zinc-plated rotor uses a billet aluminum hat and is pre-assembled with high-grade NAS stainless steel hardware. Baer Brakes’ dedicated backing plate serves as both the caliper mount and the housing for a modern one-piece parking brake shoe assembly. Stainless braided brake hoses and required hardware are included for a more complete installation. This kit is engineered for select Chevrolet Chevelle and El Camino applications, including the 1964, 1967, and 1972 Chevelle and 1968-1976 El Camino model years listed for this application. Professional installation and final wheel, axle, and brake-system verification are recommended.

Features:

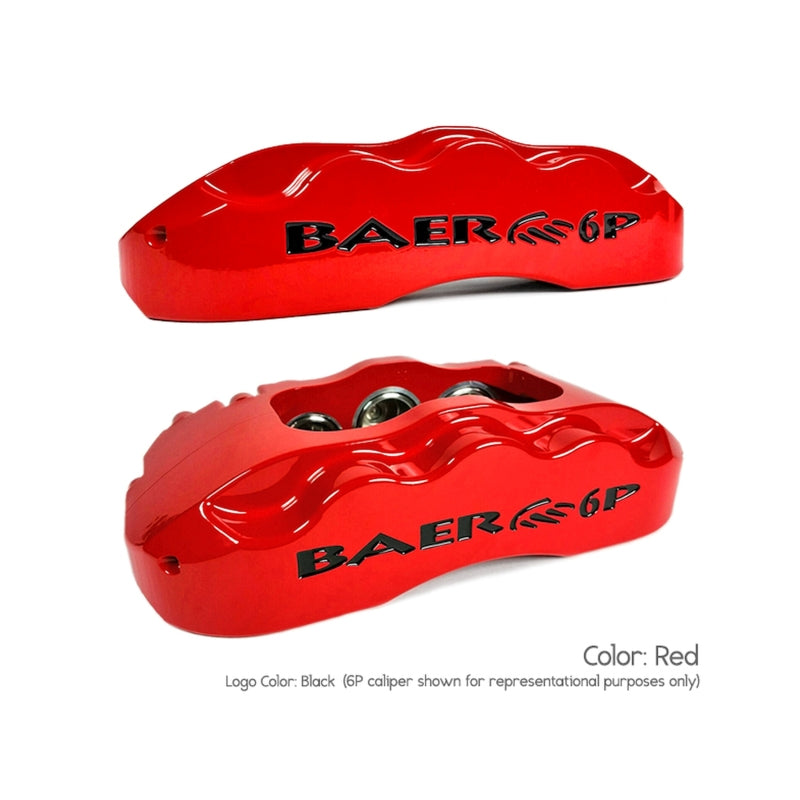

• Four-piston Baer Brakes S4 rear caliper with a red powder-coated finish

• D.O.T.-compliant dust, weather, and pressure seals

• Hard-anodized aluminum pistons with stainless steel abutments and noise-suppression clips

• Two-piece slotted, drilled, zinc-plated rotor with billet aluminum hat

• High-grade NAS stainless steel rotor hardware

• Integrated one-piece parking brake shoe assembly

• CNC-machined construction from U.S.-sourced forged or billet aluminum

• DR1-C brake pad compatibility

• Stainless braided brake hoses and installation hardware included

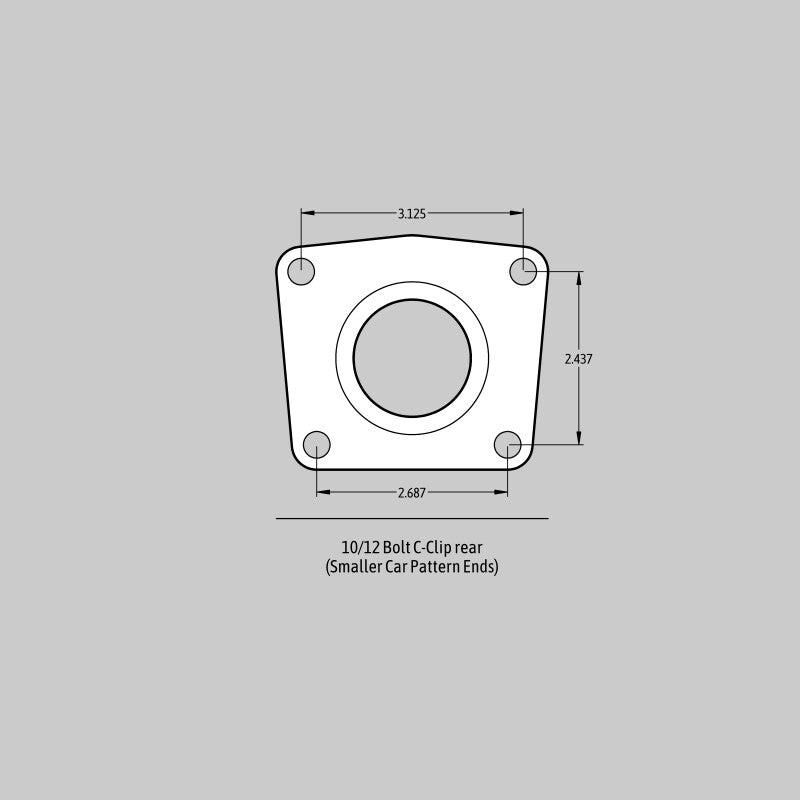

• Fits select 1964-1977 GM A-Body applications with OE small-pattern 10- or 12-bolt C-clip housing ends

• Designed for most 17-inch or larger wheels; wheel-specific clearance verification is recommended

Fitment:
Chevrolet Chevelle 300 1967
Chevrolet Chevelle 300 1968
Chevrolet Chevelle 300 Deluxe 1967
Chevrolet Chevelle 300 Deluxe 1968
Chevrolet Chevelle 300 Deluxe 1969
Chevrolet Chevelle Base 1964
Chevrolet Chevelle Base 1965
Chevrolet Chevelle Base 1966
Chevrolet Chevelle Base 1968
Chevrolet Chevelle Base 1970
Chevrolet Chevelle Base 1971
Chevrolet Chevelle Base 1972
Chevrolet Chevelle Concours 1967
Chevrolet Chevelle Concours 1968
Chevrolet Chevelle Concours 1969
Chevrolet Chevelle Concours 1970
Chevrolet Chevelle Concours 1971
Chevrolet Chevelle Concours 1972
Chevrolet Chevelle Concours Estate 1969
Chevrolet Chevelle Concours Estate 1970
Chevrolet Chevelle Concours Estate 1971
Chevrolet Chevelle Concours Estate 1972
Chevrolet Chevelle Deluxe 1965
Chevrolet Chevelle Deluxe 1966
Chevrolet Chevelle Deluxe 1973
Chevrolet Chevelle Greenbrier 1969
Chevrolet Chevelle Greenbrier 1970
Chevrolet Chevelle Greenbrier 1971
Chevrolet Chevelle Greenbrier 1972
Chevrolet Chevelle Heavy Chevy 1971
Chevrolet Chevelle Heavy Chevy 1972
Chevrolet Chevelle Malibu 1968
Chevrolet Chevelle Malibu 1969
Chevrolet Chevelle Malibu 1970
Chevrolet Chevelle Malibu 1971
Chevrolet Chevelle Malibu 1972
Chevrolet Chevelle Nomad 1968
Chevrolet Chevelle Nomad 1969
Chevrolet Chevelle Nomad 1970
Chevrolet Chevelle Nomad 1971
Chevrolet Chevelle Nomad 1972
Chevrolet Chevelle SS 1964
Chevrolet Chevelle SS 1965
Chevrolet Chevelle SS 1966
Chevrolet Chevelle SS 1967
Chevrolet Chevelle SS 1968
Chevrolet Chevelle SS 1969
Chevrolet Chevelle SS 1970
Chevrolet Chevelle SS 1971
Chevrolet Chevelle SS 1972
Chevrolet Chevelle SS 1973
Chevrolet Chevelle SS 454 1970
Chevrolet El Camino Base 1964
Chevrolet El Camino Base 1965
Chevrolet El Camino Base 1966
Chevrolet El Camino Base 1967
Chevrolet El Camino Base 1968
Chevrolet El Camino Base 1969
Chevrolet El Camino Base 1970
Chevrolet El Camino Base 1971
Chevrolet El Camino Base 1972
Chevrolet El Camino Base 1973
Chevrolet El Camino Base 1974
Chevrolet El Camino Base 1975
Chevrolet El Camino Base 1976
Chevrolet El Camino Base 1977
Chevrolet El Camino Classic 1975
Chevrolet El Camino Classic 1976
Chevrolet El Camino Classic 1977
Chevrolet El Camino Conquista 1977
Chevrolet El Camino Custom 1968
Chevrolet El Camino Custom 1969
Chevrolet El Camino Custom 1970
Chevrolet El Camino Custom 1971
Chevrolet El Camino Custom 1972
Chevrolet El Camino Custom 1973
Chevrolet El Camino Custom 1974
Chevrolet El Camino SS 1968
Chevrolet El Camino SS 1969
Chevrolet El Camino SS 1970
Chevrolet El Camino SS 1971
Chevrolet El Camino SS 1972
Chevrolet El Camino SS 1973
Chevrolet El Camino SS 1974
Chevrolet El Camino SS 1975
Chevrolet El Camino SS 1976
Chevrolet El Camino SS 1977
Chevrolet Laguna Base 1973
Chevrolet Laguna Estate 1973
Chevrolet Laguna S3 1975
Chevrolet Laguna S3 1976
Chevrolet Laguna Type S-3 1974
Chevrolet Malibu Base 1964
Chevrolet Malibu Base 1965
Chevrolet Malibu Base 1966
Chevrolet Malibu Base 1967
Chevrolet Malibu Base 1973
Chevrolet Malibu Base 1974
Chevrolet Malibu Base 1975
Chevrolet Malibu Base 1976
Chevrolet Malibu Base 1977
Chevrolet Malibu Classic 1974
Chevrolet Malibu Classic 1975
Chevrolet Malibu Classic 1976
Chevrolet Malibu Classic 1977
Chevrolet Malibu Classic Estate 1975
Chevrolet Malibu Classic Estate 1976
Chevrolet Malibu Estate 1973
Chevrolet Malibu Estate 1974
Chevrolet Monte Carlo Base 1970
Chevrolet Monte Carlo Base 1971
Chevrolet Monte Carlo Base 1972
Chevrolet Monte Carlo Base 1973
Chevrolet Monte Carlo Base 1974
Chevrolet Monte Carlo Landau 1973
Chevrolet Monte Carlo Landau 1974
Chevrolet Monte Carlo Landau 1976
Chevrolet Monte Carlo S 1973
Chevrolet Monte Carlo S 1975
Chevrolet Monte Carlo S 1976
Chevrolet Monte Carlo S 1977
