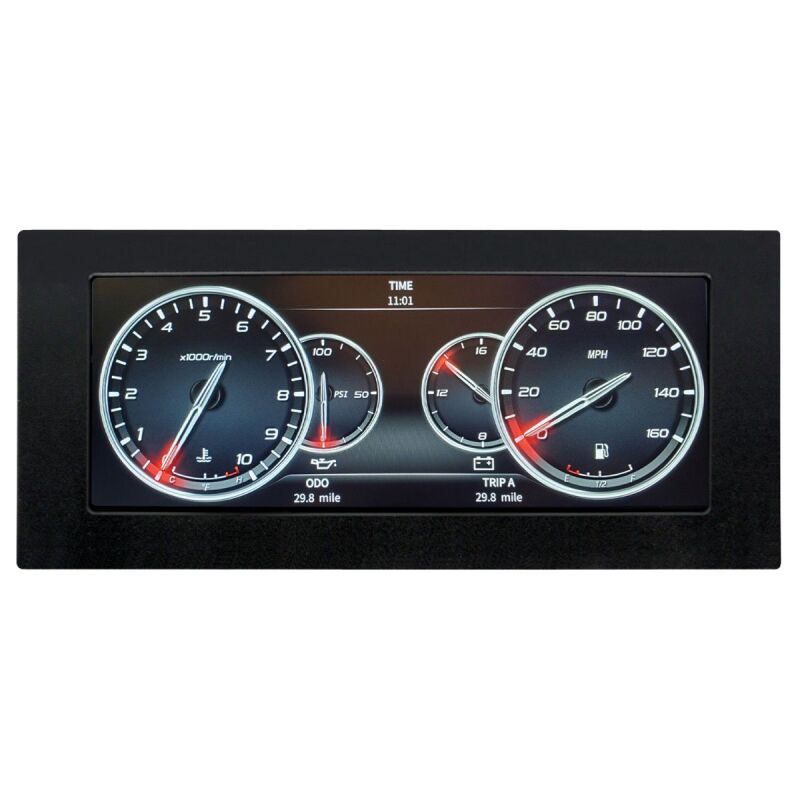

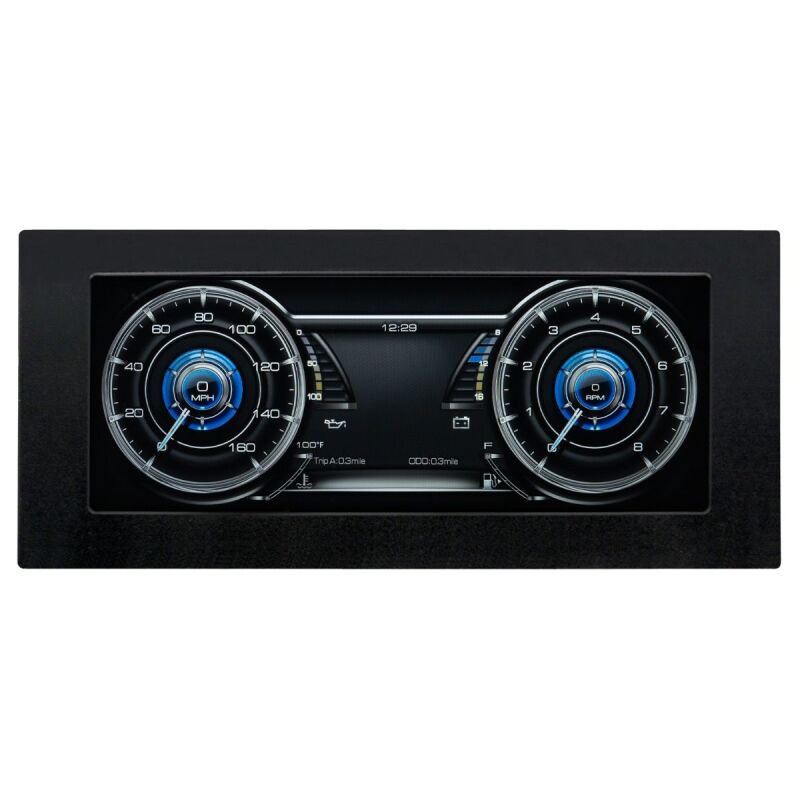

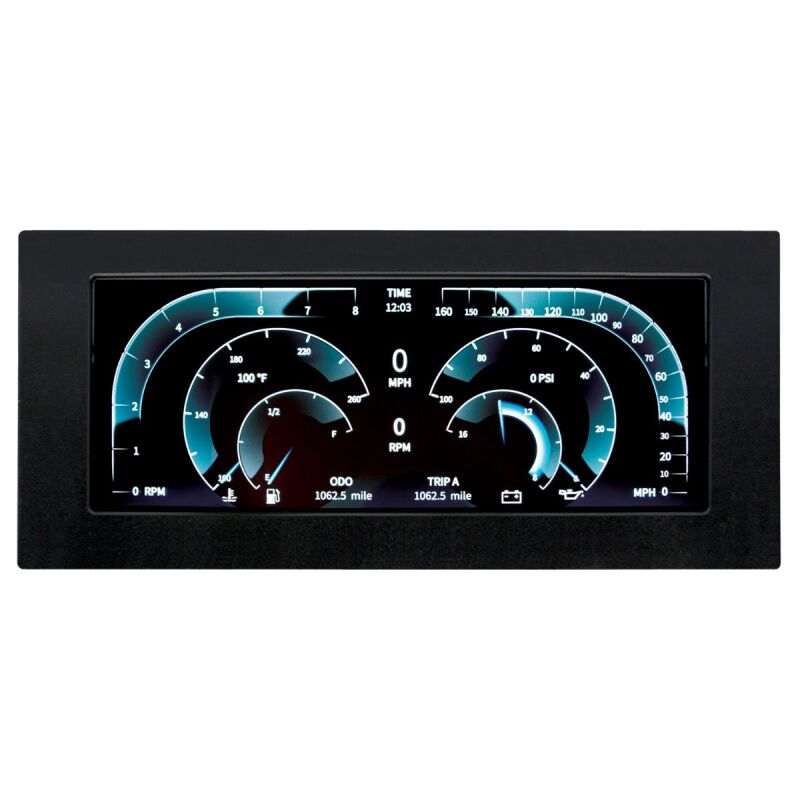

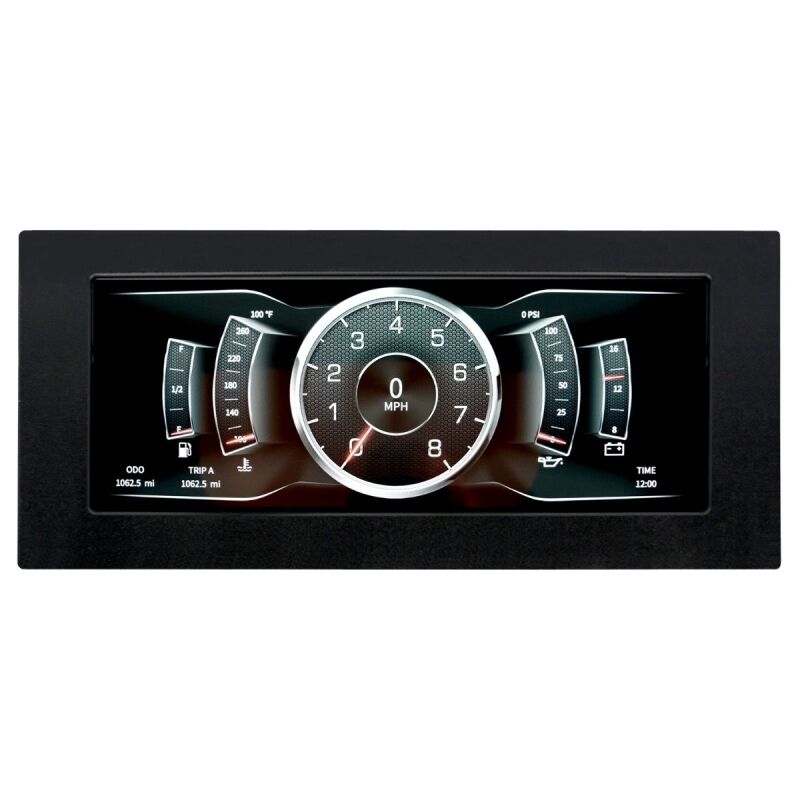

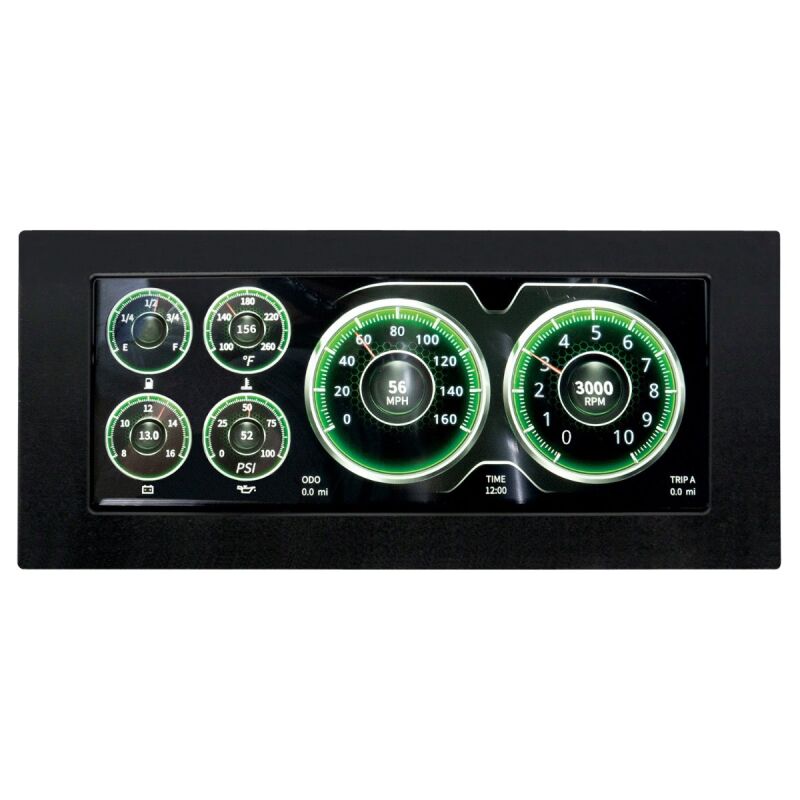

Autometer Universal 8.8in InVision Digital Dash System

The AutoMeter InVision Universal Digital Dash delivers a clean, modern instrument solution for a wide range of custom, restomod, and performance applications. Featuring a high-resolution 8.8” LCD display, it consolidates essential vehicle information into a single, easy-to-read interface designed to complement any interior style. Built for flexibility, the InVision Universal Dash supports a broad range of drivetrains and sensor configurations, making it ideal for custom installations and aftermarket builds. With intuitive customization, integrated indicators, and trusted AutoMeter engineering, it provides modern digital functionality without limiting your design or layout choices.

• Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors and the tachometer is capable of calibrating to many engine types
• All kits include a wiring harness and sending units for water temperature and oil pressure as well as a joystick for dash customization
• Monitors speedometer, tachometer, fuel level, oil pressure, water temperature, and volts all in a high resolution and colorful display
• Helps protect your vehicle with visual and audible alarms - low fuel level/oil pressure/voltage and high water temperature
• 7 user-selectable fuel level resistance ranges to pair with original and aftermarket sending units
• Tachometer capable of calibrating for 1, 2, 3, 4, 5, 6, 8, 10, or 12 cylinder engines
• 8.8” LCD display with five user selectable screens and color customization
• Features on-screen clock as well as high beam & turn signal indicators
• Adjustable RPM range and displays in imperial or metric measurements

The AutoMeter InVision Universal Digital Dash System offers a sleek and modern instrument solution ideal for custom builds, restomod projects, and high-performance applications. Featuring a high-resolution 8.8-inch color LCD display, this digital dashboard consolidates key vehicle information such as speed, RPM, fuel level, oil pressure, water temperature, and voltage into a clear, easy-to-read interface that enhances any interior style. Its customizable screens and color options allow users to tailor the display to their preferences, providing both functionality and aesthetic appeal.

Built with flexibility in mind, the InVision Dash supports a wide range of drivetrains and sensor configurations, making it suitable for various engine types and aftermarket setups. It includes a comprehensive wiring harness and sending units for water temperature and oil pressure, simplifying installation. The dashboard also features intuitive customization via a joystick, enabling easy adjustments to layout and display preferences. Visual and audible alarms alert drivers to critical conditions such as low fuel, oil pressure issues, high water temperature, or voltage drops, helping to protect the vehicle and prevent damage.

This advanced digital dash supports multiple calibration options, including speedometer calibration for OEM or aftermarket sensors, and tachometer calibration for engines with 1, 2, 3, 4, 5, 6, 8, 10, or 12 cylinders. The display can show five user-selected screens, with options to customize the interface’s color and layout. Additional features include an on-screen clock, high beam and turn signal indicators, and adjustable RPM ranges. Designed for versatility, the AutoMeter InVision Dash system provides a modern, comprehensive instrument panel that enhances vehicle monitoring while maintaining a clean, customizable aesthetic.

Features:

• High-resolution 8.8-inch color LCD display for clear, detailed information

• Supports a wide range of drivetrains and sensor configurations for custom installations

• Includes wiring harness and sending units for water temperature and oil pressure

• Joystick-based customization for screen layout and display options

• Visual and audible alarms for low fuel, oil pressure, high water temperature, and voltage issues

• Supports multiple calibration options for speedometer and tachometer, compatible with various engines

• Five user-selectable screens with customizable colors and layouts

• On-screen clock and vehicle status indicators such as high beam and turn signals

• Adjustable RPM range and imperial or metric measurement display options
