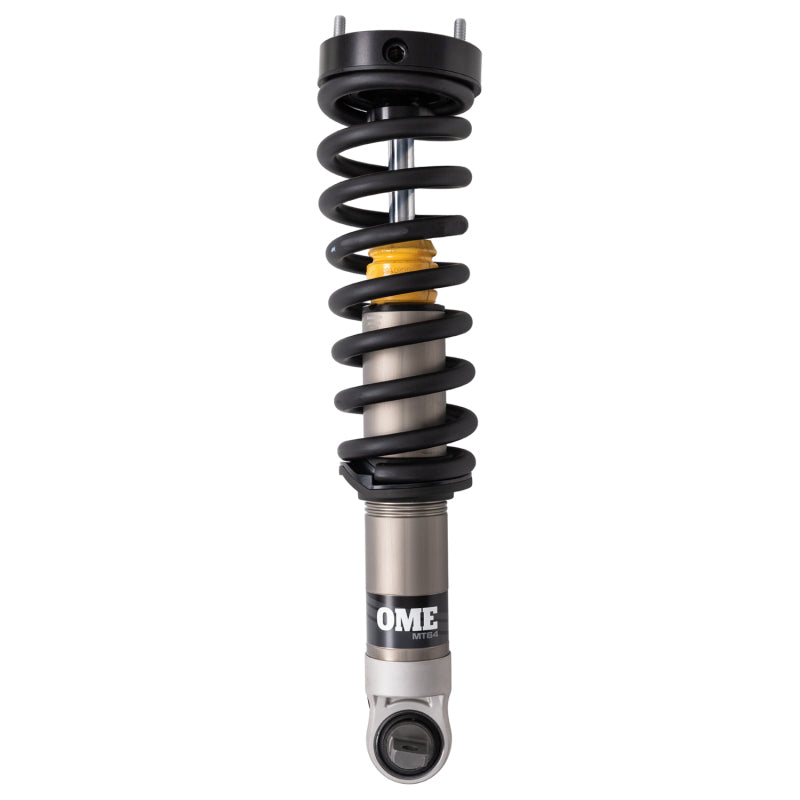

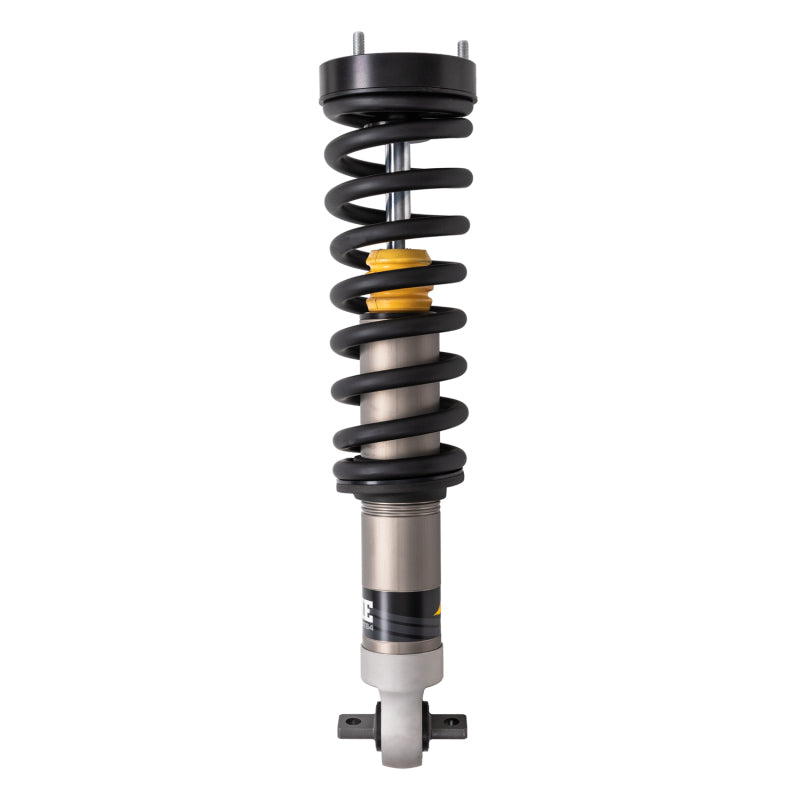

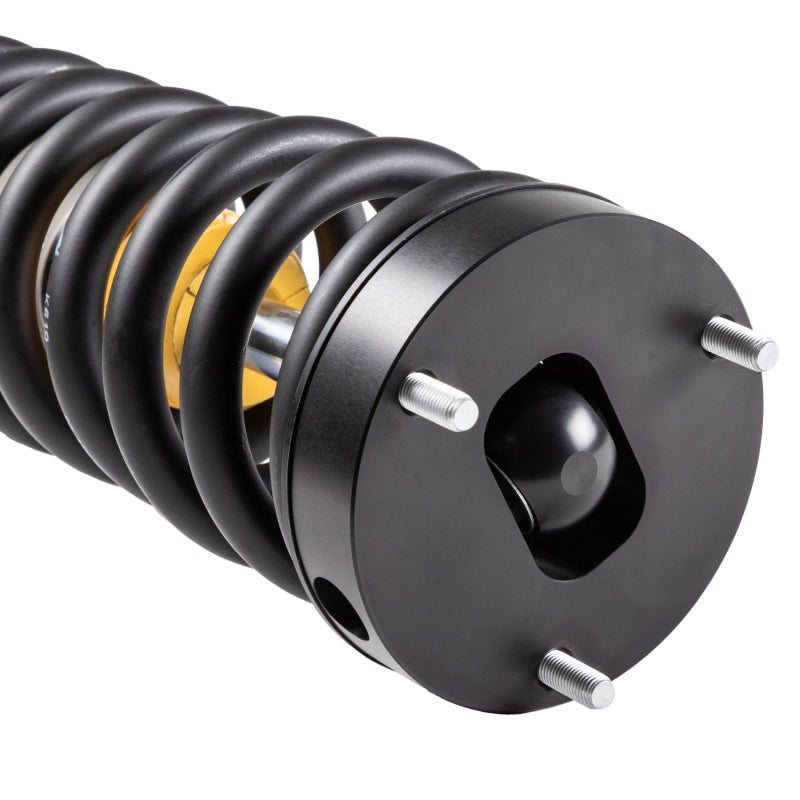

ARB / OME MT64 Coilover Strut Front

Experience unmatched ride quality and control with the MT64 coilover assembly, engineered to handle every challenge. From demanding overlanding trips to the daily commute and every custom build in between, the MT64's huge 2.8in aluminum body and vehicle-specific damping ensure optimal performance across any terrain. This MT64 comes out of the box as an preassembled coilover, meaning its ready for install straight onto your vehicle. Set from factory to achieve 3in of lift on an stock weight vehicle, you also have the option to adjust the lift between 1.25-2.5in, using the included snap ring grooves. MT64 gives you the flexibility required to configure your ride to your specific needs. For the driver who demands a smooth, comfortable ride, day after day, in any terrain, MT64 is an clear choice. Old Man Emu MT64 Coilover Strut Front 2.5in

• Designed with a hydraulic end zone top out, providing an added padding at the shock’s full extension, to help compensate for any unexpected bumps
• Complete coilover assembly allows for direct bolt in fitment, and providing 2.5 in of lift on vehicles with stock to 220lbs of front end weight
• Aerospace grade aluminum body dissipates heat fifteen times faster than steel, and increases protection against stone damage
• Adjustable 6-position snap ring allows for a range of lifts from 1.25-2.5 in giving you control of your build
• Monotube design with a massive 2.8 in body allowing for more oil and accurate shock tuning
• Digressive valving instantly reacts to changing surface conditions to maximize performance
• Forged body cap and rod ends reduce weight while maintaining strength
• Direct replacement for stock and aftermarket lift kit

Upgrade your 2021-2022 Ford F-150 with the Old Man Emu MT64 front coilover strut, part number arbMT64996008. Engineered for daily driving, overlanding, and custom off-road builds, this complete coilover assembly delivers controlled performance and improved ride quality across changing terrain. The preassembled design installs as a direct replacement for the factory strut or a compatible aftermarket lift kit, helping simplify installation and reducing the need for separate components.
The Old Man Emu MT64 is factory configured to provide approximately 2.5 inches of front lift on vehicles with stock to 220 pounds of front-end weight. Its adjustable six-position snap ring system allows the lift height to be tailored from approximately 1.25 to 2.5 inches, giving you greater flexibility when matching suspension setup, vehicle load, and tire selection. Vehicle-specific damping and digressive valving help the strut respond quickly to surface changes while maintaining a smooth, controlled ride.
Built for demanding use, the MT64 features a large aluminum monotube body that increases oil capacity and supports precise shock tuning. Aerospace-grade aluminum dissipates heat significantly faster than steel and provides added protection against stone damage. A hydraulic end-zone top-out system adds cushioning at full extension to help absorb unexpected suspension movement, while forged body caps and rod ends reduce weight without sacrificing strength. The result is a durable, adaptable front suspension upgrade for drivers who expect reliable control on pavement, trails, and overland routes.

Features:

• Hydraulic end-zone top-out design adds cushioning at full suspension extension

• Complete preassembled coilover provides direct bolt-in installation

• Provides approximately 2.5 inches of lift with stock to 220-pound front-end weight

• Six-position snap ring adjustment supports approximately 1.25 to 2.5 inches of lift

• Aerospace-grade aluminum body dissipates heat faster than steel and helps resist stone damage

• Monotube design with a large 2.8-inch body increases oil capacity and supports accurate tuning

• Digressive valving responds quickly to changing surface conditions

• Forged body cap and rod ends reduce weight while maintaining strength

• Direct replacement for stock struts and compatible aftermarket lift kits

• Fits 2021-2022 Ford F-150 applications

Fitment:
Ford F-150 King Ranch 2021
Ford F-150 King Ranch 2022
Ford F-150 King Ranch 2023
Ford F-150 King Ranch 2024
Ford F-150 King Ranch 2025
Ford F-150 Lariat 2021
Ford F-150 Lariat 2022
Ford F-150 Lariat 2023
Ford F-150 Lariat 2024
Ford F-150 Lariat 2025
Ford F-150 Limited 2021
Ford F-150 Limited 2022
Ford F-150 Limited 2023
Ford F-150 Platinum 2021
Ford F-150 Platinum 2022
Ford F-150 Platinum 2023
Ford F-150 Platinum 2024
Ford F-150 Platinum 2025
Ford F-150 STX 2024
Ford F-150 STX 2025
Ford F-150 XL 2021
Ford F-150 XL 2022
Ford F-150 XL 2023
Ford F-150 XL 2024
Ford F-150 XL 2025
Ford F-150 XLT 2021
Ford F-150 XLT 2022
Ford F-150 XLT 2023
Ford F-150 XLT 2024
Ford F-150 XLT 2025
