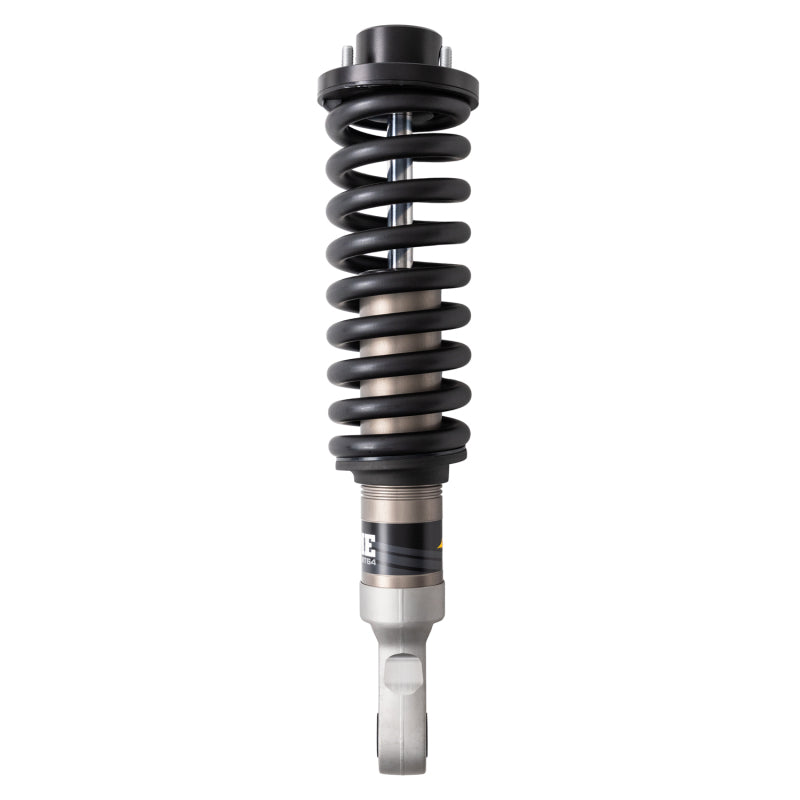

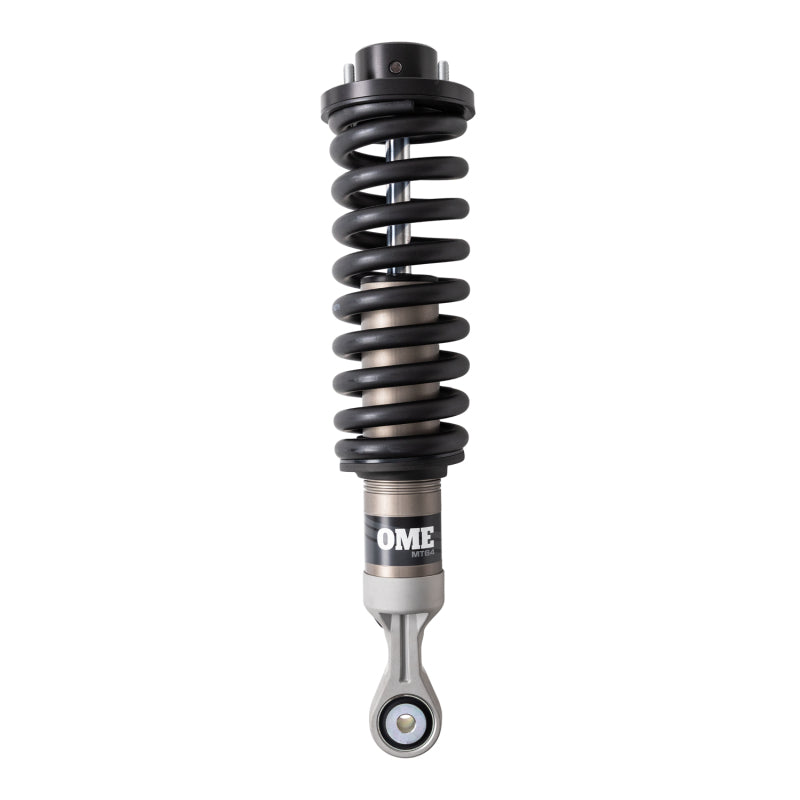

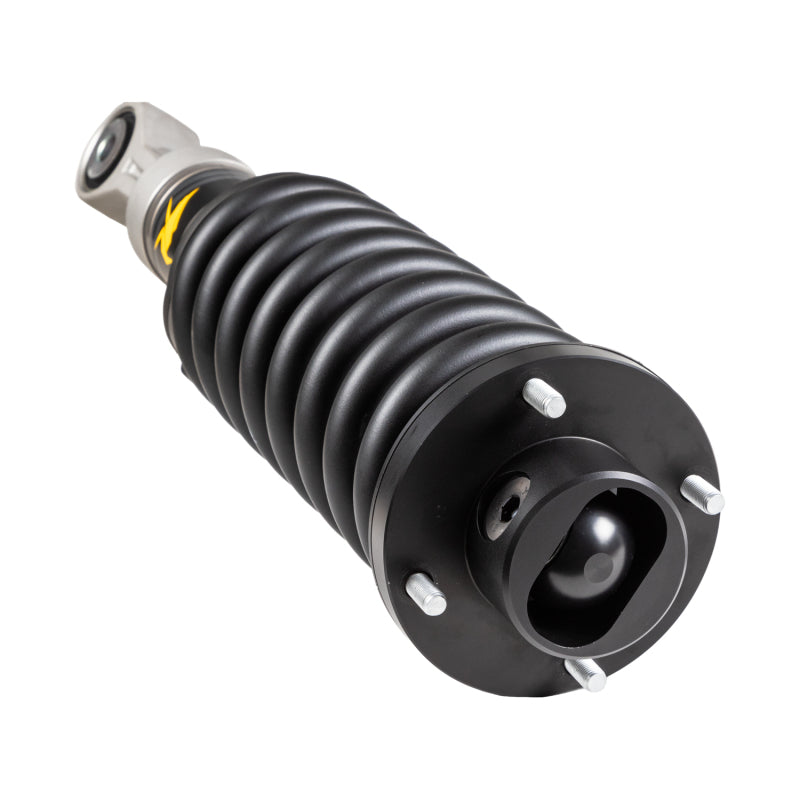

ARB OME 2022+ Toyota Tundra MT64 Strut Assembly Med.

Experience unmatched ride quality and control with the MT64 coilover assembly, engineered to handle every challenge. From demanding overlanding trips to the daily commute and every custom build in between, the MT64's huge 2.8in aluminum body and vehicle-specific damping ensure optimal performance across any terrain. This MT64 comes out of the box as an preassembled coilover, meaning its ready for install straight onto your vehicle. Set from factory to achieve 3inches of lift on an stock weight vehicle, you also have the option to adjust the lift between 1.75-3in, using the included snap ring grooves. MT64 gives you the flexibility required to configure your ride to your specific needs. For the driver who demands an smooth, comfortable ride, day after day, in any terrain, MT64 is an clear choice.

• Designed with a hydraulic end zone top out, providing an added padding at the shock’s full extension, to help compensate for any unexpected bumps
• Complete coilover assembly allows for direct bolt in fitment, while providing 3 inches of lift on vehicles with stock front end weight
• Aerospace grade aluminum body dissipates heat fifteen times faster than steel, and increases protection against stone damage
• Adjustable 6-position snap ring allows for a range of lifts from 1.75-3 inches giving you control of your build
• Monotube design with a massive 2.8 inch body allowing for more oil and accurate shock tuning
• Digressive valving instantly reacts to changing surface conditions to maximize performance
• Forged body cap and rod ends reduce weight while maintaining strength
• Direct replacement for stock and aftermarket lift kit

Upgrade the front suspension of your 2022-2023 Toyota Tundra with the Old Man Emu MT64 coilover strut assembly, part number arbMT64996005. Designed for overlanding, off-road travel, daily driving, and custom builds, this vehicle-specific assembly delivers improved ride control and dependable performance across changing terrain. The preassembled coilover is ready for direct installation and is factory configured to provide approximately 3 inches of lift on a vehicle with stock front-end weight.
The MT64 also provides adjustable ride-height flexibility through its six-position snap-ring system, allowing lift settings from approximately 1.75 to 3 inches. This makes it easier to configure your Tundra for different vehicle loads, tire sizes, accessory packages, and build requirements. Its monotube design uses a large 2.8-inch body for increased oil capacity and precise damping control, while digressive valving responds quickly to changing surface conditions for a controlled, comfortable ride.
Built for demanding use, the Old Man Emu MT64 features an aerospace-grade aluminum body that dissipates heat faster than steel and helps protect against stone damage. A hydraulic end-zone top-out system adds cushioning at full shock extension to help absorb unexpected suspension movement. Forged body caps and rod ends reduce weight without sacrificing strength, and the assembly serves as a direct replacement for stock suspension or compatible aftermarket lift-kit components. Fitment includes select 2022 and 2023 Toyota Tundra applications; verify vehicle configuration and front-end weight before installation.

Features:

• Vehicle-specific preassembled coilover provides direct bolt-in installation for select 2022-2023 Toyota Tundra applications

• Factory-set for approximately 3 inches of lift on vehicles with stock front-end weight

• Six-position snap-ring adjustment provides approximately 1.75 to 3 inches of lift

• Hydraulic end-zone top-out system cushions the shock at full extension

• Aerospace-grade aluminum body improves heat dissipation and resistance to stone damage

• Monotube design with a large 2.8-inch body increases oil capacity and supports precise damping control

• Digressive valving reacts quickly to changing terrain for improved ride quality and control

• Forged body cap and rod ends reduce weight while maintaining strength

• Direct replacement for stock suspension and compatible aftermarket lift-kit applications

Fitment:
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra 1794 Edition 2025
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Capstone 2025
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Limited 2025
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra Platinum 2025
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR 2025
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra SR5 2025
