ARB 2024+ Toyota Tacoma MT64 Strut Assembly Med

MT64 coilover assembly is the perfect all-rounder, designed to cater to the demanding needs of overlanding but also with all unique builds in mind, from stock vehicles to heavy with large amounts of added weight. MT64 offers unparalleled load handling capabilities and vehicle-specific damping, tuned for different loads and vehicle setups. Multiple snap-ring grooves in the strut body allow for different spring seat positions, providing 1.75-3 inches of lift on vehicles with stock front end weight. These cutting-edge shocks are built to handle the unique challenges faced by vehicles equipped with bumpers, campers, toppers, tents, and rack systems. These additions create an dynamic shifting load, both in terms of front-to-back and side-to-side movements. MT64 is the ultimate overlanding authority, designed for the traveler who wants an smooth ride and comfort both on and off-road. Overlanding demands shocks that can handle all conditions, day after day, and that is what MT64 is designed to do.

• Designed with an hydraulic end zone top out, providing an added padding at the shock’s full extension, to help compensate for any unexpected bumps
• Complete coilover assembly allows for direct bolt in fitment, while providing 3inches of lift on vehicles with stock front end weight
• Aerospace grade aluminum body dissipates heat fifteen times faster than steel, and increases protection against stone damage
• Adjustable 6 position snap ring allows for an range of lifts from 1.75-3inches giving you control of your build
• Monotube design with an massive 2.8 inch body allowing for more oil and accurate shock tuning
• Digressive valving instantly reacts to changing surface conditions to maximize performance
• Forged body cap and rod ends reduce weight while maintaining strength
• Direct replacement for stock and aftermarket lift kit

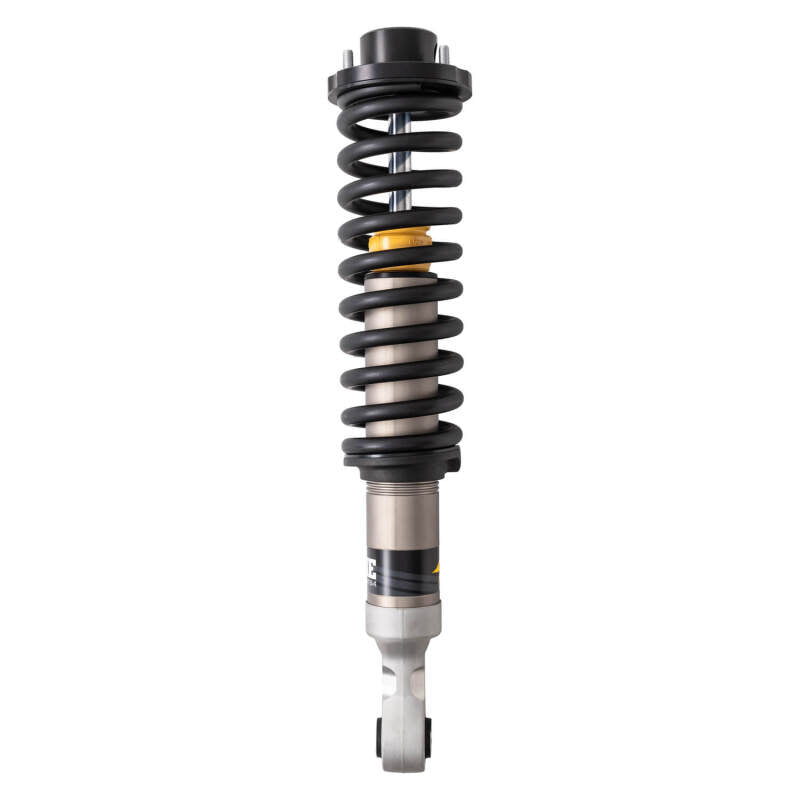

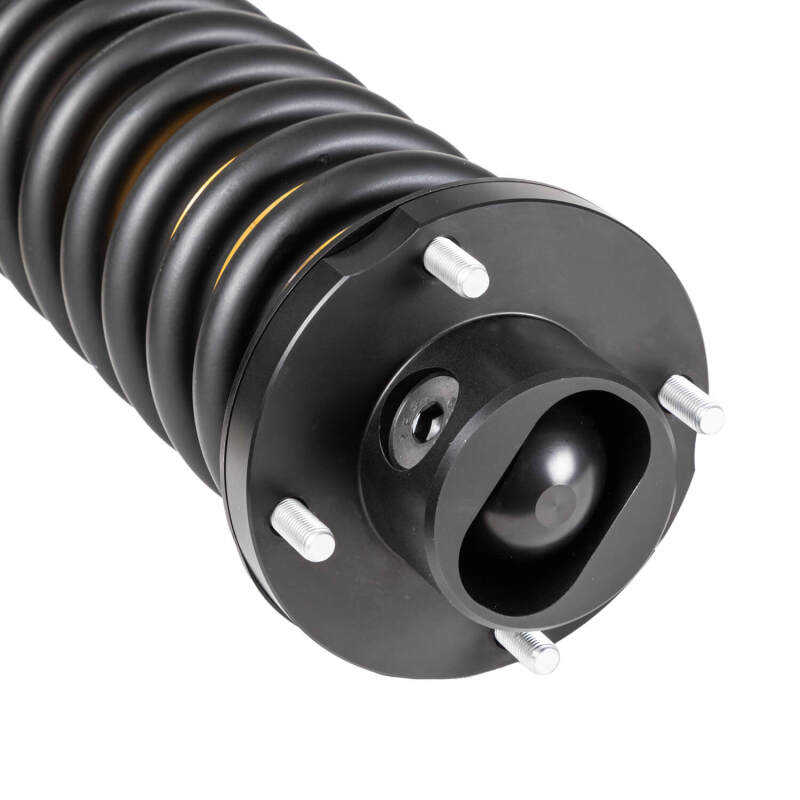

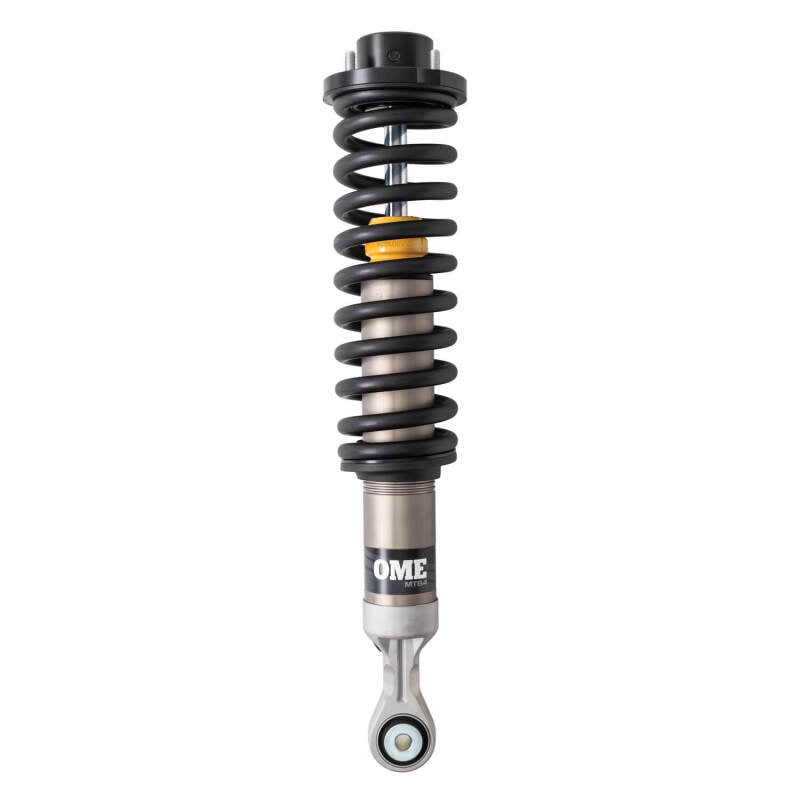

The Old Man Emu MT64 coilover strut assembly, part number arbMT64996001, is engineered for 2024-2025 Toyota Tacoma models and built to support demanding overlanding applications. This complete front suspension assembly provides direct bolt-in fitment for compatible stock or lifted vehicles while delivering vehicle-specific damping for balanced handling, ride comfort, and dependable performance on and off the road. It is designed to accommodate vehicles with added equipment and changing loads from bumpers, campers, toppers, tents, and rack systems.
The MT64 uses an adjustable snap-ring design to provide a lift range from 1.75 to 3 inches on vehicles with stock front-end weight. Multiple spring-seat positions allow you to tailor the ride height to your build, making this assembly suitable for a range of configurations. A hydraulic end-zone top-out feature adds cushioning at full extension, helping reduce harshness when the suspension reaches maximum travel or encounters unexpected terrain.
A large monotube shock body provides increased oil capacity and supports precise damping control, while digressive valving responds quickly to changing surface conditions. The aerospace-grade aluminum body helps dissipate heat efficiently and improves resistance to stone damage during trail use. Forged body caps and rod ends help reduce weight without compromising structural strength, and the assembly is designed as a direct replacement for compatible stock and aftermarket lift-kit components.
Feature: Complete coilover strut assembly for direct bolt-in installation
Feature: Adjustable six-position snap ring supports 1.75- to 3-inch lift adjustment with stock front-end weight
Feature: Hydraulic end-zone top-out cushioning helps soften full-extension impacts
Feature: Monotube design with a large shock body supports increased oil capacity and accurate tuning
Feature: Digressive valving adapts quickly to changing terrain and surface conditions
Feature: Aerospace-grade aluminum body improves heat dissipation and protection against stone damage
Feature: Forged body cap and rod ends provide strength with reduced weight
Feature: Designed for 2024-2025 Toyota Tacoma applications and compatible stock or aftermarket lift configurations

Features:

• Complete coilover strut assembly for direct bolt-in installation

• Adjustable six-position snap ring supports 1.75- to 3-inch lift adjustment with stock front-end weight

• Hydraulic end-zone top-out cushioning helps soften full-extension impacts

• Monotube design with a large shock body supports increased oil capacity and accurate tuning

• Digressive valving adapts quickly to changing terrain and surface conditions

• Aerospace-grade aluminum body improves heat dissipation and protection against stone damage

• Forged body cap and rod ends provide strength with reduced weight

• Designed for 2024-2025 Toyota Tacoma applications and compatible stock or aftermarket lift configurations

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma Limited 2025
Toyota Tacoma SR 2024
Toyota Tacoma SR 2025
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma Trailhunter 2024
Toyota Tacoma Trailhunter 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Pro 2024
Toyota Tacoma TRD Pro 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
