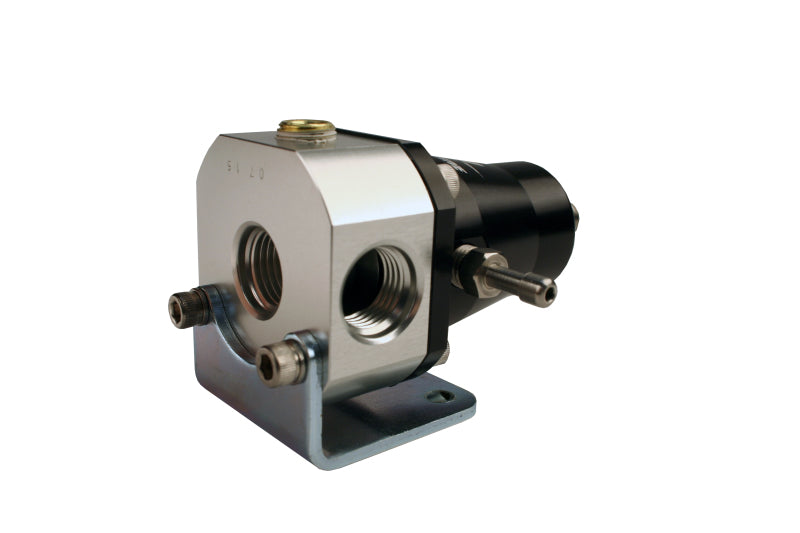

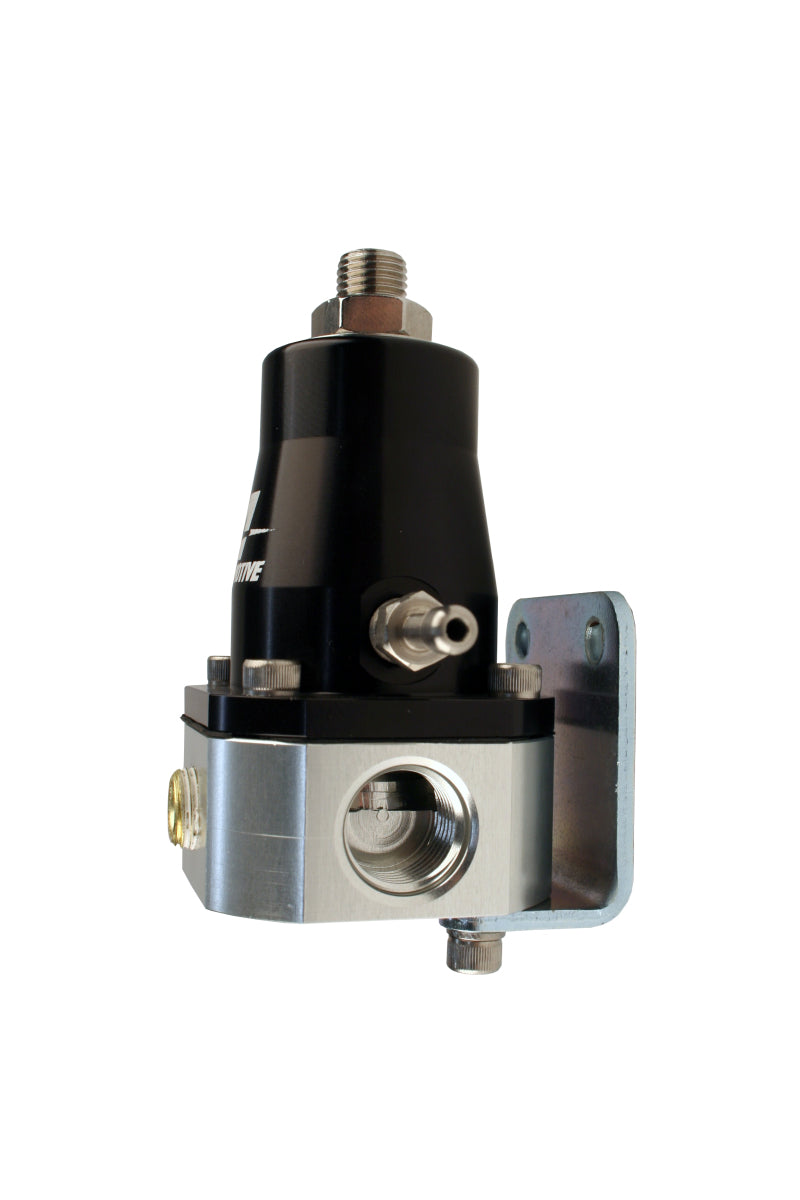

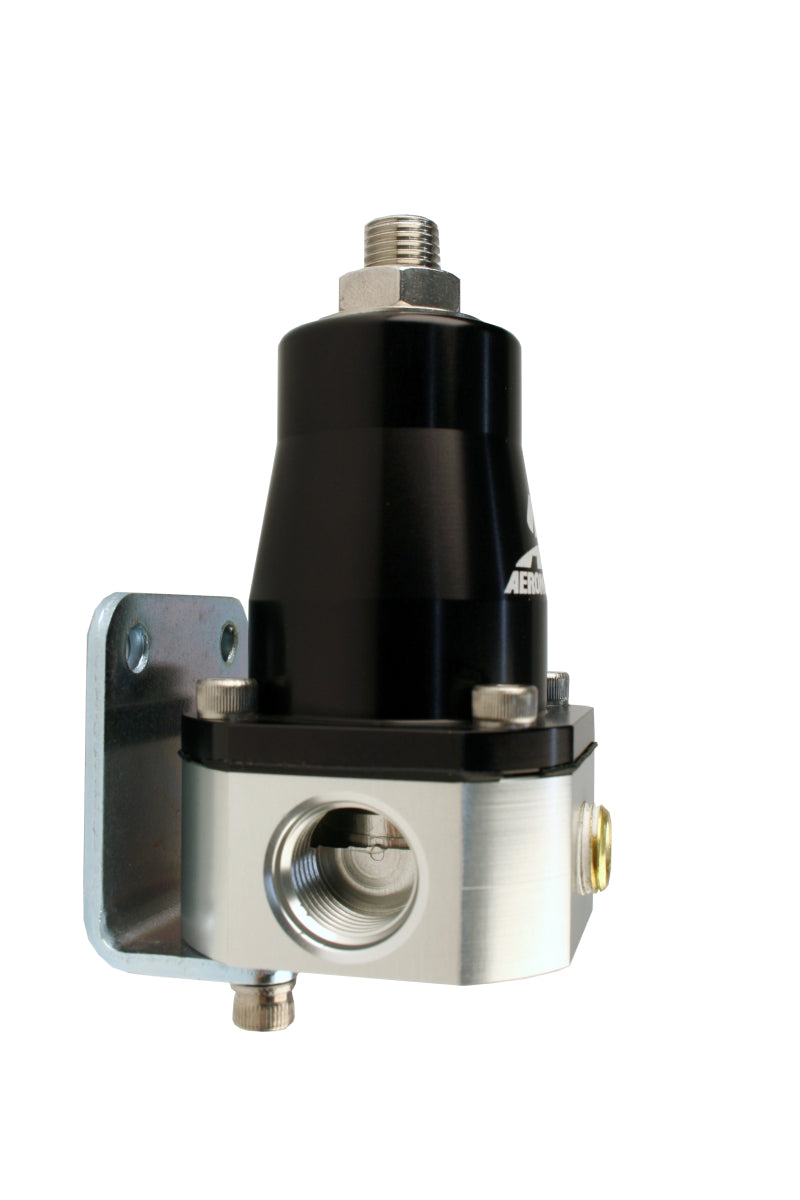

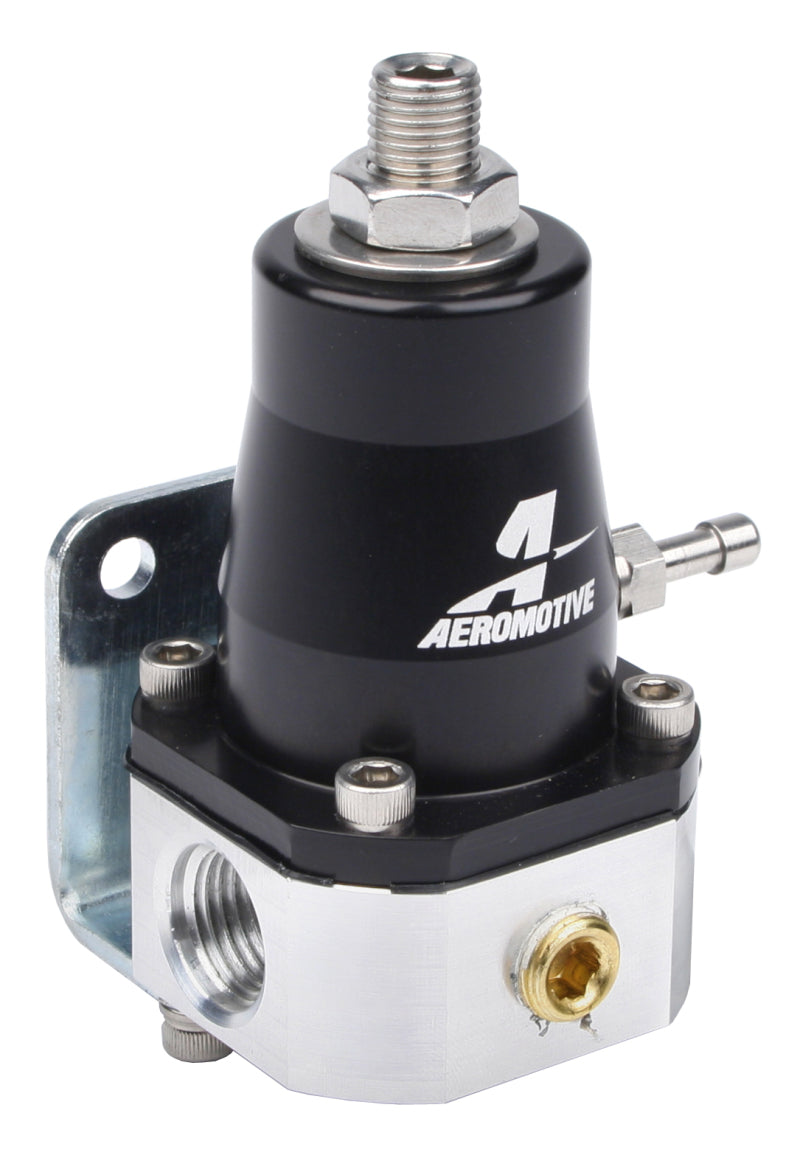

Aeromotive Adjustable Regulator - EFI Bypass - (2) -6 Inlets/(1) -6 Return

This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 HP, the 13129 EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium. Base pressure adjustable from 40-75 psi. Fuel pressure rises on a 1:1 ratio with boost. Provides (2) ORB-06 inlet/outlet ports and (1) ORB-06 return port. 1/8? NPT gauge port. Bright Dip Black Anodized Finish. Vacuum boost port. CNC-Machined 6061 T6 billet aluminum construction. Regulator - EFI Bypass, Adjustable (2) -6 inlets, (1) -6 bypass. EFI bypass regulator; adjustable from 30-70 PSI; smaller and lighter with consistent performance

The Aeromotive 13129 EFI Bypass Regulator is engineered for high-performance fuel systems, offering precise control and reliable operation in applications supporting up to 1000 horsepower. Its compact and lightweight design makes it ideal for street machines and racing setups where space and weight are critical considerations. Crafted from CNC-machined 6061 T6 billet aluminum and finished with a durable Bright Dip Black Anodized coating, this regulator combines durability with a sleek appearance. Its adjustable base pressure, ranging from 40 to 75 psi, allows tuning flexibility, while the fuel pressure naturally rises on a 1:1 ratio with boost, ensuring optimal performance under varying boost conditions. The regulator features (2) ORB-06 inlet/outlet ports and (1) ORB-06 return port, along with a 1/8-inch NPT gauge port for easy monitoring. The vacuum boost port enhances responsiveness, making it suitable for a wide range of EFI setups. Designed to support high-flow EFI fuel pumps and the most aggressive street machines, this regulator provides consistent fuel pressure regulation for reliable engine performance. Its compact form factor and robust construction make it a versatile choice for automotive enthusiasts seeking a performance-driven, space-efficient solution for their fuel delivery needs.

Features:

• Supports applications up to 1000 HP for high-performance EFI systems

• Constructed from CNC-machined 6061 T6 billet aluminum for durability and lightweight design

• Bright Dip Black Anodized Finish offers corrosion resistance and aesthetic appeal

• Base pressure adjustable from 40 to 75 psi for precise tuning

• Fuel pressure rises on a 1:1 ratio with boost for optimal performance

• Includes (2) ORB-06 inlet/outlet ports and (1) ORB-06 return port for versatile connections

• 1/8-inch NPT gauge port for easy fuel pressure monitoring

• Vacuum boost port for enhanced responsiveness

• Compact and lightweight design suitable for space-constrained applications

• Supports high-flow EFI fuel pumps and aggressive street setups
