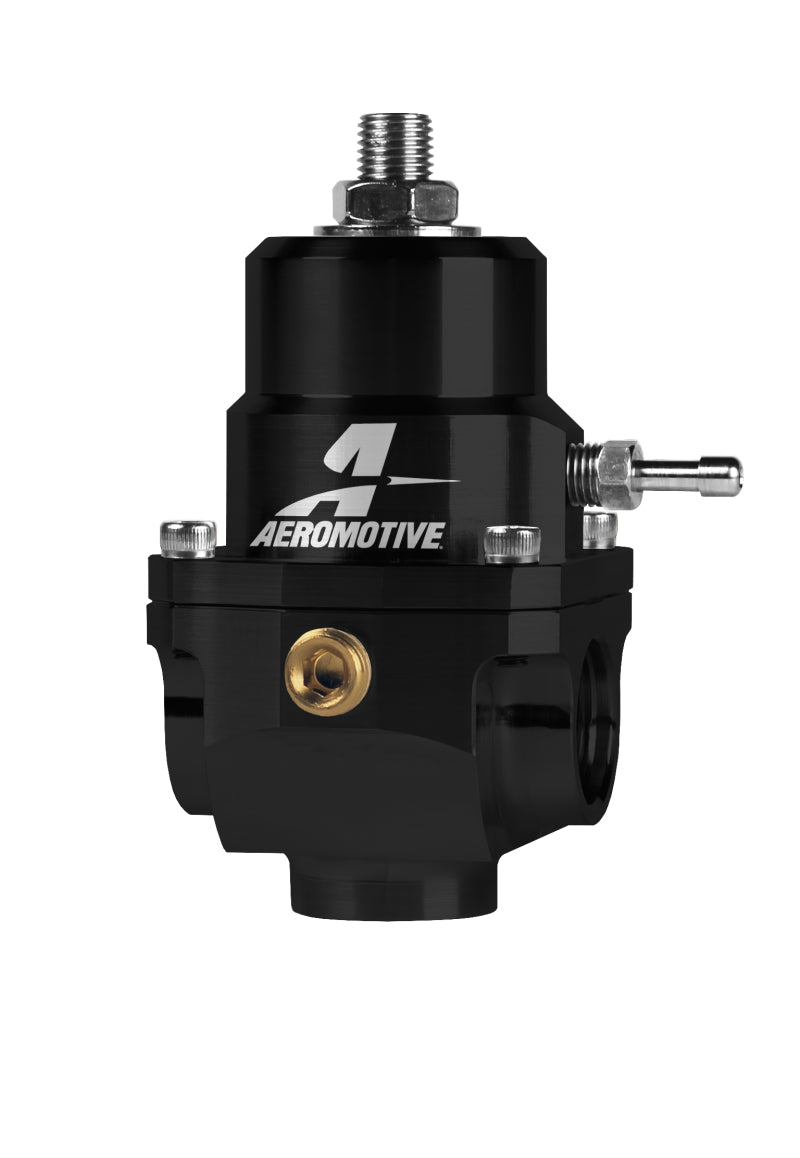

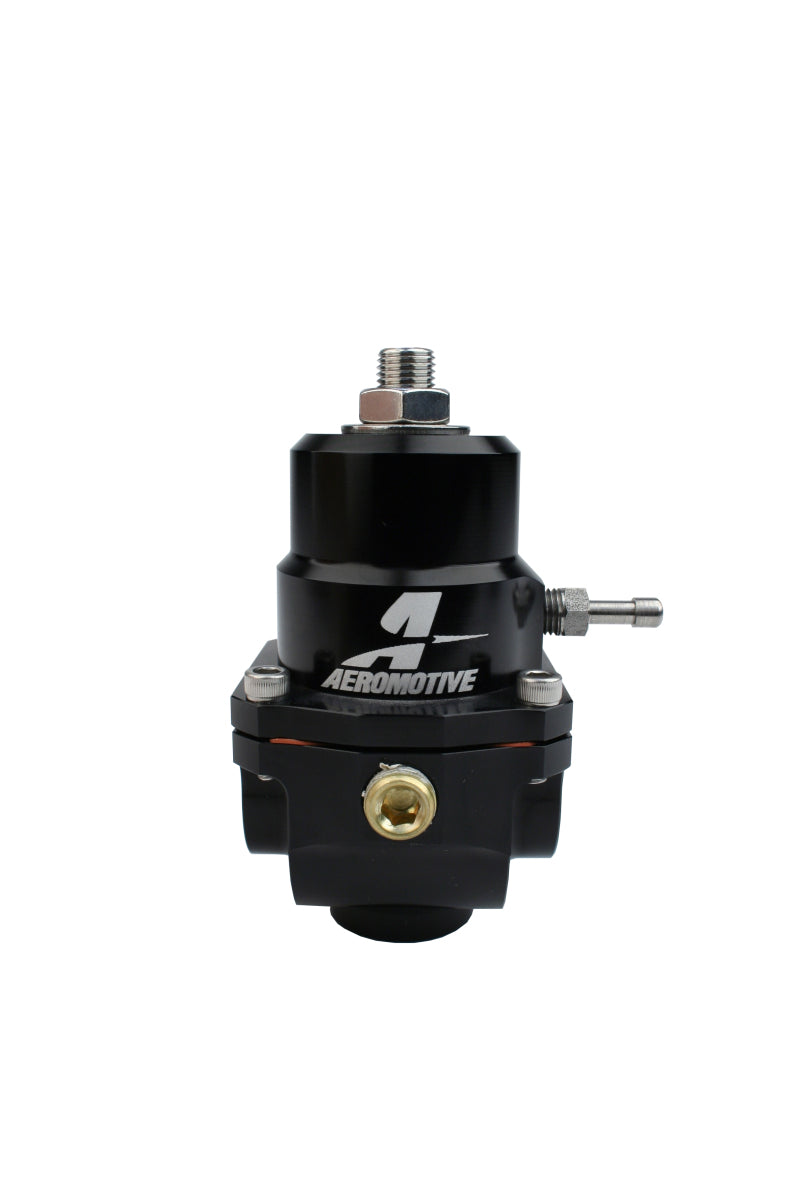

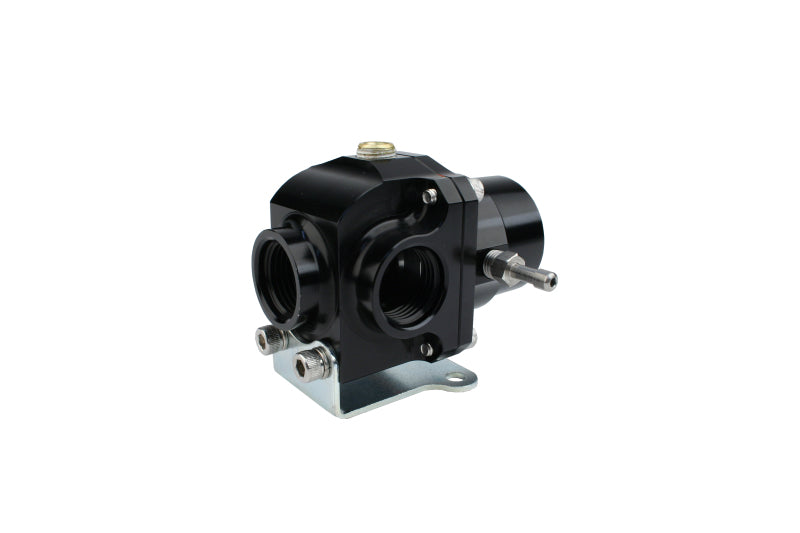

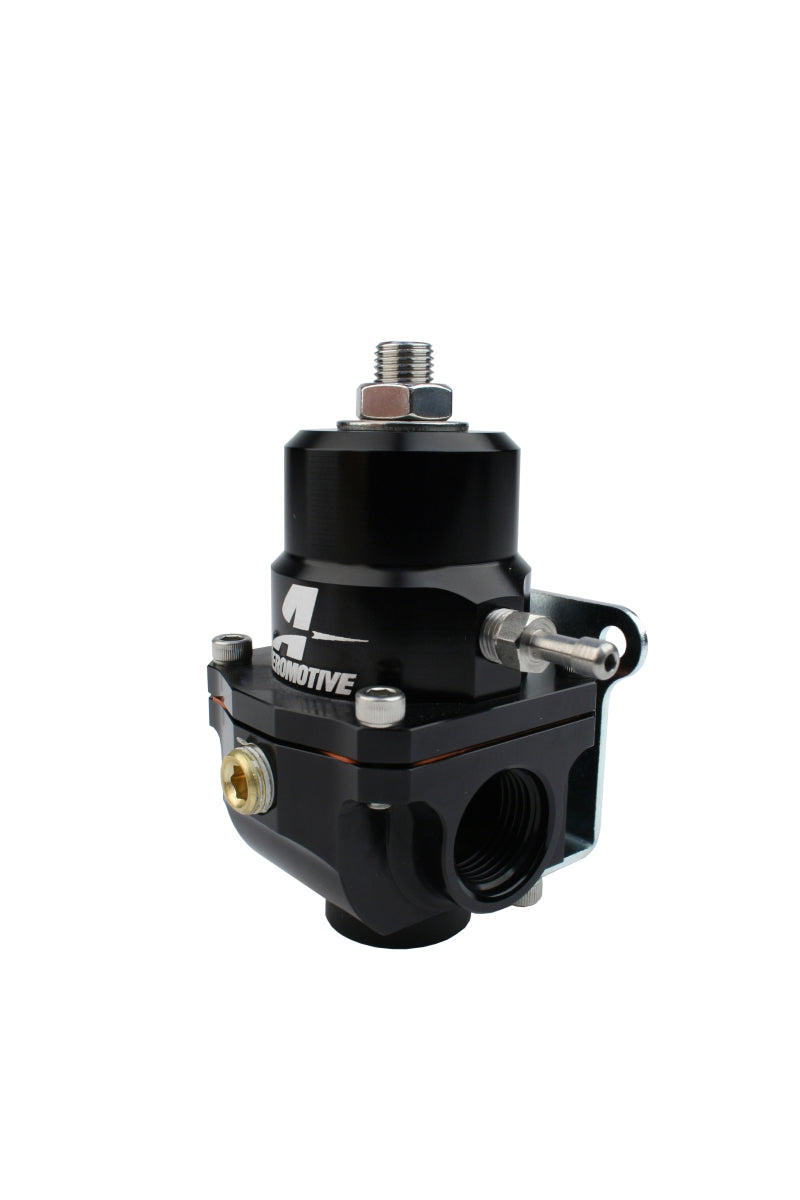

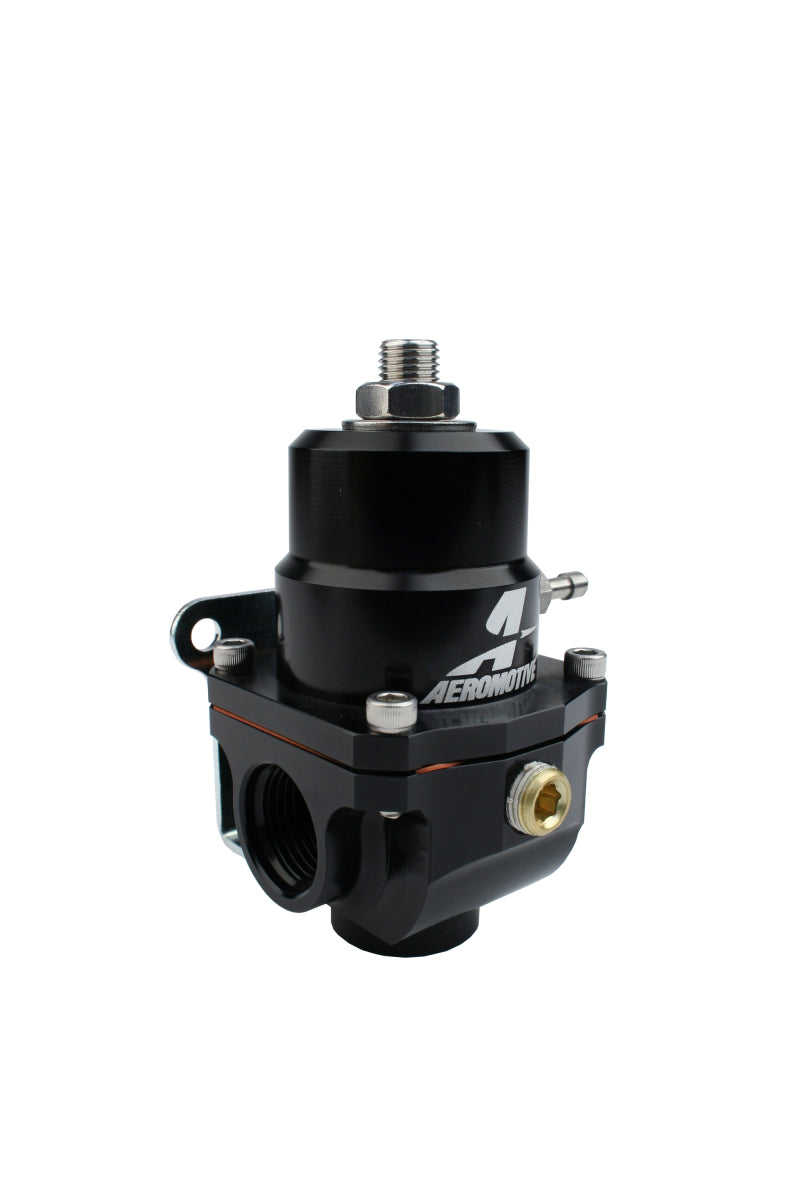

Aeromotive Adjustable Regulator - 35-75PSI - .313 Valve - (2) -08 Inlets/-08 Return

Replace original X1 Series regulator internals with the conversion kit of your choice (Part #?s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics.?While versatility is one of the X1?s greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator). The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and bypass seat, the X1 delivers all of the performance and features you expect from an application specific bypass regulator, regardless of what you decide to do with your induction system tomorrow.? Above and beyond the expected performance, you still have the amenities like a 1/8? NPT gauge port and 1:1 ratio boost reference port for forced induction applications. Base fuel pressure adjustable from 35-75 PSI. Vacuum/Boost reference capability. 1:1 rising rate for blow-through carburetors. Gasoline, ethanol, and alcohol compatible. (2) ORB-08 inlet/outlet ports on the sides. (1) ORB-08 return port on the bottom. (1) 1/8? NPT Gauge Port with plug. 1/16? NPT Boost Port with 5/32? hose barb. Compatible with both X1 EFI conversion kits. 0.313? bypass with matching spring and poppet. Handles up to 250 GPH with AN-08 return line. Ideal for high-flow Aeromotive pumps, including Eliminator, Pro-Series, Brushless 3.5 and 5.0. Mounting bracket included. Regulator, X1 Adjustable, 35-75psi, .313 Valve, (2)-08inlets, -08 return . X1 regulator; Carb to EFI pressures, N/A or forced induction, X1 is designed to span entire range of applications providing dependable fuel pressure regulation. 35-75psi (Works well with 11104 Eliminator up to 11102 Pro Series)

The Aeromotive Part #aer13305 adjustable fuel regulator is designed for high-performance automotive applications, offering precise fuel pressure regulation from 35 to 75 PSI. Constructed to handle substantial fuel flow, it features larger -8AN ORB inlet, outlet, and return ports, accommodating increased flow demands typically associated with high-flow pumps like the Eliminator, Pro-Series, and Brushless models. Its compact design reduces overall size and weight by 33% compared to previous models, making it ideal for tight engine bays without sacrificing durability or performance. The regulator's internal components, including the diaphragm, poppet, spring, and bypass seat, have been optimized to ensure consistent operation in both carbureted and EFI systems, as well as forced induction setups with a 1:1 boost reference port. The inclusion of a 1/8-inch NPT gauge port, a 1/16-inch NPT boost port, and multiple ORB-08 ports makes it versatile and easy to integrate into various fuel systems. Its compatibility with gasoline, ethanol, and alcohol fuels enhances its adaptability to different racing and street applications.

Features:

• Adjustable fuel pressure from 35 to 75 PSI for precise control

• Large -8AN ORB inlet, outlet, and return ports for high flow capacity

• Compact and lightweight design reduces size by 33% compared to previous models

• Optimized internal components ensure reliable operation across various applications

• Includes a 1/8-inch NPT gauge port, a 1/16-inch NPT boost port, and multiple ORB-08 ports for flexible installation

• Compatible with gasoline, ethanol, and alcohol fuels

• Handles up to 250 GPH with AN-08 return line, suitable for high-flow fuel pumps

• Designed for carbureted, EFI, and forced induction systems with boost reference capability

• Mounting bracket included for easy installation
