AEM CD-5L Carbon Logging Flush Digital Dash Display

AEM CD-5L Carbon Logging Flush Digital Dash Display

Name: AEM CD-5L Carbon Logging Flush Digital Dash Display
Brand: AEM
SKU: aem30-5601F
Price: 1606.99 USD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,606.99

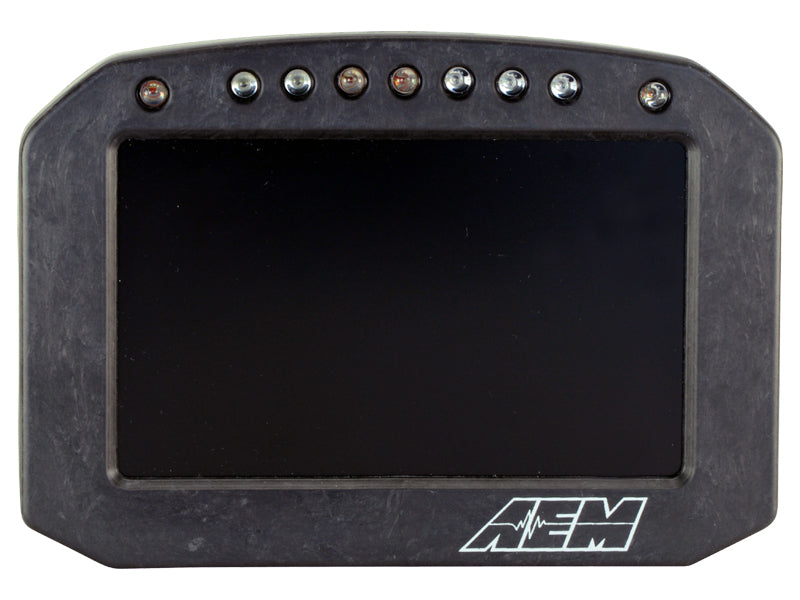

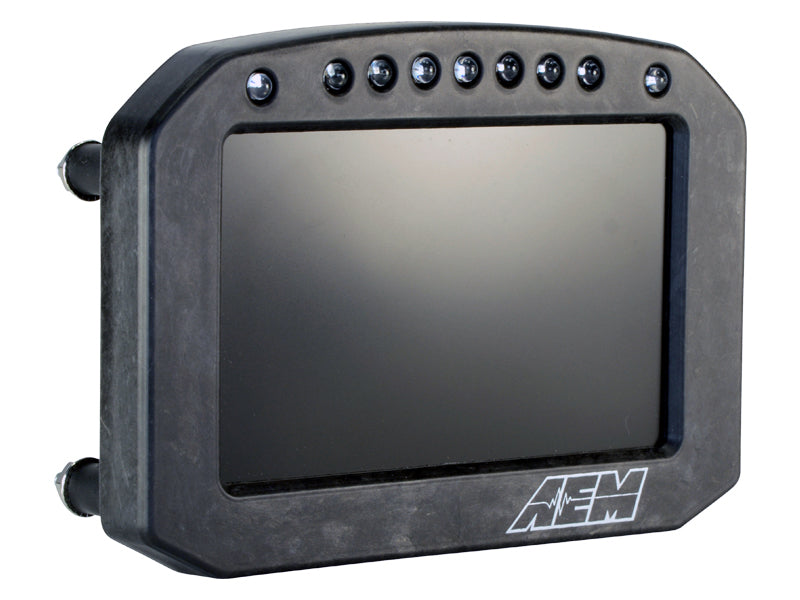

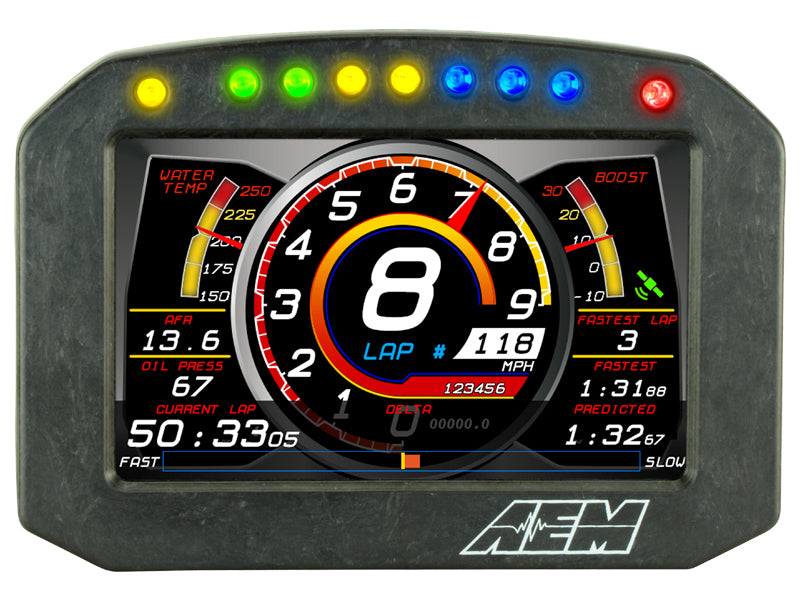

AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable Flat Panel Digital Dash Display, CD-5L logging, non-GPS racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)

Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
Use the included page layouts and input your channels and text, or create your own from scratch
Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
User supplied graphics can be changed based on channel values (up to the full screen size)
Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
Available with or without 200Mb internal logging (up to 1,000Hz/channel)
Headlight-in' connection dims the dash and LEDs during night operation

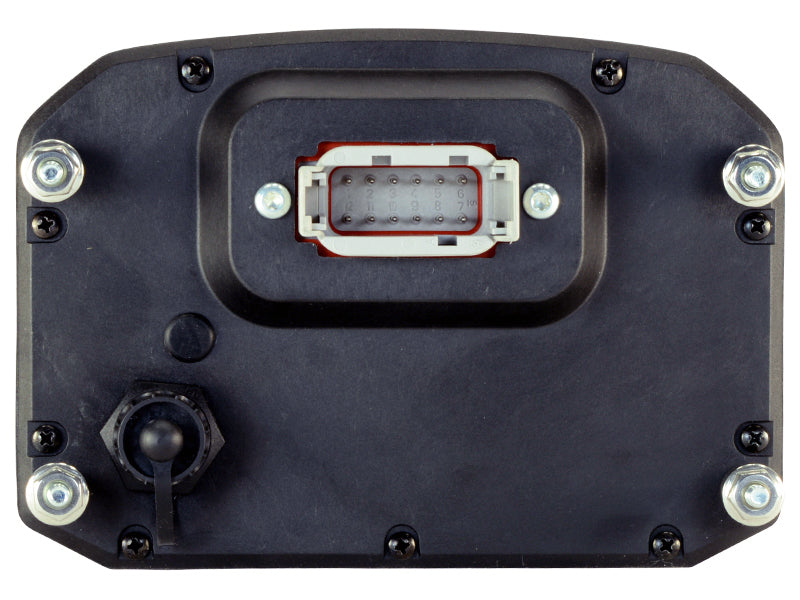

Wiring interface/harnesses are identical between all CD Carbon Dashes
Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)

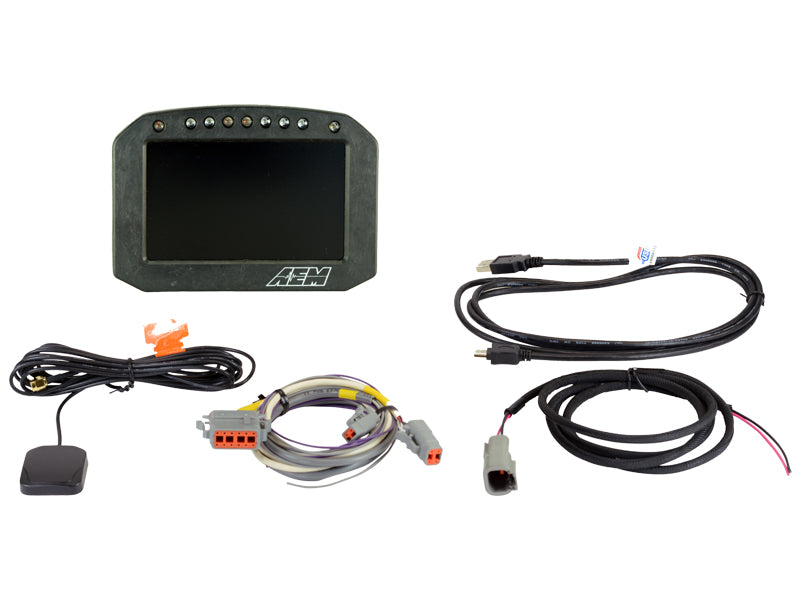

Available with or without onboard 20 Hz GPS receiver and antenna
Rugged, lightweight flow-molded carbon fiber composite enclosure
Layout files interchangeable between all CD Carbon Dashes
Convert CAN bus channel values to user-defined text
Full color 5" screen with 800x480 resolution
Free DashDesign Graphics Editor software
IP66 water resistance
Two programmable LEDs
Odometer function

The AEM CD-5L Carbon Logging Flush Digital Dash Display, part number 30-5601F, is designed for flush-mount installations and in-dash enclosures with limited clearance. This non-GPS racing dash uses CAN input and features a full-color, daylight-readable display housed in a slim, lightweight flow-molded carbon fiber composite enclosure. The rugged design provides IP66 water resistance for demanding motorsport and automotive applications.

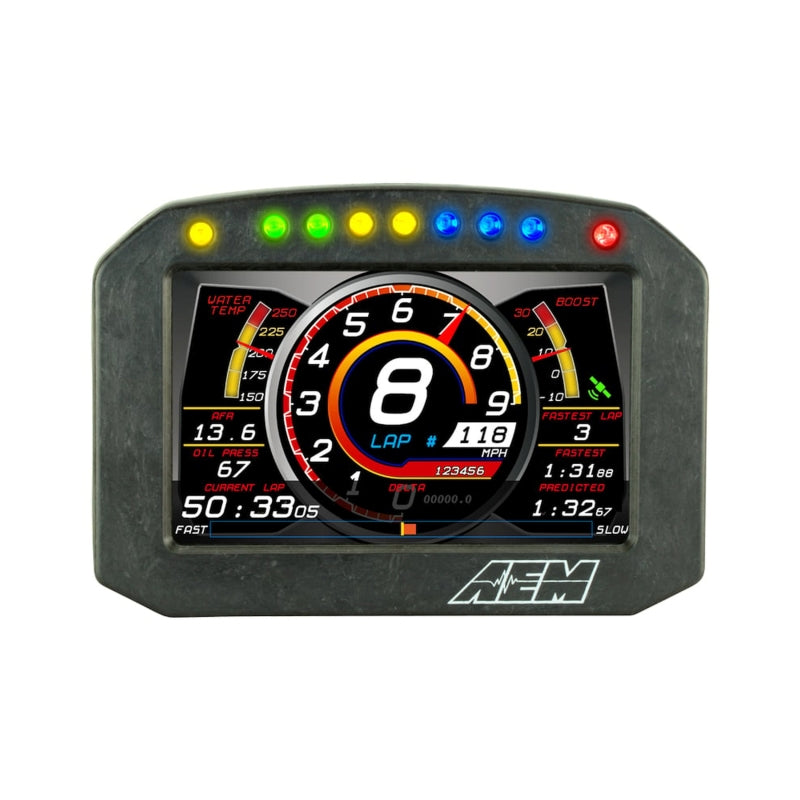

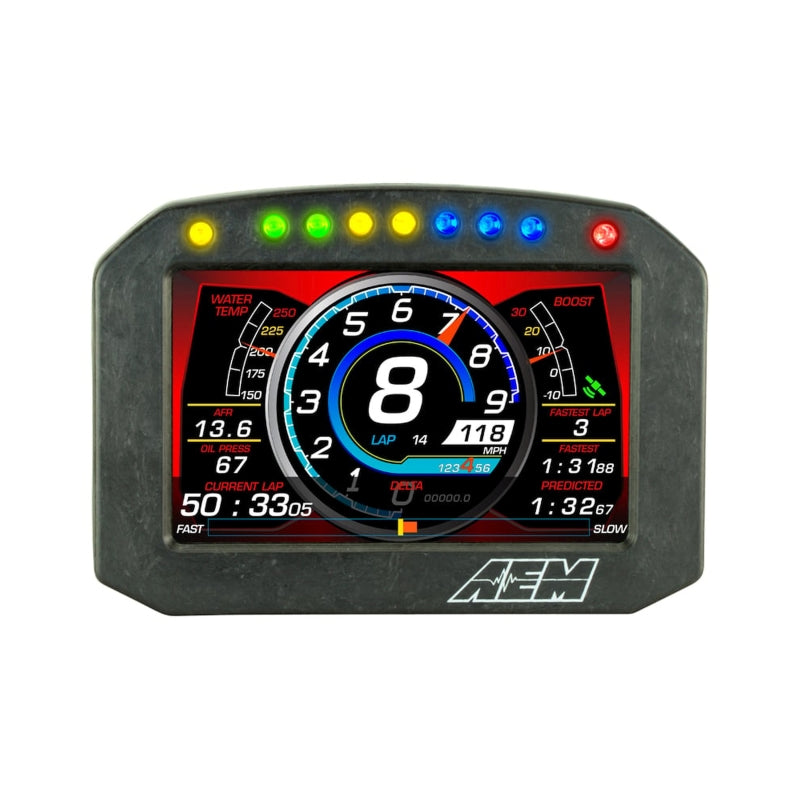

The 5-inch display provides clear, high-contrast information with an 800 x 480 resolution, direct-sunlight readability, and an anti-glare filter. Seven ultra-bright LEDs across the top of the enclosure function as programmable and dimmable RPM indicators or shift lights. Drivers can configure LED activation points and flashing behavior across the selected RPM range. Two additional programmable LEDs support custom alerts or status indications, while two switch inputs can display user-triggered events such as turn signals or high beams.

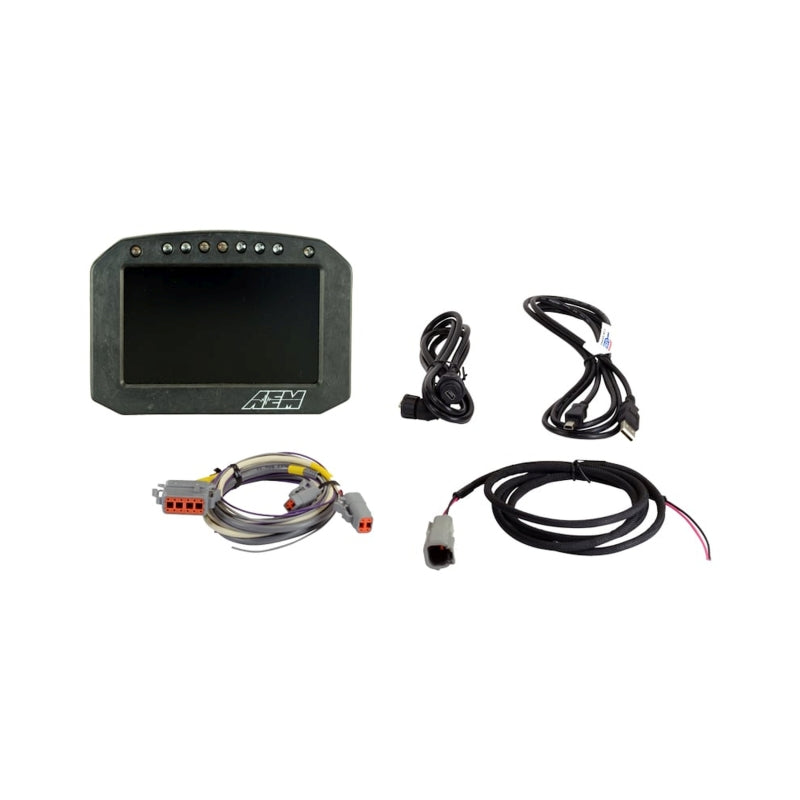

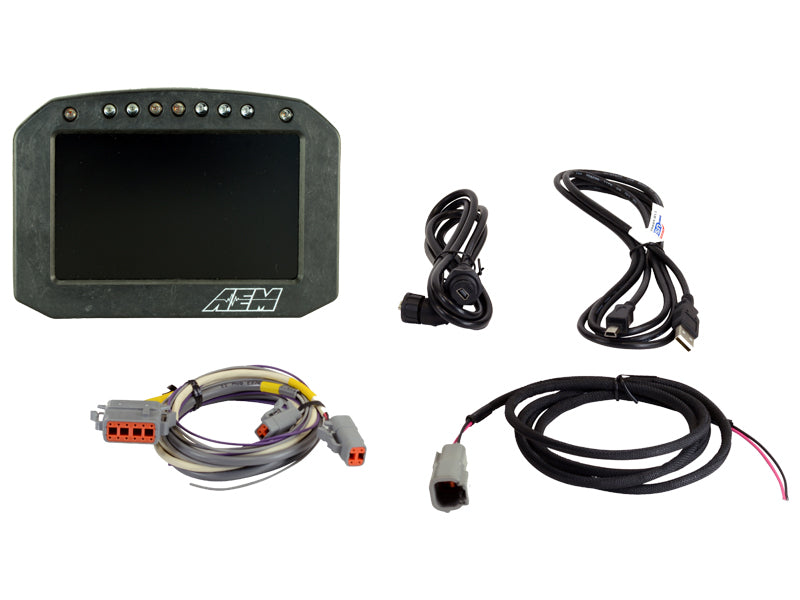

With CD-5L logging capability, the dash can record supported channels at rates up to 1,000 Hz per channel. It accepts data from AEMnet CAN-enabled devices and compatible non-AEM CAN bus devices, while included page layouts can be customized using AEM DashDesign Graphics Editor software. Seven programmable pages support main displays, alarms, on-change events, and startup information. The dedicated Alarm page, user-defined graphics, warning icons, channel-to-text conversion, and odometer function help provide flexible data presentation for racing and performance vehicles. A wiring harness is included. This display does not include buttons; the AEM Remote Button Kit, part number 30-3610, is sold separately and is required for page changes and memory clearing. Optional CAN modules and adapter cables expand compatibility with factory ECUs, aftermarket ECUs, additional temperature sensors, and other vehicle data sources.

Features:
