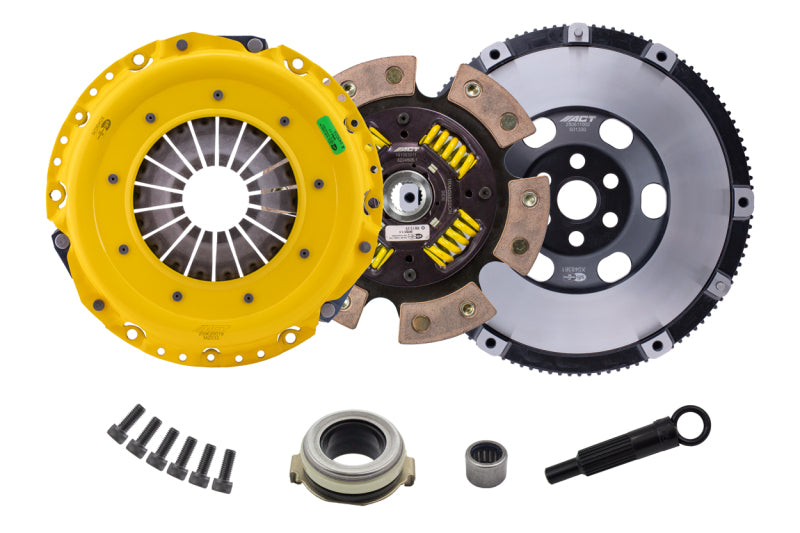

ACT 19-25 Mazda MX-5 Miata HD/Race Sprung 6 Pad Clutch Kit w/ Flywheel

ZM14-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat. HD/Race Sprung 6 Pad Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT ZM14-HDG6 clutch kit is engineered for drivers who need dependable performance, quick shifting, and increased durability from a high-performance Mazda MX-5 Miata clutch system. This Heavy Duty/Race Sprung 6-Pad kit combines ACT’s popular Heavy Duty pressure plate with a spring-centered race disc and flywheel for high-horsepower street or race applications. It is designed to provide light to moderate pedal effort while delivering aggressive engagement and responsive clutch operation.
ACT’s exclusive diaphragm design increases clamp load, reduces deflection, and helps maximize clutch service life. Each diaphragm undergoes a four-stage heat-treating process for consistent performance under demanding conditions. Precision cover stampings improve rigidity and consistency, while every pressure plate is clamp-load tested and dynamically computer balanced to support smooth, reliable operation at high RPM. Select ceramic friction materials provide high heat tolerance and help the clutch withstand demanding use.
The 6-pad, spring-centered race disc is designed to absorb more heat and resist failure during severe operation. Its spring-centered construction helps damp torsional vibrations, while ACT’s reinforced spring retainers use wraparound spring windows and thicker stampings to support the springs, reduce stress concentrations, and improve strength. Engagement is harsher than an original-equipment clutch, but the result is faster shifting and strong power transfer. The ACT ZM14-HDG6 is recommended for 2019-2020 Mazda MX-5 Miata applications and is backed by ACT’s one-year warranty. Follow all vehicle and installation requirements for proper fitment and operation.

Features:

• Heavy Duty pressure plate with an exclusive diaphragm design for increased clamp load, reduced deflection, and extended clutch life

• Four-stage heat-treated diaphragm supports consistent performance under high-demand conditions

• 6-pad, spring-centered race disc provides aggressive engagement, faster shifting, and increased heat capacity

• Reinforced spring retainers use wraparound spring windows and thicker stampings for improved strength and reliability

• Select ceramic friction materials deliver high heat tolerance for high-horsepower street or race use

• 100% clamp-load tested and dynamically computer balanced for smooth high-RPM reliability

• Includes flywheel and is designed for 2019-2020 Mazda MX-5 Miata applications

• Backed by ACT’s one-year warranty

Fitment:
Mazda MX-5 Miata 100th Anniversary Special Edition 2020
Mazda MX-5 Miata 35th Anniversary 2025
Mazda MX-5 Miata Club 2019
Mazda MX-5 Miata Club 2020
Mazda MX-5 Miata Club 2021
Mazda MX-5 Miata Club 2022
Mazda MX-5 Miata Club 2023
Mazda MX-5 Miata Club 2024
Mazda MX-5 Miata Club 2025
Mazda MX-5 Miata Grand Touring 2019
Mazda MX-5 Miata Grand Touring 2020
Mazda MX-5 Miata Grand Touring 2021
Mazda MX-5 Miata Grand Touring 2022
Mazda MX-5 Miata Grand Touring 2023
Mazda MX-5 Miata Grand Touring 2024
Mazda MX-5 Miata Grand Touring 2025
Mazda MX-5 Miata RF 100th Anniversary Special Edition 2020
Mazda MX-5 Miata RF Club 2019
Mazda MX-5 Miata RF Club 2020
Mazda MX-5 Miata RF Club 2021
Mazda MX-5 Miata RF Club 2022
Mazda MX-5 Miata RF Club 2023
Mazda MX-5 Miata RF Club 2024
Mazda MX-5 Miata RF Club 2025
Mazda MX-5 Miata RF Grand Touring 2019
Mazda MX-5 Miata RF Grand Touring 2020
Mazda MX-5 Miata RF Grand Touring 2021
Mazda MX-5 Miata RF Grand Touring 2022
Mazda MX-5 Miata RF Grand Touring 2023
Mazda MX-5 Miata RF Grand Touring 2024
Mazda MX-5 Miata RF Grand Touring 2025
Mazda MX-5 Miata Sport 2019
Mazda MX-5 Miata Sport 2020
Mazda MX-5 Miata Sport 2021
Mazda MX-5 Miata Sport 2022
Mazda MX-5 Miata Sport 2023
Mazda MX-5 Miata Sport 2024
Mazda MX-5 Miata Sport 2025
