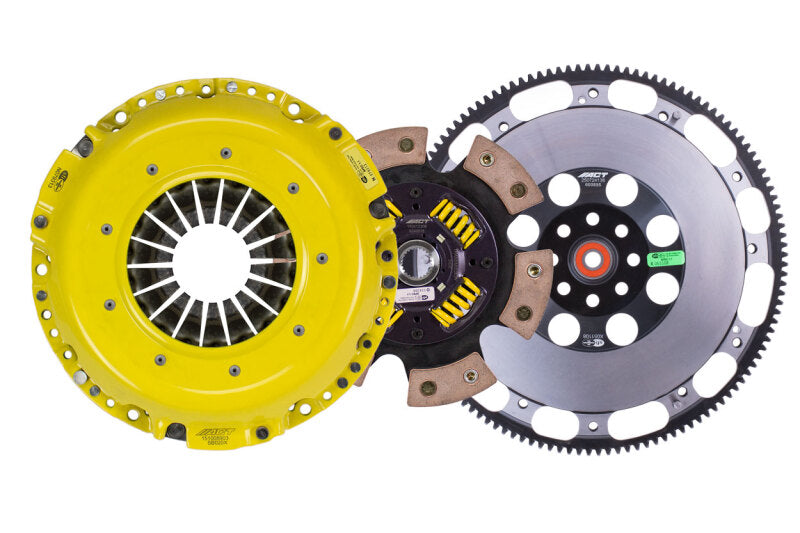

ACT 06-25 Subaru WRX XT/Race Sprung 6 Pad Clutch Kit

SB12-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT SB12-XTG6 clutch kit is designed for high-performance applications requiring maximum durability and aggressive engagement. Featuring an Xtreme pressure plate, this kit utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life, making it ideal for demanding street and race environments. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring consistent performance under high heat conditions. The precision cover stampings enhance rigidity and stability, providing reliable engagement and smooth operation. The kit includes a 6-pad spring-centered race disc with spring-center construction that effectively dampens torsional vibrations, reducing stress on drivetrain components and resisting failure during harsh conditions. The spring retainers are engineered with wraparound spring windows and thicker stampings to support springs better, decreasing stress concentrations and boosting overall strength and reliability. Although the engagement tends to be harsher, shifts are quicker, which benefits high horsepower applications. The 6-pad design is suitable for larger clutch sizes, helping absorb more heat generated during aggressive driving or racing. Made with carefully selected ceramic friction materials, the clutch offers high heat tolerance and maximum performance, with each component 100% clamp load tested and dynamically balanced to ensure smooth high RPM operation. This kit provides moderate to heavy pedal effort with aggressive engagement, making it suitable for enthusiasts seeking enhanced drivetrain responsiveness. Backed by a one-year warranty, the ACT SB12-XTG6 clutch kit is a dependable upgrade for Subaru models including the 2010-2012 Impreza and Legacy, ensuring high performance and durability under demanding conditions.

Features:

• Xtreme pressure plate with exclusive diaphragm design for increased clamp load and extended clutch life

• Four-stage heat-treated diaphragms for superior high heat performance

• Precision cover stampings enhance rigidity and consistency

• 6-pad spring-centered race disc with damping capability for torsional vibrations

• Wraparound spring retainers with thicker stampings for increased strength and reliability

• Aggressive engagement with faster shifting response

• Ceramic friction materials for high heat tolerance and maximum performance

• Dynamically computer balanced for smooth high RPM operation

• Suitable for high horsepower street or race use

• Backed by a one-year warranty ensuring quality and dependability

Fitment:
Subaru Baja Turbo 2006
Subaru Forester Sports 2.5 XT 2008
Subaru Forester XT Limited 2006
Subaru Forester XT Limited 2007
Subaru Forester XT Limited 2008
Subaru Impreza WRX 2006
Subaru Impreza WRX 2007
Subaru Impreza WRX 2008
Subaru Impreza WRX 2009
Subaru Impreza WRX 2010
Subaru Impreza WRX 2011
Subaru Impreza WRX 2012
Subaru Impreza WRX 2013
Subaru Impreza WRX 2014
Subaru Impreza WRX Limited 2006
Subaru Impreza WRX Limited 2007
Subaru Impreza WRX Limited 2010
Subaru Impreza WRX Limited 2011
Subaru Impreza WRX Limited 2012
Subaru Impreza WRX Limited 2013
Subaru Impreza WRX Limited 2014
Subaru Impreza WRX Premium 2009
Subaru Impreza WRX Premium 2010
Subaru Impreza WRX Premium 2011
Subaru Impreza WRX Premium 2012
Subaru Impreza WRX Premium 2013
Subaru Impreza WRX Premium 2014
Subaru Impreza WRX TR 2006
Subaru Impreza WRX TR 2007
Subaru Legacy 2.5GT 2010
Subaru Legacy 2.5GT 2011
Subaru Legacy 2.5GT 2012
Subaru Legacy GT 2005
Subaru Legacy GT 2006
Subaru Legacy GT Limited 2005
Subaru Legacy GT Limited 2007
Subaru Legacy GT Limited 2008
Subaru Legacy GT Limited 2009
Subaru Legacy GT spec.B 2006
Subaru Legacy GT spec.B 2007
Subaru Legacy GT spec.B 2008
Subaru Legacy GT spec.B 2009
Subaru Outback XT 2005
Subaru Outback XT 2006
Subaru Outback XT Limited 2005
Subaru Outback XT Limited 2006
Subaru Outback XT Limited 2007
Subaru Outback XT Limited 2008
Subaru Outback XT Limited 2009
Subaru WRX Base 2015
Subaru WRX Base 2016
Subaru WRX Base 2017
Subaru WRX Base 2018
Subaru WRX Base 2019
Subaru WRX Base 2020
Subaru WRX Base 2021
Subaru WRX Base 2022
Subaru WRX Base 2023
Subaru WRX Base 2024
Subaru WRX Limited 2015
Subaru WRX Limited 2016
Subaru WRX Limited 2017
Subaru WRX Limited 2018
Subaru WRX Limited 2019
Subaru WRX Limited 2020
Subaru WRX Limited 2021
Subaru WRX Limited 2022
Subaru WRX Limited 2023
Subaru WRX Limited 2024
Subaru WRX Limited 2025
Subaru WRX Premium 2015
Subaru WRX Premium 2016
Subaru WRX Premium 2017
Subaru WRX Premium 2018
Subaru WRX Premium 2019
Subaru WRX Premium 2020
Subaru WRX Premium 2021
Subaru WRX Premium 2022
Subaru WRX Premium 2023
Subaru WRX Premium 2024
Subaru WRX Premium 2025
Subaru WRX TR 2024
Subaru WRX TS 2025
