2023+ Sequoia 3-4" Stage 3 Suspension System

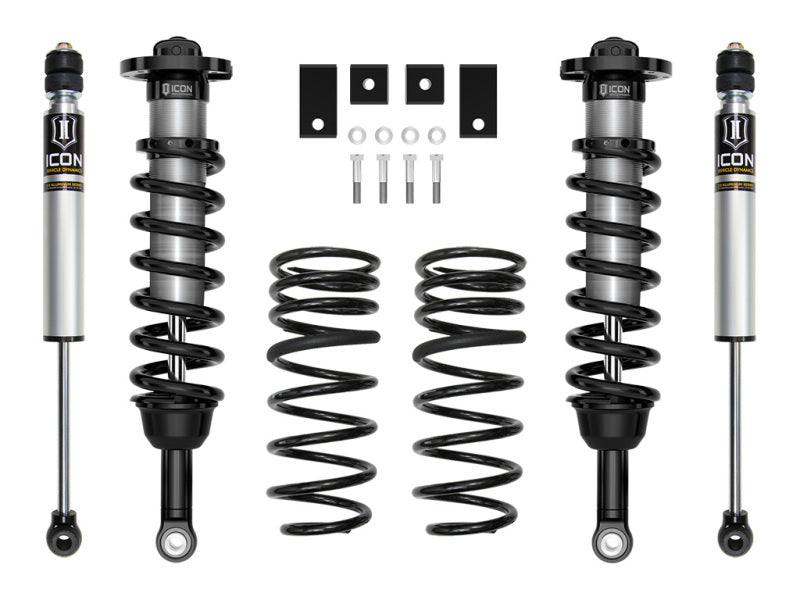

This Stage 3 system features the 2023-2025 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. The ICON Stage 3 suspension system for the Sequoia represents full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires. TECH NOTE: Most Sequoia submodels will have front lift height range of 3-3.75” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-1.75" over stock and remain at stock height in the rear. If taller rear ride heights are desired, consider kit part number K53233S.

• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs

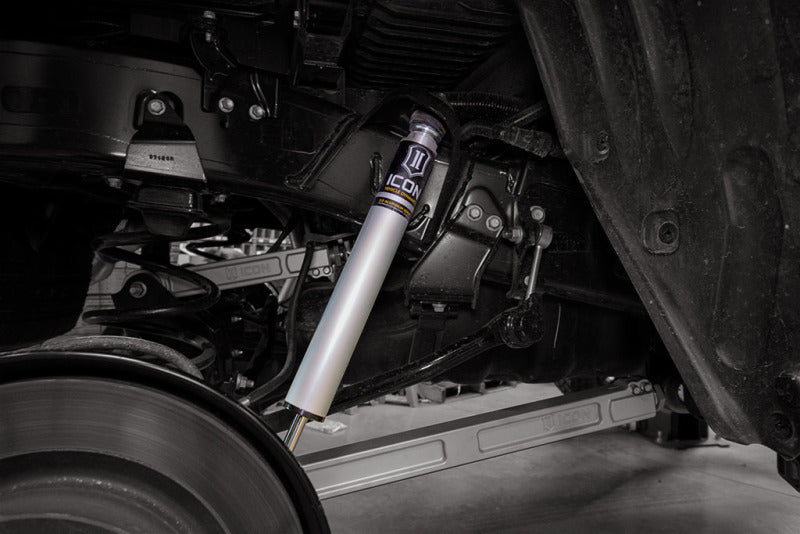

• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2023-2025 Toyota Sequoia

Upgrade your 2023-2025 Toyota Sequoia with the ICON Stage 3 suspension system, designed for optimal performance and aggressive styling. This comprehensive kit features high-performance 2.5 Series front coilovers with internal reservoirs, providing up to 3.75 inches of lift when used with OE upper control arms. The adjustable coilovers enable you to tailor the ride height to your preference, offering increased wheel travel—up to 40% more than stock—for enhanced off-road capability and improved handling on and off the pavement. The system's vehicle-specific shock length and valving ensure precise damping, superior control, and a smooth ride across diverse terrains. The included dual-rate rear coil springs allow for adjustable rear lift of up to 2 inches, improving the stance and accommodating larger tires, up to 35 inches in diameter. The rear shocks, built with a 2.0-inch aluminum body, deliver balanced tuning for both on-road comfort and off-road performance, complementing the front coilovers for a cohesive suspension upgrade.

Designed specifically for the 2023-2025 Toyota Sequoia, this full coilover suspension system enhances your vehicle’s off-road prowess while maintaining street comfort. The kit includes sway bar drop brackets to reduce bind and ensure smooth suspension articulation, along with all necessary mounting hardware. ICON’s shock absorbers are fully rebuildable and re-tunable, allowing for long-term maintenance and customization. Whether you're seeking a rugged off-road setup or a commanding on-road presence, this Stage 3 system provides the perfect balance of performance, adjustability, and durability for your Toyota Sequoia. Please note that the front lift height varies depending on the submodel, with most achieving between 3 and 3.75 inches, while models equipped with TRD packages may have a lower front lift range. For taller rear ride heights, consider additional modifications with kit part number K53233S.

Features:

• Dual rate rear coil springs improve ride quality and performance while providing up to 2 inches of rear lift

• Up to 40% increase in front wheel travel over stock for enhanced off-road capability

• Adjustable front ride height from 3 to 3.75 inches over stock with OE upper control arms

• 2.0-inch aluminum series rear shocks for balanced tuning and durability

• 2.5 Series front coilovers with internal reservoirs for superior damping and control

• Sway bar drop brackets to reduce bind and improve suspension articulation

• Allows full wheel travel without overstressing OE components

• All ICON shocks are fully rebuildable and re-tunable for long-term service

• Vehicle-specific design tailored for 2023-2025 Toyota Sequoia

Fitment:
Toyota Sequoia 1794 Edition 2025
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Capstone 2025
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Limited 2025
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia Platinum 2025
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Sequoia SR5 2025
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Sequoia TRD Pro 2025
