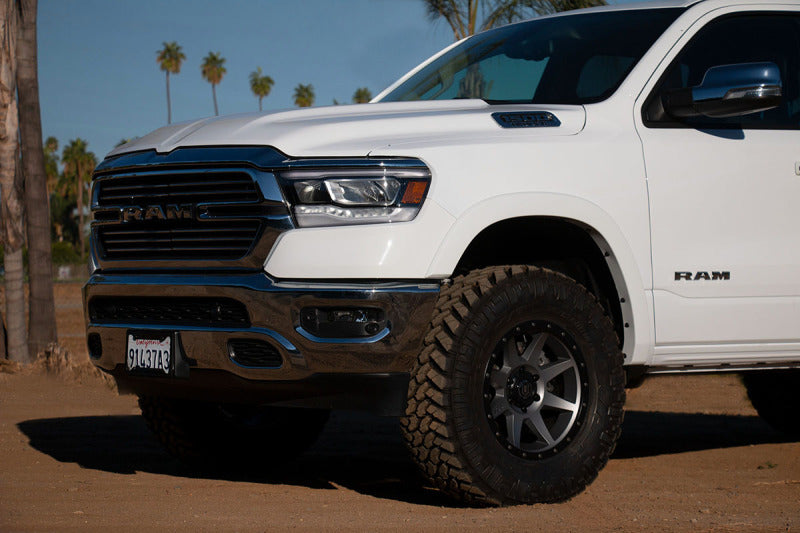

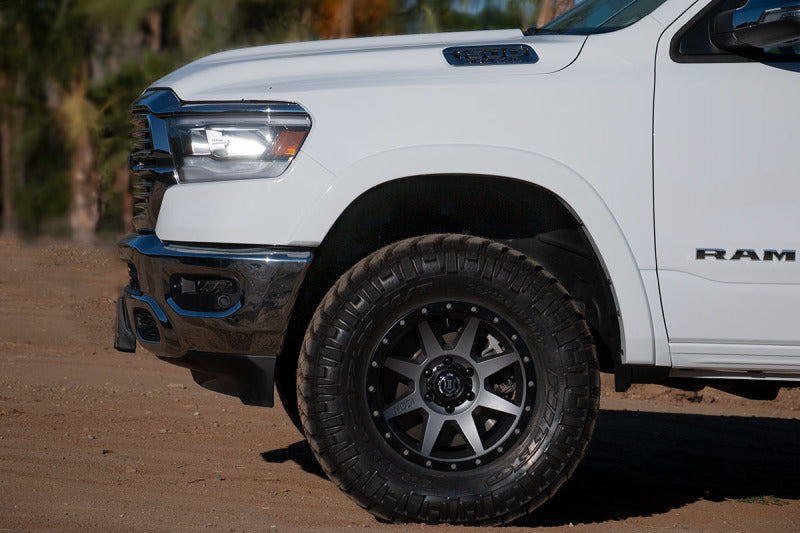

2019+ Ram 1500 2-3in. Stage 2 Suspension System w/ Billet Upper Control Arms

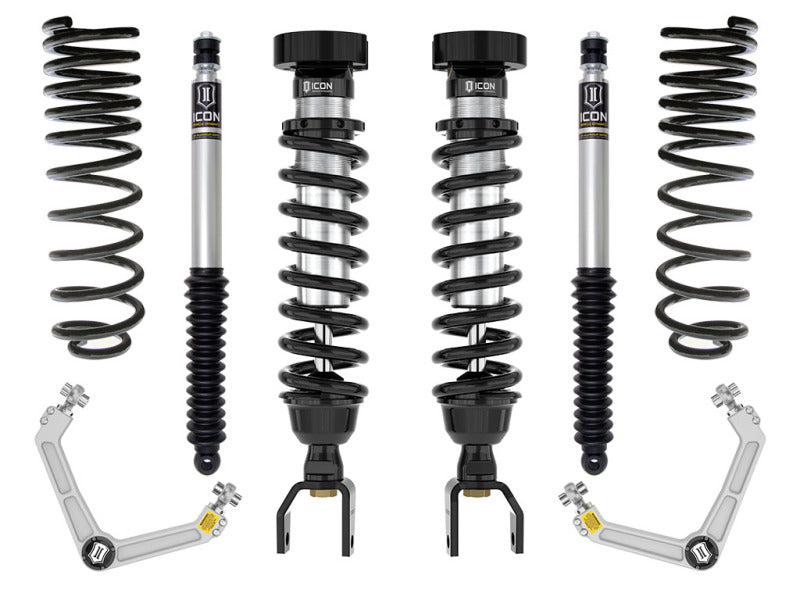

ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality. APPLICATION NOTE #183: May require sanding of coil bucket for clearance. Cycling suspension during install to verify clearance is recommended.

• Billet Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• Corrosion resistant, 2.5” diameter, CAD plated coilover shock bodies with 7/8" shafts
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable coilovers yield 2-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components

Upgrade your 2019-2023 Ram 1500 with the ICON Vehicle Dynamics Stage 2 suspension system designed for maximum performance and off-road capability. This system features vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs, providing exceptional cooling and damping for improved vehicle control and ride quality whether on paved roads or rugged trails. The coilovers are height adjustable, offering a 2-3 inch lift for increased ground clearance and the ability to run larger, more aggressive wheels and tires. ICON's coil springs and longer travel design enhance the truck’s handling, stability, and off-road performance, making it an ideal choice for serious drivers who demand durability and versatility. The system includes billet aluminum Delta Joint upper control arms, which add strength and durability while maintaining factory alignment specifications, with on-vehicle caster and camber adjustment for precise wheel alignment at the lifted height. The dual-rate rear coil springs provide a softer ride at the height spring rate with a firmer overload rate, ensuring comfort on the highway and resistance to bottoming out during off-road adventures. An additional 1.5 inches of rear lift levels the stance front to rear, complementing the front lift for a balanced look. ICON’s 2.0 Aluminum Series internal reservoir shocks feature custom tuning for optimized damping across the vehicle's range of motion, enhancing overall ride quality and control. This bolt-on system requires no drilling, cutting, or welding, simplifying installation and reducing downtime. Constructed from 6061 aircraft-grade aluminum with corrosion-resistant CAD plating, the components are built to endure tough conditions for years of reliable performance. Suitable for drivers seeking to improve their truck’s off-road capabilities without sacrificing on-road comfort, this suspension system is an excellent upgrade for the Ram 1500 pickup. Please note, some applications may require sanding of the coil bucket for clearance and cycling the suspension during installation to verify fitment.

Features:

• Billet aluminum Delta Joint upper control arms for added strength, durability, and on-vehicle adjustability

• Dual-rate rear coil springs improve ride quality and provide 1.5-inch rear lift

• Corrosion-resistant 2.5-inch diameter CAD plated coilover shocks with 7/8-inch shafts for durability and performance

• Vehicle-specific tuned front and rear shocks for superior damping and control

• Enhanced wheel travel and ride quality over stock without affecting towing capacity

• 2.0 Aluminum Series internal reservoir shocks with 5/8-inch polished shafts for optimized performance

• 100% bolt-on installation requiring no drilling, cutting, or welding

• FK rod end bearings for extended longevity and minimal deflection

• Adjustable coilovers provide 2-3 inches of front lift over stock

• Constructed from 6061 aircraft-grade aluminum with CNC machining for strength and precision

Fitment:
Ram 1500 Big Horn 2019
Ram 1500 Big Horn 2020
Ram 1500 Big Horn 2021
Ram 1500 Big Horn 2022
Ram 1500 Big Horn 2023
Ram 1500 HFE 2019
Ram 1500 HFE 2020
Ram 1500 HFE 2021
Ram 1500 HFE 2022
Ram 1500 HFE 2023
Ram 1500 Laramie 2019
Ram 1500 Laramie 2020
Ram 1500 Laramie 2021
Ram 1500 Laramie 2022
Ram 1500 Laramie 2023
Ram 1500 Laramie Longhorn 2019
Ram 1500 Laramie Longhorn 2020
Ram 1500 Laramie Longhorn 2021
Ram 1500 Limited 2019
Ram 1500 Limited 2020
Ram 1500 Limited 2021
Ram 1500 Limited 2022
Ram 1500 Limited 2023
Ram 1500 Limited Longhorn 2021
Ram 1500 Limited Longhorn 2022
Ram 1500 Limited Longhorn 2023
Ram 1500 Lone Star 2019
Ram 1500 Lone Star 2020
Ram 1500 Lone Star 2021
Ram 1500 Lone Star 2022
Ram 1500 Lone Star 2023
Ram 1500 Longhorn 2021
Ram 1500 Rebel 2019
Ram 1500 Rebel 2020
Ram 1500 Rebel 2021
Ram 1500 Rebel 2022
Ram 1500 Rebel 2023
Ram 1500 Special Service 2020
Ram 1500 Special Service 2021
Ram 1500 Tradesman 2019
Ram 1500 Tradesman 2020
Ram 1500 Tradesman 2021
Ram 1500 Tradesman 2022
Ram 1500 Tradesman 2023
