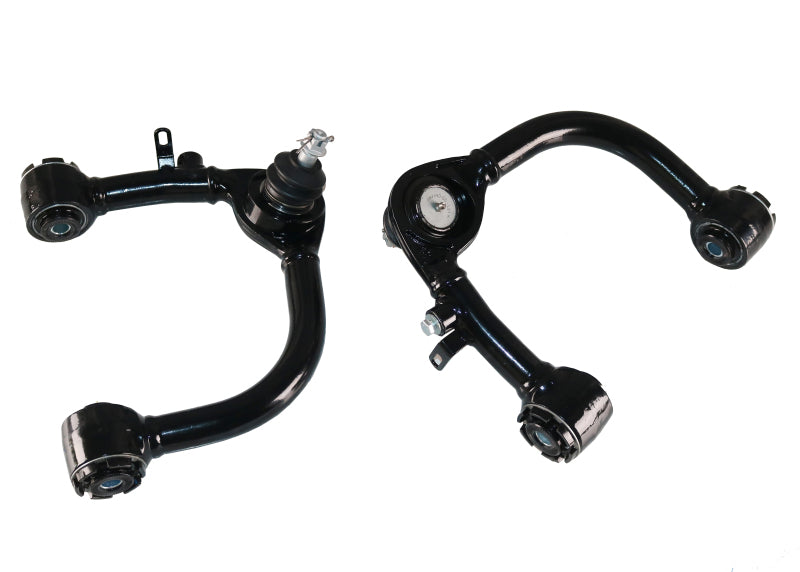

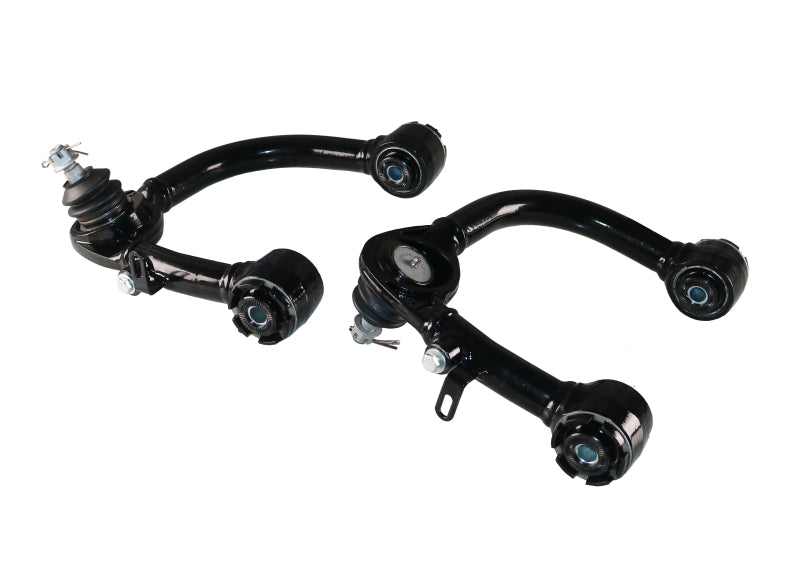

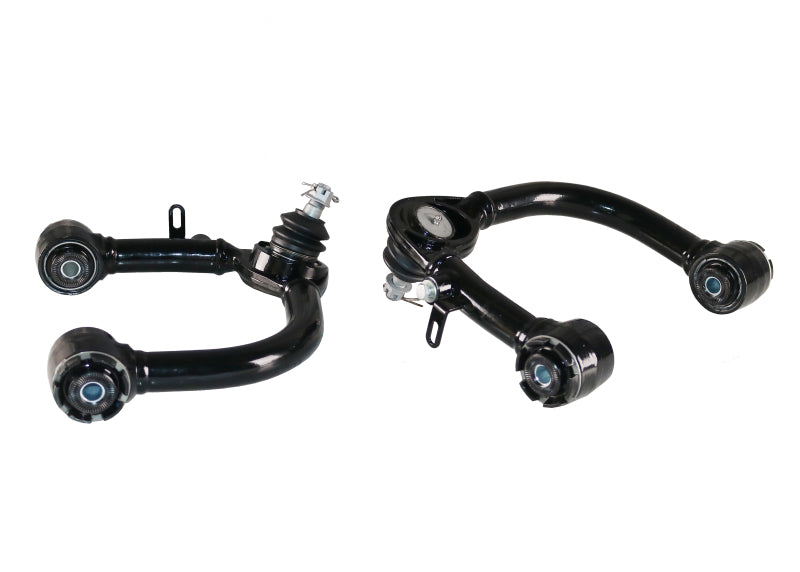

Whiteline 98-07 Lexus LX470 / 98-07 Toyota Land Cruiser Control Arms - Front Upper

A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology. Whiteline Adjustable Front Upper Control Arm

• Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Integrated mounting points allow secure routing of OEM ABS lines and AHC ride height sensors, ensuring proper function of factory safety and suspension systems.
• Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
• Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.

Whiteline KTA310 Adjustable Front Upper Control Arms provide a practical alignment solution for lifted 4WD vehicles using modern independent front suspension. Designed for vehicles lifted approximately 1.2 to 2.8 inches, these offset upper control arms help address common caster, camber, ball joint articulation, and coilover clearance concerns caused by suspension lift. The result is a broader alignment adjustment range and improved suspension geometry for street, trail, and off-road applications.
The Whiteline adjustable front upper control arms are engineered to optimize caster alignment, helping maximize tire contact during body roll, improve turn-in response, and increase directional stability. Based on an approximately 2-inch lift, the arms can provide roughly 2.5 to 3.5 degrees of additional caster and up to 1.5 degrees of negative camber adjustment. Actual results may vary depending on vehicle setup, lift height, suspension components, and alignment specifications.
Each arm features maintenance-free GIIRO bushing technology to promote increased articulation and improved clearance between the control arm and coilover strut at both ride and droop height. Integrated mounting points support secure routing of original equipment ABS lines and AHC ride-height sensors, helping preserve the operation of factory braking, safety, and suspension systems. A durable protective powder-coat finish forms a hard, corrosion-resistant surface designed to withstand demanding driving conditions.
Designed for select 1998-2007 Lexus LX470 and Toyota Land Cruiser applications, the Whiteline KTA310 control arms provide a dependable way to correct or optimize front wheel alignment after lifting the vehicle. Professional installation and a complete wheel alignment are recommended after installation to ensure proper suspension performance and tire wear.

Features:

• Adjustable front upper control arms designed for lifted independent front suspension vehicles

• Supports approximately 1.2 to 2.8 inches of lift

• Provides an expanded window of adjustment for correcting or optimizing front wheel alignment

• Offers approximately 2.5 to 3.5 degrees of additional caster and up to 1.5 degrees of negative camber adjustment at an approximate 2-inch lift

• Improves coilover strut clearance and upper control arm articulation at ride and droop height

• Maintenance-free GIIRO bushing technology enhances articulation and durability

• Integrated mounting points allow secure routing of original equipment ABS lines and AHC ride-height sensors

• Engineered to improve tire contact during body roll, turn-in response, and directional stability

• Protective powder-coat finish resists corrosion and harsh operating conditions

• Fits select 1998-2007 Lexus LX470 and Toyota Land Cruiser models

Fitment:
Lexus LX470 Base 1998
Lexus LX470 Base 1999
Lexus LX470 Base 2000
Lexus LX470 Base 2001
Lexus LX470 Base 2002
Lexus LX470 Base 2003
Lexus LX470 Base 2004
Lexus LX470 Base 2005
Lexus LX470 Base 2006
Lexus LX470 Base 2007
Toyota Land Cruiser Base 1998
Toyota Land Cruiser Base 1999
Toyota Land Cruiser Base 2000
Toyota Land Cruiser Base 2001
Toyota Land Cruiser Base 2002
Toyota Land Cruiser Base 2003
Toyota Land Cruiser Base 2004
Toyota Land Cruiser Base 2005
Toyota Land Cruiser Base 2006
Toyota Land Cruiser Base 2007
