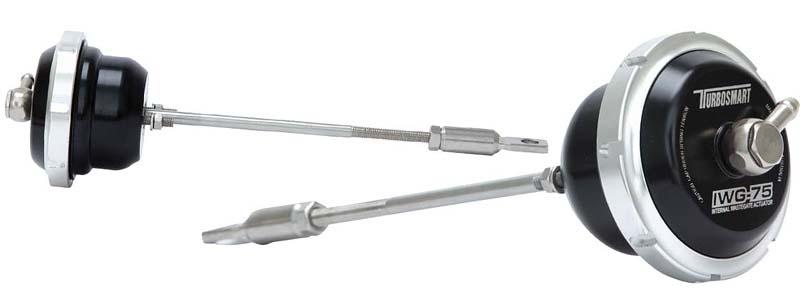

Turbosmart IWG75 Mitsubishi EVO 6-8 22 PSI Black Internal Wastegate Actuator

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response throughout the RPM range. Mitsubishi Evo Internal Wastegate Actuator (IWG) provides better turbo response and greater sensitivity when managing boost pressures. This is a bolt-on fitment for the TD05H turbocharger as the fitted factory to the 46G3 Powered Mitsubishi Evolution 4-8. 14 psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.

• Choice of Springs from 3psi to 26psi (Optional)
• High-Grade Billet Aluminum Construction
• Turbosmart Unique Locking Collar System
• Proprietary Silicon Nomex Diaphragm
• Stainless Steel Rods and Clevis

Upgrade your Mitsubishi Evolution 4-8 turbocharger with the Turbosmart IWG75 Series Internal Wastegate Actuator, designed to deliver rapid boost response and enhanced control. Constructed from high-grade billet aluminum, this actuator features a proprietary silicon Nomex diaphragm and stainless steel rods and clevis for durability and precision. Its unique locking collar system ensures secure installation and consistent performance. This direct-fit component replaces the factory internal wastegate on TD05H turbochargers, commonly found on 2003-2005 Mitsubishi Lancer Evolution models, providing a reliable upgrade for improved turbo response. The IWG75 actuator is adjustable with a choice of springs from 3 psi up to 26 psi, allowing for customizable boost levels based on your tuning needs. The 22 PSI version offers a significant boost increase over stock, making it suitable for enthusiasts seeking more power while maintaining OEM fitment and functionality. The design emphasizes quick boost response across the entire RPM range, promoting better throttle response and more precise boost management. Installation is straightforward for those familiar with turbocharger components, but tuning or calibration of the engine’s ECU may be required when selecting non-stock spring options. This product is not CARB approved, and proper acknowledgement of Prop 65 regulations is necessary. Whether you're upgrading for performance or reliability, the Turbosmart IWG75 Wastegate Actuator provides a robust solution to optimize your Mitsubishi Evolution's turbocharging capabilities.

Features:

• High-grade billet aluminum construction for durability

• Proprietary silicon Nomex diaphragm for reliable boost control

• Stainless steel rods and clevis for longevity

• Turbosmart unique locking collar system for secure fitment

• Adjustable spring options from 3 psi to 26 psi for customizable boost levels

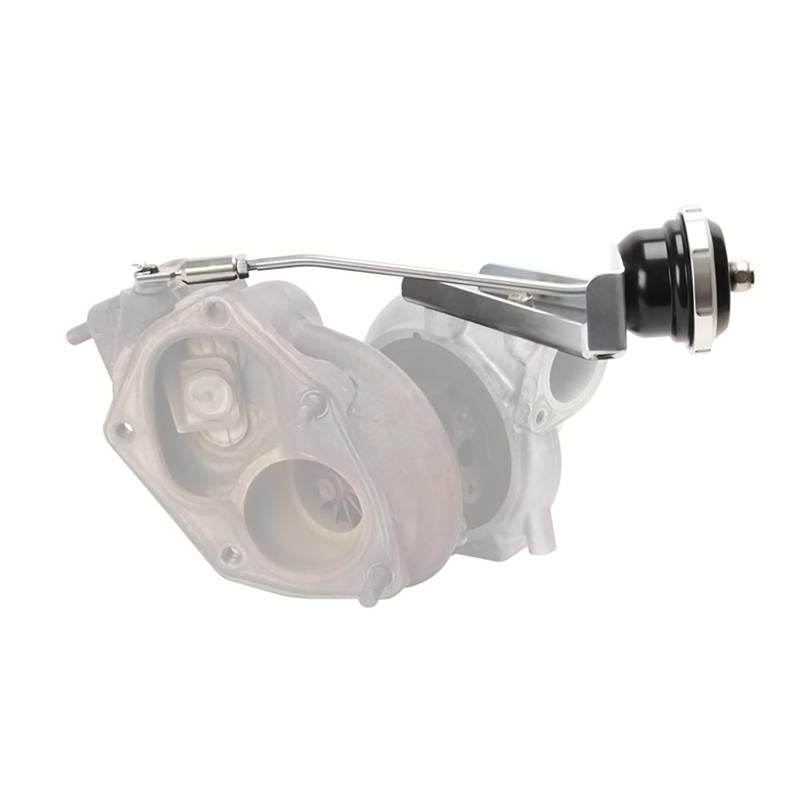

• Direct bolt-on replacement for factory internal wastegate on TD05H turbochargers

• Designed for Mitsubishi Evolution 4-8 models with factory fitment

• Enhances turbo response and sensitivity across RPM range

• Requires ECU tuning when using non-stock spring configurations

Fitment:
Mitsubishi Lancer Evolution 2003
Mitsubishi Lancer Evolution 2004
Mitsubishi Lancer Evolution 2005
Mitsubishi Lancer Evolution MR 2005
Mitsubishi Lancer Evolution RS 2005
