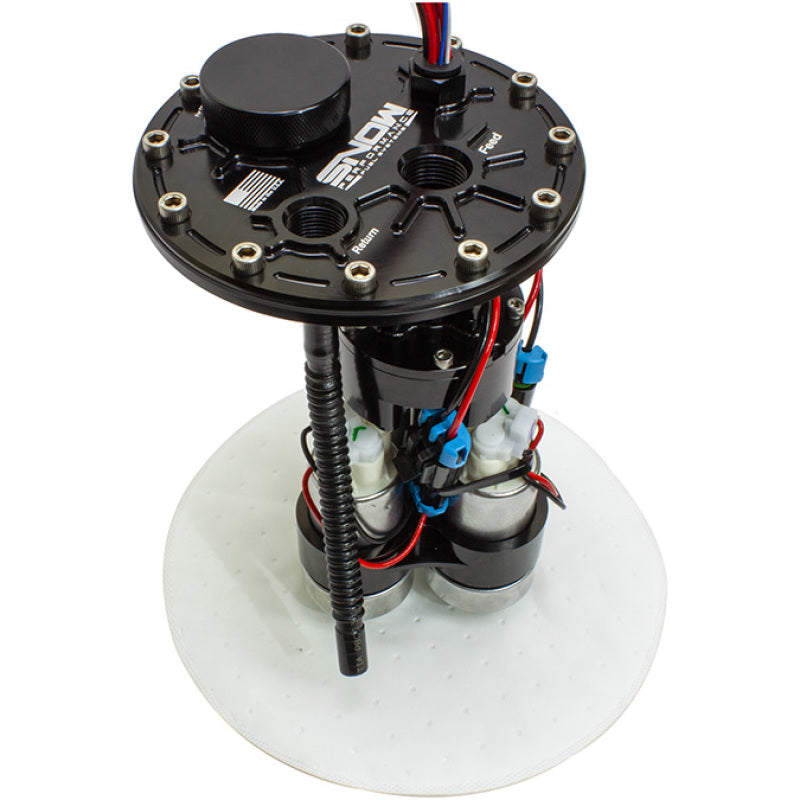

Snow Performance Universal 15-20 Gallon 12 Hole Fuel Cell Hat Xtreme Version (3 Pump)

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). 3 Pump Xtreme Configuration (Three 490lph 535 pumps). This configuration can support 1900+ on E85 and up to 2500 rwhp on gasoline. This configuration is designed for max/effort/flow. (All 3 pumps MUST run at the same time! If all 3 pumps are not running at the same time, you will see pressure issues because it will backfeed through the remaining unpowered pump (s). If you are looking to stage your pumps, this Xtreme configuration will not work. You will need to run our 3 Pump Race, 3 Pump Street, or 2 Pump Street.)

• Does NOT include Fuel Level Sending Unit. Does NOT Include Fittings.
• Includes Wiring Harnesses for pumps and fuel level sending unit.

Upgrade your vehicle's fuel delivery with the Snow Performance SNO-SNF-52910X Multi-Pump Fuel Hat Xtreme Version, engineered for maximum flow and reliability. Crafted from durable 6061 billet aluminum with a black anodized finish, this assembly offers superior corrosion resistance and durability, making it suitable for E85 and other aggressive fuels. Its CNC machined passages ensure precise fuel flow, eliminating the need for T-fittings, hoses, and clamps, which can deteriorate over time and cause leaks. The design securely holds genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450 LPH or 470 LPH, providing OE-level reliability for high-performance applications. The fuel hat replaces your factory unit seamlessly, retaining essential features such as the factory fuel level sending unit, EVAP system, and filler neck, while supporting saddle-style tanks with fuel transfer pump functionality. The assembly features female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters sold separately for customizable line routing. Configurable with two or three pumps, the three-pump Extreme configuration supports over 1900+ horsepower on E85 and up to 2500+ horsepower on gasoline, ideal for maximum effort and flow. All three pumps must operate simultaneously to prevent pressure issues; staging configurations are not supported with this setup. The kit includes wiring harnesses for the pumps and fuel level sender, simplifying installation. Please note, this product does not include the fuel level sending unit or fittings. Designed for return-style fuel systems, this assembly is compatible with gasoline, ethanol blends up to E98, and other fuel types, ensuring versatility for high-performance builds. Built in the USA, the Snow Performance Fuel Hat Xtreme Version combines precision engineering, high-quality materials, and robust construction to meet demanding fuel delivery needs in racing and high-performance street applications.

Features:

• Constructed from 6061 billet aluminum with black anodized finish for durability and corrosion resistance

• CNC machined passages for precise fuel flow, eliminating hoses and clamps

• Securely holds genuine TI Automotive (Walbro) fuel pumps with optional flow rates of 450 LPH or 470 LPH

• Supports configurations with 2 or 3 pumps for maximum horsepower capacity

• Supports return-style fuel systems compatible with gasoline and ethanol blends up to E98

• Includes wiring harnesses for pumps and fuel level sending unit, simplifying installation

• s female 10AN ORB feed and 8AN ORB return ports; optional 90-degree swivel adapters available

• Retains factory fuel system features including fuel level sender, EVAP system, and filler neck

• Designed for high-performance racing and street applications, supporting up to 2500+ horsepower
