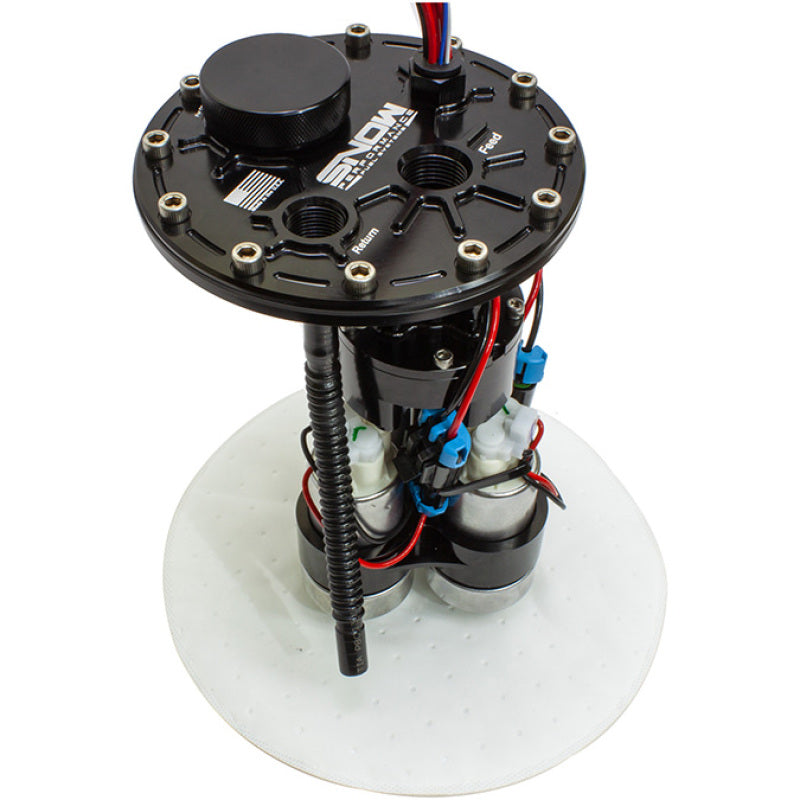

Snow Performance Universal 10 Gallon 12 Hole Fuel Cell Hat Xtreme Version (3 Pump)

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). 3 Pump Xtreme Configuration (Three 490lph 535 pumps). This configuration can support 1900+ on E85 and up to 2500 rwhp on gasoline. This configuration is designed for max/effort/flow. (All 3 pumps MUST run at the same time! If all 3 pumps are not running at the same time, you will see pressure issues because it will backfeed through the remaining unpowered pump (s). If you are looking to stage your pumps, this Xtreme configuration will not work. You will need to run our 3 Pump Race, 3 Pump Street, or 2 Pump Street.)

• Does NOT include Fuel Level Sending Unit. Does NOT Include Fittings.
• Includes Wiring Harnesses for pumps and fuel level sending unit.

Upgrade your vehicle's fuel delivery system with the Snow Performance SNO-SNF-52900X Fuel Cell Hat, designed for high-performance applications. Crafted from durable 6061 billet aluminum with a black anodized finish, this fuel hat offers superior corrosion resistance and longevity. Its CNC-machined passages ensure a precise, leak-free fit and eliminate the need for rubber hoses and clamps, simplifying installation and reducing potential failures. This assembly replaces the factory fuel hat/bucket, preserving essential features like the OE fuel level sending unit, EVAP system, and filler neck, making it compatible with saddle tanks and transfer pump systems. The fuel hat features female 10AN ORB feed and 8AN ORB return ports, with optional swivel adapters available separately to customize line connections according to your setup. The configuration supports up to three genuine TI Automotive (Walbro) fuel pumps, with flow rates of 450LPH or 470LPH, providing reliable high flow for demanding applications. The three-pump Xtreme setup, with three 490LPH pumps, can support over 1900 horsepower on E85 and up to 2500 horsepower on gasoline, making it ideal for serious racing or high-output builds. It is important to note that all pumps in this configuration must operate simultaneously to maintain proper pressure and avoid backfeeding issues. The assembly is designed exclusively for return-style fuel systems and is compatible with gasoline, ethanol blends up to E98, and other harsh fuels. Included are wiring harnesses for pumps and the fuel level sending unit, but fittings and the fuel level sensor are sold separately. This product is not CARB compliant and is intended for off-road or racing use only. Built in the USA, the Snow Performance Fuel Hat combines high-quality materials, innovative engineering, and performance to meet the demands of high horsepower vehicles.

Features:

• Constructed from 6061 billet aluminum with black anodized finish for durability and corrosion resistance

• CNC-machined passages for precise, leak-free fit and elimination of hoses and clamps

• Supports up to three genuine TI Automotive (Walbro) fuel pumps with flow rates of 450LPH or 470LPH

• Supports high horsepower applications with a maximum of over 1900 horsepower on E85

• Includes wiring harnesses for pumps and fuel level sending unit, with fittings sold separately

• Replaces factory fuel hat/bucket while maintaining factory features like OE fuel level sensor and EVAP system

• Compatible with gasoline, ethanol blends up to E98, and other harsh fuels

• Designed for return-style fuel systems only, not suitable for returnless applications

• Supports configurations with two or three pumps for customizable fuel delivery

• Built in the USA for high performance, quality assurance, and reliability
